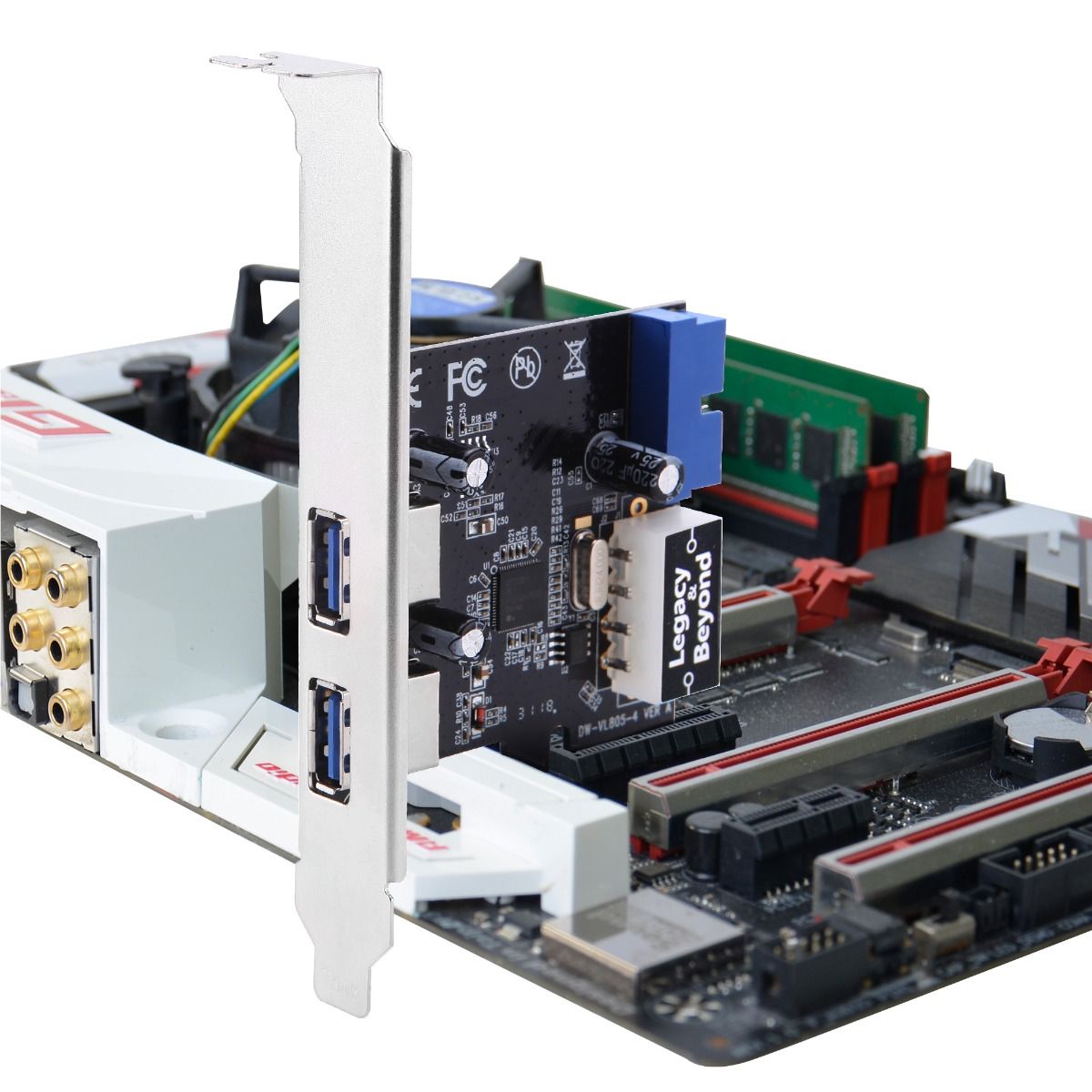

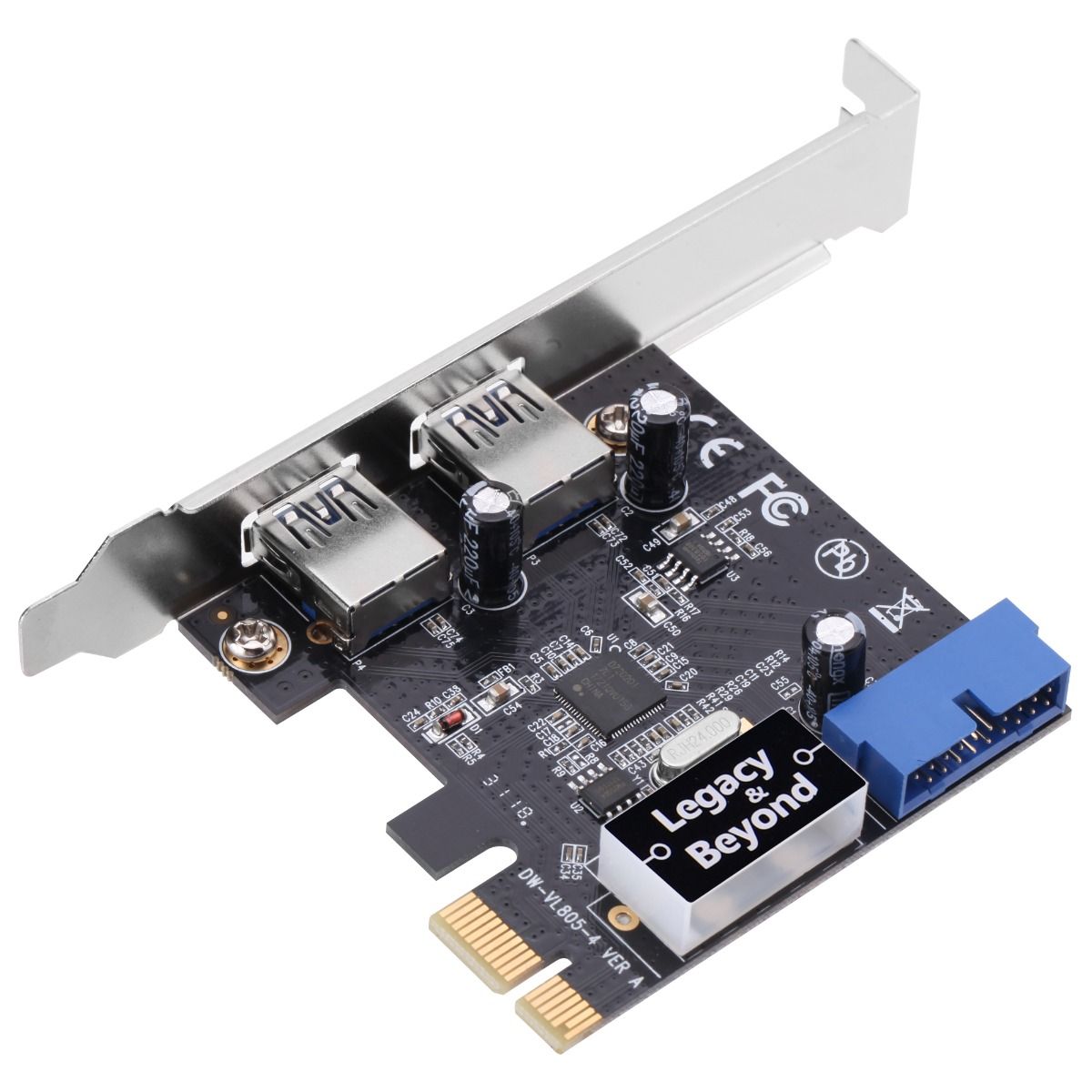

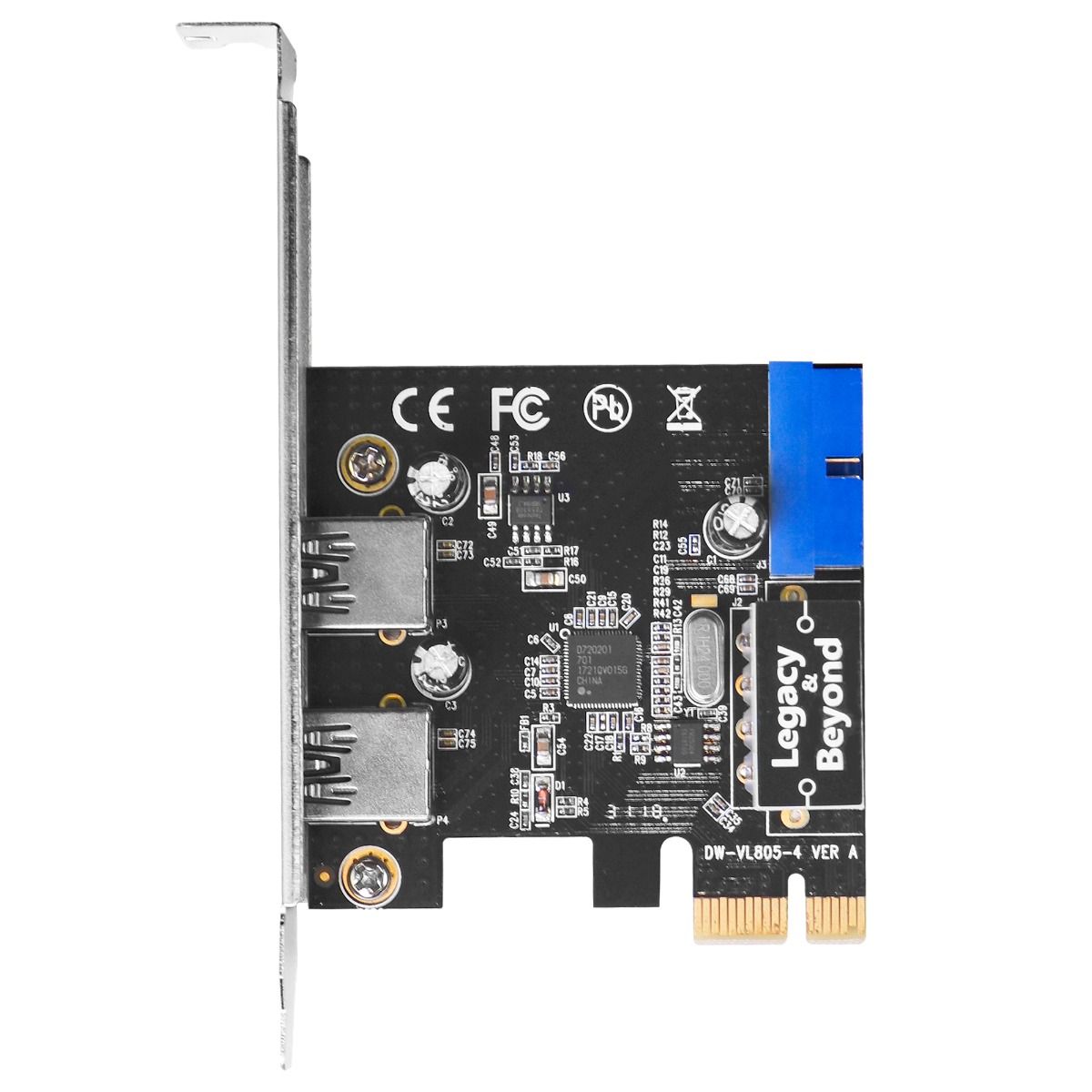

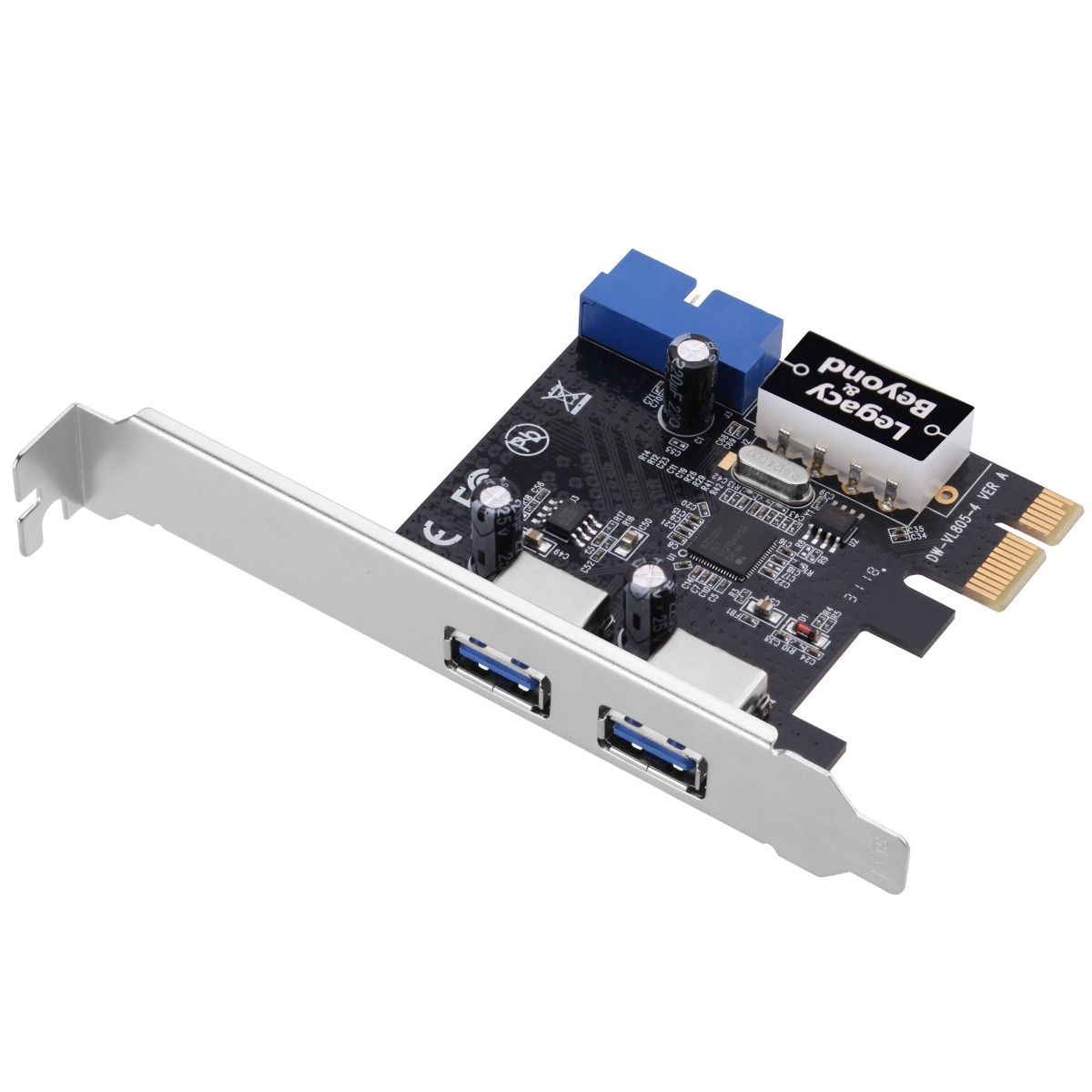

USB 3.0 4-Port (2-Ext plus19-pin header) PCIe Host Card

Adds four USB 3.0 ports (2 external + 2 via internal 19-pin USB header) to your PCIe enabled desktop computer
In stock
Quantity in stock: 691
SKU
LB-US0214-S1
$29.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    • Quickly adds two external USB 3.0 ports and 2 USB 3.0 ports via internal 19-pin USB header through an available PCI Express slot for connecting a variety of external USB devices
    • Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
    • Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
    • Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
    • Built-in 19-pin header allows expanding to another two USB 3.0 ports
    • Installs into standard height or low profile system chassis with the included brackets

    Specifications

    • Chipset: Renesas µPD720201
    • Bus connector: PCI Express x1
    • Version: PCI Express 2.0
    • Data transfer rate: Up to 5Gbps
    • USB power output: Up to 900mA
    • Connectors:
      • External:
        • 2 x 9-pin USB 3.0 Type A, Female
      • Internal:
        • 1 x 4-pin Molex power connector
        • 1 x 19-pin USB 3.0 header
    • Product:
      • Dimensions: 4.72" (L) x 3.54" (W) x 0.79" (D)
      • Weight: 0.10 lbs
      • Color: Black
    • Environmental conditions:
      • Operating temperature: 32 to 140 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 1 year limited
    • Country of origin: China

    System Requirements

    • Desktop PC with one available PCI Express (PCIe) slot
    • Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
    • Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
      • Note: Molex power connection is required

    Package contents

    • USB 3.0 4-Port (2-Ext plus 19-pin header) PCIe Host Card
    • Spare Low profile bracket
    • Driver CD
    • Installation guide

Drivers


Hardware Version: 2

Windows® 10 (32-/64-bit) / 8.x (32-/64- bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit); Windows Server 2012 R2 / 2012 (32-/64- bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
Download Driver
Version: 3.0.23.0


Hardware Version: 1

Windows® 10 (32-/64-bit) / 8.x (32-/64- bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit); Windows Server 2012 R2 / 2012 (32-/64- bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
Windows® 10 (32-/64-bit) / 8.x (32-/64- bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit); Windows Server 2012 R2 / 2012 (32-/64- bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
Download Driver
Version: 3.0.23.0
