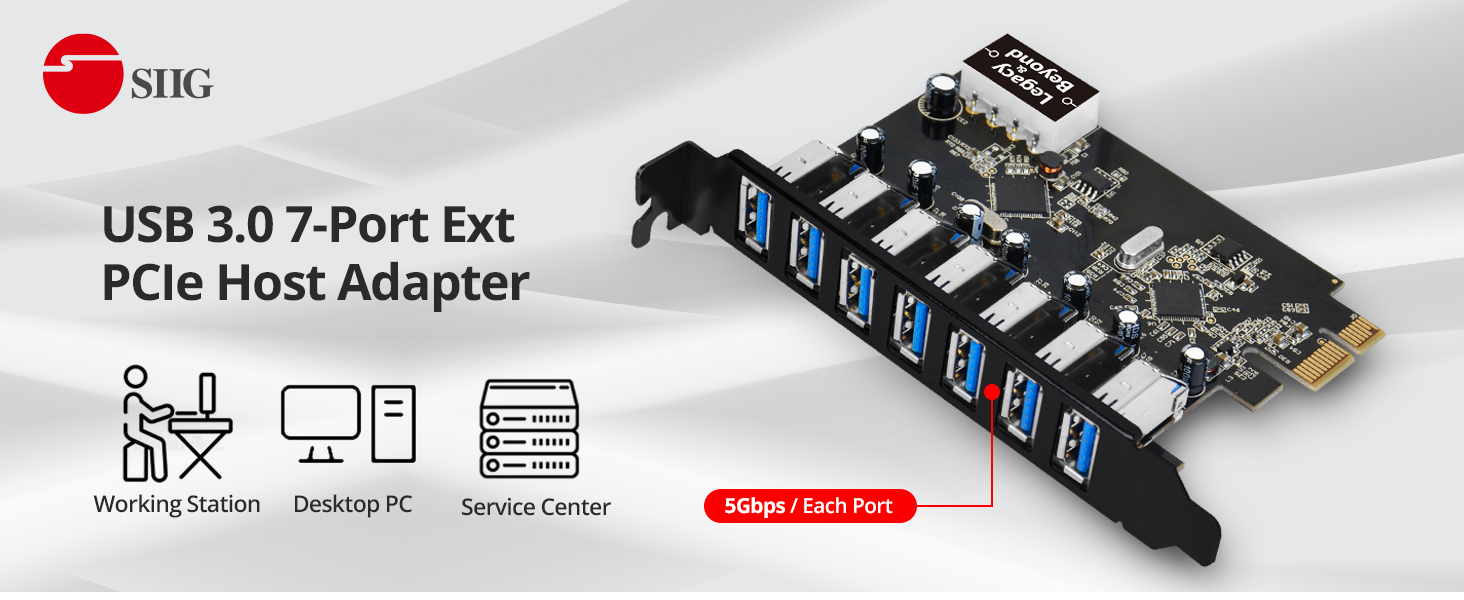

USB 3.0 7-Port Ext PCIe Host Adapter

Adds seven USB 3.0 ports to your PCIe enabled desktop computer
In stock
Quantity in stock: 232
SKU
LB-US0514-S1
$59.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    • Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
    • Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
    • Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
    • Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices

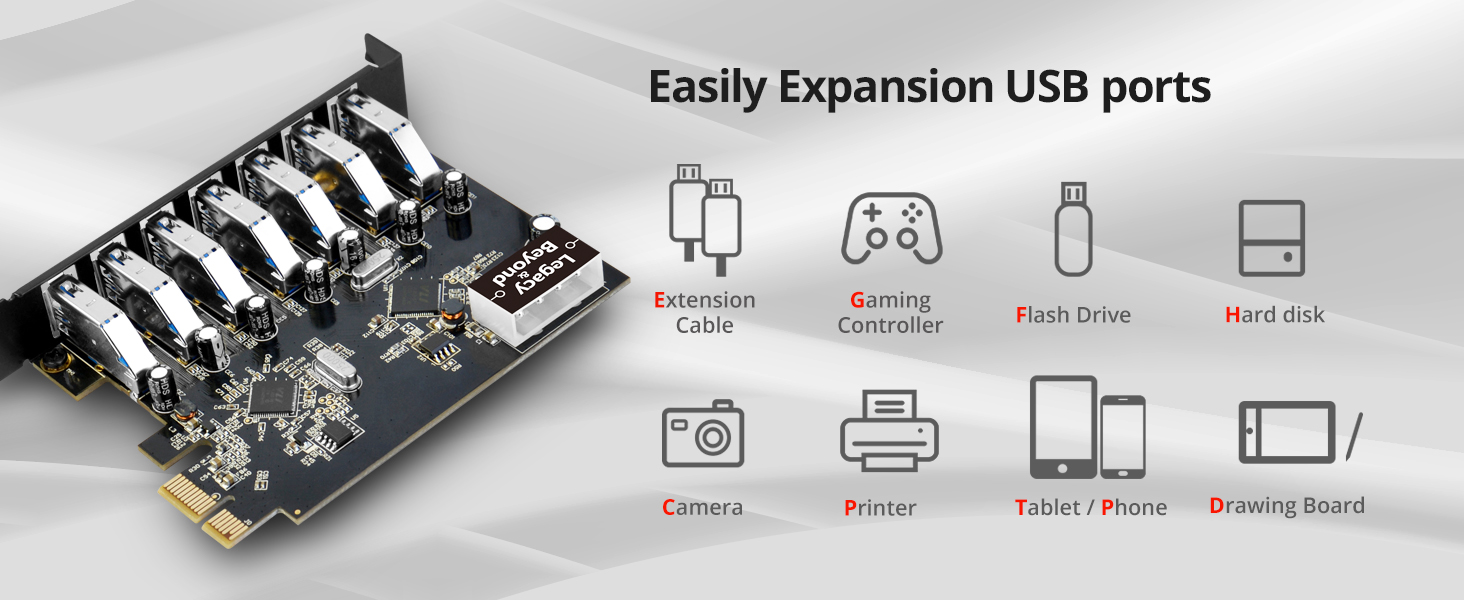

    • Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out

    Specifications

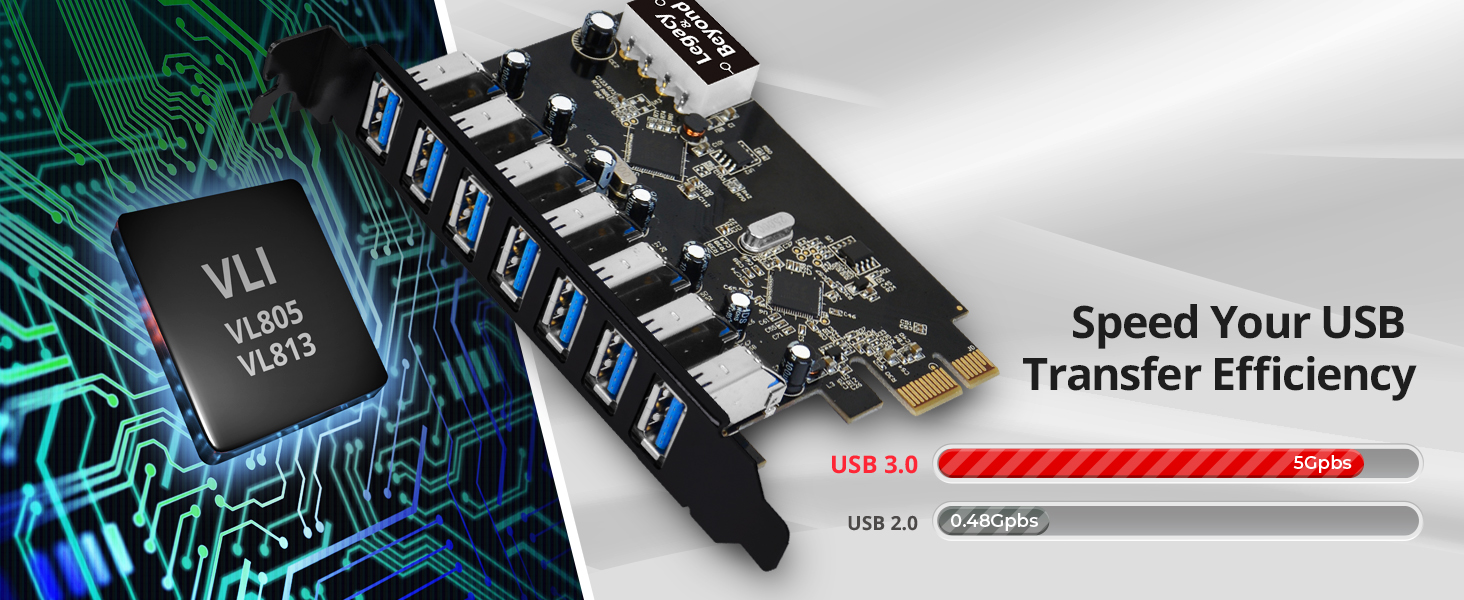

    • Chipset: VIA VL805 + VL813
    • Compliant with USB 3.0 Specification

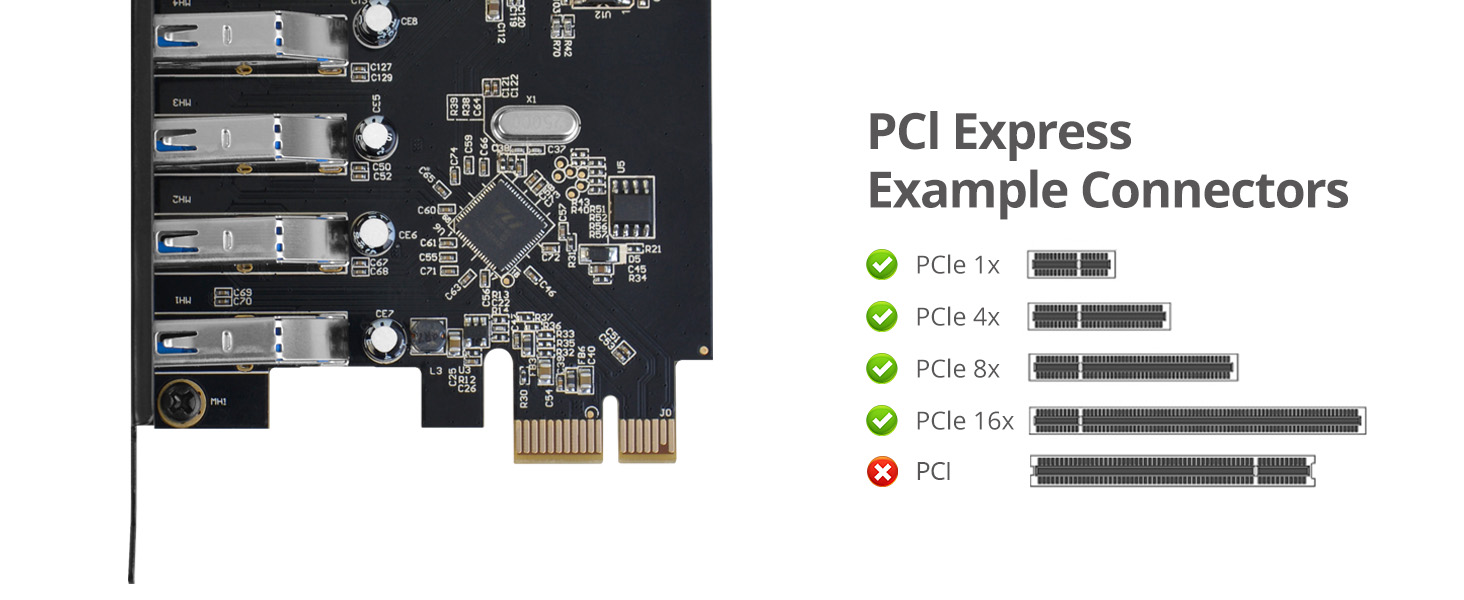

    • Bus connector: PCI Express 1x
    • Version: PCI Express 2.0
    • Data transfer rate: Up to 5Gbps
    • USB power output: Up to 900mA
    • Connectors:
      • External:
        • 7 x 9-pin USB 3.0 Type A, Female
      • Internal:

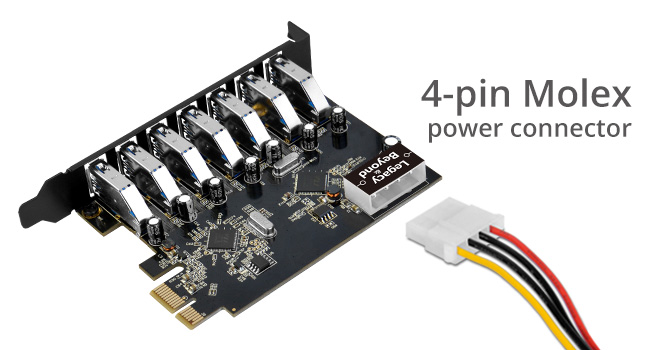

        • 1 x 4-pin Molex power connector (required)
    • Product:
      • Dimensions: 4.72" (W) x 0.87" (H) x 3.27" (D)
      • Weight: 0.14 lbs
      • Color: Black
    • Environmental conditions:
      • Operating temperature: 32 to 140 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 1 year limited
    • Country of origin: China

    System Requirements

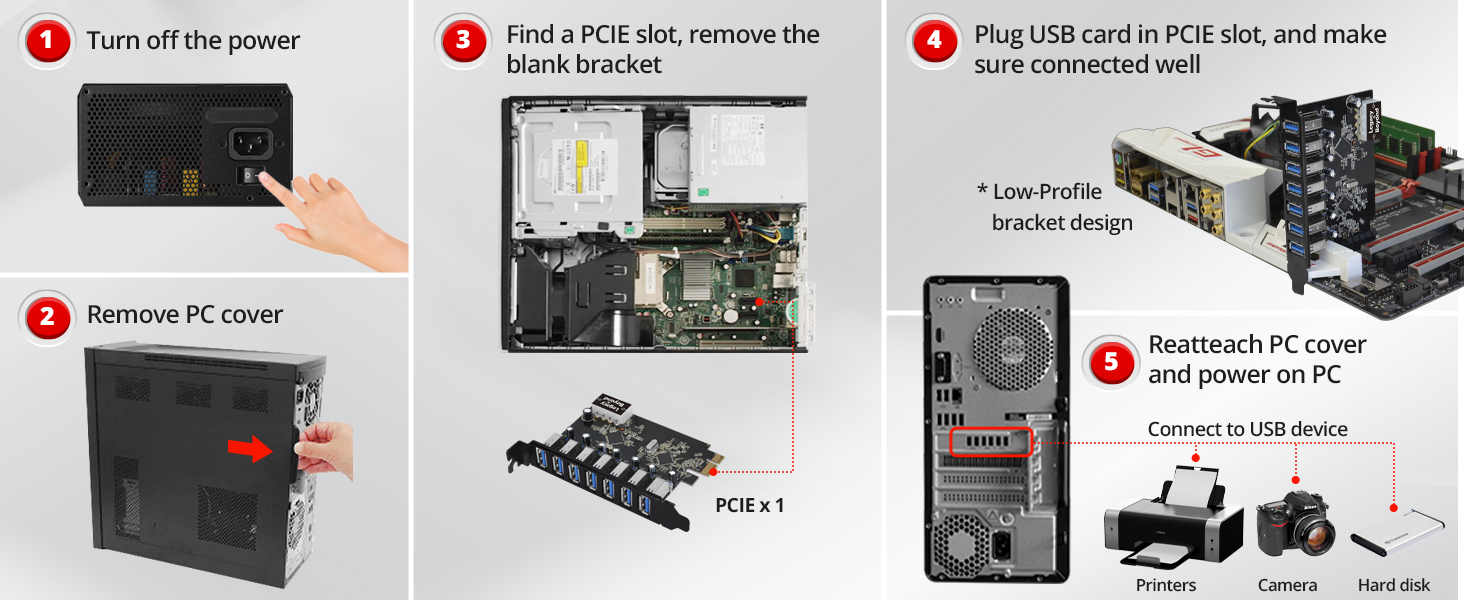

    • Desktop PC with one available PCI Express (PCIe) slot
    • Molex power connection is required
    • Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
    • Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)

    Package contents

    • USB 3.0 7-Port (Ext) PCIe Host Card
    • Driver CD
    • Installation guide
Channel Codes
  • Ingram Micro: 9U9429
  • Tech Data: 12930550
  • ASI: 207671
  • Synnex: 5036288

Manuals

Drivers


Hardware Version: 1

Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit)
Download Driver
Driver version: v5.60B
Windows 10 (32-/64-bit) / 8.x (32-/64-bit)
For your convenience the driver is built into Windows 10 and Windows 8. No driver downloaded or installation is required.
Install the board into the computer and the built-in driver will install automatically. For Windows 10 systems that require additional support, install the Windows 10 driver provided below.
Windows Server 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)
Download Driver
Driver version: v4.40E

Frequently Asked Questions (Q&A)

My question is why make a product just to not support it after a month/year please update the drivers for Windows 11

Hello, Windows 11 will have USB 3.0 drivers built in. All you need to do is install the board into the computer and Windows will automatically install the drivers. No additional driver installation is needed.
