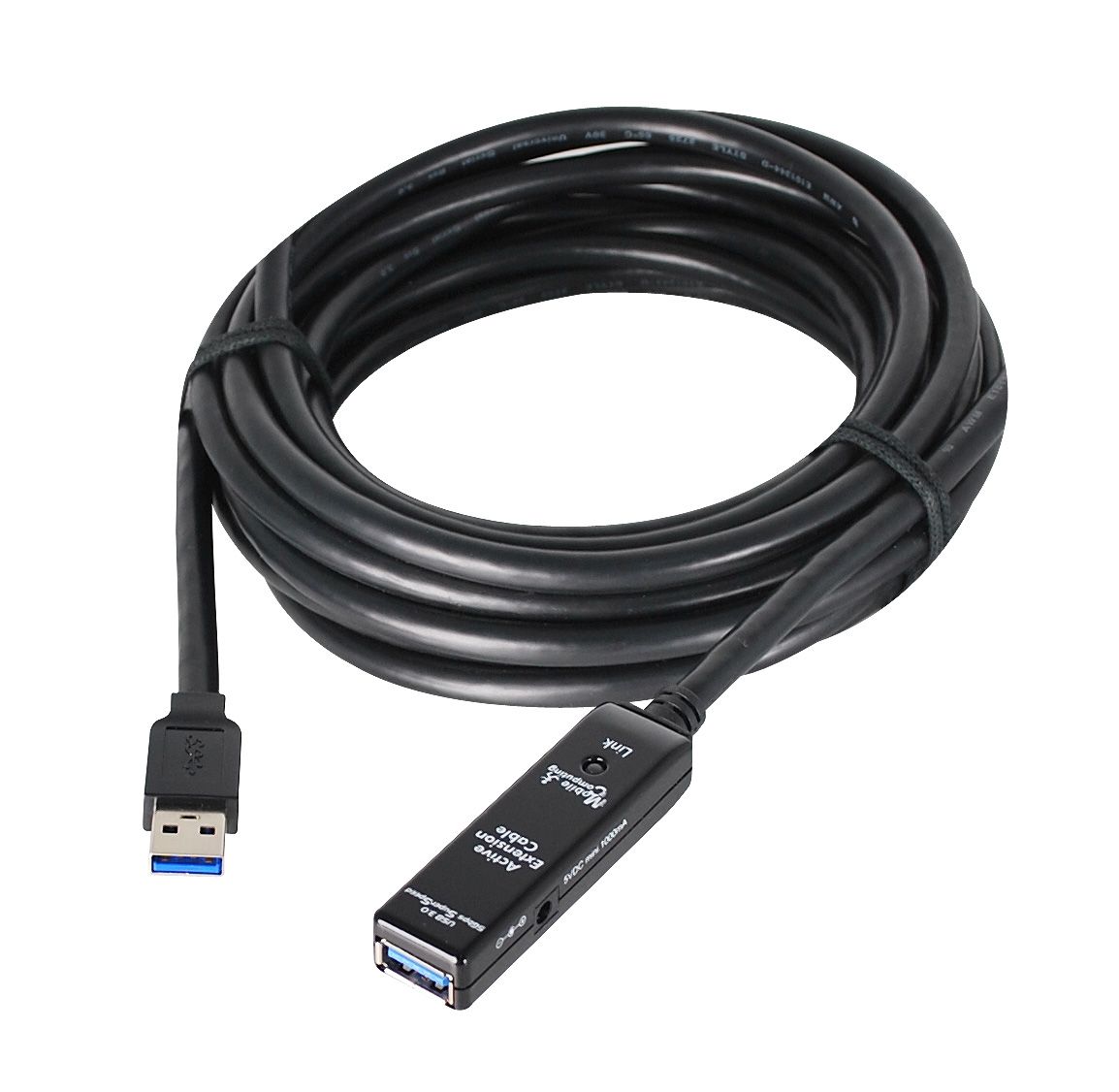

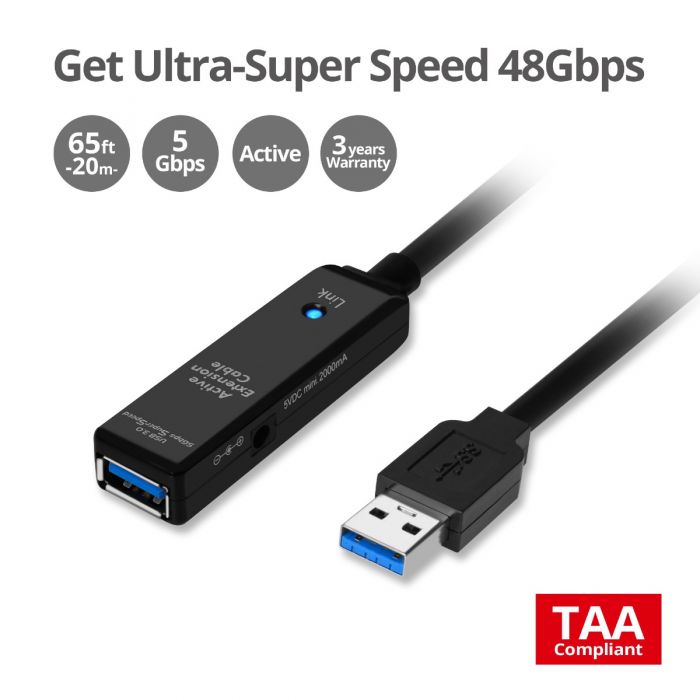

USB 3.0 Active Repeater Cable - 20M

Extends your USB data transmission distance beyond the normal USB boundary. TAA compliant
In stock
Quantity in stock: 209
SKU
JU-CB0811-S1
$239.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    • Extends USB data transmission distance beyond the normal USB boundary
    • Supports data transfer rates up to 5Gb/s
    • Built in power adapter jack for supporting power hungry USB devices
    • Plug-n-play, no driver installation required
    • Fully shielded for error-free data transmissions
    • Built-in over current protection to protect the connected device and repeater cable itself from unforeseen power surge
    • Supports UASP function (with Windows 10 and Windows 8 native USB 3.0 Host driver only)
    • Does not support daisy chaining 2 cables together

    Specifications

    • Chipset: Via VL811 + B2
    • Supports UASP function (with Windows 10/8 native USB 3.0 Host driver only)
    • Product weight: 3.31 lbs (1.5 kg)
    • Length: 65.6 ft (20 m)
    • Color: Black
    • Connectors:
      • 9-pin, USB 3.0, Type A, Male
      • 9-pin, USB 3.0, Type A, Female
      • Power adapter jack: 3.3mm (OD) x 1.3mm (ID) x 9mm (L)
    • Power adapter:
      • Input: 100-240VAC, 0.5A
      • Output: 5VDC, 2.0A
      • Power plug: 3.3mm (OD) x 1.3mm (ID) x 9mm (L)
    • Environmental conditions:
      • Operating temperature: 32 to 122 degrees F (0 to 50 C)
      • Storage temperature: -40 to 131 degrees F (-40 to 55 C)
      • Operating humidity : 20% to 93% RH
      • Storage humidity: 15% to 95% RH
    • TAA compliant
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 3 years limited
    • Country of origin: Taiwan

    System Requirements

    • Desktop or notebook computer with an available USB port
    • Windows®11 (32-/64-bit) /10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
    • Mac OS®10.12 to 10.15

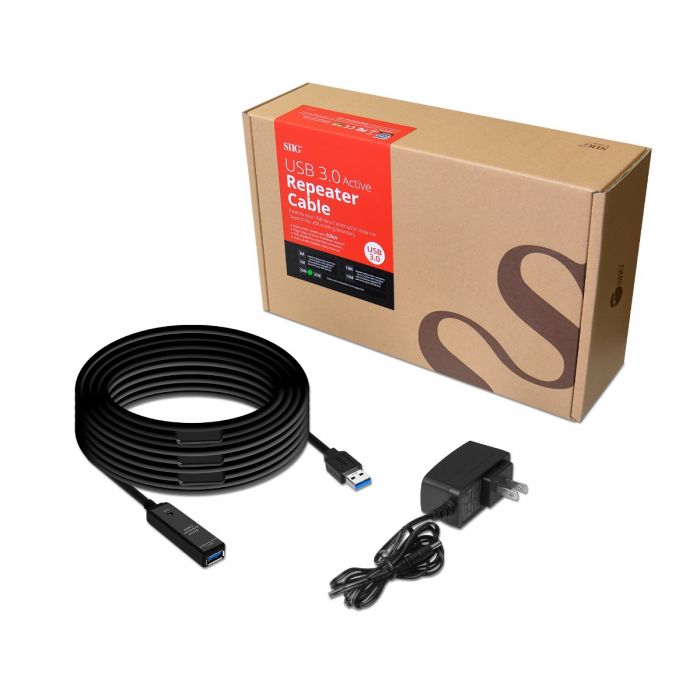

    Package contents

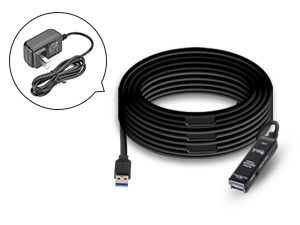

    • USB 3.0 Active Repeater Cable – 20M
    • Power adapter
Channel Codes
  • Ingram Micro: GV2628
  • Tech Data: 10537874
  • D&H: JUCB0811S1
  • ASI: 113091
  • Synnex: 2978916

Frequently Asked Questions (Q&A)

Q: Is this a plenum rated cable?

  Applies to the Following Products: - USB 3.0 Active Repeater Cable - 20M (JU-CB0811-S1) - USB 3.0 Active Repeater Cable – 10M (JU-CB0611-S1) - USB 3.0 Active Repeater Cable – 15M (JU-CB0711-S1) - USB 3.0 Active Repeater Cable...

Q: Does it support daisy chain?

  Applies to the Following Product: USB 3.0 Active Repeater Cable - 20M  (JU-CB0811-S1)   Solution:Unfortunately, it is not supported due to the limitation of the chipset on this product.
