USB 3.1 Gen 2 Type-C to M.2 PCIe SSD NVMe Enclosure

Adds extra storage space to USB 3.1 enabled computers
In stock
Quantity in stock: 790
SKU
JU-SA0W11-S1
$69.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    jusa0w11 SIIG nvme m.2 ssd enclosure

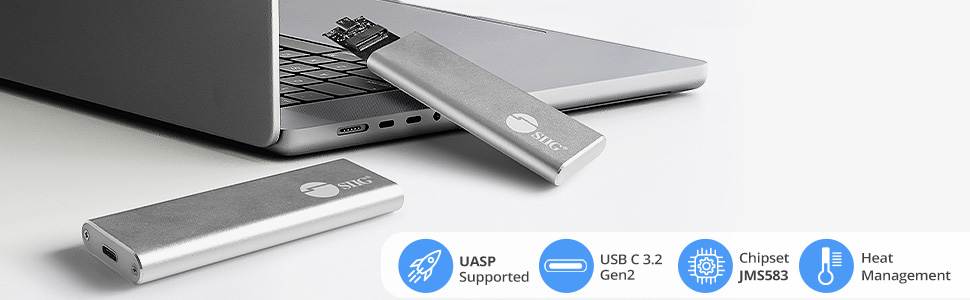

    USB C to M.2 NVMe PCIe Enclosure

    jusa0w11 nvme m.2 ssd enclosure inner close

    Overview

    High performance USB-C storage for your PCIe M.2 SSD. This enclosure features USB 3.1 Gen 2 (10Gbps) with USAP support and PCIe 3.1a specification. Powerful yet ultra slim design makes this enclosure extra portable when you on the go.

    Highlights

    • This enclosure easily adds fast PCIe NVMe SSD storage to Windows, Mac, Chrome OS, or Linux through USB 3.1 Gen 2 Type-A or Type-C ports
    • Large built-in LED for clear power and data transfer status
    • This enclosure broadly accommodates 2230, 2242, 260 and 2280 form M.2 M Key PCIe NVME SSDs
    • The ultra-slim, lightweight and compact size aluminum housing offers durability and great heat dissipation for long working and reliable performance

    Check Your SSD Spec Again before Purchase

    jusa0w11 m.2 nvme M key comparison

    Installation Guide

    jusa0w11 m.2 nvme ssd enclosure installation step 1

    jusa0w11 m.2 nvme ssd enclosure installation step 2

    jusa0w11 m.2 nvme ssd enclosure installation step 3

    jusa0w11 siig m.2 nvme ssd enclosure installation step 4

    1. Open the Cover

    Screwdriver is included in the package.

    • Remove the panel and pull out the PCBA tray module.

    2. Insert the NVMe SSD

    • Push in the direction of the notch position and push down the SSD tail so that the SSD is parallel to the PCBA plane and the spiral column steps need to be inserted into the corresponding holes on the PCBA.
    • Secure the screw on suitable mounting hole depending on the length of the M.2 SSD.

    3. Fix the NVMe/ Paste Silicone Pad

    • Attach the thermal pad to the front side of the SSD.

    4. Screw the enclosure

    • Put the PCBA module of the SSD group into the aluminum body, and use two screw fixes the panel, PCBA, and aluminum body into one body.

    jusa0w11 m.2 nvme ssd enclosure thermal heat management

    jusa0w11 m.2 nvme ssd enclosure portable pocket size slim size

    jusa0w11 siig m.2 nvme ssd enclosure package contents

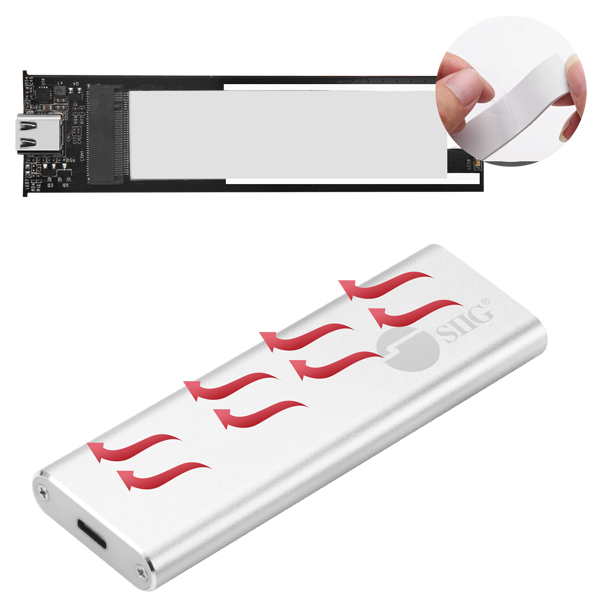

    Heat Management

    Premium aluminum housing with thermal silicone pad promotes heat dissipation.

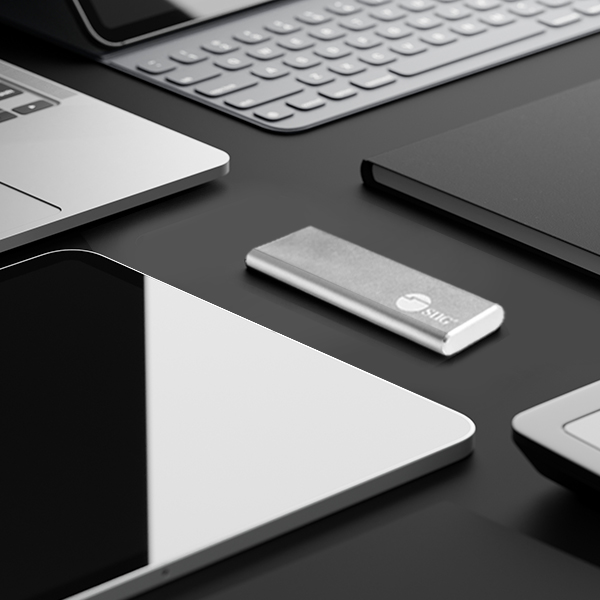

    Truly Portable

    This slim, pocket-sized enclosure for PCIe based NVMe is designed for mobility, with ultra-slim design which fits easily into your laptop case.

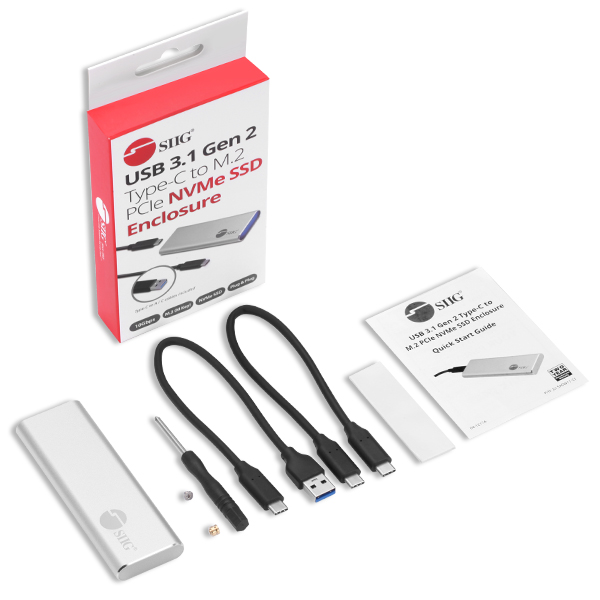

    What's in the Box

    • USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
    • USB 3.1 Type-A (M) to Type-C (M) cable
    • USB 3.1 Type-C (M) to Type-C (M) cable
    • Thermal silicon pad
    • Screw driver
    • Screw kit (screw & nut)
    • Quick start guide

    Specifications

    • Chipset: JMicron JMS583
    • Compatible with PCIe 3.1a specification and backward compatible with PCIe 1.0 and PCIe 2.0
    • Compatible with USB 3.1 specifications and backwards compatible with USB 3.0
    • USB data transfer rate: Up to 10Gbps
    • Power source: USB bus power
    • Memory type:
      • M.2 M key PCIe NVMe SSD
      • Form factor: 2230, 2242, 2260, 2280
      • Storage capacity: 2TB (max)
    • Product:
      • Dimensions: 4.25" (L) x 0.39" (H) x 1.26" (W)
      • Weight: 0.09 lbs
      • Color: Silver
      • Housing material: Aluminum
      • Connectors:
        • 1x 24-pin USB 3.1 Type-C, Female
        • 1x M key M.2 PCIe NVMe slot
    • USB cable:
      • USB 3.1, Type-A (M) to Type-C (M), 9.5 inches
      • USB 3.1, Type-C (M) to Type-C (M), 10 inches
    • Environmental conditions:
      • Operating temperature: 32 to 140 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 2 years limited
    • Country of origin: China

    System Requirements

    • Desktop PC or laptop with one available USB 3.0/3.1 Type-A or Type-C port
    • M.2 M key PCIe NVMe SSD up to 2TB
    • Windows® 11 / 10
    • Windows® Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
    • mac OS X® 10.6 or later

    Package contents

    • USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
    • USB 3.1 Type-A (M) to Type-C (M) cable
    • USB 3.1 Type-C (M) to Type-C (M) cable
    • Thermal silicon pad
    • Screw driver
    • Screw kit (screw & nut)
    • Quick start guide
