USB-C Dual Video MST Docking Station with PD Charging

  • USB-C Input
  • DP 1.4 Alt mode
  • PD 60W
  • MST Hub
  • Dual View
  • [email protected]
  • 2x HDMI
  • 2x USB-C 10Gbps
  • 1x USB-A 10Gbps
  • 1x USB-A 5Gbps
  • 1x Gigabit Ethernet
  • 1x 3.5mm Headset Jack
  • 1x SD 3.0 Slot
  • 1x Micro SD/TF 3.0 Slot
  • Windows & Mac
  • Vertical/Horizontal Design
Out of stock
SKU
JU-DK0N11-S1
$259.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Advanced docking station adds Dual [email protected] displays, two USB-C 10Gbps ports, one USB-A 10Gbps port, one USB-A 5Gbps port, one Gigabit Ethernet port, one SD & TF (Micro SD) 3.0 Card Reader, one stereo audio/microphone port, and USB Power Delivery charging up to 60 watts to Windows/Mac computers

    Overview

    Features

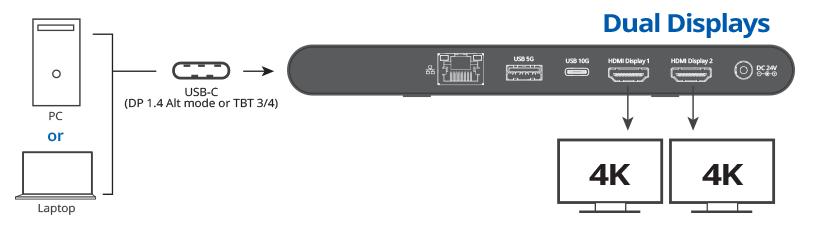

    Dual 4K HDMI displays with MST technology, multiple connections, and 60W PD by a single USB-C with DP 1.4 Alt mode input to increase your work efficiency
    features


    4K Video Resolution
    Supports Ultra HD video resolution up to Dual 4K (3840x2160) @60Hz with DP 1.4 DSC or Dual 4K (3840x2160) @30Hz without DP 1.4 through two HDMI video output ports and 5.1-ch. surround sound
    *Note: requires 2 video sources or monitors including DSC (Display Stream Compression)
    resolution

    Monitor Solution
    solution


    3 Display Modes
    Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays
    * Note: macOS only supports Mirror mode
    mode

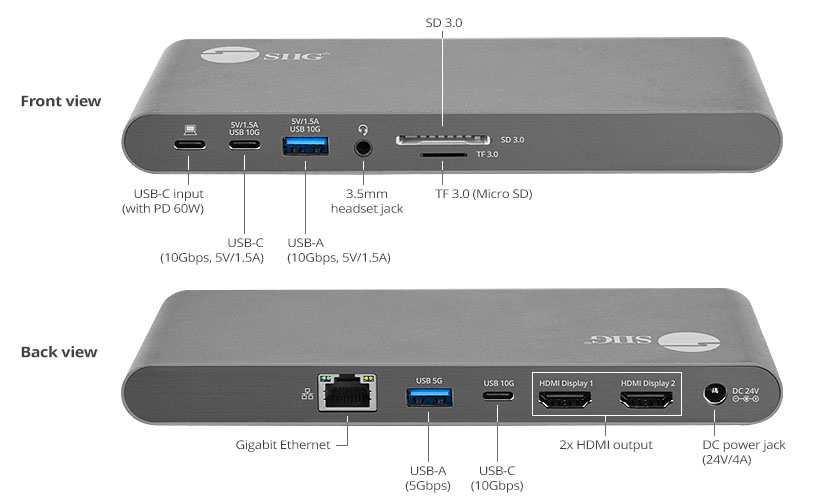

    Multiple Connectivity Ports
    Adds one USB-C port with DP 1.4 Alt mode and PD 60W (Host), two HDMI video output ports with MST technology, two USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging ports, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-A 3.2 Gen 1 5Gpbs, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, and one DC 24V/4A power jack
    Ports

    Connection
    Connection


    USBUSB-C /USB-A 3.2 Data Transfer
    Provides two USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, and one USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices


    PD60W Power Delivery
    Includes a high quality USB-C 3.2 Gen 1 to USB-C cable for connecting laptop/notebook, supports up to 60W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 96W power adapter ensures enough power for laptop charging and USB peripherals


    Headset3.5mm Headset Jack
    Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection


    rj451G Ethernet Data Transmission
    Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port


    Memory Card Slots
    Compatible with SD 3.0 UHS-1 and Micro SD (TF) 3.0 UHS-1 memory card and data transfer rate up to 104MB


    Aluminum Housing Design
    Ingenious detachable design allows vertical or horizontal configuration and premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency

    design


    Maximum Compatibility
    Compatible with Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.15 to 10.13
    * Note:
    - macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
    - macOS® only supports Mirror mode


Applications

    • Office
    • Home office
    • Workstation
    • Media editing
    • Web design studio
    • Photo shooting studio
    • Educational facilities
    • Financial
    • Medical office
    • Control center
    • Reception room

    Need to Know Before Buying

    1. Please confirm your computer is Thunderbolt 3 or USB-C that supports DP 1.4 Alt mode and ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
    * Note: Not all USB-C ports support the full functionality of the USB-C standard

    Computer

    2. Check the extended displays/monitors resolution that support [email protected] and have a HDMI port. If you are not sure, please check with the manual of the monitor
    * Note: If your extended display/monitors display [email protected] or 1080p, that means they don’t have DP 1.4 DSC

    Monitor

    Gcard3. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver

    4. Before charging your laptop, notebook, tablet, and smartphone, please check your cable with power delivery 3.0, then it can handle up to 60W and will go to 96W using a full-featured USB Type-C




    note


    Specifications

    Hardware
    Chipset VMM5200, RTL8153, AU84612, VL822
    Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
    Software
    OS Compatibility Windows® 11, mac OS® 12 or new
    * macOS® 10.13.4 to 10.13.6 is not supported
    Video
    HDMI x2, with DP 1.4 DSC: [email protected]; with DP 1.4: [email protected]; with DP 1.2: [email protected]
    USB
    USB-C 3.2 Gen 2 x2, data transfer rate up to 10Gbps, 5V/1.5A charging
    USB-A 3.2 Gen 2 x1, data transfer rate up to 10Gbps, 5V/1.5A charging
    USB-A 3.2 Gen 1 x1, data transfer rate up to 10Gbps, 5V/900mA
    Fast Charging Port Yes
    Audio
    5.1 channel surround sound from HDMI output
    2 channel stereo audio from 3.5mm audio/microphone jack
    Display Mode
    Mirror, Extended, Primary video modes (macOS® only supports Mirror mode)
    Power
    Power Delivery 3.0 up to 60W via USB-C port (Host)
    Power Adapter Input: AC 100-240V/50-60Hz; Output: DC 24V/4A, UL listed: E361658 / Level: VI
    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
    Compatible with IEEE 802.3, 802.3u
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)
    Product Info
    Dimensions 7.09” (L) x 0.75” (H) x 3.03" (W)
    Weight 0.71 lbs
    Color Black
    Housing material Aluminum
    Unit package Dimensions: 8.07” (L) x 2.76” (H) x 4.72" (W)
    Weight: 2.36 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, Reach
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Input:

    • 1x 24-pin, USB-C with DP 1.4 Alt mode, Female (Host)
    • 1x DC power jack (DC 24V/4A)

    Output:

    • 2x 19-pin, HDMI with MST technology, Female
    • 1x 24-pin, USB-C 3.2 Gen 2, 10Gbps, 5V/1.5A charging, Female
    • 1x 24-pin, USB-C 3.2 Gen 2, 10Gbps Female
    • 1x 9-pin, USB-A 3.2 Gen 2,10Gbps, 5V/1.5A charging, Female
    • 1x 9-pin, USB-A 3.2 Gen 1, 5Gbps, Female
    • 1x 8-pin, RJ45, Gigabit Ethernet, Female
    • 1x 3.5mm, Headset jack, stereo audio & mic
    • 1x SD 3.0 memory card slot, UHS-I, up to 104MB
    • 1x Micro SD (TF) 3.0 memory card slot, UHS-I, up to 104MB


    System Requirements

    • Desktop or Laptop with an available USB-C with DP 1.4 Alt mode or Thunderbolt 3/4 port
    • Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
    • macOS® 12 / 11 / 10.15 to 10.13
      * Note: macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier

    Package contents

    • 1x USB-C Dual Video MST Docking Station with PD Charging
    • 1x USB-C to C cable
    • 1x Power Adapter, 24V/4A
    • 1x Vertical stand
    • 1x User Reference Guide

Manuals

04-1359a.pdf Download manual

Frequently Asked Questions (Q&A)

Q: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?

Yes, it can connect to an All-in-one PC, but, please refer to our notes before buying, there are some limits need to know.
