• Features
• Applications

---

Features

Compliant with Mac^® system for M1, M2, M3 Pro, & Max












<div > <div >

Due to sustainable production practices and an overwhelming demand for our laptop docking station, we currently have limited stock available.

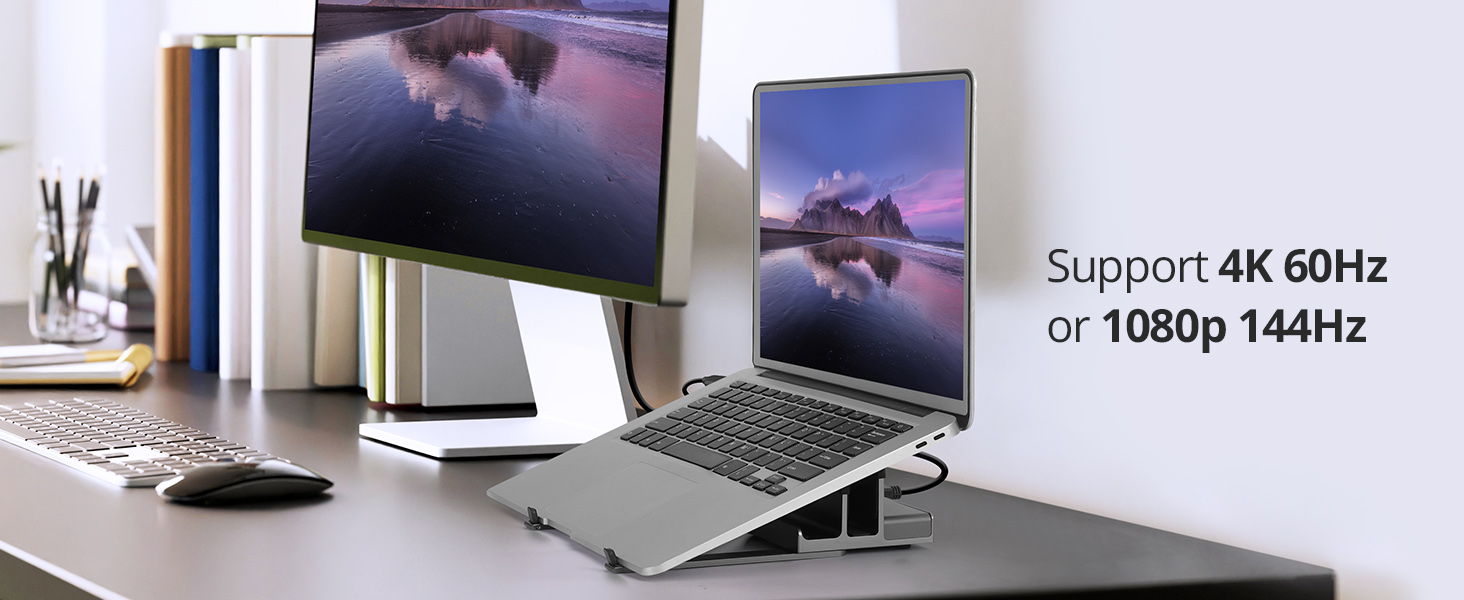

Get the CE-MTDK21-S1 Laptop Docking Stand for a simple and powerful way to connect all your devices and keep your laptop at the perfect viewing angle.

SIIG Multi-functional Computer and Monitor Accessories

	CE-MTDK21-S1	CE-MTDK11-S1	CE-MTDK01-S1	CE-MT2Q12-S1	CE-MT2P12-S1
Product Size (inch)	8.66 (W) x 2.42 (H) x 3.85 (D)	10.8 (W) x 6.18 (H) x 8.54 (D)	39.3 (W) x 5.2 (H) x 20.8 (D)	20.4 (W) x 3.1 (H) x 7.87 (D)	20.4 (W) x 3.1 (H) x 7.87 (D)
Product Weight (lb)	1.41	2.51	10.27	2.87	2.87
Recommended Size	Laptops under 14 Inches	Laptops between 10" and 17"	Monitors between 17" and 32"	Under 66 lbs	Under 66 lbs
USB-C Docking Station	✔	✔	✔	✔	✔
USB Hub	✔	✔	✔	✔	✔
Features	Transformable Laptop Stand	Adjustable Sturdy Laptop Riser	Combination of Docking and Arm	Width Adjustable and USB Hubs	Width Adjustable

---

Applications

• Office
• Home
• Workstation
• Media editing
• Web design studio
• Receiption room
• Educational facilities
• Financial
• Medical office

• System Requirements
• Package Contents

---

Specifications

• Chipset: PS186+GL3510+GL3224+AX88179A
• Compliant with Universal Serial Bus 3.2, 3.0 and 2.0 specification
• Resolution: 3840x2160 60Hz with DP 1.4 laptop source, 3840x2160 30Hz with DP 1.2
• Supports data transfer rate up to 5Gbp/s
• Compatible networks: 10/100/1000 Mbps
• Audio Supported: HDMI up to 7.1 Channel surround sound
• SD, Micro SD (TF) 3.0 Card Reader, up to 2TB, can use simultaneously
• Power Delivery: Power Delivery passthrough up to 100W, 90W for charging and 10W for Docking
• Fit Laptop size: under 14"
• Product Details:
  • Color: Silver
  • Material: Aluminum
  • Product Dimension: 8.66" (W) x 2.42" (H) x 3.85" (D)
  • Product weight: 1.41 lbs
  • Connectors:
    • 1x 24-pin USB-C, Female
    • 1x 19-pin HDMI Female, output
    • 2x 9-pin USB-A 5Gbps, Female
    • 1x 8-pin RJ45, Gigabit Ethernet
    • 1x SD 3.0 Card Reader
    • 1x TF (Micro SD 3.0) Card Reader
    • 1x USB-C, PD 3.0 bypass, up to 100W power input, 90W for charging and 10W for Docking
• Unit package:
  • Dimensions: 8.90"(W) x 2.81"(H) x 4.15"(D)
  • Weight: 1.90 lbs
• Certifications/Standards: FCC / CE / RoHS 2.0 / REACH
• Warranty: 2 years limited
• Country of origin: Engineered in USA , Manufactured in China

---

System Requirements

• Host laptop or tablet with an available USB-C port with DP Alt mode (recommend DP 1.4 Alt-mode) or Thunderbolt 3/4 technology
• Windows^® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• MAC OS 10.15 or later
• Compliant with Mac^® system for M1, M2, M3 Pro, & Max

---

Package contents

• USB-C Laptop Stand with 4K Multitask Docking Station
• USB-C to USB-C cable
• User Manual
