USB-C MST Video with Hub, LAN and PD 3.0 Docking

  • USB-C Input
  • DP Alt Mode
  • MST Hub
  • Single 4K
  • Dual 1080p
  • PD 100W pass-through
  • 1x HDMI
  • 1x DisplayPort
  • 1x USB-C
  • 2x USB-A 3.0 5G
  • 1x Gigabit Ethernet
  • 1x SD Card Slot
In stock
Quantity in stock: 38
SKU
JU-DK0F11-S1
$149.49

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Versatile and compact external docking station adds multiple connectivity ports to USB-C enabled computers and up to 100W PD charging of your laptop


    Features

    Dual displays and multiple connections by a single USB-C output with DP Alt mode or Thunderbolt 3 and MST technology, whatever you are on the go or docking at a workstation

    Overview

    *Note:
    Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality


    High Resolution

    Supports UHD video resolutions up to single 4K (3840x2160) @30Hz Ultra HD display or dual/ triple Full HD 1080p displays

    Resolution

    *Note: If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

    Monitor solution:
    Resolution2


    Mode

    *Note:
    1. Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
    2. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
    3. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter
    4. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)


    Multiple Connectivity Ports

    Adds one USB-C port (Host), one USB-C (PD/Data), one HDMI video outport port, one DisplayPort video output port, two USB 3.1 Gen 1 Type-A ports, one Gigabit Ethernet, and one SD memory card slot

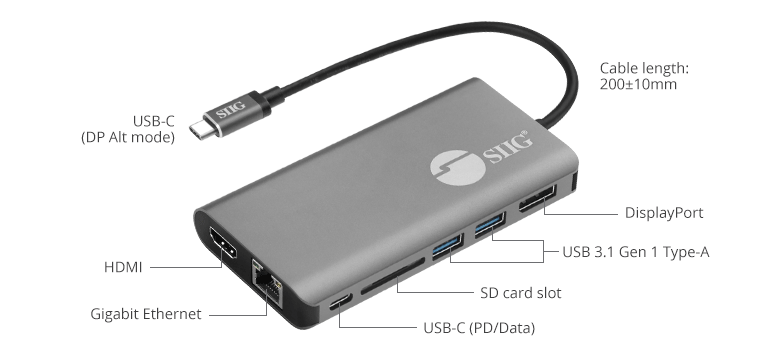

    Ports

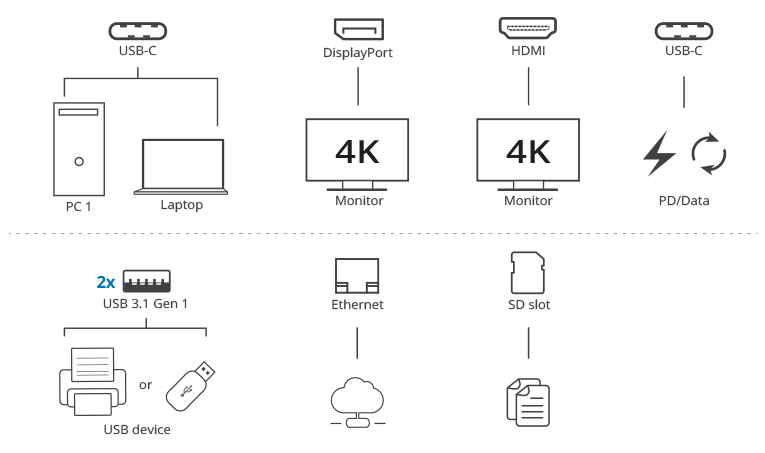

    Connection
    Connection


    USB 3.0 SuperSpeed USB Data Transfer

    Delivers two USB 3.1 Gen 1 Type-A ports and support data transfer rate up to 5Gbps. Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more


    RJ45 1G Ethernet Data Transmission

    Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps


    PD 100W Power Delivery Pass through
    Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices. Power adapter is not included

    *Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected


    SD Memory Card Slot
    Support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer


    Maximum Compatibility

    Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround or Intel Collage technology

    Supports Plug-n-play, hassle-free set up without complicated hardware or driver installation

    *Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode


    Aluminum Housing Design

    Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go


Applications

    • Home
    • Video editor
    • Testing lab
    • Office
    • Web design studio
    • Medical office
    • Workstation
    • Photo shooting studio
    • Business trip

    Need to Know Before Buying

    1. Please confirm your computer is USB-C that supports DP Alt mode or Thunderbolt 3 and supports Multi-Stream Transport (MST) technology. If not, please check on the manual of the computer

    Computer

    *Note: Not all USB-C ports/systems support DP Alt Mode functionality

    2. Check the extended displays/monitors have a DisplayPort and HDMI port. If you are not sure, please check with the manual of the monitor

    Monitor

    *Note: If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

    Gcard 3. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver

    4. The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected and please check your cable with power delivery, then it can handle up to 100W

    5. To connect HDMI, DVI, or VGA monitor to our USB-C MST Video, please use ACTIVE converter
    Converter


    Specifications

    Hardware
    Chipset STDP4320+VL817+VL102+RTL8153B+GL823K
    Software
    OS Compatibility Windows® 10
    Video
    DisplayPort up to 4K (3840x2160) @30Hz
    HDMI up to 4K (3840x2160) @30Hz
    Resolution Single video: up to [email protected] (DP or HDMI)
    Dual video: up to 1080p @60Hz (DP and HDMI both)
    USB-C 1x 3.1 Gen 1, PD Charging (Pass through) or Data transmission
    USB-A 2x 3.1 Gen 1, data transfer rate up to 5Gbps and compatible with USB 2.0 specification
    Fast Charging Port Yes
    Video Cable length HDMI: up to 5 meters (Max); DisplayPort: up to 3 meters (Max)
    Audio
    5.1 channel surround sound from HDMI and DP output
    Display Mode
    Mirror and Extended modes
    Power
    Power Delivery 3.0 Pass Through

    Supports to 100W charging. Power Adapter is not included

    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
    Compatible with IEEE 802.3, 802.3u
    SD Card Slot
    Types SDHC 2.0, SDXC 2.0 up to 40Mbps
    Capacity SDHC up to 32GB, SDXC up to 2TB (max)
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: <5% to 90% RH (non-condensing)
    Product Info
    Dimensions 4.59” (L) x 0.63” (H) x 2.39" (W)
    USB-C cable (embedded) 200±10mm
    Weight 0.26 lbs
    Color Iron gray + Black
    Housing material Aluminum
    Unit Package: Dimensions: 7.28" (W) x 1.18" (H) x 5.31" (D)
    Weight: 0.44 lbs
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Input:

    • 1x 24-pin, USB-C, Male (Host)

    Output:

    • 1x 19-pin, HDMI, Female
    • 1x 20-pin, DisplayPort, Female
    • 1x 24-pin, USB-C, Female, PD Pass through / USB Data
    • 2x 9-pin, USB 3.1 Gen 1 Type-A, Female
    • 1x 8-pin, RJ45, Gigabit Ethernet, Female
    • 1x SD Card Reader Slot, Female

    System Requirements

    • PC or Laptop with an available USB-C port (with DP Alt mode or Thunderbolt 3)
    • Power Delivery 3.0
    • USB-C 100W PD charger
    • Windows® 10 / 8 / 7 (32-/64-bit)

    Package contents

    • USB-C MST Video with Hub LAN & PD 3.0 Dock
    • User Reference Guide
