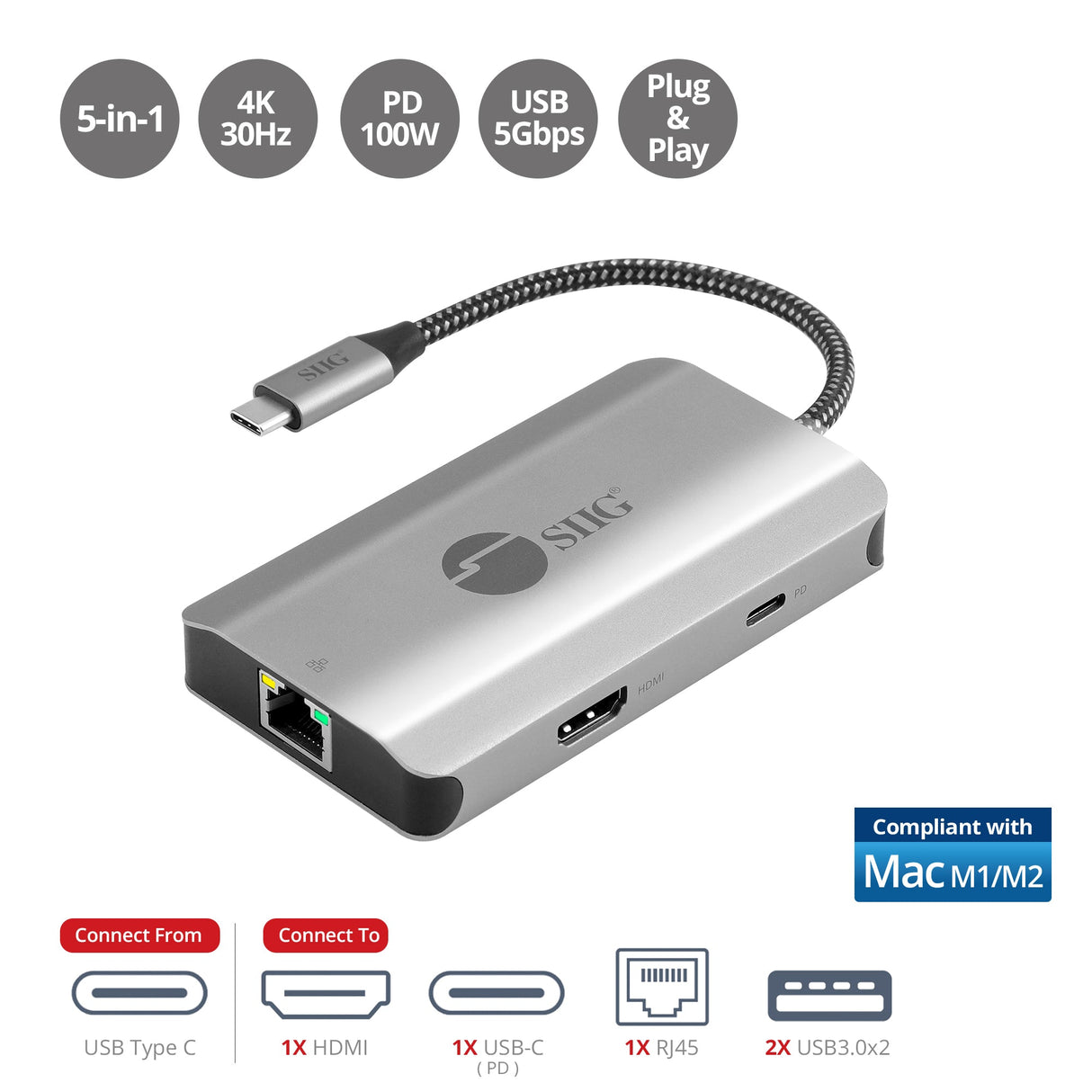

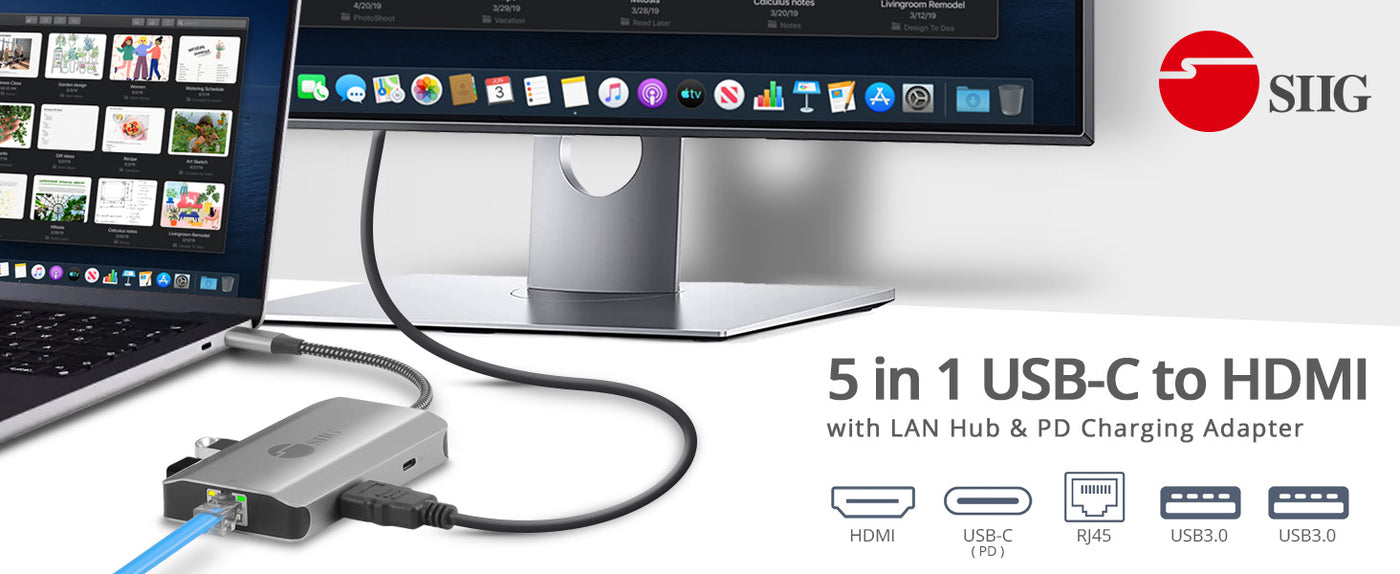

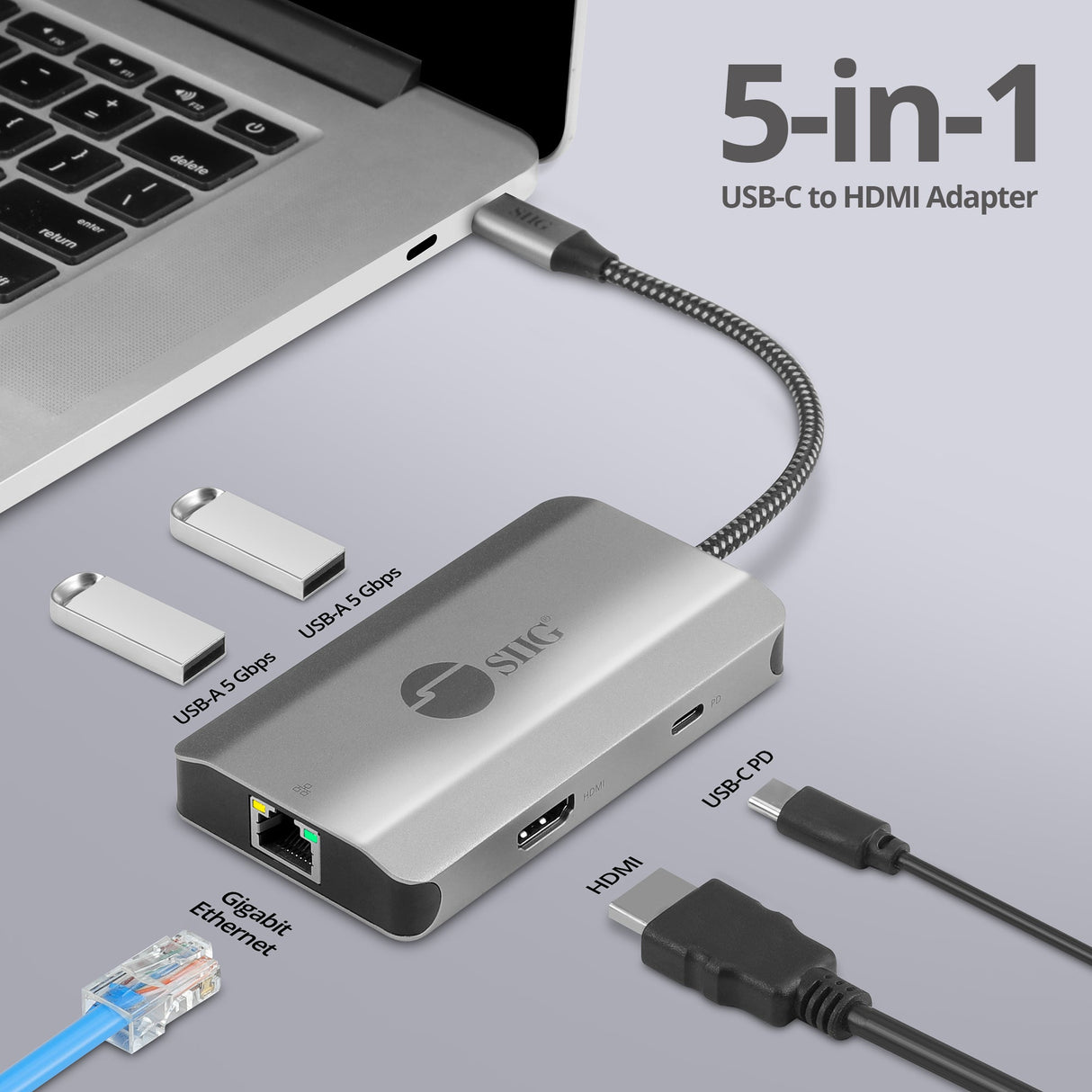

USB-C to HDMI with LAN Hub & PD Charging Adapter, HDMI 4K@30Hz, two USB-A 5Gbps, GbE, PD100W

• Features
• Applications

---

Overview

USB-C to HDMI with LAN hub adpater, Adds one HDMI 4K@30Hz, two USB-A 5Gbps ports and one Gigabit Ethernet through one USB-C connection to your USB enabled system, and supports PD pass-through up to 100W, USB-C to HDMI 4K Video, Compatible with USB-C Gen 1 & Gen 2 ultrabooks, Chromebooks, tablets & Thunderbolt 3 / 4 laptops, and more Type C Devices



Buying a 5 in 1 USB-C hub is more cost-effective than buying separate adapters for each port.

---

Features

4K Display

Extends or mirrors your desktop to an external display of up to 4K 30Hz



---

Power Delivery Compatible

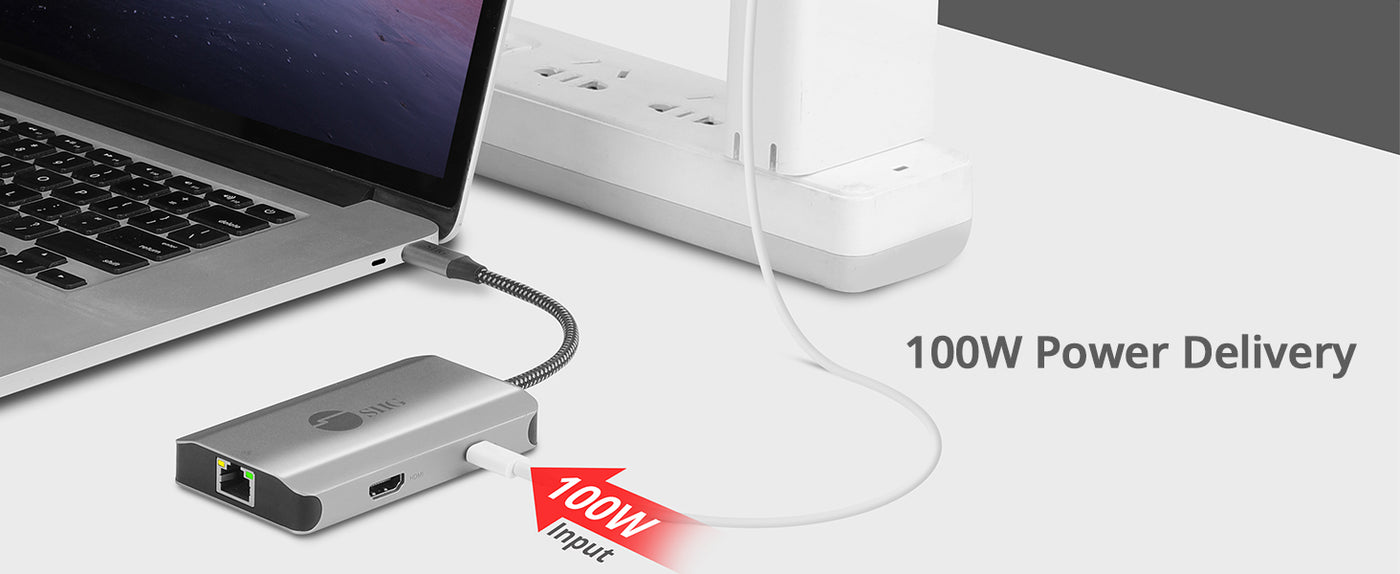

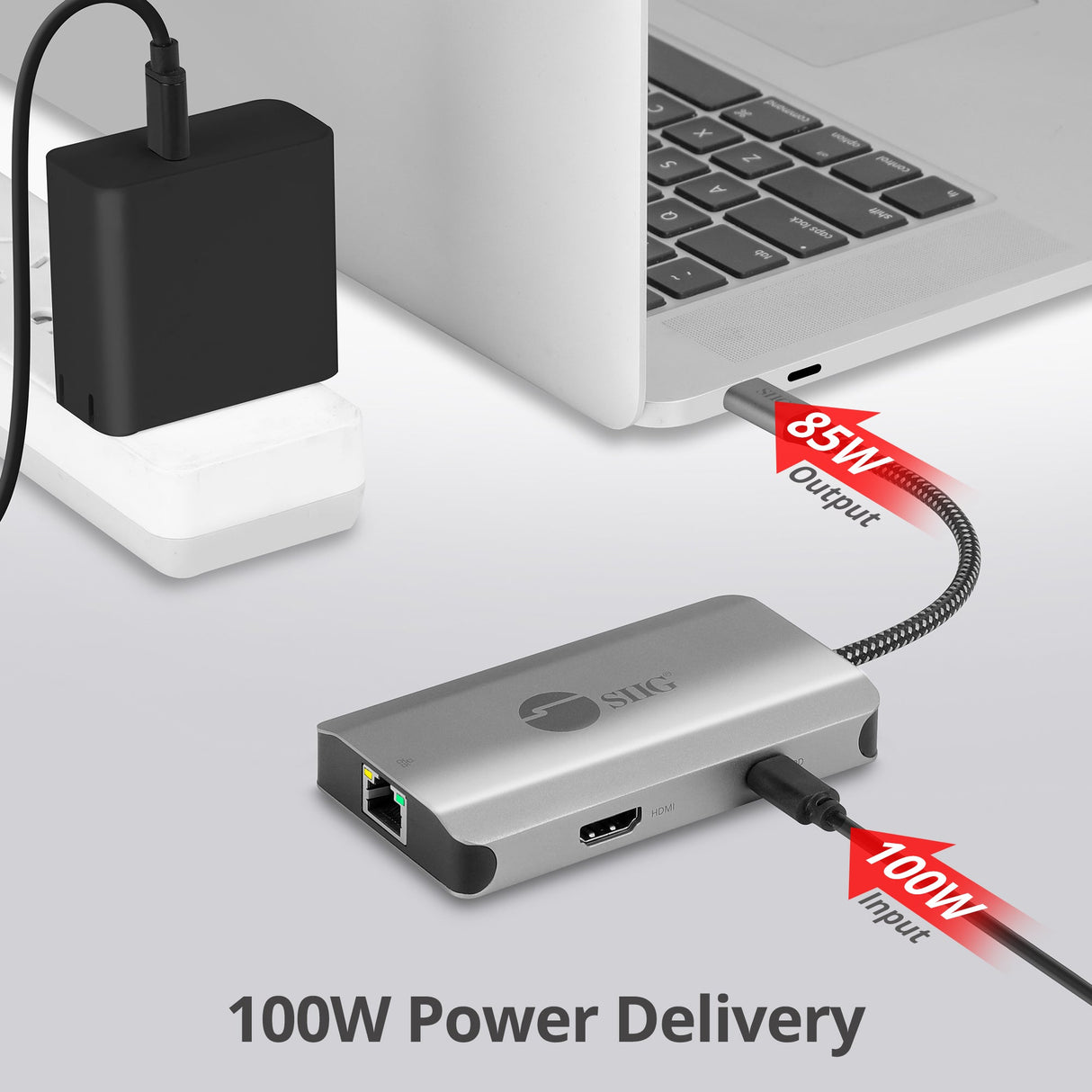

Supports up to 100W (minus 15W for operation) pass-through charging



---

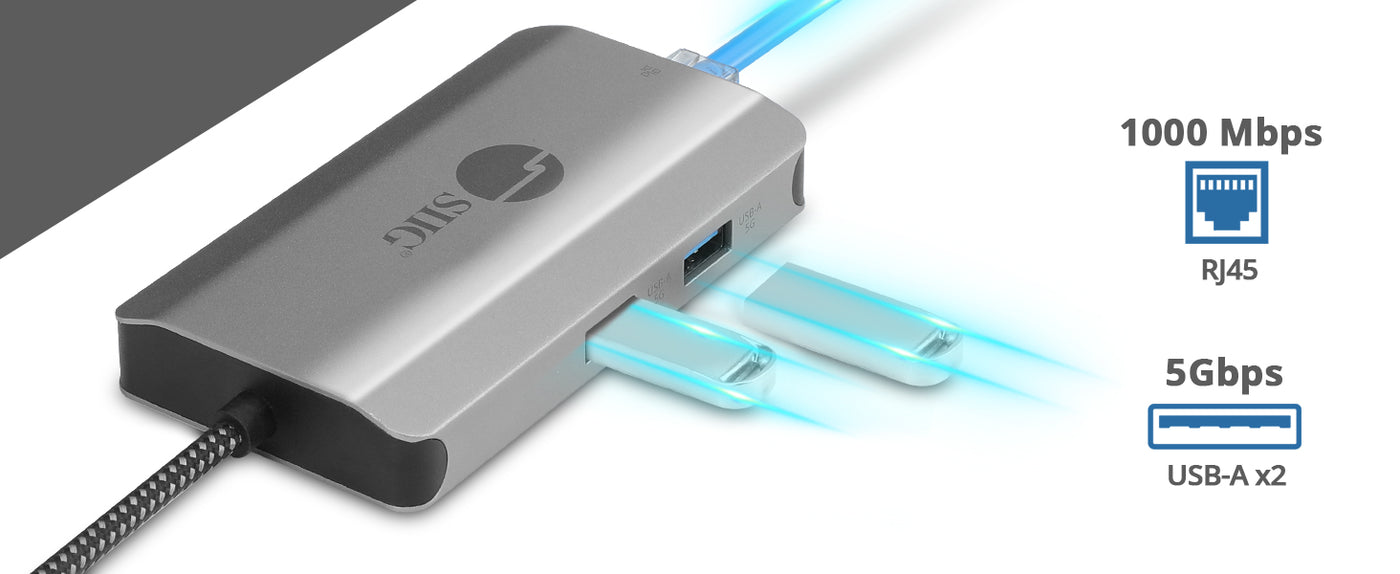

Staying Connedted

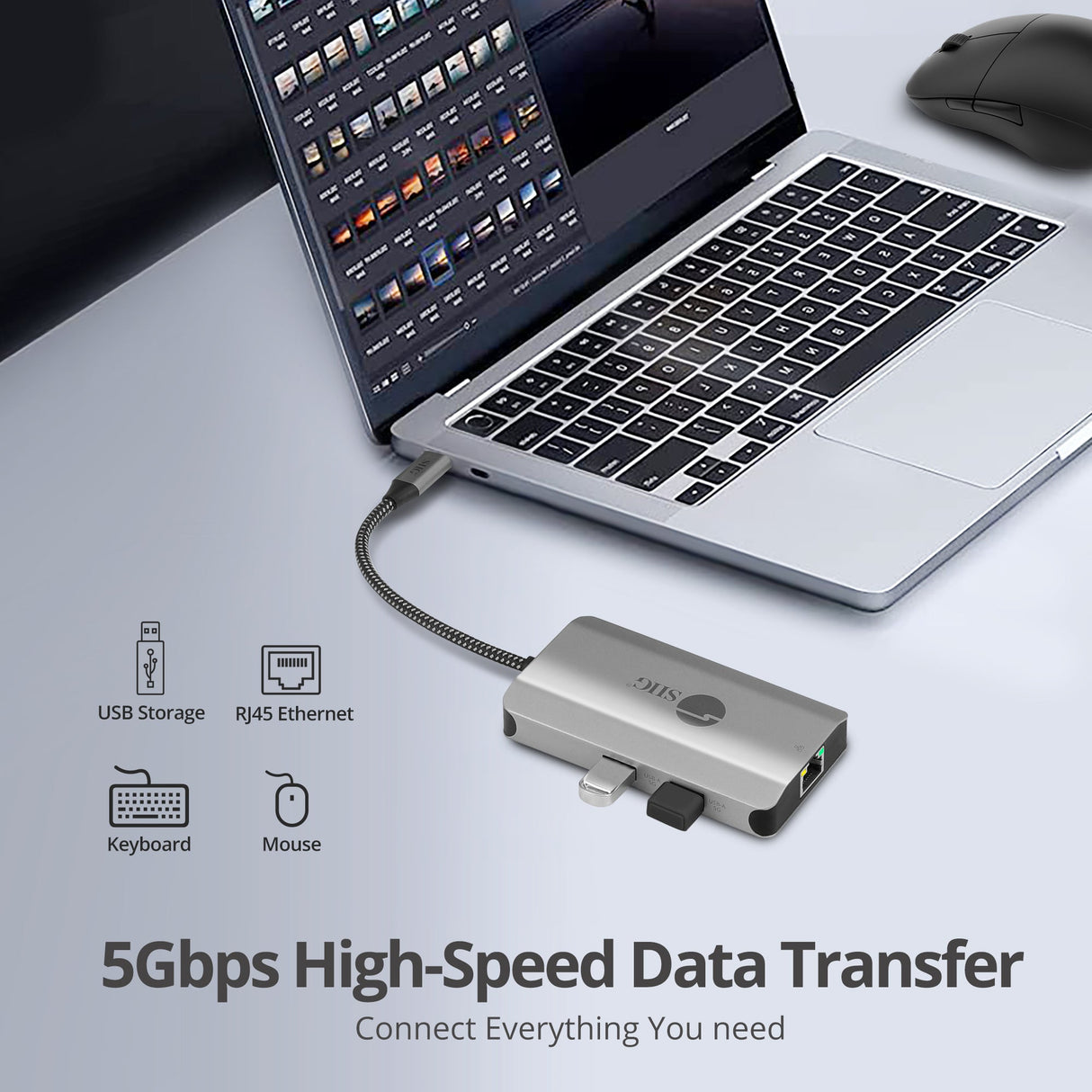

Connected to a wired ethernet up to 1,000 Mbps. Two USB Type-A ports support a 5Gbps transfer rate



---

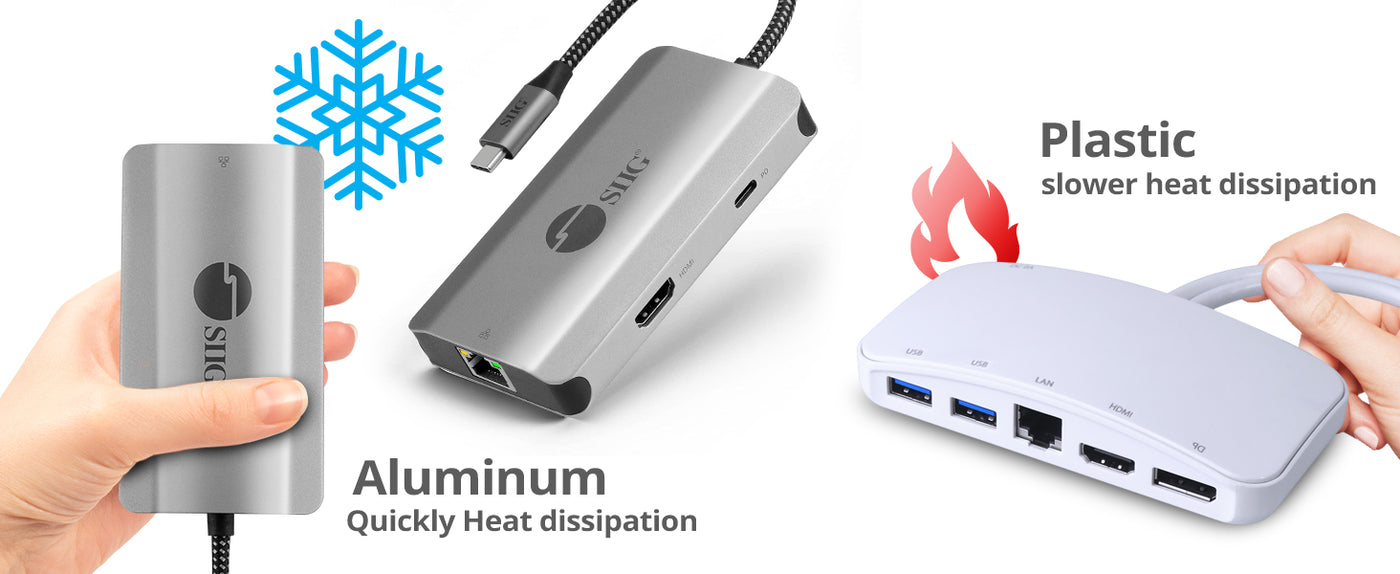

Fast Heat Dissapation



---

Travel Friendly Design

The pocket size makes this 5-in-1 adapter a perfect travel companion to boost your work efficiency



---

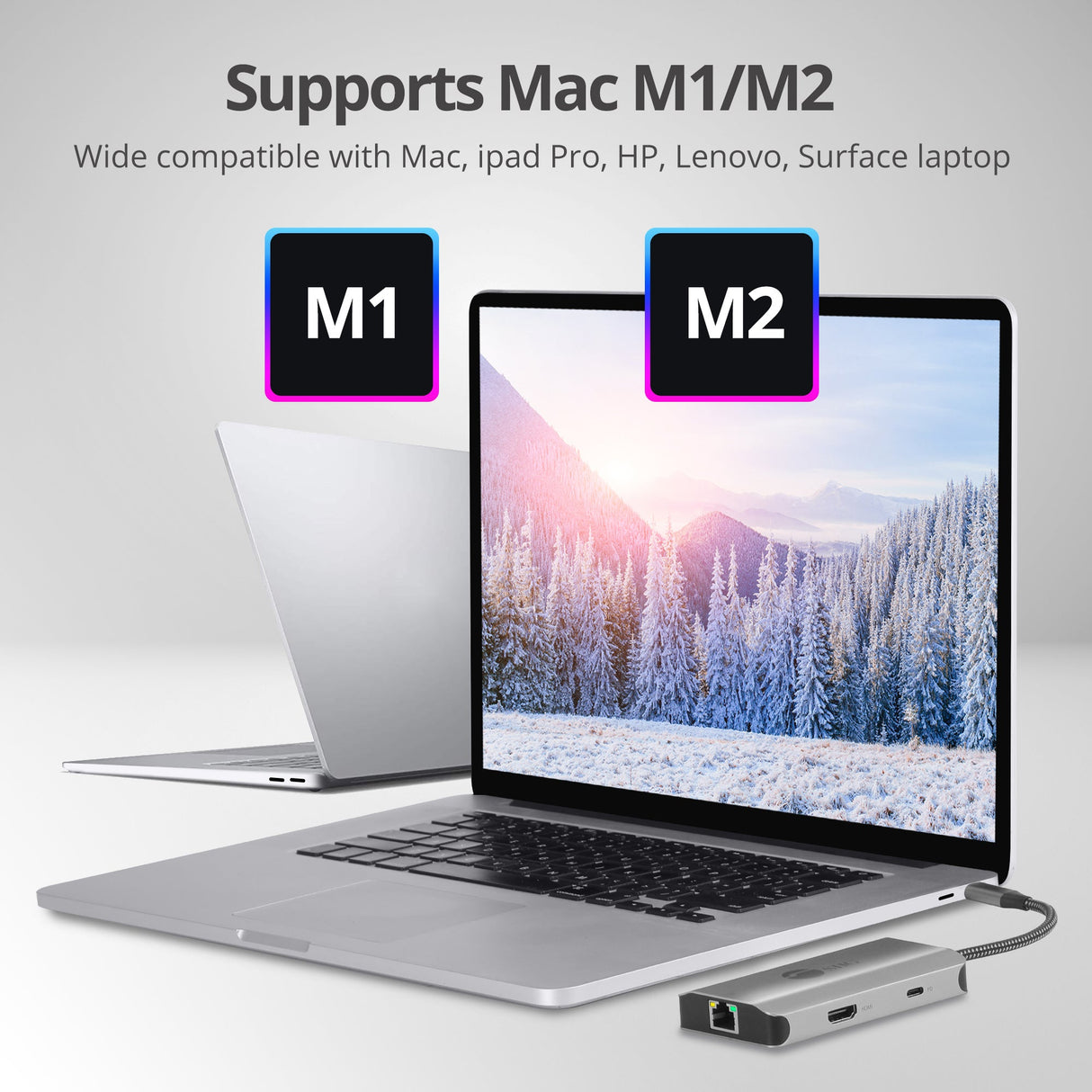

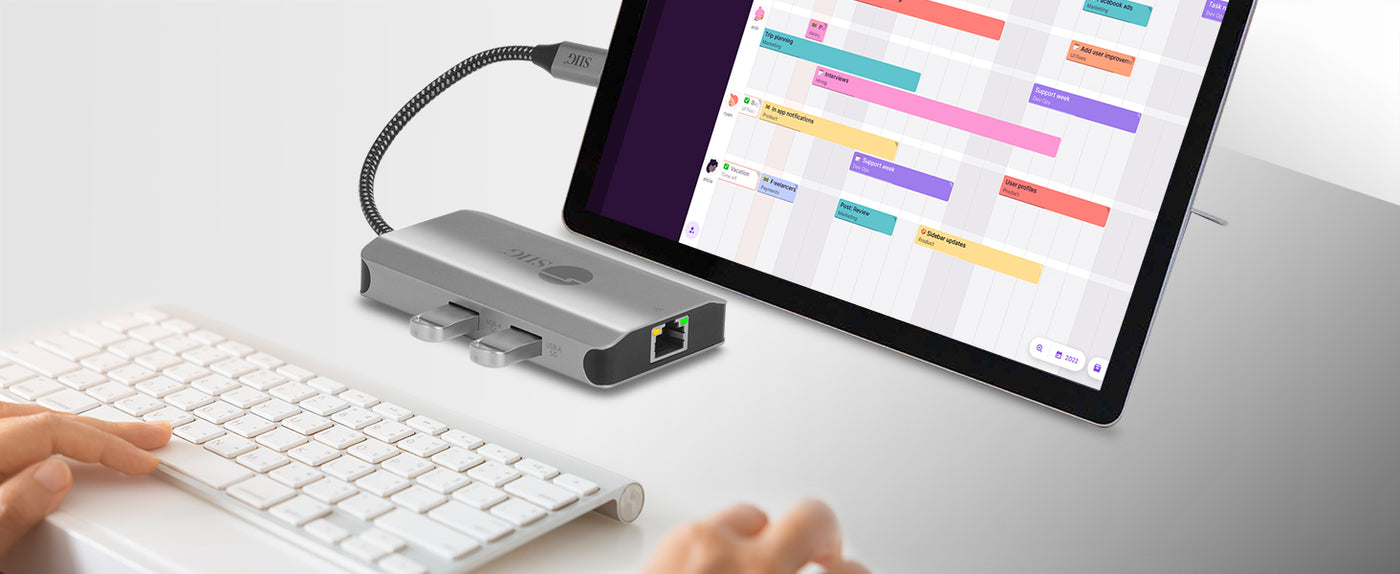

Widely Compatible from Laptops, Tablets to Smartphones



---

Laptops	Tablets	Smartphones

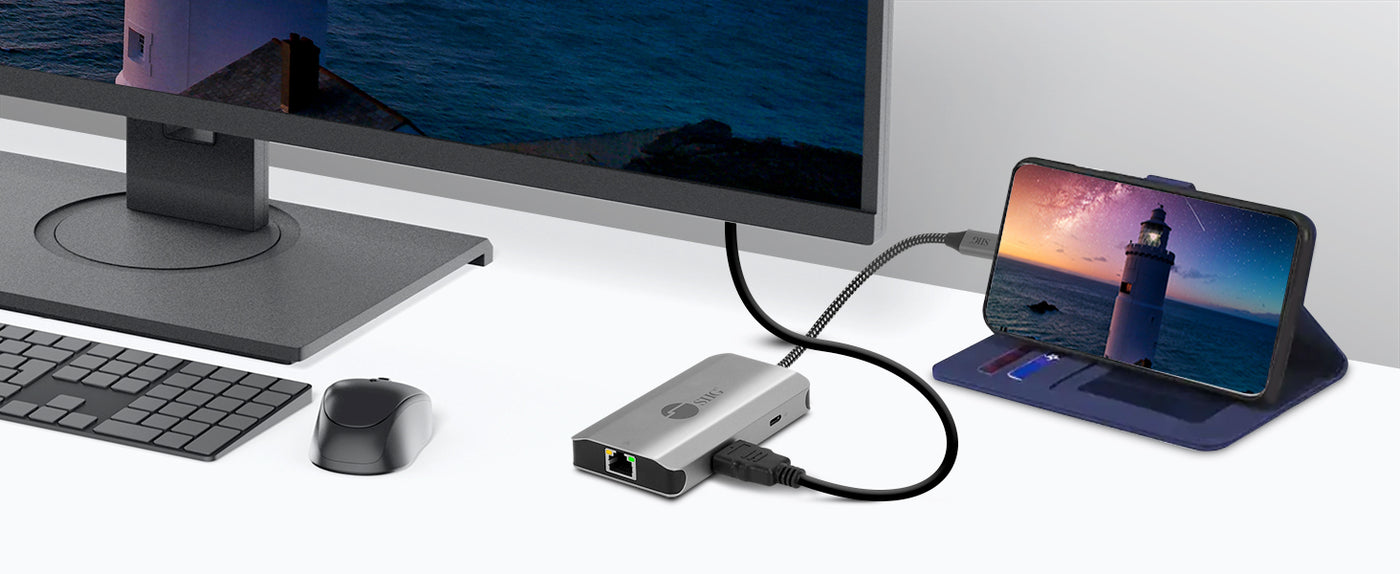

Laptops with USB-C DP Alt mode can connect via the adapter	Tablets with USB-C DP Alt mode are capable of connecting via the adapter	Smartphones like the Galaxy S series can connect with this adapter to enable the DeX mode

---

Comparison Table

SKU	CE-H30L11-S1	JU-H30612-S2	JU-H30C11-S1	JU-H30H11-S1	JU-DV0112-S2
Input Port	USB-C	USB-C	USB-C	USB-A 5Gbps	USB-A 5Gbps
Supported Extenal Display	Single	Single	✗	Single	Single
Video Output	HDMI	HDMI	✗	HDMI or DVI	DVI or VGA
USB Ports	2x USB-A 5Gbps	3x USB-A 5Gbps	3x USB-A 5Gbps	✗	✗
PD Charging	100W	85W	60W	✗	✗

---

Applications

• Office

• Home

• Schools

• Hotel

• Testing lab

• Retail store

• System Requirements
• Package Contents

---

Specifications

• Chipset: VL102+PS176+RTL8153+VL817
• HDCP 1.4 compatible
• USB data transfer rate: Up to 5Gbps
• Compliant with USB 3.0 and backwards compatible with USB 2.0 specification
• HMDI Supports Resolution: Up to 4Kx2K@30Hz, cable up to 5M
• Compatible Networks: 10/100/1000 Mbps
• Power delivery 3.0 up to 100W
• USB bus powered and hot-pluggable
• Product

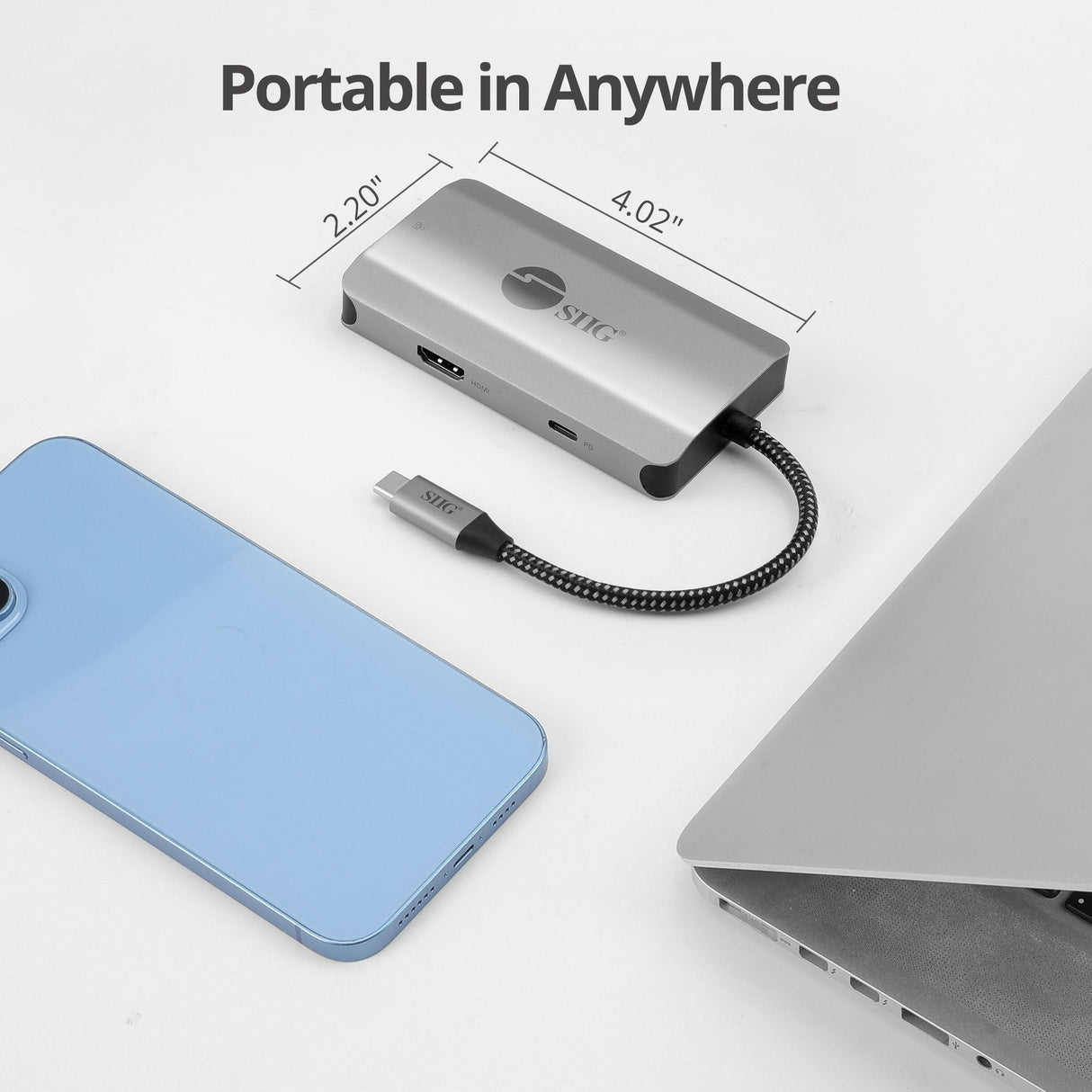

  • Dimension: 4.02" (W) x 2.20" (H) x 0.63" (D)
  • Weight: 0.18 lbs
  • Color: Space gray
  • Housing Material: Aluminum with Plastic
  • Built-in Cable Length: 6.29" (16cm)

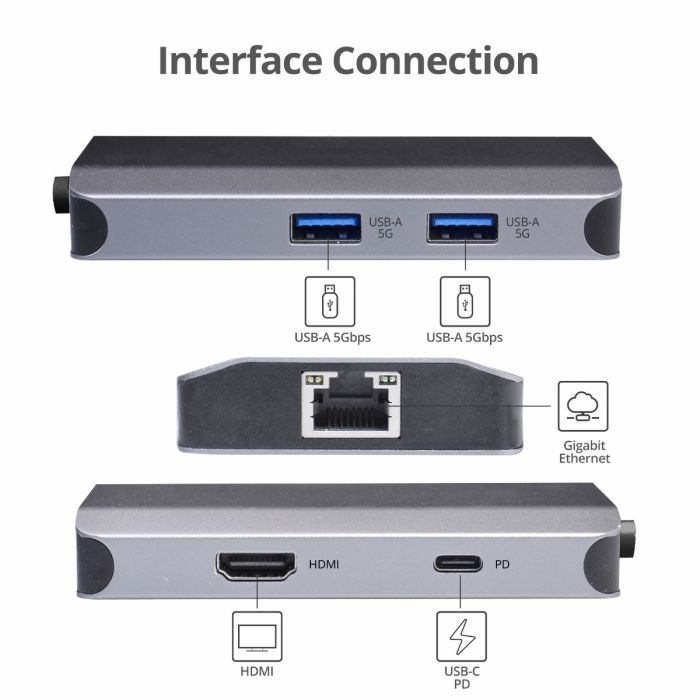

  • Connectors:
    • 1x USB-C, Male, Input
    • 1x USB-C, Female, for PD 3.0 charging
    • 1x 19-pin HDMI, Female, Output
    • 2x 9-pin USB-A 5Gbps, Female, Output
    • 1x 8-pin RJ45, Female, Output
• Unit package:
  • Dimensions: 9.45"(W) x 6.30"(H) x 0.63"(D)
  • Weight: 0.22 lbs
• Environmental conditions:
• Operating temperature: 32 to 122 degrees F
• Storage temperature: 14 to 140 degrees F
• Relative humidity: 5% to 85% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: Engineered in USA , Manufactured in China

---

System Requirements

• Host laptop or tablet with a DisplayPort Alternate Mode enabled USB-C port or Thunderbolt 3 port
  Note: The adapter's HDMI output will work only when the USB Type-C port transmits DisplayPort signal
• Windows® (Intel/AMD/Snapdragon) 11 (32-/64-bit) /10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS® 10.12 to 10.14

---

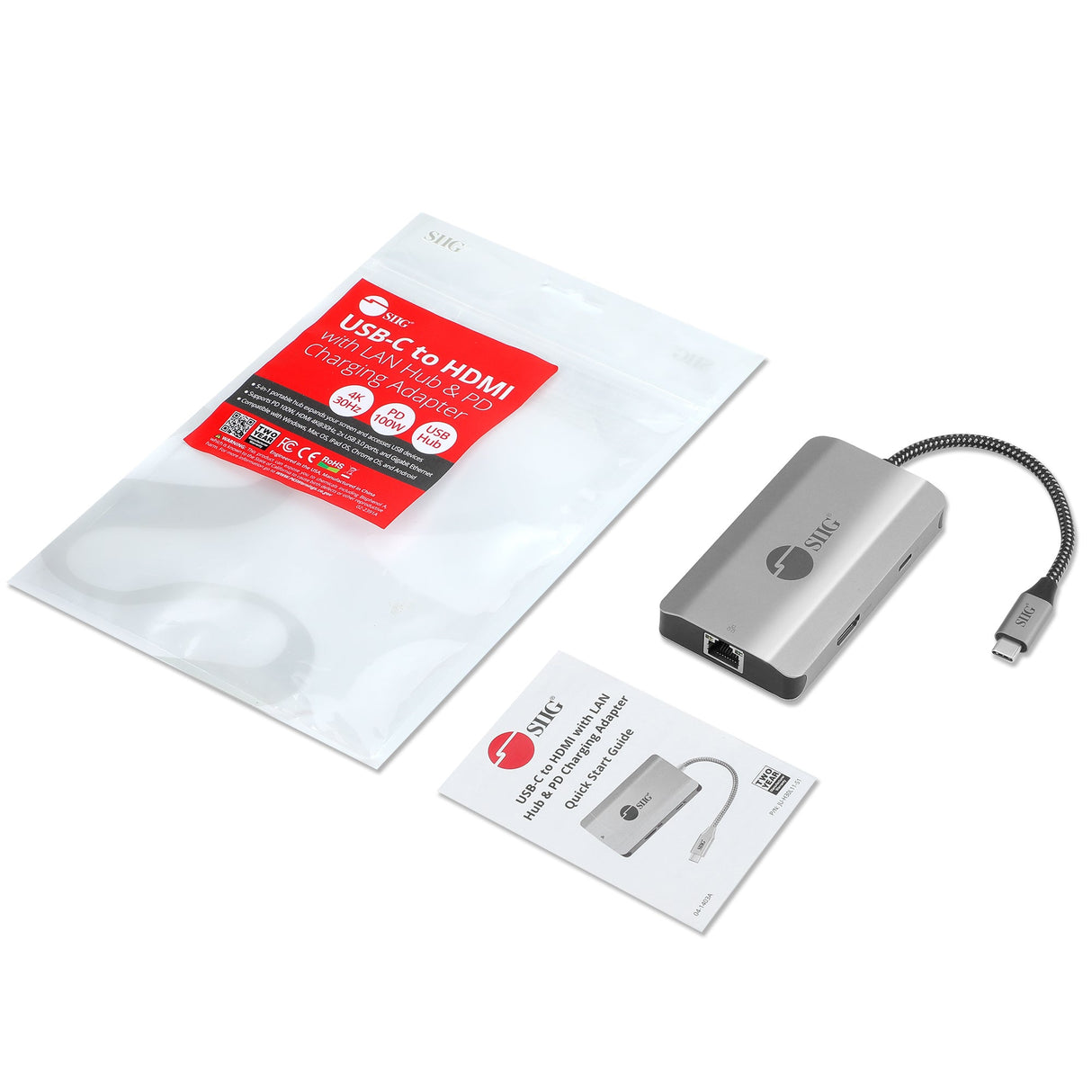

Package contents

• USB-C to HDMI with LAN Hub & PD Charging Adapter
• Quick Start Guide
