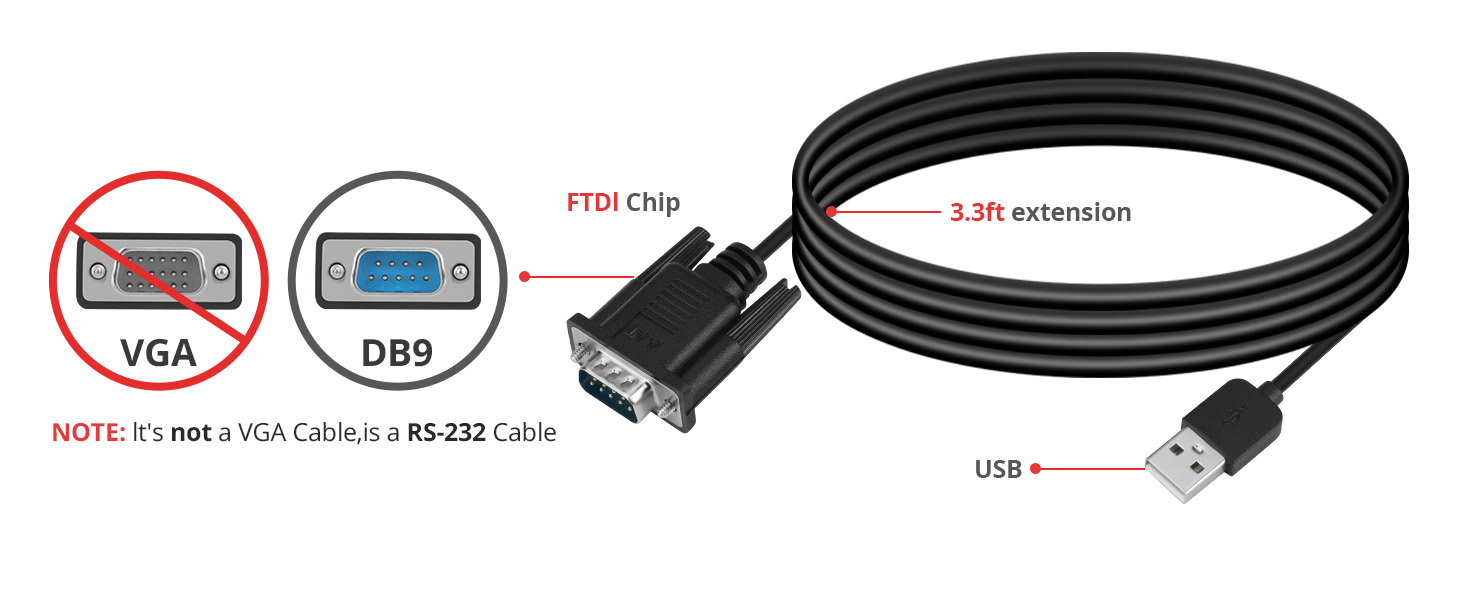

USB to Serial Adapter

Adds one RS-232 serial port to your computer. TAA compliant
In stock
Quantity in stock: 1
SKU
JU-CS0311-S1
$29.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    • Designed to add one 9-pin RS-232 serial port to your computer via an available USB port
    • Supports USB data transfer rates up to 12Mbps and serial port data transfer rates up to 250Kbps
    • Works flawlessly with RS-232 serial devices such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more
    • Built with quality FTDI FT232 high performance processor chip, which makes it one of the most reliable USB to Serial adapters on the market
    • Fully compatible with serial apps on Windows and Mac
    • 128 byte receive buffer and 256 byte transmit buffer utilizes buffer smoothing technology to allow for high data throughput
    • ESD protection for RS-232 I/O's ±15KV, Human Body Model (HBM)
    • Plug-n-play and USB bus-powered, no external power adapter is needed
    • Replaces part# JU-CB1S12-S3

    Specifications

    • Chipset: FT232
    • Compliant with USB 1.1 and 2.0 specification
    • FIFO Buffers: 512K Bytes
    • ESD Protection: 15KV Human Body Model
    • RS232 transfer rate: Up to 250Kbps
    • Product:
      • Dimensions: 2.12" (L) x 0.59" (H) x 1.29" (W)
      • Serial cable length: 1000mm (max)
      • Weight: 0.11 lbs
      • Color: Black
      • Housing: Plastic
      • Connectors:
        • 1x 4-pin, USB Type-A, Male
        • 1x 9-pin, RS-232 Serial, Male
    • Unit package:
      • Dimensions: 6.30" (W) x 9.41" (H)
      • Weight: 0.13 lbs
    • Environmental conditions:
      • Operating temperature: 32 to 122 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: <85% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • TAA compliant
    • Warranty: 2 year limited
    • Country of origin: Taiwan


    System Requirements

    • Desktop or notebook PC with an available USB 2.0 port
    • Windows® 11 (64-bit) / 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
    • Windows® Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
    • macOS® 10.5 or later

    Package contents

    • USB to Serial Adapter
    • Quick Start Guide

Manuals

Drivers


Hardware Version: 1

Windows 11 / Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / 2012 R2 / 2008 R2 / 2016
Download driver
Driver version: v2.12.36.4 (setup executable)
Mac OS 10.8 to 10.5
Download driver
Driver version: v2.2.18
Mac OS 10.9 to 11
Download driver
Driver version: v2.4.4
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / 2012 R2 / 2008 R2 / 2016
Download driver
Driver version: v2.12.28 (Inf)
