USB Type-C to DVI Video Cable Adapter

Add a DVI-D display to your USB Type-C DisplayPort Alternate and Thunderbolt 3 enabled system
In stock
Quantity in stock: 762
SKU
CB-TC0711-S1
$33.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

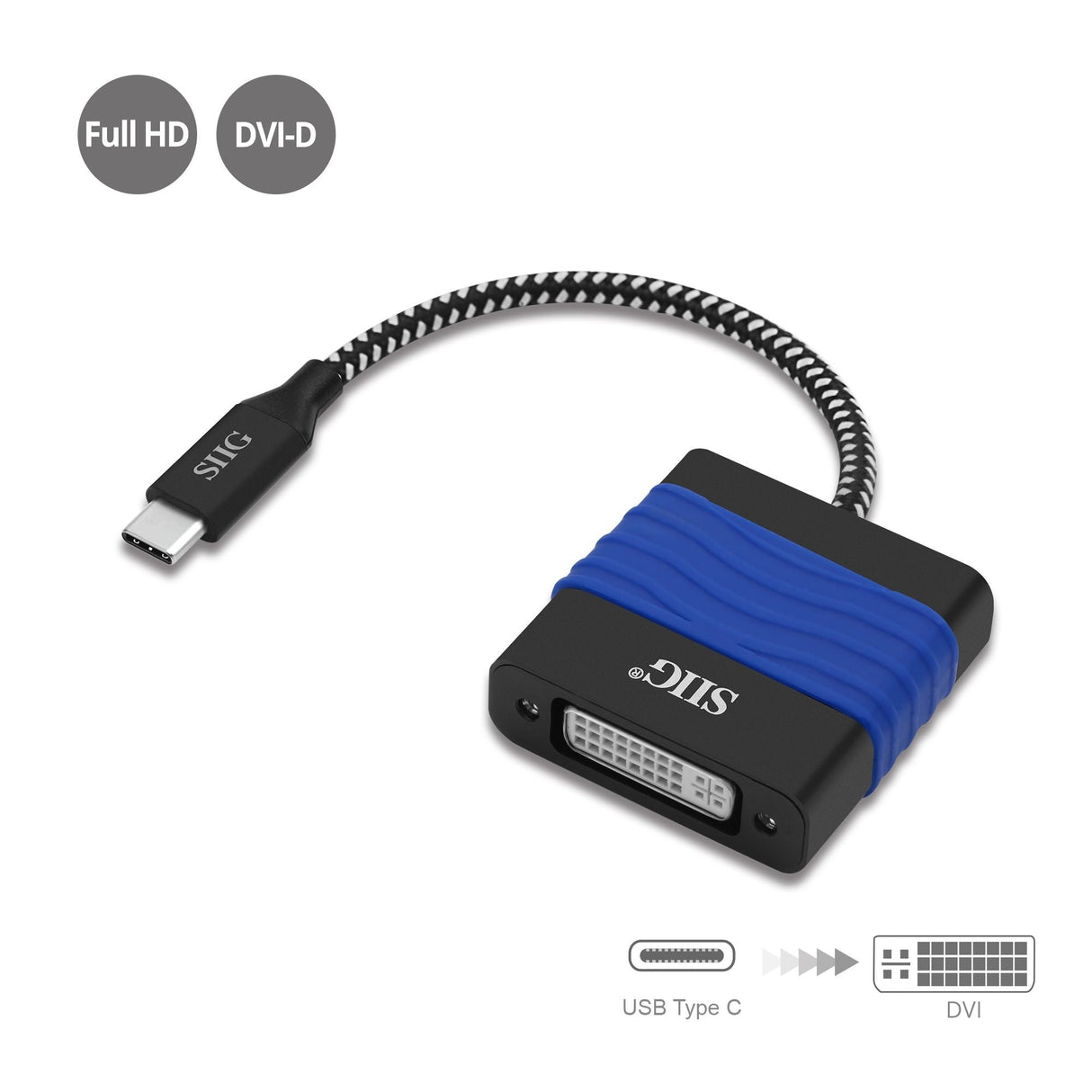

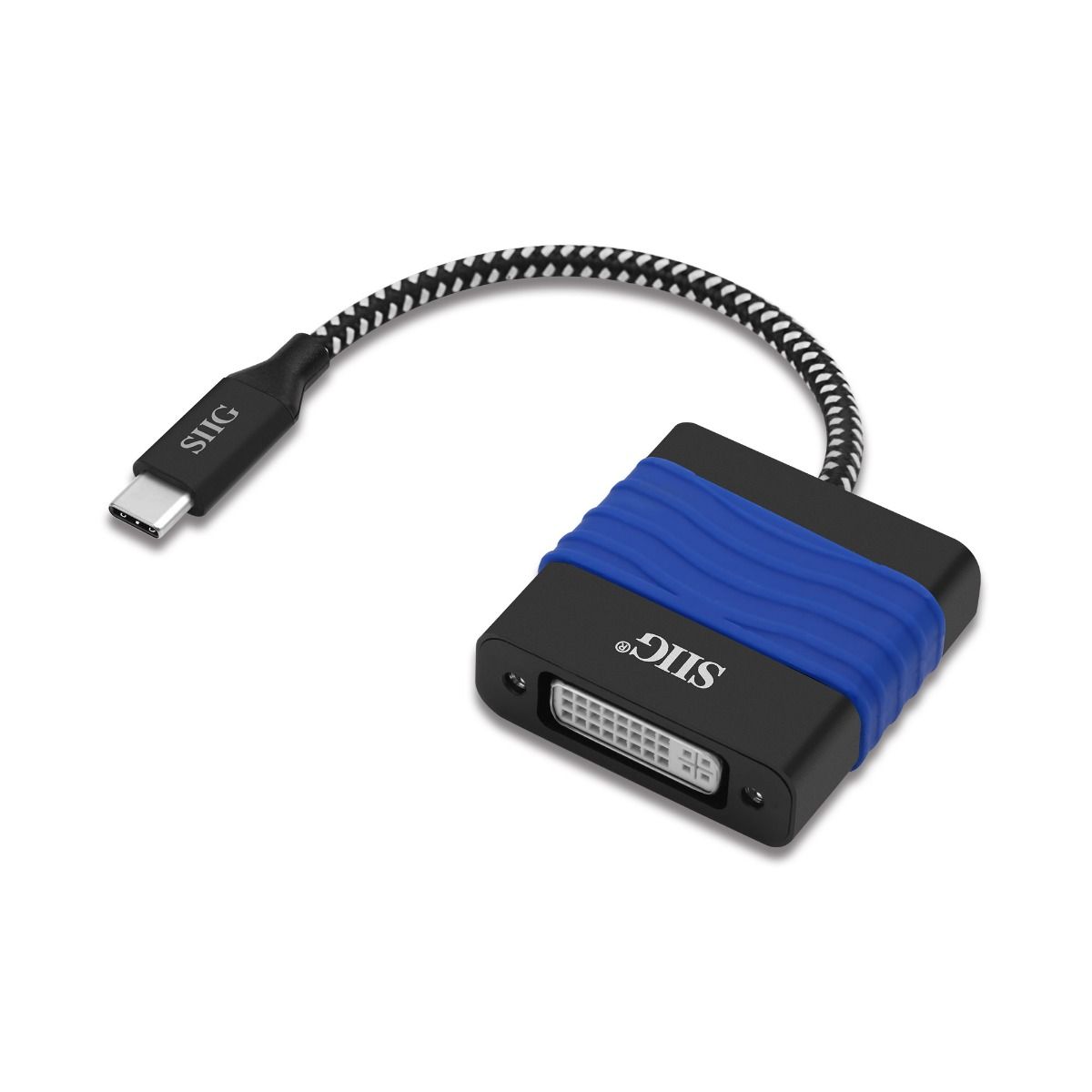

    CBTC0711 main1

    USB-C to DVI Adapter

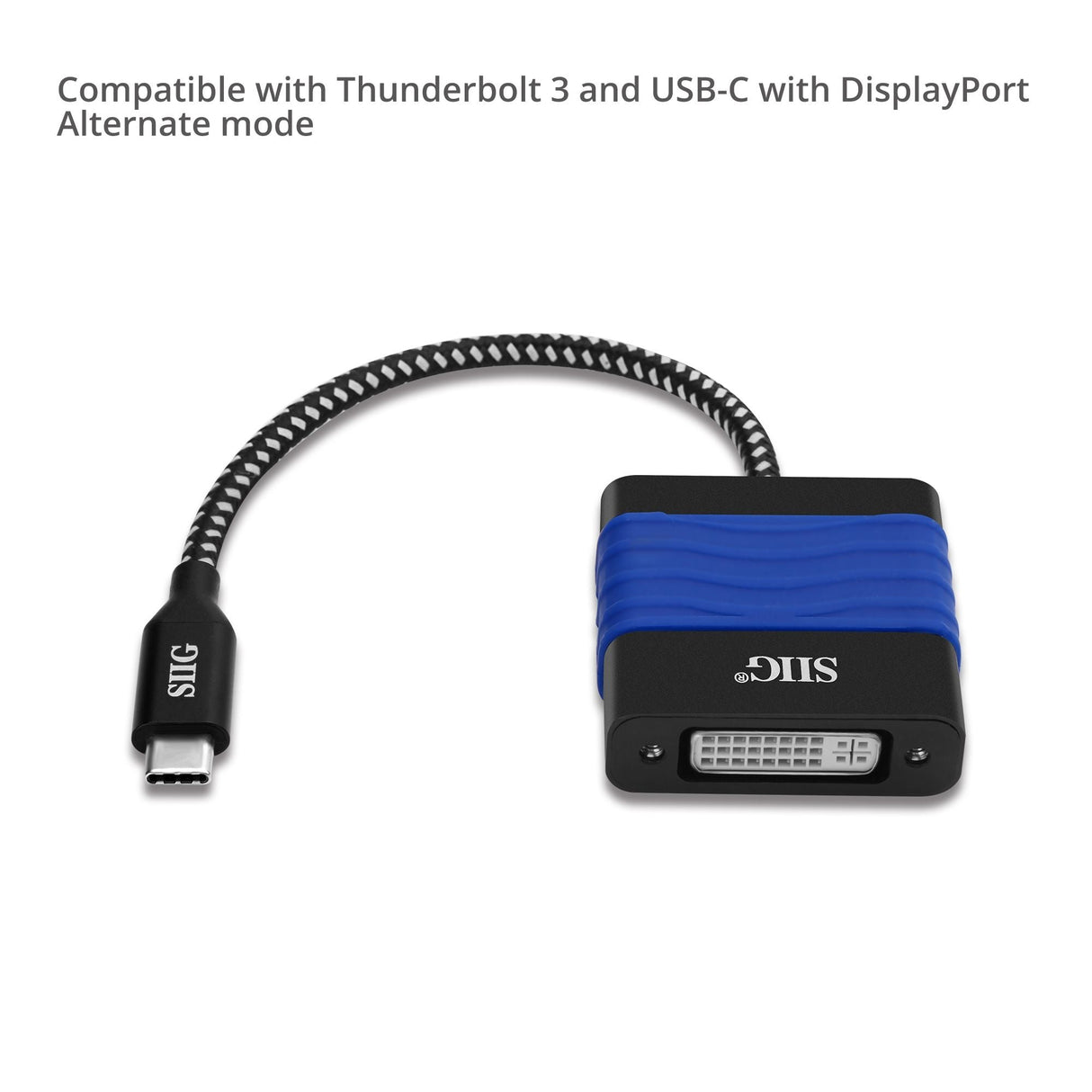

    CBTC0711 cable adapter

    USB Type-C to DVI-D Male to Female Adapter

    • Extending the life your legacy LCD/LED monitors

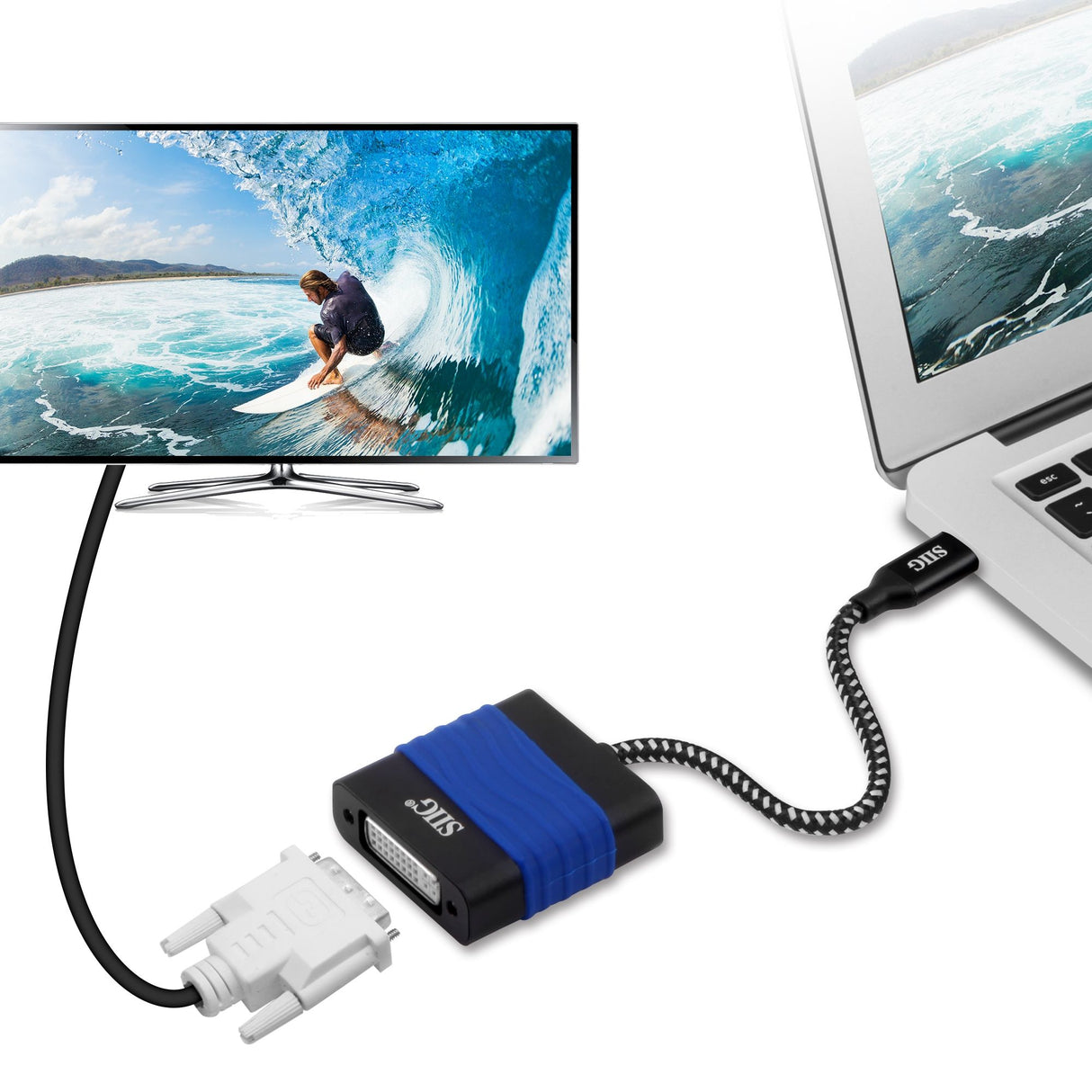

    • Cost effective connecting solution from the latest models of laptops, smartphones and tablets with USB-C outputs to any DVI displays, ex. monitors, projectors or legacy Apple Cinema Display with DVI inputs.

    Specifications:

    • Chipset: PS171
    • Compatible with DisplayPort Standard Version 1.2

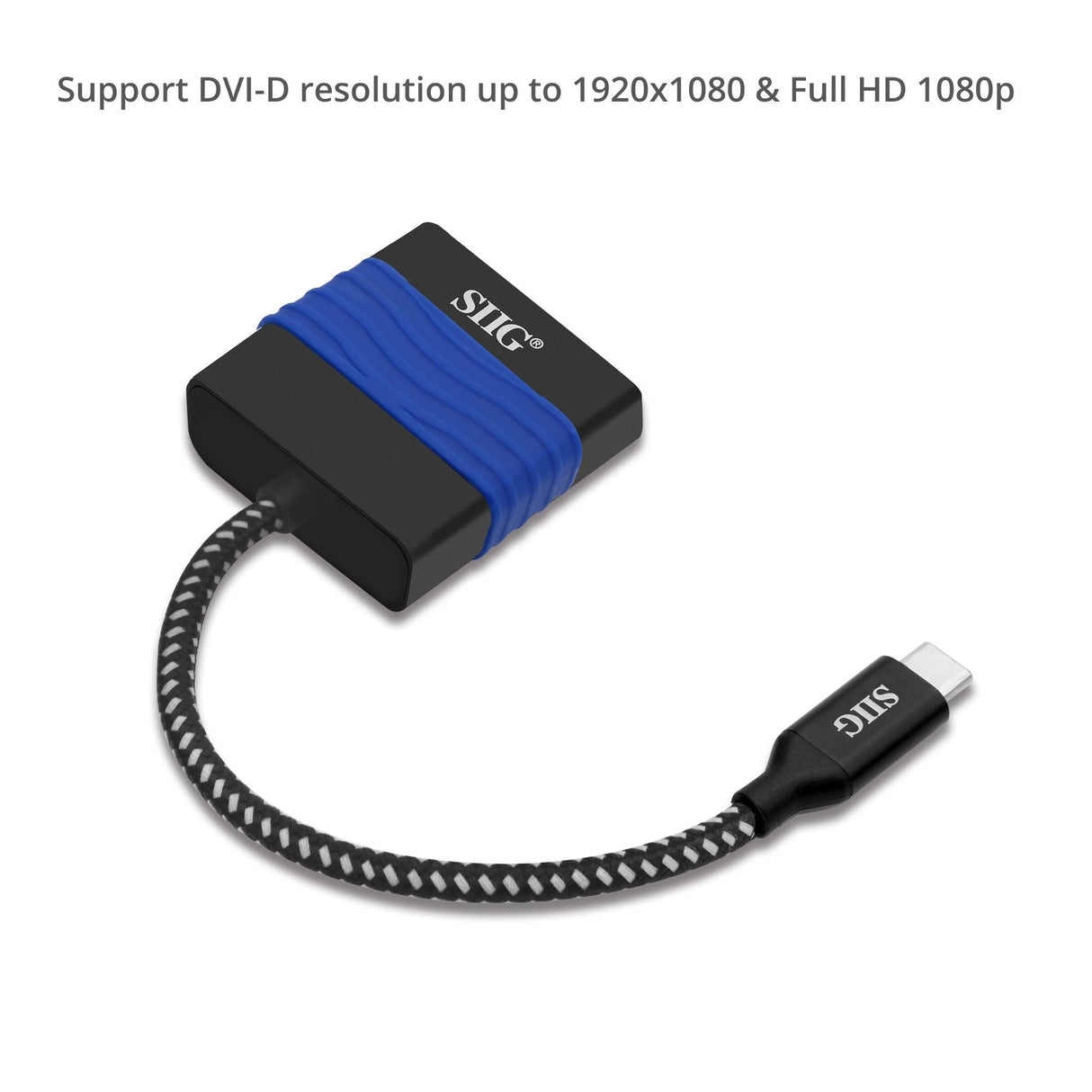

    • Video resolution: 720p, 1080p and up to 1920X1200 @60Hz
    • DVI cable transmission distance: up to 16ft (5m)
    CBTC0711 main2

    System Interface:

    • USB Type-C
    • DisplayPort Alt Mode
    • Thunderbolt 3 Technology

    Connector:

    • 1x USB Type-C, Male, Input
    • 1x 29-pin, DVI-D, Female, Output
    • Nickel plated

    Requirements:

    • Laptops, Desktops and Ultrabooks with an available Thunderbolt 3 or USB-C with DisplayPort alternate mode port NOTE: The USB-C source connection must support DisplayPort Alternate Mode (DP Alt) in order for the adapter's DVI connector to pass video signal
    • DVI-D display

    CBTC0711 sq1 braided cable

    CBTC0711 sq2 braided cable

    CBTC0711 sq3 braided cable

    Braided Cable

    The design of braided cable increases the flex life and mechanical strength of the adapter.

    Non-Slip Casing Design

    The rubber protective casing design keep the adapter from slipping or scratching your desk.

    Package Contents

    USB Type-C to DVI Cable Adapter

    type-c dvi video adaptertype-c displayport video adapertype-c vga adaptersiig cbtc0014s2 usb type c hdmi cable adapter 4k comparison 150x300 gray
    CB-TC0711-S1JU-TC0214-S1CB-TC0114-S2CB-TC0014-S2
    Number of Displays x1 x1 x1 x1
    Input Type-C Type-C Type-C Type-C
    Video Output DVI DisplayPort VGA HDMI
    Resolution 1080p@60Hz 4K@60Hz 1080p@60Hz 4K@60Hz
    Power USB Bus Power USB Bus Power USB Bus Power USB Bus Power

    Specifications

    • Chipset: PS171
    • Compatible with DisplayPort Standard Version 1.2
    • Video resolution: 720p, 1080p and up to 1920x1200 @60Hz
    • DVI cable transmission distance: up to 16ft (5m)
    • DVI Signal:  DVI-D single link
    • System Interface:
      • USB Type-C
      • DisplayPort Alt
      • Thunderbolt 3TM technology
    • Product:

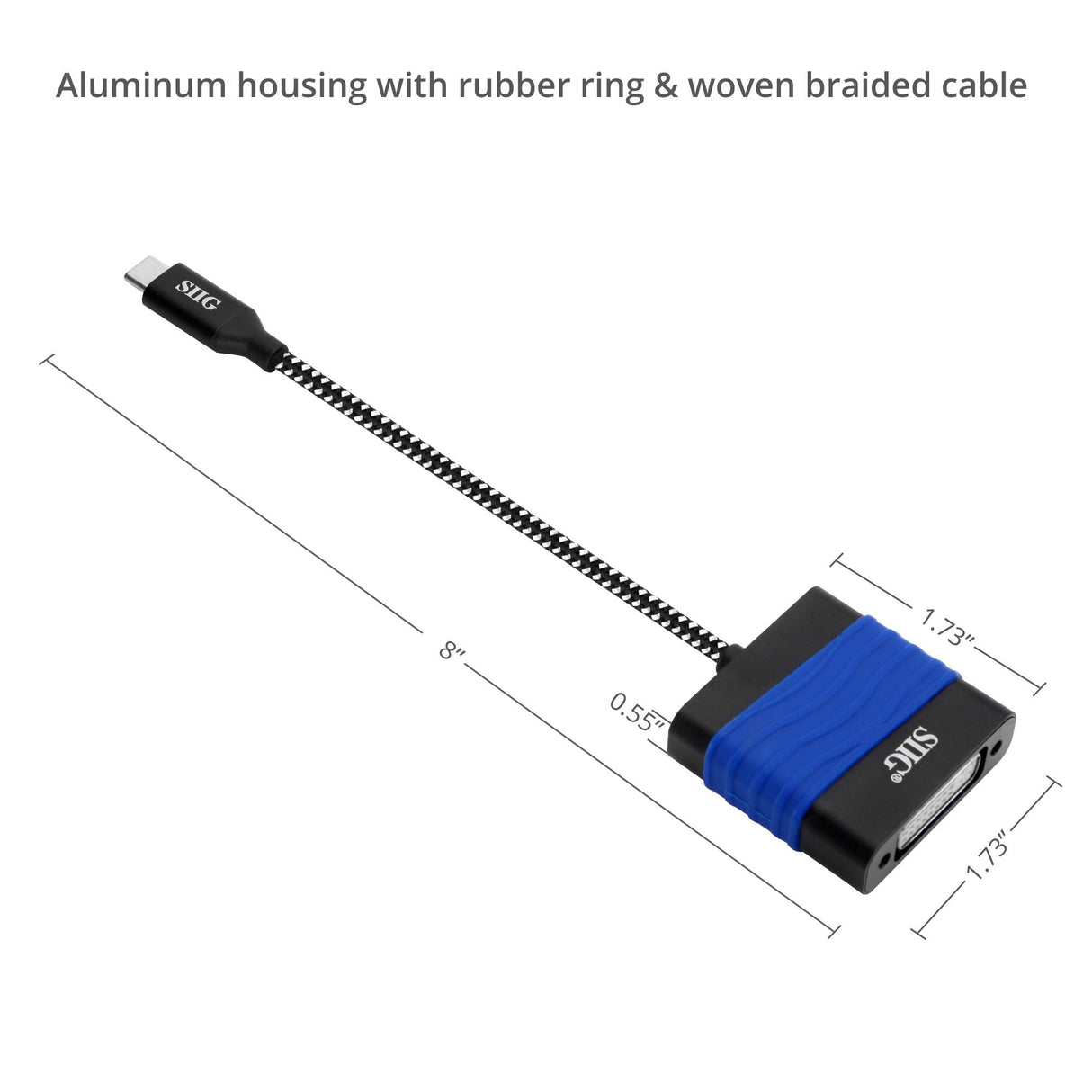

      • Dimensions: 8.0" (L) x 0.55" (H) x 1.73" (W)
      • Weight: 0.08 lbs
      • Color: Black
      • Housing: Aluminum
    • Connector:
      • 1x USB Type-C, Male, Input
      • 1x 29-Pin, DVI-D, Female, Output
      • Nickel plated
    • Environmental conditions:
      • Operating temperature: 32 to 140 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 10 to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 2 years limited
    • Country of origin: China

    System Requirements

    • Laptops, Desktops and Ultrabooks with an available Thunderbolt 3 or USB-C with DisplayPort alternate mode port
      Note: The USB-C source connection must support DisplayPort Alternate Mode (DP Alt) in order for the adapter's DVI connector to pass video signal
    • DVI-D display

    Package contents

    • USB Type-C to DVI Cable Adapter
