Extender |
SKU:
CE-H23Z11-S1

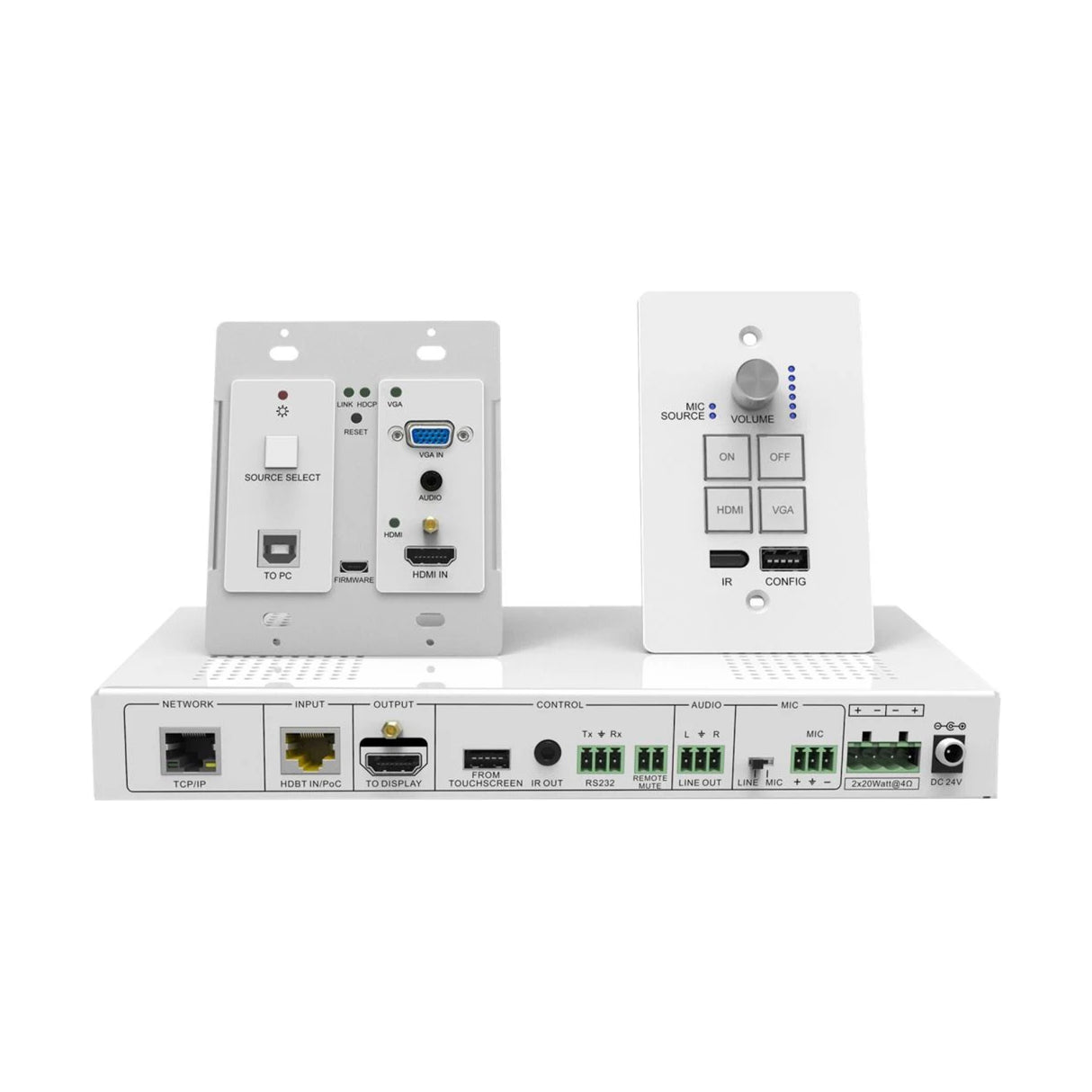

Wallplate HDMI/VGA HDBaseT Kit
HDMI / VGA Wallplate Extender
1920x1200 60Hz
RS-232
Up to 30m
Audio Extractor
Regular price
$1,299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Wallplate HDMI/VGA HDBaseT Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Professional Wall-Plate Integration
Professional Wall-Plate Integration
Versatile HDMI & VGA Switching
Versatile HDMI & VGA Switching
Smart IR Learning Control
Smart IR Learning Control
Long-Range High-Res Transmission
Long-Range High-Res Transmission
Efficient Single-Power Setup
Efficient Single-Power Setup
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Standard | HDCP 1.4 compliant |
| Resolution | 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080, or 1920x1200 |
| Bandwidth | 10.2Gbps |
| Amplifier Output | 2x20Watt @4ohms |
| Connectors | |
| Transmitting Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 15-pin VGA, D-Sub, female, input 1x 3.5mm, stereo audio, input 1x 8-pin, RJ45, HDBaseT/PoC output 1x 8-pin, RJ45, connect to control panel power/RS-232 1x Blue-Backlight button, source select 1x 4-pin USB Type-B, female, connect to PC 1x 5-pin Micro USB, Firmware update 1x Reset button |
| Receiving Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 8-pin, RJ45, HDBaseT/PoC input 1x 8-pin, RJ45, TCP/IP network 1x 4-pin USB, touchscreen 1x 3.5mm jack, IR out 1x 3-pin, RS-232, Phoenix connector 1x 2-pin, remote mute, Phoenix connector 1x 3-pin, audio line out, Phoenix connector 1x 3-pin, MIC input, Phoenix connector 1x 4-pin, 2x 20Watt @4ohms, power connector 1x Power jack, DC 24V input |
| Control Panel | 1x 4-pin USB Type-A, U-disk configuration data 1x 8-pin, RJ45, connect to transmitter power/RS-232 1x Volume knob, volume control 4x Blue-backlight button, ON / HDMI / VGA / OFF control 1x IR sensor, receive IR signal via IR remote 1x 3-Pin, RS-232, Phoenix connector 1x 5-pin, Micro USB, Firmware update |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Output | DC 24V/2.71A |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 158° F |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041995 |
| Warranty | 3 years limited |
| Country of Origin | China |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 4.14″ x 3.50″ x 1.74″ 10.52 cm x 8.89 cm x 4.42 cm |
| Weight | 0.53 lb (0.24 kg) |
| Color | White |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 9.84″ x 1.22″ x 5.12″ 24.99 cm x 3.10 cm x 13.00 cm |
| Weight | 3.31 lb (1.50 kg) |
| Color | White |
| Control Panel | |
| Dimensions (L) x (H) x (W) | 4.49″ x 2.76″ x 1.34″ 11.40 cm x 7.01 cm x 3.40 cm |
| Weight | 0.31 lb (0.14 kg) |
| Color | White |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 15.35″ x 2.76″ x 11.41″ 38.99 cm x 7.01 cm x 28.98 cm |
| Weight | 4.85 lbs (2.20 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 24.01″ x 16.56″ x 20.08″ 60.99 cm x 42.06 cm x 51.00 cm |
| Weight | 83.77 lbs (38.00 kg) |
| Quantity | 16 pcs/ctn |
| Package Contents | 1x Wallplate HDMI/VGA HDBaseT Kit (Transmitter / Receiver / Control Panel) 1x Power adapter 2x Receiver mounting ears 4x Screws 4x Receiver rubber feet 1x 4-Pin Terminal block (2x 20Watt @4ohm port) 3x 3-Pin terminal block line out/RS-232 1x 2-Pin terminal block 1x Block remote mute port 1x IR emitter 1x USB A to B control cable 1x White face plate 1x User manual |
