1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor

  • 1 to 2
  • Dual View
  • HDMI Splitter
  • 4K@120Hz
  • HDCP 2.3
  • HDR
  • 40Gbps
  • DIP Switch
  • EDID Management
  • Audio Extractor
  • Up/Down Scaling
  • VRR/ALLM
  • CEC Pass-through
  • S/PDIF Audio
  • 3.5mm Stereo Audio
  • Reset Button
  • TAA Compliant
In stock
Quantity in stock: 29
SKU
CE-H27C11-S1
Special Price $109.88 Regular Price $179.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee

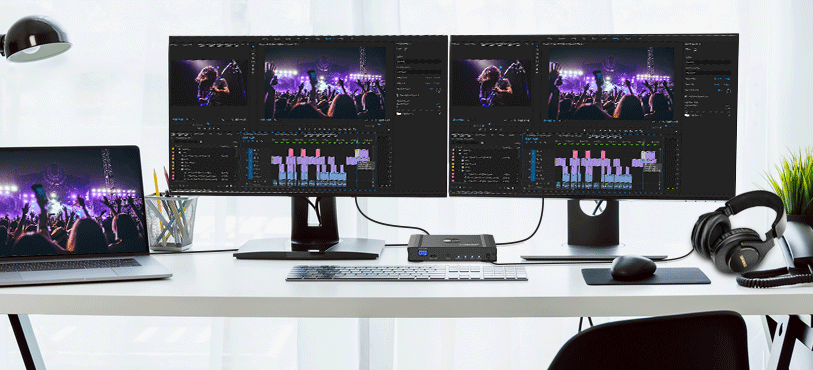

    Overview

    1x2 4K@120Hz HDMI Splitter, distibutes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously, 40G, HDCP 2.3, HDR, 7.1ch, S/PDIF, 3D, Up and Down Scaling, EDID Management, Audio Extractor, Aluminum Housing, TAA compliant

    overview


    Features

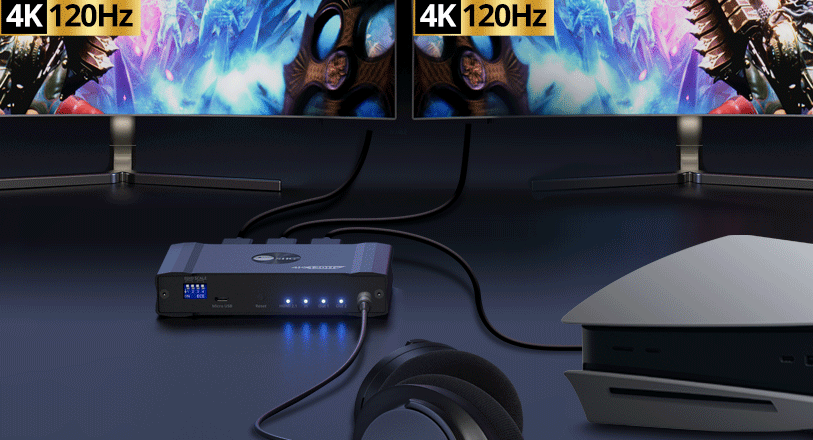

    Splits one HDMI gaming/computer/DVD player… to two 4K@120Hz HDMI monitors/TVs simultaneously, resolution up/down scaling and extractor stereo audio and S/PDIF (Toslink) digital audio

    feature

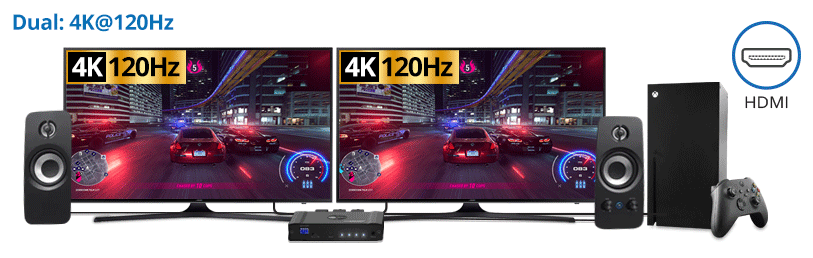

    4K 120Hz UHD Resolution

    Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, 4:4:4/4:2:2/4:2:0 and 4K (3840x2160) @60Hz 4:2:0 10-bit/12-bit, HDR, xvYCC, x.V.Color, Deep Color and 3D to enjoy the quality of a cinematic experience or make the game world more immersive

    res


    High Performance

    Offers a true 40Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 5.1-ch. surround sound from S/PDIF or 3.5mm PCM 2-ch. stereo audio

    band

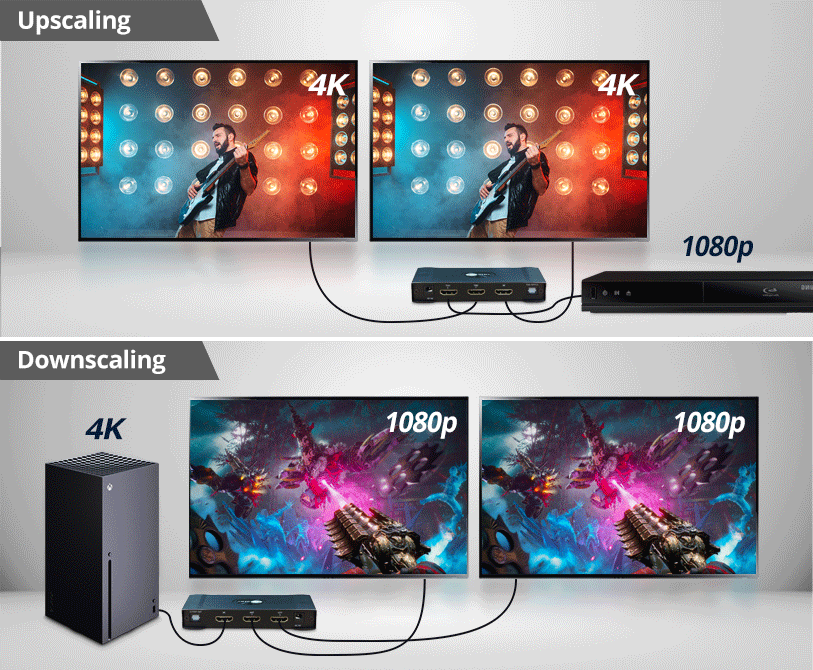

    UP/Down Scaling

    Detects and configures video resolution from 4K to 1080p or 1080p to 4K according to the capabilities of each connected monitor
    Easily switch EDID/scaling modes by using the DIP switch. EDID mode supports default EDID and EDID learning

    updown

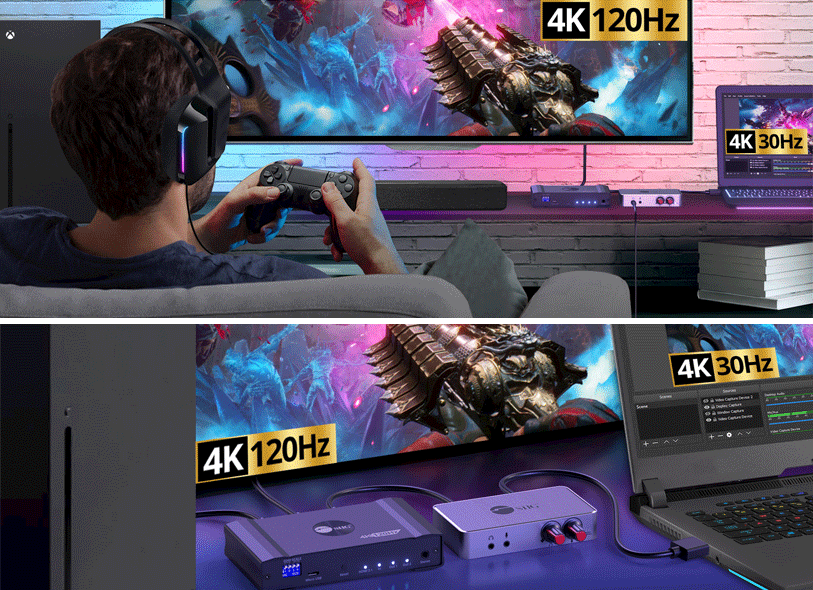

    VRR / ALLM Tech

    Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the gaming experience without stuttering or tearing

    vrr

    *Note: allows live capture of video up to 4K@30Hz from capture box, part#CE-H27311-S1 sold separately


    audio

    Extract Audio

    Audio extraction via digital S/PDIF (Toslink) or 3.5mm stereo audio output port to extract Dolby Digital, Dolby TrueHD, LPCM, and DTS-HD master audio

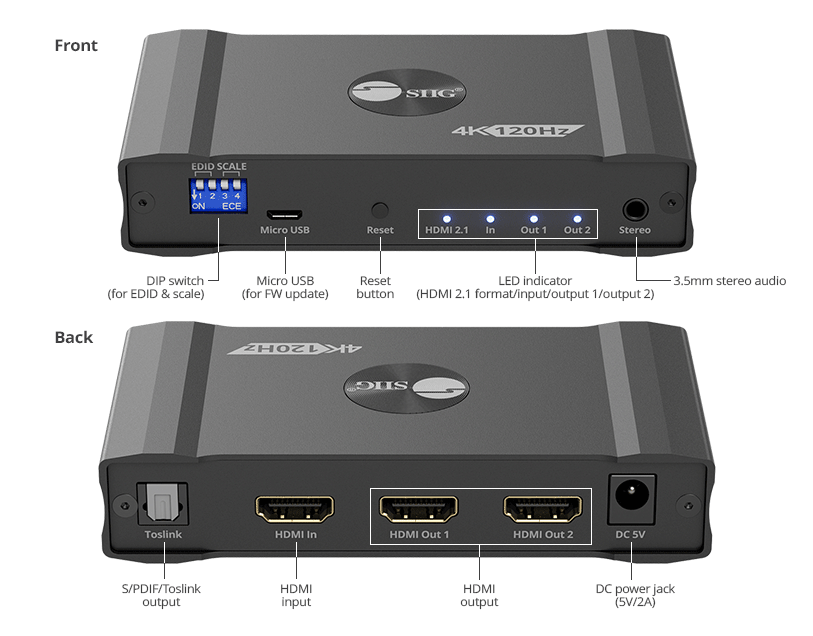

    Multiple Connectivity Ports

    Comes with one HDMI video input port, two HDMI output ports, one S/PDIF (Toslink) digital audio port, one 3.5mm stereo audio port, one reset button, one Micro USB, one DIP switch, one DC power jacks (5V/1A)

    port

    Connection

    conn


    Maximum Compatibility

    Supports Plug-n-play. CEC pass-through (for HDMI 2 port only) and firmware management features for maximum compatibility
    The reset button allows displays to be re-detected if no displays are detected


    Aluminum Housing Design

    Premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency


    TAA Compliant

    Completely manufactured in a TAA designated country


Applications

    • Live gaming • Media editing studio • Live streaming • Film studio • AV creative studio • Photography center
    • Photo shooting studio

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended displays/monitors with HDMI port and supports 4K@120Hz resolution

    monitor


    Comparison Table

    ce-h27c11-s1 ce-h23k11-s1  ce-h22X11-s1 ce-h22k12-s1 ce-h26b11-s1 ce-h27n11-s1
    SKU CE-H27C11-S1 CE-H23K11-S1 CE-H22X11-S1 CE-H22K12-S1 CE-H26B11-S1 CE-H27N11-S1
    Output Ports 2 2 2 2 2 2
    Max. Resolution 4K@120Hz, 4:4:4/4:2:2/4:2:0 and 4K@60Hz 4:2:0 10-bit/12-bit, HDR 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit), HDR 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit), HDR 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit), HDR 4K@60Hz (YUV 4: 4: 4 8-bit) & 4K@60Hz (YUV 4: 2: 0 10-bit), HDR 8K@60Hz, 4K@144Hz /120Hz, HDR
    HDMI 2.1(40Gbps) 2.0(18Gbps) 2.0(18Gbps) 2.0(18Gbps) 2.0(18Gbps) 2.1(40Gbps)
    HDCP 2.3 2.2 2.2 2.2 2.2 2.3
    Downscaling
    EDID
    Additional Features Audio Extractor VRR/ALLM; CEC on HDMI Out 1

    Specifications

    Video
    HDMI 1x input, 2x output
    Resolution Compliant with HDCP 2.3/ 1.4
    4K (3840x2160) @120Hz 4:4:4/4:2:2/4:2:0
    4K (3840x2160) @60Hz 4:2:0,10-bit/12-bit, HDR
    1080p/1080i/720p/480i/480p @60Hz
    Video bandwidth Up to 40Gbps
    Audio
    7.1 channel surround sound from HDMI output, optical audio format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
    5.1 channel surround sound from S/PDIF (Toslink) output, optical audio format: PCM2, Dolby 5.1, DTS 5.1
    2 channel stereo audio from 3.5mm audio jack, audio format: LPCM
    Power
    Power adapter Input: 100-240V/50-60Hz, Output: DC 5V/1A
    UL listed E135856/Level: VI
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity 20% to 90% RH (non-condensing)
    Product Info
    Dimensions 4.66” (L) x 0.93” (H) x 2.59" (W)
    Weight 0.37lbs
    Color Black
    Housing material Aluminum
    Unit package
    Dimensions 7.80” (L) x 2.91” (H) x5.55" (W)
    Weight 0.82 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    UPC code: 662774045368
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    interface

    Input

    • 1x 19-pin, HDMI, Female
    • 1x 5-pin, Micro USB, for FW update, Female
    • 1x 4-pin, DIP switch for EDID and scaling control
    • 1x Reset button
    • 1x DC power jack, 5V/1A

    Output

    • 2x 19-pin, HDMI, Female
    • 1x S/PDIF (Toslink) digital audio, Female
    • 1x 3.5mm stereo audio


    Package contents

    • 1x 1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor
    • 2x Screw
    • 1x DC power adapter, 5V/1A
    • 1x User Reference Guide

Manuals

04-1393a.pdf Download manual
ce-h27c11-s1 usb tool.zip USB Tool
ce-h27c11-s1 usb tool.pdf USB Tool manual
