1x2 4K120Hz HDMI Splitter with EDID & Audio Extractor

Overview

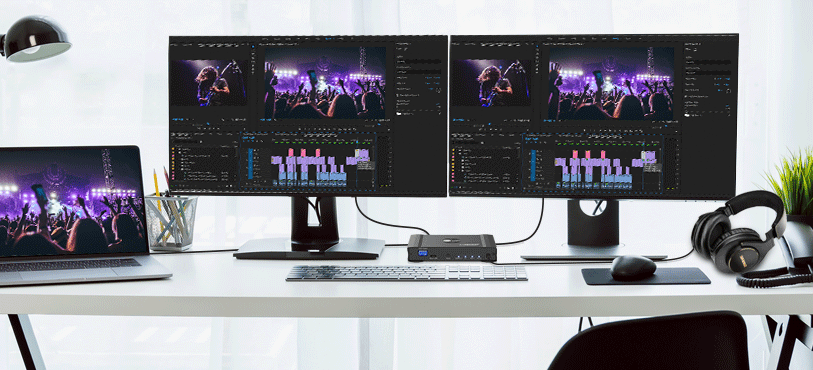

Features Applications Need to Know Before Buying Overview 1x2 [email protected] HDMI Splitter, distibutes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously, 40G, HDCP 2.3, HDR, 7.1ch, S/PDIF, 3D, Up and Down Scaling, EDID Management, Audio Extractor, Aluminum Housing, TAA Compliant Features Splits one HDMI gaming/computer/DVD player… to two [email protected] HDMI monitors/TVs simultaneously, resolution up/down scaling and extractor stereo audio and S/PDIF (Toslink) digital audio 4K 120Hz UHD Resolution Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, 4:4:4/4:2:2/4:2:0 and 4K (3840x2160) @60Hz 4:2:0 10-bit/12-bit, HDR, xvYCC, x.V.Color, Deep Color and 3D to enjoy the quality of a cinematic experience or make the game world more immersive High Performance Offers a true 40Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 5.1-ch. surround sound from S/PDIF or 3.5mm PCM 2-ch. stereo audio UP/Down Scaling Detects and configures video resolution from 4K to 1080p or 1080p to 4K according to the capabilities of each connected monitor Easily switch EDID/scaling modes by using the DIP switch. EDID mode supports default EDID and EDID learning VRR / ALLM Tech Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) technology to optimize the gaming experience without stuttering or tearing Note: allows live capture of video up to [email protected] from capture box, part#CE-H27311-S1 sold separately Extract Audio* Audio extraction via digital S/PDIF (Toslink) or 3.5mm stereo audio output port to extract Dolby Digital, Dolby TrueHD, LPCM, and DTS-HD master audio Multiple Connectivity Ports Comes with one HDMI video input port, two HDMI output ports, one S/PDIF (Toslink) digital audio port, one 3.5mm stereo audio port, one reset button, one Micro USB, one DIP switch, one DC power jacks (5V/2A) Connection Multiple Connectivity Ports Supports Plug-n-play. CEC pass-through (for HDMI 2 port only) and firmware management features for maximum compatibility The reset button allows displays to be re-detected if no displays are detected Aluminum Housing Design Premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency TAA Compliant Completely manufactured in a TAA designated country Applications Live gaming Media editing studio Live streaming Film studio AV creative studio Photography center Photo shooting studio Need to Know Before Buying 1. Please confirm your computer or device with HDMI port 2. Check the extended displays/monitors with HDMI port and supports [email protected] resolution

Specifications

Interface
Package Contents

Specifications

Video
HDMI	1x input, 2x output
Resolution	Compliant with HDCP 2.3/ 1.4 4K (3840x2160) @120Hz 4:4:4/4:2:2/4:2:0 4K (3840x2160) @60Hz 4:2:0,10-bit/12-bit, HDR 1080p/1080i/720p/480i/480p @60Hz
Video bandwidth	Up to 40Gbps
Audio
7.1 channel surround sound from HDMI output, optical audio format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
5.1 channel surround sound from S/PDIF (Toslink) output, optical audio format: PCM2, Dolby 5.1, DTS 5.1
2 channel stereo audio from 3.5mm audio jack, audio format: LPCM
Power
Power adapter	Input: 100-240V/50-60Hz, Output: DC 5V/2A
UL listed	E135856/Level: VI
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity	20% to 90% RH (non-condensing)
Product Info
Dimensions	4.66” (L) x 0.93” (H) x 2.59" (W)
Weight	0.37lbs
Color	Black
Housing material	Aluminum
Unit package
Dimensions	7.80” (L) x 2.91” (H) x5.55" (W)
Weight	0.82 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 3 years limited
Country of origin: Taiwan
