House of Worship Solution

Challenge Solution

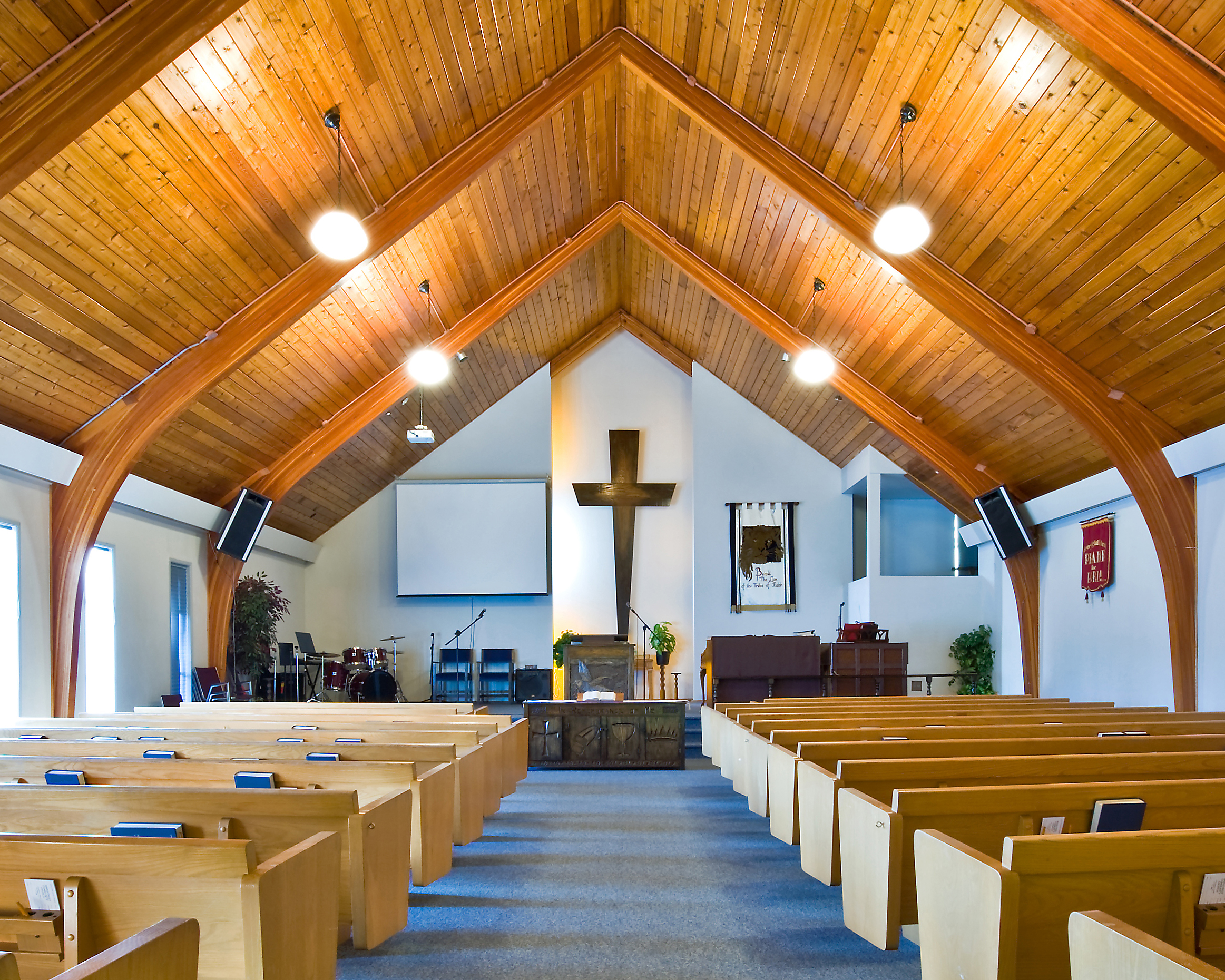

House of worships want to improve service experience to attract and engage new members. Staff members don’t want members to miss important messages or happenings when they are located at different parts of the building. Reliable AV gear becomes critical when multiple services happen every week. They want the flexibility of scalable switching to show the same content on all displays or different content on different displays. SIIG’s HDMI Over IP Extender / Matrix with IR allows scalable switching between many inputs to many outputs controllable via computer software creates captivating visuals and engaged viewers. This solution is a cost effective way to extend video distribution over long distance to increase your visual and audio impact throughout the venue.




Equipment
  • • 2x HDMI Over IP Extender/Matrix with IR – Kit (part # CE-H23A11-S1)
  • • 4x HDMI Over IP Extender/Matrix – Receiver (part # CE-H23C11-S1)
Source Input
  • • Supports up to 2 source inputs such as Laptops, Tablets, AV receivers, or Blu-Ray/DVD players
Source Output
  • • Supports up to 6 HDMI TVs or displays





Features & Highlights


HDMI Over IP Extender/Matrix with IR - Kit


Extends high definition 1080p signals from an HDMI source device to a display device through economical Cat5e/6 cabling up to 120 meter using advanced HDBitT over IP technology.


  • • Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability. Not recommended for use on a shared LAN environment
  • • Supports up to 1080p@60Hz video resolution to deliver stunning and crystal clear images
  • • Supports IR pass back function to control and switch the source device(s) from the remote RX location
  • • Supports computer control software to select and switch between source devices





HDMI Over IP Extender/Matrix with IR - Kit

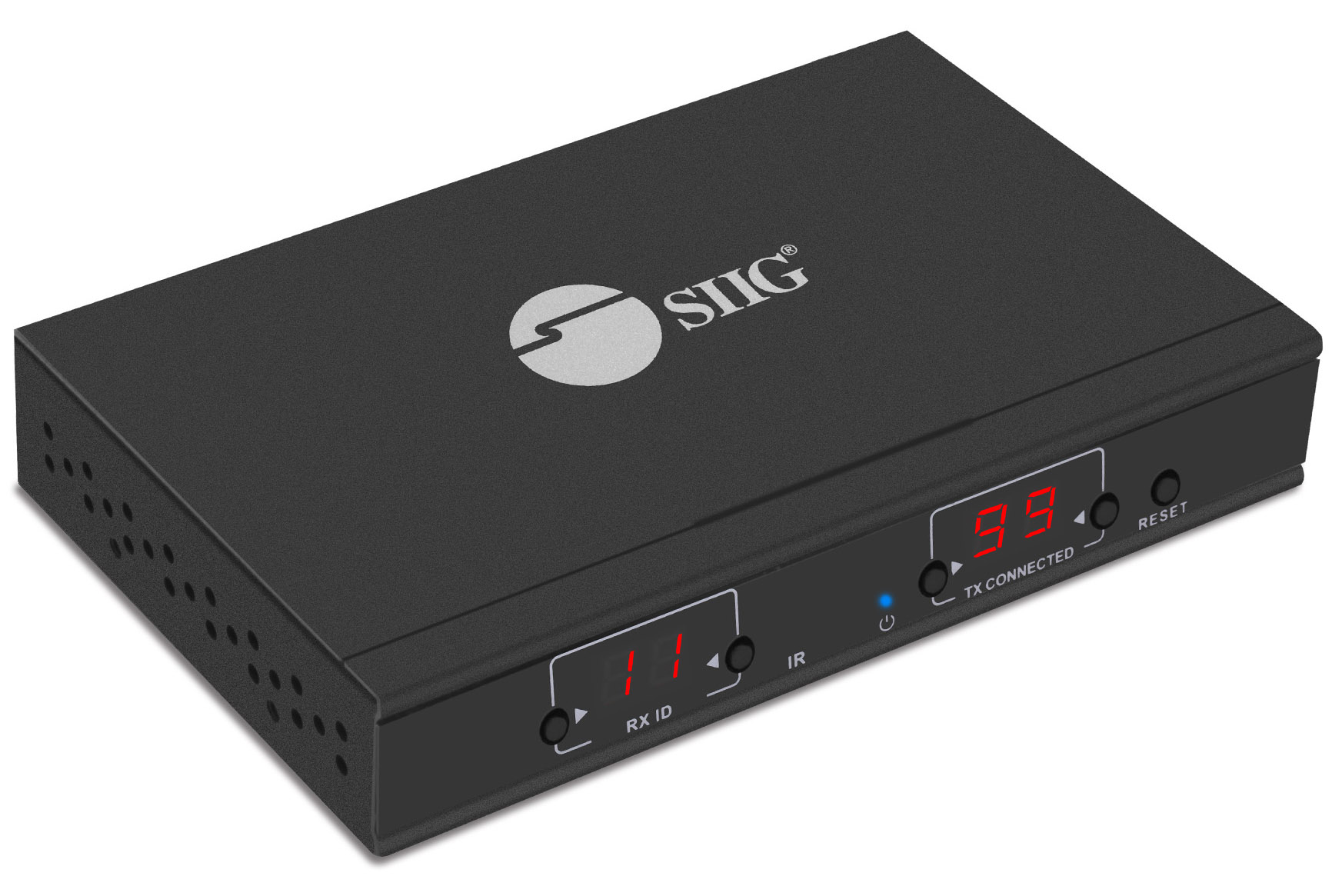

HDMI Over IP Extender / Matrix with IR – Receiver


Receives high definition 1080p signals using HDBitT technology through economical CAT5e/6 cabling up to 120 meters away.


  • • Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) and HDMI Over IPExtender with IR - Kit (part # CE-H23A11-S1) sold separately Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
  • • Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
  • • Supports IR pass back function to control and switch the source device(s) with remote RX location
  • • Supports computer control software to select and switch between source devices





HDMI Over IP Extender / Matrix with IR – Receiver



Application








Resources



White Paper PDF Application Connection





Products:


4 Items

per page
Set Descending Direction
  1. HDMI Over IP Extender with IR - Decoder (RX)

    CE-H23C11-S2

    Receives High Definition 1080p HDMI signals using advanced HDbitT technology through economical CAT5e/6/7 cabling from encoder (TX) unit up to 120 meters away, use with HDMI Over IP Extender with IR - Encoder (TX) (part # CE-H23B11-S2) sold separately

    Product Details
  2. HDMI Over IP Extender with IR - Encoder (TX)

    CE-H23B11-S2

    Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDbitT technology, use with HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately

    Product Details
  3. Full HD HDMI Over IP Extender Kit, Many to Many, RS-232 Serial and IR Control, 1080p 60Hz, 120m

    CE-H23A11-S2

    Extends high definition 1080p HDMI signals from a source device to a display device through economical Cat5e/6/7 cabling up to 120 meters using advanced HDbitT over IP technology

    Product Details
  4. Full HD HDMI Over IP Extender Kit, Many to Many, RS-232 Serial and IR Control, 1080p 60Hz, 120m
    Clearance

    CE-H23A11-S1

    Extends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology

    Replaced by CE-H23A11-S2

    Product Details
