Full HD Wireless HDMI Extender with IR and HDMI Loop-Out, 1080p, Up to 492ft, Up to 1x4

• Features
• Applications
• Need to Know Before Buying

---

Features

Long Range Wireless HDMI Transmission

Stream Full HD 1080p video up to 492ft (150m), eliminating the need for long HDMI cables and complex wiring setups; Support PCM 2CH Stereo audio

*Note: Actual distance may vary depending on walls, partitions, and interference

---

5G Low Latency Technology

Utilizes advanced 5G wireless technology for smooth, stable, and low latency video streaming — ideal for business presentations, movie nights, or gaming

---

Flexible Scalable

Extends/splits HDMI signals up to four displays and one local display simultaneously. The additional receiver unit (par# CE-H3WE21-S1) sold separately

---

Dual 5dBi Antennas with 2T2R MIMO

Equipped with 2 Transmitters and 2 Receivers (2T2R) for improved upload/download speeds, superior signal quality, and resistance to interference

---

Built In IR Remote Control Extension

Control your Blu ray player, streaming stick, or other HDMI source device from the receiver location with the included IR pass through feature

---

How to Pair the Transmitter and the Receiver

A standard wireless HDMI extender kit includes one transmitter and one receiver, which are pre-paired before shipment. Under normal circumstances, no additional pairing is required. If the transmitter and receiver fail to pair automatically, refer to the instructions to pair both devices manually

Pairing instructions:

1. Power on the transmitter

2. Power on the receiver till it’s on the main menu

3. Press and hold the receiver's reset button for 5 seconds until the LED indicator flashes rapidly

4. Wait around 30 seconds, the transmitter and receiver will paired automatically

---

Multiple Connectivity Ports

Transmitter:

Comes with two 5dBi antennas, one HDMI video input port, one HDMI loop-out, one 3.5mm IR blaster output port, one DC 5V/1A power jack

Receiver:

Comes with two 5dBi antennas, one HDMI video output, one DC 5V/1A power jack

---

Enhanced Monitoring with HDMI Local Output

Monitor your content on a local display while simultaneously transmitting to a remote screen - ideal for setups where you need a preview screen, such as presentation centers, boardrooms/meeting rooms, classrooms, trade shows, and conference centers

---

Plug and Play Convenience

No drivers, apps, or network configuration required. Simply connect your HDMI source, power it up, and start streaming; The sturdy metal enclosure not only provides durability but also minimizes EMI/RFI noise interference for a smoother, uninterrupted experience

---

---

Applications

SIIG’sFull HD Wireless HDMI Extender with IR delivers stunning 1080p Full HD video wirelessly up to 492ft, using the 5G wireless technology for smooth, low latency transmission. Perfect for living rooms, conference rooms, classrooms, trade shows, and retail displays

• Business Presentations – Stream from your laptop to a projector or big screen
• Home Theater – Watch movies wirelessly without long cable runs
• Digital Signage– Perfect for stores, restaurants, and exhibitions
• Gaming & Events– Low latency streaming keeps your visuals responsive

---

Need to Know Before Buying

1. When many networks are located closely together that will affect the wireless network. If you have multiple wireless networks in your home, please set the distance to 2 meters to avoid signal interference

2. When have walls or objects blocking the line of sight between transmitter and receiver, the signal will be significantly reduced

3. Different building materials will block the wireless signal, the most weakened by having to go through thick walls, especially reinforced concrete

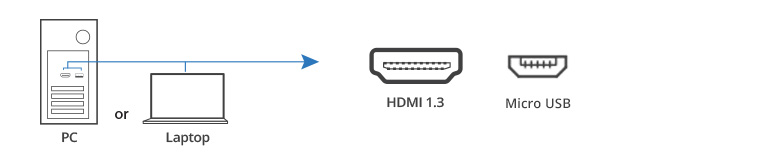

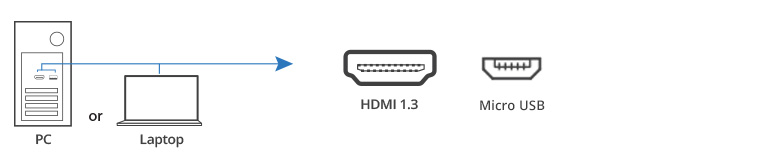

4. Please confirm your computer with HDMI and Micro USB ports

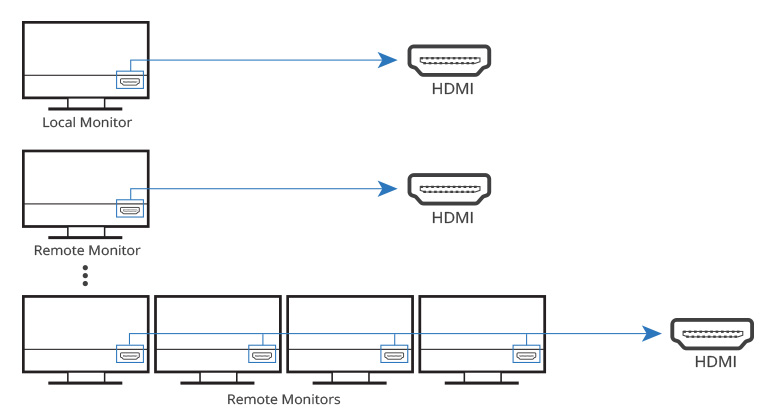

5. Check the extended and local displays/monitors with HDMI port, if you are not sure, please check with the manual of the monitor



6. HDMI cables are required to connect to the HDMI and USB host

7. Before using, please connect the two powers adapter to provide enough power

---

• Package Contents

---

Specifications

• HDMI version: HDMI 1.4 compatible
• HDCP version: HDCP 1.3 compatible
• Supported Resolutions: HDMI Loopout: Up to 1080p 60Hz / RX HDMI output: Up to 1080p 60Hz
• Transmission Distance: Up to 150m (492 ft) line-of-sight
• Wireless: IEEE 802.11b/g/n/ac, 5GHz, 2T2R
• WIFI Frequency: 5.150GHz ~ 5.825GHz
• Frequency Bands: 5150-5350MHz; 5470-5725MHz; 5725-5850MHz; 5850-5925MHz
  Note:The specific frequency bands utilized are upon the legal regulations by each country
• WIFI Bandwidth: 866 Mbps (5GHz)
• Bitrate: Maximum 50 Mbps (actual rate may vary depending on environmental factors)
• Channel Width: Supports 20 MHz, 40 MHz, and 80 MHz
• Latency: About 100ms
• HDMI Cable Length: Up to 2m (Input & Output)
• Audio Format: Stereo audio (2CH PCM), 44.1KHz
• IR Remote Control: Support 20 to 60KHz wide frequency
• Antennas: 2x 5dBi High-sensitive Antenna
• Product
  • Color: Black
  • Housing: Metal
  • Transmitting unit (TX):
    • Dimensions: 6.06" (W) x 0.79" (H) x 3.04" (D)
    • Weight: 0.72 lbs
    • Connector:
      • 1x 19-pin HDMI, Female, Input
      • 1x 19-pin HDMI, Female, Loop Out
      • 2x Antenna port
      • 1x 3.5mm IR jack (IR or reset button)
      • 1x 24-pin USB-C for DC power input
      • 1x Power On/Off switch
  • Receiving unit (RX):
    • Dimensions: 6.06" (W) x 0.79" (H) x 3.04" (D)
    • Weight: 0.73 lbs
    • Connector:
      • 1x 19-pin HDMI, Female, Output
      • 2x Antenna port
      • 1x Reset
      • 1x 24-pin USB-C for DC power input
      • 1x Power On/Off switch
• Unit package:
  • Dimensions: 10.04"(W) x 2.44"(H) x 9.25"(D)
  • Weight: 2.26 lbs
• Power Adapter
  • Input: AC 100-240V/50-60Hz
  • Output: DC 5V/2A
  • UL Listed: E336751/ Class: VI
• Environmental conditions:
  • Operating temperature: 32 to 104 degrees F
  • Storage temperature: 14 to 140 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS, FCC ID
• Warranty: 2 years limited
• Country of origin: China

---

Package contents

• 1x Full HD Wireless HDMI Extender with IR- TX
• 1x Full HD Wireless HDMI Extender with IR- RX
• 1x IR emitter cable (for TX)
• 2x HDMI cable
• 2x Power adapter, 5V/2A
• 2x USB A to C power cable x 2
• 1x User manual
