Features
Make the powerful visual solution with 4 Hybrid displays (DisplayPort/HDMI) or 5K displays (2x DisplayPort) and multiple connections for increased productivity



5K/4K Video Resolution
Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, quad 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, and 5.1-ch surround sound

Monitor Solution

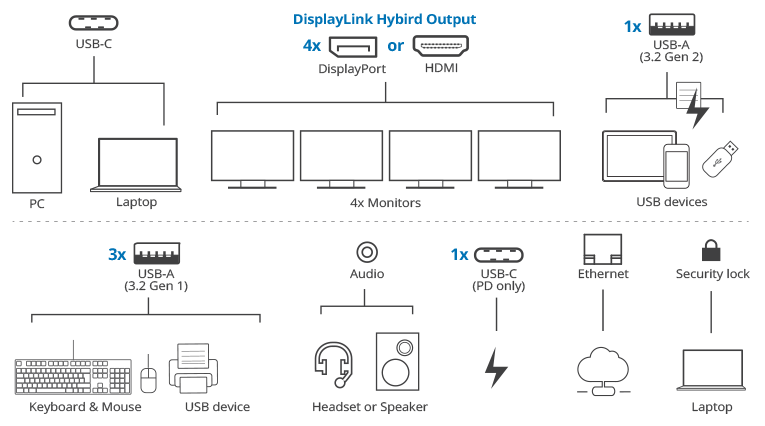

Multiple Connectivity Ports

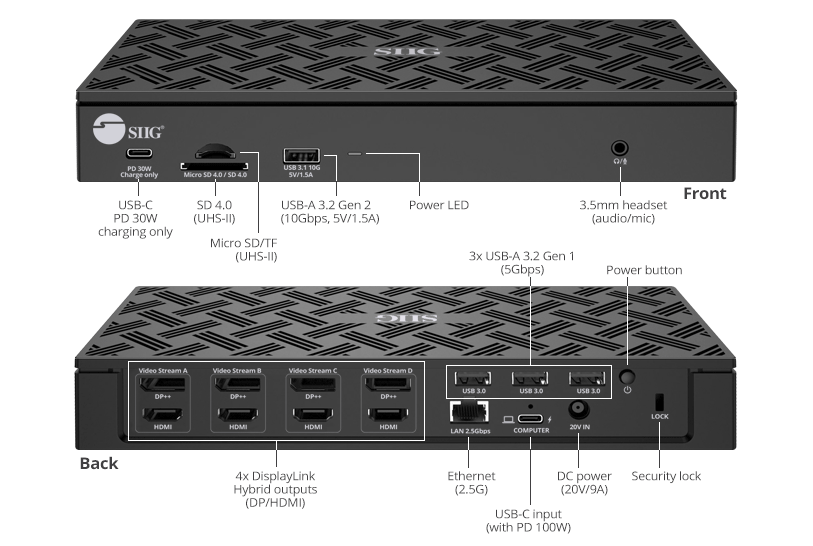

Adds one USB-C port with DP Alt mode and PD 100W (Host)*, four DisplayPort video output ports (with DisplayLink controlled), four HDMI video output ports (with DisplayLink controlled), one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging port, one USB-A 3.2 Gen 1 5Gpbs, one USB-C PD 30W charging, one 2.5G Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 4.0 UHS-II memory card slot, one Micro SD (TF) 4.0 UHS-II memory card slot, one security lock, one power on/off button, and one DC 20V/9A power jack
* Note: PD charging will not work if you connect a USB-A laptop/notebook

Connection

USB-A 3.2 Data Transfer

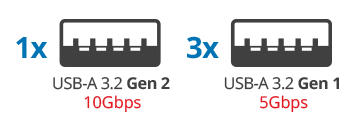

Provides one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices
Memory Card Slots
Compatible with SD 4.0 UHS-II and Micro SD (TF) 4.0 UHS-II memory card and data transfer rate up to 312MB

100W Power Delivery
The included 180W power adapter not only provides up to 100W power delivery to charge a laptop or notebook, but also provides up to 30W power delivery to charge a tablet or smartphone
* Note: PD charging will not if you connect a USB-A laptop/notebook
3.5mm Headset Jack
Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection
2.5G Gigabit Ethernet
Reliable wired network connectivity with embedded 10/100/1000/2500BASE-T Gigabit Ethernet port for high bandwidth networking
Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported
ABS Housing Design
Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button with LED provides easy recognition of power status
Security Lock
Keep your laptop safe and secure with a Kensington security lock when you work in a public place
Maximum Compatibility
- Compliant with mac® system for M1 and M2
- Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.13 to 10.15
*Note:
- macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
Need to Know Before Buying
1. Please confirm your computer is Thunderbolt 3 or USB-C with PD 100W, and ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
* Note: Not all USB-C ports support the full functionality of the USB-C standard

2. Check the extended displays/monitors resolution that support [email protected] and have a DisplayPort or HDMI port. If you are not sure, please check with the manual of the monitor

3. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop
4. Before charging your laptop, notebook, tablet, and smartphone, please use includes USB-C to USB-C cable to keep high quality and stability or check your cable with power delivery 3.0, then it can handle up to 100W and will go to 180W using a full-featured USB Type-C
5. Compliant with mac® system for M1 and M2
