USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60watts

Advanced docking station adds DisplayPort, HDMI, USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptop
In stock
Quantity in stock: 29
SKU
JU-DK0811-S1
$299.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee

    • Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
    • Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
      Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
    • Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
    • USB-C PD Charging - Supports up to 60W power output to charge your laptop
      Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
    • Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
    • Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices
    • Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
    • Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
    • Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
    • OS Compatibility - Supports various Windows and Mac* computers
      *Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update.  It's recommended to upgrade to Mojave 10.14 or stay with 10.13.3 or earlier.
      Update (12-13-2018): MacBook 2018 models (based on the Intel Coffee Lake chipset) running MacOS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the MacOS 10.14.2 update
    • Chipset: DisplayLink 6590 + FL5002 + GL3523
    • Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
    • Integrated DP 1.2/DP++ interface
    • Integrated HDMI 2.0 interface
    • Support 5.1 channel surround sound through DisplayPort and HDMI
    • Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
    • USB Power Delivery up to 60W
    • Compatible with USB Battery Charge 1.2 (BC 1.2) specification (5V/1.5A output max) on USB-C downstream ports
    • Supported video cable length:
      • HDMI: Up to 5M (max)
      • DisplayPort: Up to 3M (max)
    • Resolution:
      • Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
      • Dual [email protected] (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
      • Single [email protected] through dual DisplayPort connection
        Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
    • Gigabit Ethernet:
      • Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
      • Supports IEEE 802.3x full duplex operation
      • Compatible with IEEE 802.3, 802.3u
      • Supports crossover detection and auto-correction

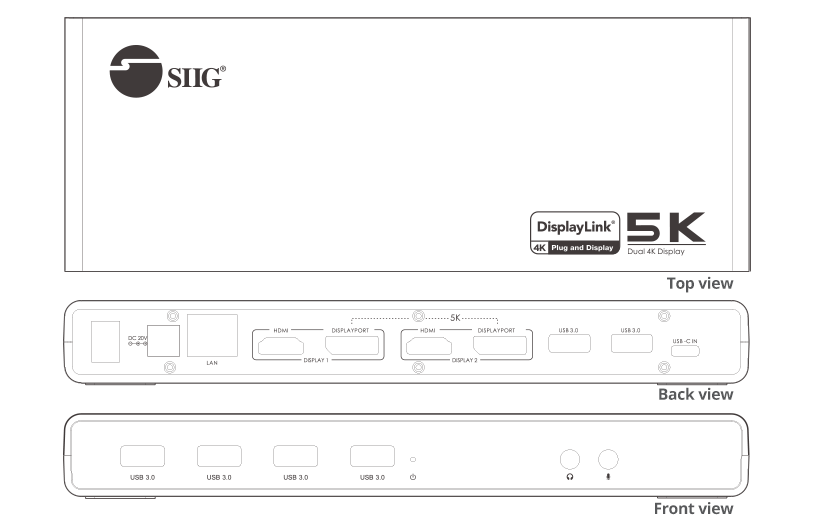

    • Connectors:
      • 1x 24-pin, USB-C, Female, Input, PD charging
      • 4x 9-pin, USB 3.1 Gen 1, Type-A, Female, standard downstream port
      • 2x 24-pin, USB 3.1 Gen 1, Type-C, Female, data downstream port with BC 1.2 charging
      • 2x 20-pin, DisplayPort, Female, Output
      • 2x 19-pin, HDMI Type-A, Female, Output
      • 1x 8-pin, RJ45, Gigabit Network, Female, Output
      • 1x 3.5mm, Stereo audio, Output
      • 1x 3.5mm, Mic, Input
    • Dimensions: 8.78" (L) x 1.02" (H) x 3.15" (W)
    • Weight: 0.77 lbs
    • Color: Black
    • Housing material: ABS
    • Power Adapter:
      • Input: AC 100-240V/50-60Hz
      • Output: DC 20V/5A
    • Environmental Conditions:
      • Operating temperature: 32 to 104 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 2 years limited
    • Country of Origin: China

    Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update. It's recommended to upgrade to Mojave 10.14 or stay with 10.13.3 or earlier.
    Update (12-13-2018): MacBook 2018 models (based on the Intel Coffee Lake chipset) running MacOS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the MacOS 10.14.2 update.


    Requirements

    • PC computer or laptop with an available USB PD USB-C Port (Thunderbolt 3 compatible)
    • Intel Core i5 3.0GHz CPU or higher and standalone GPU
    • Windows® 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
    • Mac OS X® 10.7 to 10.13.3*  / 10.14 / 10.15
      *Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update. It's recommended to upgrade to Mojave 10.14 or stay with 10.13.3 or earlier.
      Update (12-13-2018): MacBook 2018 models (based on the Intel Coffee Lake chipset) running MacOS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the MacOS 10.14.2 update.

    Package Contents

    • USB 3.1 Type-C Dual 4K Docking Station with Power Delivery
    • Power Adapter (DC 20V/5A)
    • USB-C (M) to USB-C (M) cable
    • Driver CD
    • User Reference Guide

Downloads

The displays are not working in Mac 10.13 & 10.14

Applies to the Following Products: - USB 3.0 4K Dual Video Docking Station - USB-C (JU-DK0411-S1) - USB-C Triple 4K Display Docking Station with PD Charging - 60watts (JU-DK0611-S1) - USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60watts...
