Dual Head Full HD HDMI Video Docking Station

• Features
• Applications
• Need to Know Before Buying

---

Overview

Advanced docking station adds two HDMI 1080p displays, 6 USB ports, a Gigabit Ethernet port, and a stereo audio/microphone connectivity to Windows and Mac computers. Compliant with mac^® system for M1 and M2

---

Features

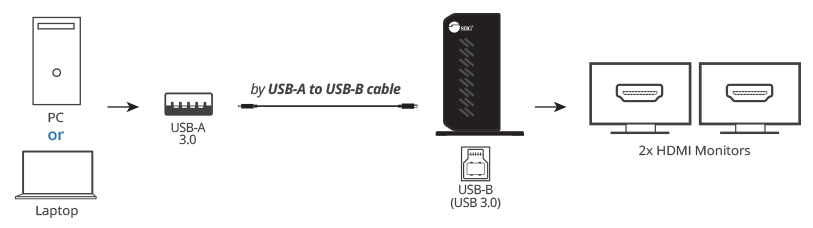

Transforms a single USB-A port of your computer into multiple connections with a DisplayLink USB graphics technology and provide dual HDMI displays making this docking station more powerful, productive, and high performance



*Note:
This Dual Head Full HD HDMI Video Docking Station is recommended with web and productivity software, not for gaming, and cannot be mixed with non-DisplayLink USB adapters





---

Video Resolution
Supports up to 1080p@60Hz Full HD video display through two HDMI ports and 5.1ch surround sound



Monitor Solutions:


Three Display Modes
Provides Mirror, Extended, and Primary video modes, streaming video to HDTV monitors and projectors for the perfect visual display



---

High Performamce
Expand multiple connectivity ports to your USB-A computer to increase your efficiency. This Dual Head Full HD HDMI Video Docking Station is fully certified to meet DisplayLink certification

DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A



---

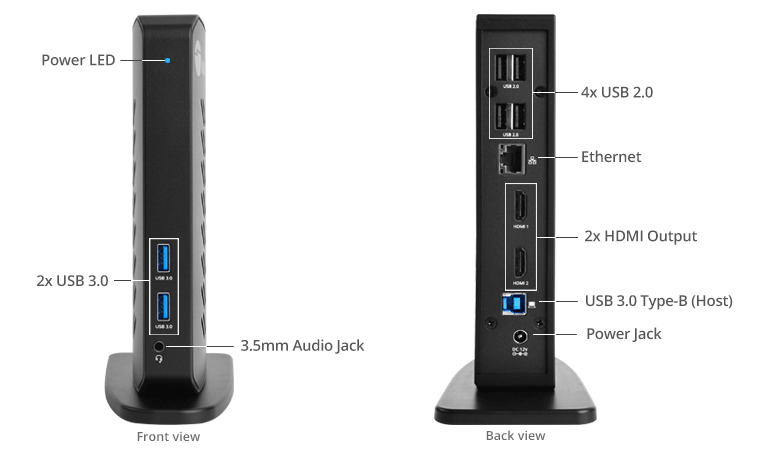

Multiple Connectivity Ports
Adds one USB 3.0 Type-B port (includes USB-A to USB-B cable for easy conversion), two HDMI video outport ports, two USB 3.0 Type-A, four USB 2.0 Type-A, one Gigabit Ethernet, and one 3.5mm audio jack to connect headphones / Stereo speakers or microphone input

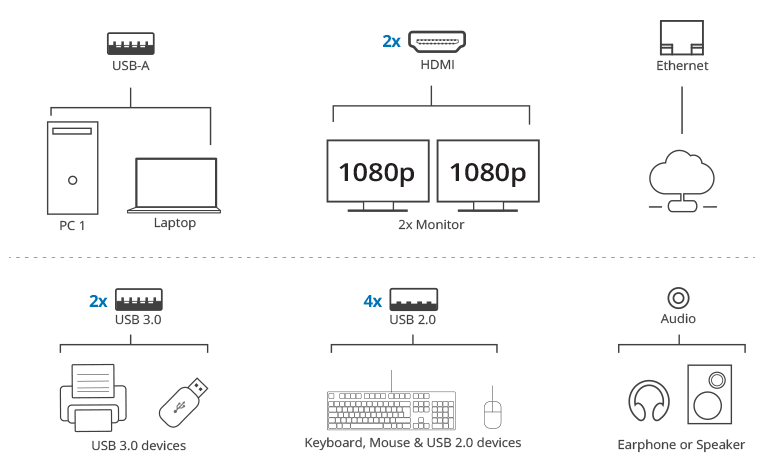

Connection


---

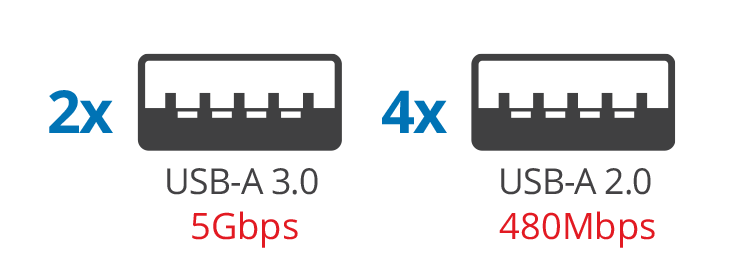

USB Data Transfer
Delivers two SuperSpeed USB 3.0 Type-A ports up to 5Gbps data transfer rate on the front side and four High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for keyboard, mouse, Flash drive, Printer, and other USB. peripheral devices

---

1G Ethernet Data Transmission
Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

---

Maximum Compatibility
- Compliant with mac^® system for M1 and M2
- Compatible with Windows^® 11/ 10 / 8.1 / 8 / 7 and macOS^® 11 / 10.15 to 10.10

*Note:
1. not compatible with macOS ^®10.13.4 to 10.13.6 and recommended to upgrade to macOS^®10.14 or later or stay with 10.13.3 or earlier
2. Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver (macOS^® 10.15.6 or later) on SIIG’s website
3. Does not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc.)

---

ABS Housing Design
Vertical design and smooth ABS housing with heat dissipation design for reliable performance, increase efficiency, and save space

---

Applications

• Media editing
• Workstation
• Web design studio
• Home
• Educational facilities
• Financial
• Office
• Receiption room
• Medical office

---

Need to Know Before Buying

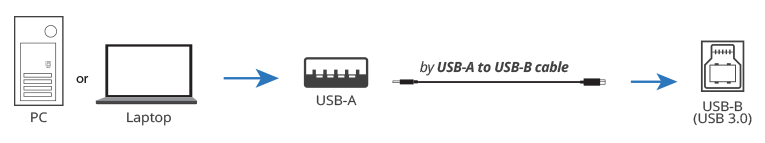

1. Please make sure your computer has a USB-A connector and use the included USB-A to USB-B cable to connecting this Dual Head Full HD HDMI Video Docking Station



2. Check the extended displays/monitors resolution that support 1080p@60Hz and has HDMI port on each display



3. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop

4. Before connecting the USB 3.0/2.0 port, make sure your peripheral device has a USB 3.0 port or USB 2.0 port

5. Compliant with mac^® system for M1 and M2

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	DisplayLink DL-3900
Software
OS Compatibility	Windows® 11 & mac OS® 12 or newer
Video
HDMI	1080p @60Hz, 2 ports
Resolution	1080p / 1080i / 720p / 480p
USB 3.0	2x Type-A, data transfer rate up to 5Gbps and compatible with USB 2.0 specification
USB 2.0	4x Type-A, data transfer rate up to 480Mbps and compatible with USB 1.1 specification
Audio
5.1 channel surround sound from HDMI output
2 channel stereo audio from 3.5mm audio jack
Display Mode
Mirror, Extended, Primary video modes
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 12V/2A
UL Listed	E221556 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Enterprise features	Wake on LAN and PXE boot *Note: Mac address pass-through not supported
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	10% to 90% RH (non-condensing)
Product Info
Dimensions	5.31” (L) x 7.36” (H) x 2.87" (W)
Weight	0.75 lbs
Color	Black
Housing material	ABS
Unit package	Dimensions: 8.07" (W) x 5.51" (H) x 4.33" (D) Weight: 1.54 lbs
Certifications/Standards
FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: Thailand

---

Interface



Input:

• 1x 9-pin, USB 3.0 Type-B, Female (PC Input)
• 1x DC power Jack

Output:

• 2x 19-pin, HDMI, Female
• 2x 9-pin, USB 3.0 Type-A, Female
• 4x 4-pin, USB 2.0 Type-A, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 1x 3.5mm Audio Jack (Headset/Mic)

---

System Requirements

• Desktop or laptop computer with an available USB 3.0 Type-A port
• Compliant with mac^® system for M1 and M2
• Windows^® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS^® 12 to 10.10*
  *Note: Our adapter is not compatible with 10.13.4 to 10.13.6

---

Package contents

• Dual Head Full HD 1080p HDMI Video Docking Station
• Power Adapter 12V/2A
• USB 3.0 A to B cable
• Driver CD
• User manual
