USB-C Triple Video MST Docking Station with PD

  • USB-C Input
  • DP 1.4 Alt Mode
  • PD 65W
  • MST Hub
  • 2x HDMI
  • 1x DisplayPort
  • Triple View 1080p
  • Dual View 2K
  • Single View 4K
  • 4x USB-A 5Gbps
  • 1x Gigabit Ethernet
  • 1x Headset Jack
  • 1x SD 3.0 Slot
  • 1x Micro SD/TF 3.0 Slot
  • Power On/Off Button
  • Windows & Mac
In stock
Quantity in stock: 70
SKU
JU-DK0R11-S1
$399.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Advanced USB-C docking station adds Triple monitors of DisplayPort & HDMI, one USB-A 3.1 Gen-1 5Gbps with 5V/1.5A fast charging, three USB-A 3.1 Gen-1 5Gbps, one SD 3.0 & Micro SD (TF) 3.0 memory card slots, one Gigabit Ethernet port, a 3.5 mm headset jack for 2-Ch. stereo audio & MIC, and PD up to 65W to Windows computers

    Overview


    Features

    Triple displays (DisplayPort/HDMI) with MST technology, 65W PD, and multiple connections by a single USB-C with DP 1.4 Alt mode input to build a productivity workstation

    features


    Video Resolution
    Supports single 4K (3840x2160, 4:2:0) @60Hz Ultra HD video resolution or Dual 2K (2560x1440) @60Hz or triple 1080p (1920x1080) @60Hz displays with DP 1.4 alt mode and 5.1-ch. surround sound

    resolution_3

    resolution_2

    resolution

    Monitor soultion
    solution


    3 Display Modes
    Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays
    * Note: macOS® only supports Mirror mode

    mode

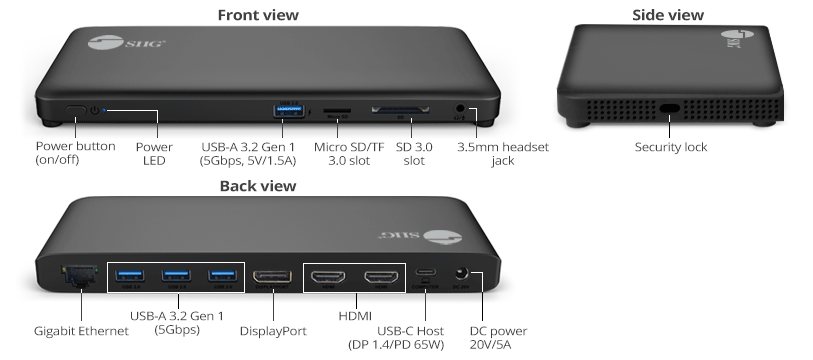

    Multiple Connectivity Ports
    Adds one USB-C port with DP 1.4 Alt mode and PD 65W (Host), one DisplayPort video output port with MST technology, two HDMI video output ports with MST technology, one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging port, three USB-A 3.2 Gen 1 5Gpbs, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, one DC 20V/5A power jack, and one power on/off button

    Ports

    Connection
    connection

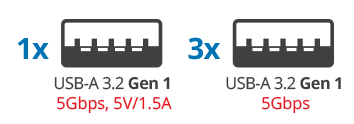

    USB-AUSB-A 3.2 Data Transfer
    Provides one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices


    PD65W Power Delivery
    Includes a USB-C 3.2 Gen 1 to USB-C cable for connecting laptop/notebook, supports up to 65W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 100W power adapter ensures enough power for laptop charging and USB peripherals


    Memory Card Reader
    Compatible with SD 3.0 UHS-1 and Micro SD (TF) 3.0 UHS-1 memory cards and data transfer rate up to 104MB


    1G Ethernet Data Transmission
    Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port


    3.5mm Headset Jack
    Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection


    Security Lock
    Keep your laptop safe and secure with a security lock when you work in a public place


    ABS Housing Design
    Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button with LED provides easy recognition of power status


    Maximum Compatibility
    Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.15 to 10.13
    * Note:
    - macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
    - macOS® only supports Mirror mode


Applications

    • Office
    • Workstation
    • Home workstation
    • Media editing
    • Web design studio
    • Photo shooting studio
    • Educational facilities
    • Medical office
    • Reception room
    • Financial
    • Control center

    Need to Know Before Buying

    1. Please confirm your computer is Thunderbolt 3/4 or USB-C that supports DP 1.4 Alt mode and ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
    * Note: Not all USB-C ports support the full functionality of the USB-C standard
    Computer

    2. Check the extended displays/monitors resolution that supports [email protected] with DP 1.4 Alt mode for single monitor; 1080p with DP 1.4 Alt mode for triple monitors and have DisplayPort/HDMI port. If you are not sure, please check with the manual of the monitor
    monitor

    Gcard3. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver

    4. Before charging your laptop, notebook, tablet, and smartphone, please check your cable with power delivery 3.0, then it can handle up to 65W and will go to 100W using a full-featured USB Type-C




    notice


    Specifications

    Hardware
    Chipset VMM5310 + RTL8153
    Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specifications
    Software
    OS Compatibility Windows® 11, mac OS® 12 or new
    * macOS® 10.13.4 to 10.13.6 is not supported
    Video
    DisplayPort x1, with MST technology, [email protected]
    HDMI x2, with MST technology, [email protected]
    Display Mode
    Mirror, Extended, Primary video modes (* MacOS ® only supports Mirror mode)
    USB
    USB-A 3.2 Gen 1 x1, data transfer rate up to 5Gbps, 5V/1.5A charging
    USB-A 3.2 Gen 1 x3, data transfer rate up to 5Gbps, 5V/900mA
    Fast Charging Port Yes
    Audio
    5.1 channel surround sound from DisplayPort/HDMI output
    2 channel stereo audio & microphone from 3.5mm headset jack
    Memory Card Reader
    SD 3.0 (UHS-I) slot data transfer rate up to 104 MB/s
    Micro SD/TF 3.0 (UHS-I) slot data transfer rate up to 104 MB/s
    Power Adapter
    Power Delivery 3.0 up to 65W via USB-C port (Host)
    Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 20V/5A, UL listed: E132068/ Level: VI
    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
    Compatible with IEEE 802.3, 802.3u
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 10% to 90% RH (non-condensing)
    Product Info
    Dimensions 8.27” (L) x 0.79” (H) x 3.35" (W)
    Weight 0.71 lbs
    Color Black
    Housing material ABS
    Unit package Dimensions: 10.47" (L) x 2.95" (H) x 5.12" (W)
    Weight: 2.69 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Input:

    • 1x 24-pin, USB-C with PD 65W, Female (Host)
    • 1x DC power jack, 20V/5A
    • 1x Power button, on/off

    Output

    • 1x 20-pin, DisplayPort with MST, Female
    • 2x 19-pin, HDMI with MST, Female
    • 1x 9-pin, USB-A 3.2 Gen 1, 5Gbps, 5V/1.5A charging, Female
    • 3x 9-pin, USB-A 3.2 Gen 1, 5Gbps, Female
    • 1x 8-pin, Gigabit Ethernet, RJ45
    • 1x 3.5mm, Headset jack, stereo audio & mic
    • 1x SD 3.0 memory card slot, UHS-1, up to 104MB/s
    • 1x Micro SD/TF 3.0 memory card slot, UHS-1, up to 104MB/s
    • 1x Security lock


    System Requirements

    • Desktop or laptop with an available USB-C port with DP 1.4 Alt mode or Thunderbolt 3/4 port
    • Windows® 11 /10
    • macOS® 12 / 11 / 10.15 to 10.13

    *Note:
    - macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
    - macOS® only supports Mirror mode


    Package contents

    • 1x USB-C Triple Video MST Docking Station with PD
    • 1x USB-C 3.2 Gen 1 to C cable
    • 1x Power Adapter, 20V/5A
    • 1x User Reference Guide
