10-Port Industrial USB 3.1 Gen 1 with Dual USB-C Hub & Charging

Overview

Features Applications Need to Know Before Buying Overview Add 9 SuperSpeed USB 3.1 ports and a dedicated 5V/2.4A charging port to your system Features Industrial-grade metal hub with safety protection to safeguard all of your connected devices and has a vertical and horizontal design suitable for the home or work environment. Easily expand 2x USB 3.1 Type-C ports, 7x USB 3.1 Gen 1 Type-A Gen 1 ports, and 1 USB Type-A fast charging port to connect devices simultaneously for the best performance USB 3.1 Gen 1 Data Transfer Delivers seven USB 3.1 Gen 1 Type-A and Type-C devices, such as external hard disks, webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio, and more. Data transfer rate up to 5Gbps for smooth and stable performance USB Fast Charging One ultra-fast USB 3.1 Type-A that built-in smart charging IC to automatically detect your connected device and deliver the optimal power output. Supports data transfer rates of up to 5Gbps (5V/2.4A) and backward compatible with USB 2.0 and USB 1.1 devices Multiple Connectivity Port Comes with one USB Type-B port (Host/System, includes USB 3.1 Gen 1 Type-A to Type-B cable), seven USB 3.1 Gen 1 Type-A ports, two USB 3.1 Gen 1 Type-C ports, one USB Type-A charging port only, one terminal block for extra power input, and one DC power jack (19V/3.42A) Connection Uninterruptible 65W Power Supply 600W surge protection for each power input port and includes a 65W (19V/3.42A) power adapter to provide enough power for the connected USB peripherals, such as laptop, notebook, tablet, and smartphone Maximum Compatibility Supports UASP (USB Attached SCSI Protocol) function (with Windows 11/10/8 native USB 3.0 host drive only) Plug-n-Play, no driver installation required Safety Protection Built-in over-current protection to protect the hub and connected devices. An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device Metal Hosing Design Industrial grade rugged metal housing design to withstand harsh industrial environments and provides efficient heat dissipation for reliable performance and long life Built-in wall-mounted and DIN rail mount to secure the hub to rack, wall, or under a table Applications Office Video surveillance Control center Factory Workstation Research center Medical office Warehouse Home entertainment Reception room Data center Industrial environment Educational facilities Conference room Testing lab Need to Know Before Buying 1. Please confirm your computer with a USB 3.1 Gen 1 Type-A port. If you are not sure, please check on the manual of the computer 2. Check if your USB device is a USB 3.1 Gen 1 Type-A or Type-C port in order to get the performance of USB 3.1 Gen 1 3. Use the charging port to charge laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 65W

Specifications

Interface
System Requirements
Package Contents

Specifications

Hardware
Chipset	VIA VL813 Q7
Software
OS Compatibility	Windows® 11, macOS® 10.6 or new
USB Data Transfer

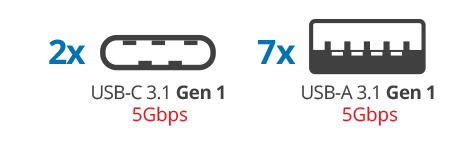

USB 3.1 Gen 1 Type-C	2x USB-C, up to 5Gbps, 1500mA
USB 3.1 Gen 1 Type-A	7x USB-A, up to 5Gbps, 900mA
Fast Charging Port	USB Type-A, up to 5V/2.4A
Power
Power Adapter	Input: AC 100-240V / 50-60Hz, 2.0A (max.), Output: DC 19V/3.42A(max.)
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	-4 to 158 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	7.24” (L) x 0.96” (H) x 2.64" (W)
Weight	0.83 lbs
Color	Black
Housing material	Metal
Certifications/Standards
FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
