Universal Hybrid Triple 4K Video Docking Station with PD 3.0

  • USB-C Input
  • DP Alt mode
  • DisplayLink IC
  • PD 100W
  • Triple View 4K
  • 3x HDMI
  • 3x DisplayPort
  • Single 5K
  • 6x USB-A 3.0 5Gbps
  • 1x Gigabit Ethernet
  • Audio Jack
  • 3 Display Modes
  • Windows & Mac
In stock
Quantity in stock: 379
SKU
JU-DK0J11-S1
$299.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Advanced hybrid docking station adds three 4K displays, 6 USB 3.0 Type-A 5Gbps ports, a Gigabit Ethernet port, a stereo audio/microphone port, and USB Power Delivery charging up to 100 watts to Windows and Mac computers

    Overview


    Features

    3 Hybrid displays with multiple connections by a single USB-C with DP Alt mode output and DisplayLink controlled technology to create a perfect workstation and increase your work productivity


    High Performance

    Expand multiple connectivity ports to your USB-C with DP Alt mode or Thunderbolt 3 enabled mac or Windows PC to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification. DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.

    DP 4K


    5K/4K Video Resolution
    Resolution

    Monitor solution
    5K
    Connect DisplayLink controlled DisplayPort or HDMI output:

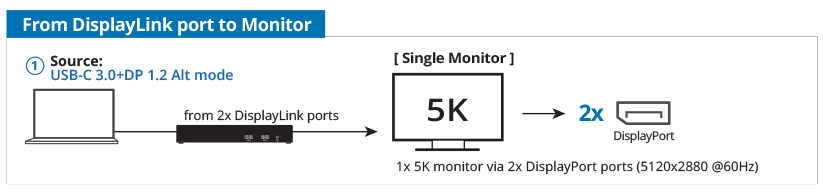

    Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, or two 4K (4096x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI, or one single 4K (4096x2160) @60Hz display (DP or HDMI)

    DP Alt mode

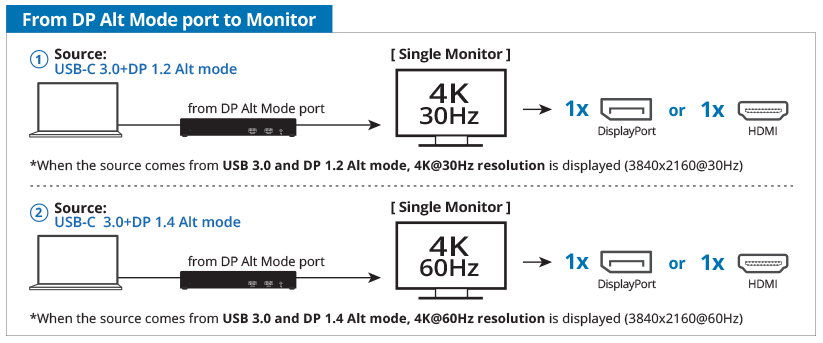

    Connect one DisplayPort or HDMI [email protected] display via USB-C DP 1.2 Alt mode output (USB-C DP 1.4 Alt mode output supports [email protected] display)

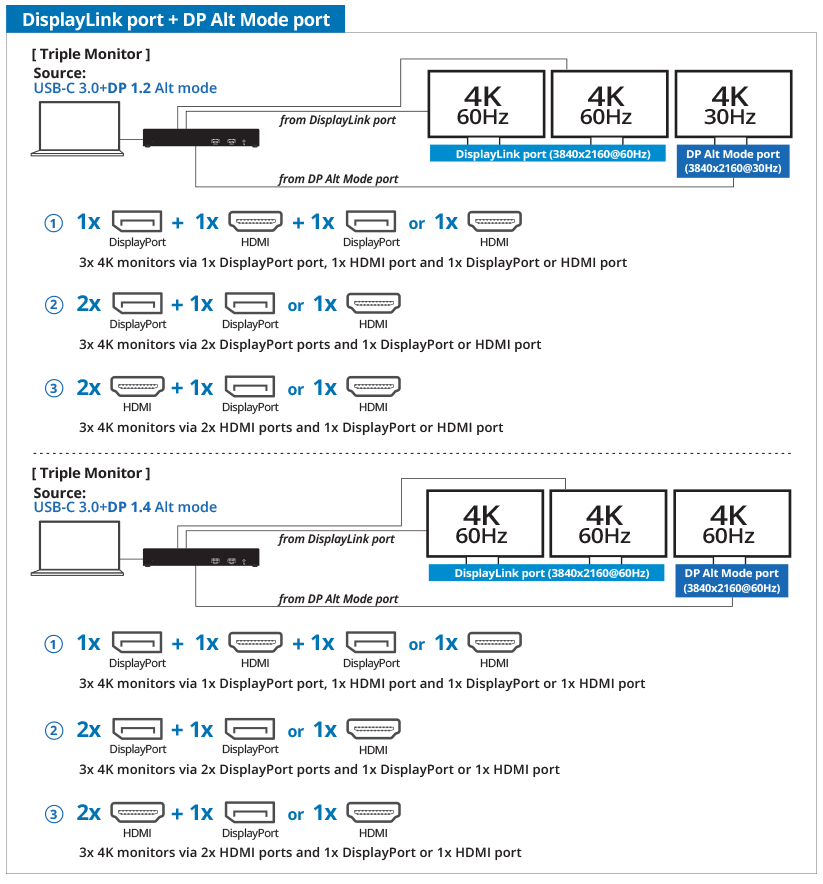

    DL+Alt
    Supports three 4K (3840x2160) @60Hz displays (one DP or HDM via DP 1.4 Alt mode + two DP or two HDMI or DP & HDMI via DisplayLink controlled)
    *Note: DP 1.2 Alt mode supports 4K (3840x2160) @30Hz


    Multiple Connectivity Ports

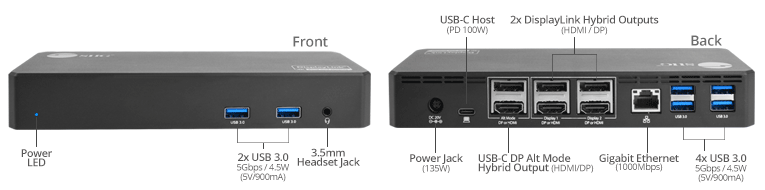

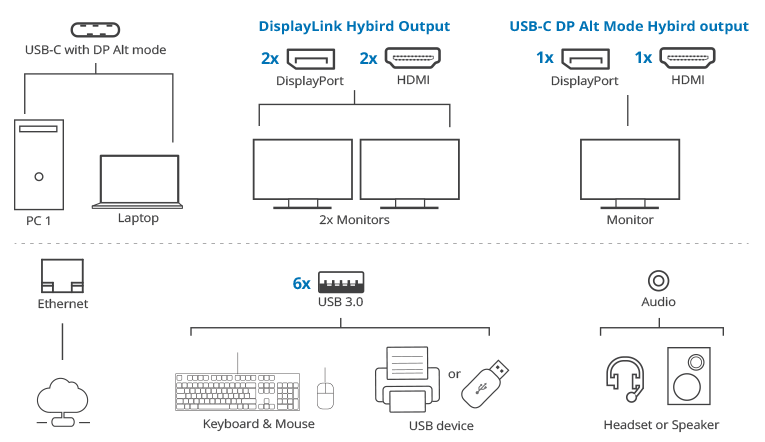

    Adds one USB-C port with PD 100W (Host), one DisplayPort video output port (with USB-C DP Alt mode), two DisplayPort video output ports (with DisplayLink controlled), one HDMI video output (with USB-C DP Alt mode), two HDMI video output ports (with DisplayLink controlled), six USB-A 3.0 output ports, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone)

    Ports

    Connection

    Connection


    USB

    SuperSpeed Data Transfer

    Provides six USB-A 3.0 ports and data transfer rate up to 5Gbps; enhance your laptop's connectivity options and performance capabilities


    PD

    100W Power Delivery

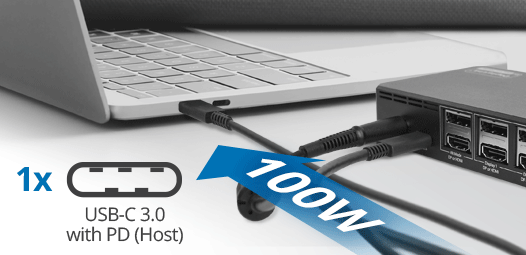

    Includes high quality USB-C 20V/5A cable for connection to laptop/notebook, supports up to 100W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 135W power adapter ensures enough power for laptop charging and USB peripherals


    RJ45

    1G Ethernet Data Transmission

    Reliable wired network connectivity through embedded 10/100/1000 Base-T Gigabit Ethernet port


    Headset

    3.5mm Audio Jack

    Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection


    ABS Housing Design

    Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in LED provides easy recognition of power status


    Maximum Compatibility

    Compatible with Windows® 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 11 / 10.15 to 10.13
    *Note:
    1. macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to 10.14 or later or stay with 10.13.3 and earlier
    2. macOS® 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website
    3. Does not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc...)
    4. This Universal Hybrid Triple 4K Video Docking station with PD 3.0 is recommended with web and productivity software, not for gaming, and cannot be mixed with non-DisplayLink USB Adapters


Applications

    • Office
    • Web design studio
    • Medical office
    • Workstation
    • Educational facilities
    • Financial
    • Home office
    • Surveillance control center
    • Reception room
    • Media editing

    Need to Know Before Buying

    1. Please confirm your computer is Thunderbolt 3 or USB-C that supports DP Alt mode, and ensure supports USB power delivery 3.0. If you are not sure, please check on the manual of the computer

    Computer

    2. If your source is USB-C with DP 1.2 Alt mode, then it provides [email protected] resolution; USB-C with DP 1.4 Alt mode provides 4K @60Hz resolution

    USB

    3. Check the extended displays/monitors have a DisplayPort or HDMI port. If you are not sure, please check with the manual of the monitor

    Monitor

    4. Ensure the DisplayLink driver have installed before plug into DisplayLink ports

    5. Before charge your laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 100W and will go to 135W using a full-featured USB Type-C


    Specifications

    Hardware
    Chipset DisplayLink DL-6950-N
    Compliant with Universal Serial Bus 3.0 and 2.0 specification
    Software
    OS Compatibility Windows® 10, macOS® 11 or new
    *Note: macOS® 10.13.4 to 10.13.6 is not supported
    Video
    DisplayPort 1.2 5K (Connect both DisplayLink controlled DisplayPort 1.2 outputs to a single 5K DisplayPort TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p
    HDMI 4K @60Hz
    USB 3.0 6x Type-A, data transfer rate up to 5Gbps, 5V/900mA, and compatible with USB 2.0 specification
    Fast Charging Port Yes
    Audio
    5.1 channel surround sound from HDMI/DisplayPort output
    2 channel stereo audio & microphone from 3.5mm Headset Jack
    Display Mode
    Mirror, Extended, and Primary video modes
    Power
    Power Delivery 3.0 up to 100W via USB-C (Host)
    Power Adapter Input: AC 100-240V / 50-60Hz, Output: DC 20V/6.75A
    UL Listed E132068 /Level: VI
    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
    Compatible with IEEE 802.3, 802.3u
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 10% to 90% RH (non-condensing)
    Product Info
    Dimensions 7.87” (L) x 1.18” (H) x 3.35" (W)
    Weight 0.68 lbs
    Color Black
    Housing material ABS
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: Thailand

    Interface

    Interface

    Input:

    • 1x 24-pin, USB 3.0 Type-C with PD 100W, Female (PC Input)
    • 1x DC power Jack (135W)

    Output:

    • 3x 19-pin, HDMI, Female
    • 3x 20-pin, DisplayPort, Female
    • 6x 9-pin, USB 3.0 Type-A, Female
    • 1x 8-pin, RJ45, Gigabit Ethernet, Female
    • 1x 3.5mm Headset Jack (Stereo audio/Mic)

    System Requirements

    • Desktop or Laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port
    • Windows® 10 / 8.1 / 7 (32-/64-bit)
    • mac OS® 11 / 10.15 to 10.13 (not compatible with 10.13.4 to 10.13.6)

    Package contents

    • 1x Universal Hybrid Triple 4K Video Docking Station with PD 3.0
    • 1x USB 3.0 C to C cable, 100W (Gen 2, 20V/5A), 1M
    • 1x Driver CD
    • 1x Power Adapter (20V/6.75A)
    • 1x User Reference Guide

Manuals

Drivers


Hardware Version: 1

Windows 8 (32-/64-bit)
Download driver version 9.2 M3
Software Package Version: 9.2.2477.0
Windows 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit)
Download driver version 10.0 M0
Software Package version: 10.0.191.0
Mac OS X 10.10
Download driver version 3.1
Mac OS X 10.11.5 to 10.11
Download driver version 4.1
Mac OS X 10.13 to 10.13.3* / 10.12 / 10.11.6
Download driver version 4.3.1
*Note: Our adapter DOES NOT work with Mac OS 10.13.4 to 10.13.6 update. It's recommended to upgrade to Mojave 10.14 or later or stay with 10.13.3 or earlier.
Mac OS 10.14.x
Download driver version 5.2.5
Build: 5.2.90 (860432D)
Mac OS 11 / 10.15.x
Download DisplayLink Manager 1.1: Build: 1.1.91 (671a2c0)
For the latest Mac driver please visit DisplayLink's website, https://www.displaylink.com/downloads/macos, and download the latest driver to maximize compatibility
