8K 1x3 DisplayPort 1.4 to 2 DisplayPort & HDMI MST Hub Splitter

  • DisplayPort 1.4
  • HDCP 2.2
  • 32.4G
  • HDMI 2.0
  • Triple Monitors
  • Single 8K
  • Dual [email protected]
  • Triple [email protected]
  • MST Hub
  • Splitter
  • 7.1ch
  • Three Display Modes
  • Micro USB power
  • Reset Button
In stock
Quantity in stock: 5
SKU
CE-DP0N11-S1
$119.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Easily connect up to two DisplayPort and one HDMI displays from a single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology


    Features

    Overview

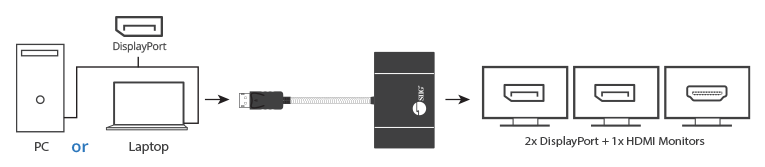

    Splits a single DisplayPort 1.4 output source to two DisplayPort and one HDMI monitors with Mirror, Extended and Panoramic Video Wall display modes

    Feature


    High Performance

    Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously). Also supports multi-stream transport 1.2 technology and 3D video

    Bandwidth

    Bandwidth Limitation

    The connected displays will share 32.4Gbps bandwidth from a single DP 1.4 source, please make sure additional displays can be accommodated

    Bandwidth2

    *Note: If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays


    High Resolution

    Supports HDCP 2.2 and UHD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz and HDR displays or Triple 4K (3840x2160) @30Hz

    Monitor solutions:
    Resolution


    Display Modes

    Supports various application such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display

    Mode

    *Note:
    1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
    2. Panoramic Video Wall mode requires an AMD Eyefinity, or NVIDIA Surround or Intel Collage technology graphics adapter
    3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)


    Connectivity Port

    Comes with one 20-pin DisplayPort 1.4 input port (Host), two 20-pin DisplayPort 1.4 video output ports, one 19-pin HDMI 2.0 video output port, one 5-pin Micro USB for power input (at least 5V/500mA), and one reset button

    Ports

    Connection
    Connection


    Maximum Compatibility

    Compatible with DisplayPort 1.4 graphics cards with AMD Eyefinity, NVIDIA Surround or Intel Collage technology

    *Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode

    Supports Plug-n-play, hassle-free set up without complicated hardware or driver installation

    The reset button allows re-detection of all the displays if any of the displays are not detected


    Aluminum Housing Design

    Premium aluminum housing decreases outer interference and provides optimal video quality. The built-in woven braided cable for enhanced durability


Applications

    • Video editing
    • Conference room
    • Testing lab
    • Educational facilities
    • Small seminar
    • Restaurant
    • Workstation
    • Medical office
    • Service counter
    • Gaming
    • Banking

    Need to Know Before Buying

    1. Make sure your system requirement has the DisplayPort video output specification 1.4, USB 3.0 port, and supports Multi-Stream Transport (MST). If you are not sure, please check with the video card or system manufacture

    Computer

    2. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available

    3. Please check your monitor's resolution to meet your need. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

    Gcard4. MST hub cannot increase the number of displays a video card supports. Regardless of the number of display connectors built into your video card, each video card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer. *Note: AMD RX560/RX570/Radeon 7200 Series video cards only support up to 2 displays

    5. Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met

    6. To connect DVI or VGA monitors to our Triple 4K DisplayPort 1.4 to 2 DP & HDMI MST Hub Splitter, please use ACTIVE converter

    Active Adapter


    Specifications

    Hardware
    Chipset VMM5320
    Software
    OS Compatibility Windows® 10
    Video
    DisplayPort 1.4, x2
    HDMI 2.0, x1
    Resolution one screen up to 8K (7680x4320) @30Hz, two screens up to 5K (5120x2880) @60Hz, three screens up to 4K (3840x2160) @30Hz
    Bandwidth 32.4Gbps
    Display Modes
    3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode
    * Note: AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter is required to support Panoramic Video Wall mode
    Audio
    7.1 channel surround sound, up to 192KHz sampling rate
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 4.14” (L) x 2.60” (W) x 0.67 "(H)
    DisplayPort cable (embedded) 10.24 inches
    Weight 0.28 lbs
    Color Black
    Housing material Aluminum
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: China

    Interface

    Interface

    Input:

    • 1x 20-pin, DisplayPort 1.4, Male (Host)
    • 1x 5-pin, Micro USB, Power Input only (at least 5V/500mA), Female
    • 1x Reset button

    Output:

    • 2x 20-pin, DisplayPort 1.4, Female
    • 1x 19-pin, HDMI 2.0, Female

    System Requirements

    • Desktop or Laptop with available DisplayPort 1.4 and USB 3.0 ports
    • Windows® 10 / 8.x / 7 (32-/64-bit)
    • * Note:
      - Please connect the Micro USB power port, before use


      Package contents

      • 1x Triple 4K DisplayPort 1.4 to 2DP & HDMI MST Hub Splitter
      • 1x Micro-USB Power Cable (male) to USB Type-A (male), 3.3ft
      • 1x User Reference Guide
