10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging

  • Industrial-grade
  • 15KV air gap discharge
  • 8KV contact discharge
  • 2x USB-C 3.1 Gen 1 / 5Gbps
  • 7x USB-A 3.1 Gen 1 / 5Gbps
  • 1x USB-A fast charging
  • 65W power in
  • 600W surge protection
  • Terminal block/ DC power
  • DIN-rail mount/ Wall mount
  • LED power indicator
In stock
Quantity in stock: 302
SKU
ID-US0811-S1
$149.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Add 9 SuperSpeed USB 3.1 ports and a dedicated 5V/2.4A charging port to your system

    Overview


    Features

    Industrial-grade metal hub with safety protection to safeguard all of your connected devices and has a vertical and horizontal design suitable for the home or work environment. Easily expand 2x USB 3.1 Type-C ports, 7x USB 3.1 Gen 1 Type-A Gen 1 ports, and 1 USB Type-A fast charging port to connect devices simultaneously for the best performance

    Features


    USB-A & C

    USB 3.1 Gen 1 Data Transfer

    Delivers seven USB 3.1 Gen 1 Type-A and Type-C devices, such as external hard disks, webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio, and more. Data transfer rate up to 5Gbps for smooth and stable performance


    Fast Charging

    USB Fast Charging

    One ultra-fast USB 3.1 Type-A that built-in smart charging IC to automatically detect your connected device and deliver the optimal power output. Supports data transfer rates of up to 5Gbps (5V/2.4A) and backward compatible with USB 2.0 and USB 1.1 devices


    Multiple Connectivity Port

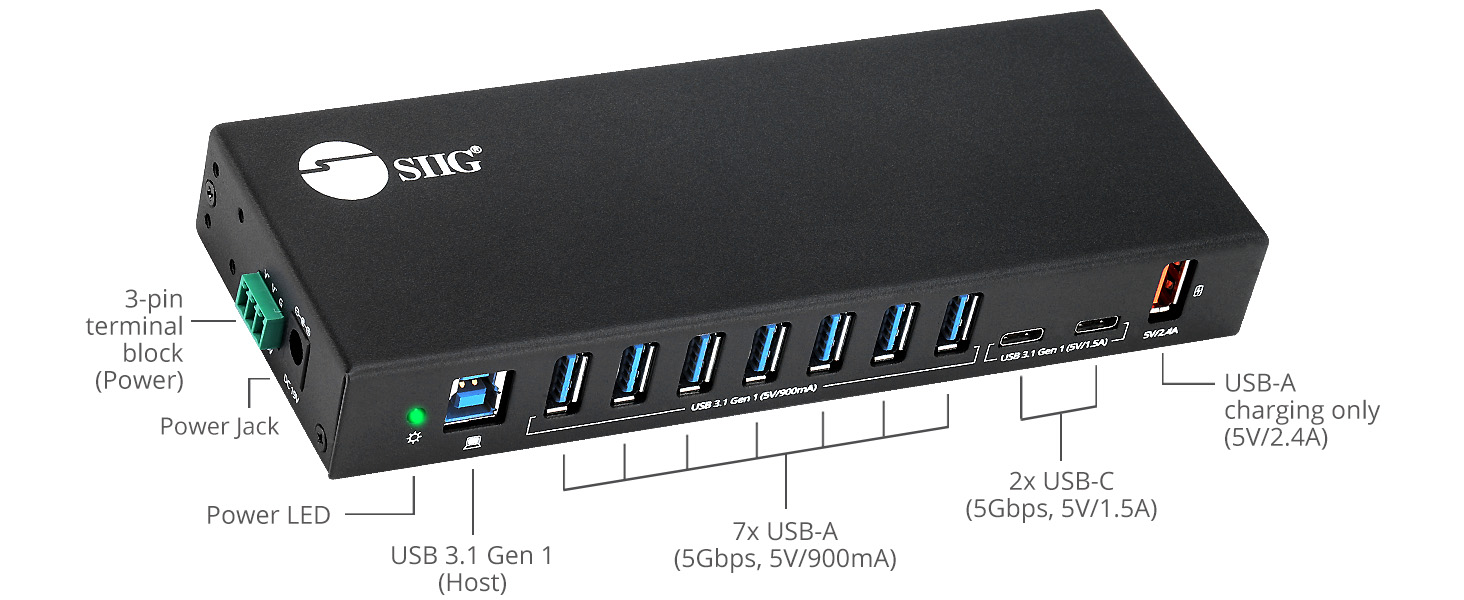

    Comes with one USB Type-B port (Host/System, includes USB 3.1 Gen 1 Type-A to Type-B cable), seven USB 3.1 Gen 1 Type-A ports, two USB 3.1 Gen 1 Type-C ports, one USB Type-A charging port only, one terminal block for extra power input, and one DC power jack (19V/3.42A)

    Ports

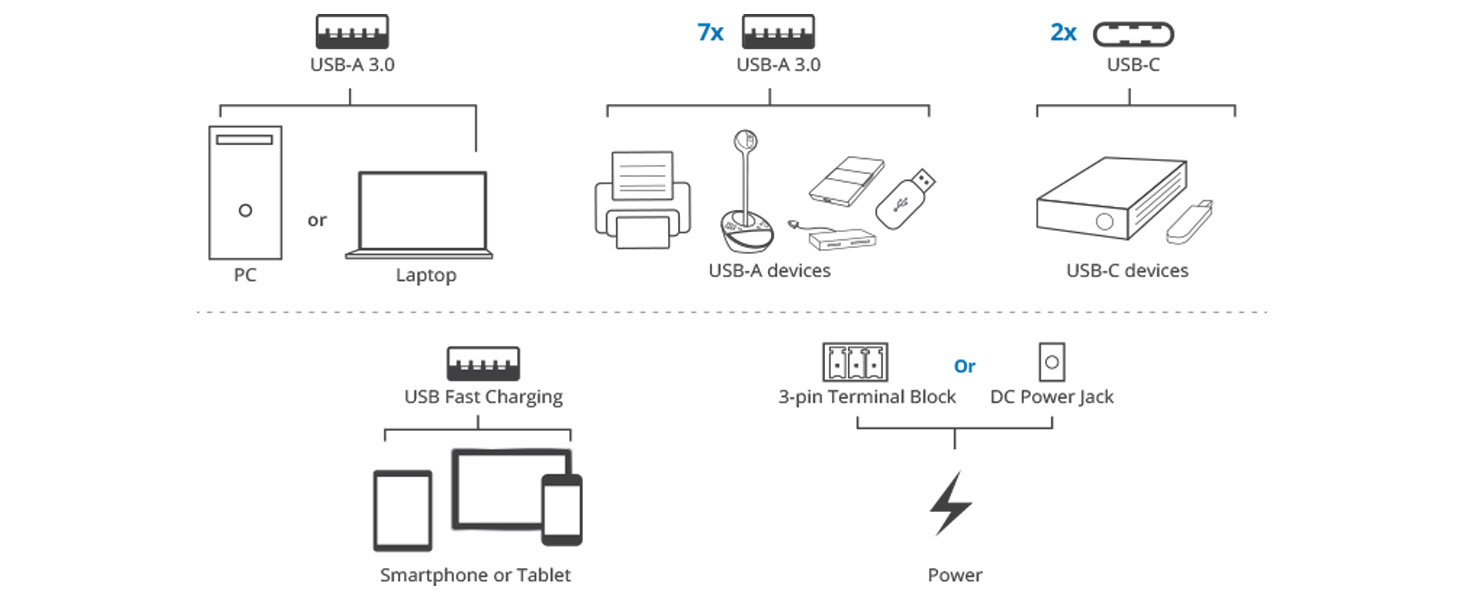

    Connection

    Connection

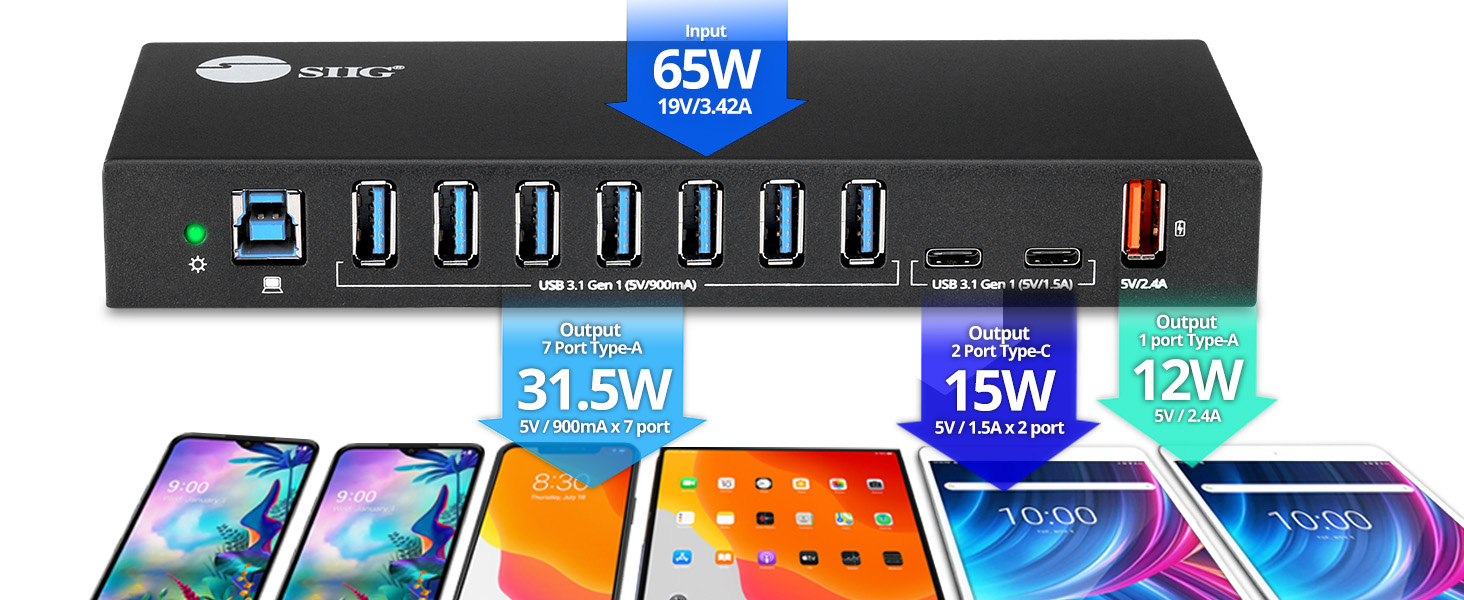

    Uninterruptible 65W Power Supply

    600W surge protection for each power input port and includes a 65W (19V/3.42A) power adapter to provide enough power for the connected USB peripherals, such as laptop, notebook, tablet, and smartphone

    Power


    Maximum Compatibility

    Supports UASP (USB Attached SCSI Protocol) function (with Windows 10/8 native USB 3.0 host drive only)
    Plug-n-Play, no driver installation required

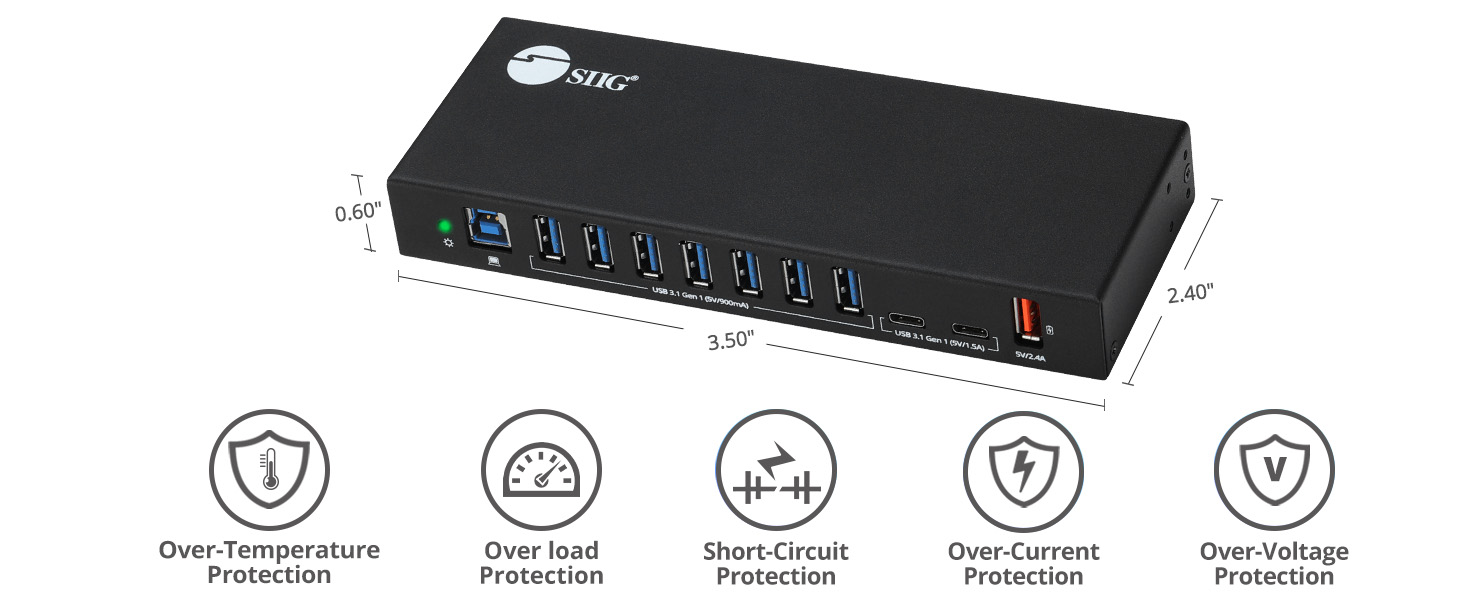

    Safety Protection

    Built-in over-current protection to protect the hub and connected devices. An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

    Protection

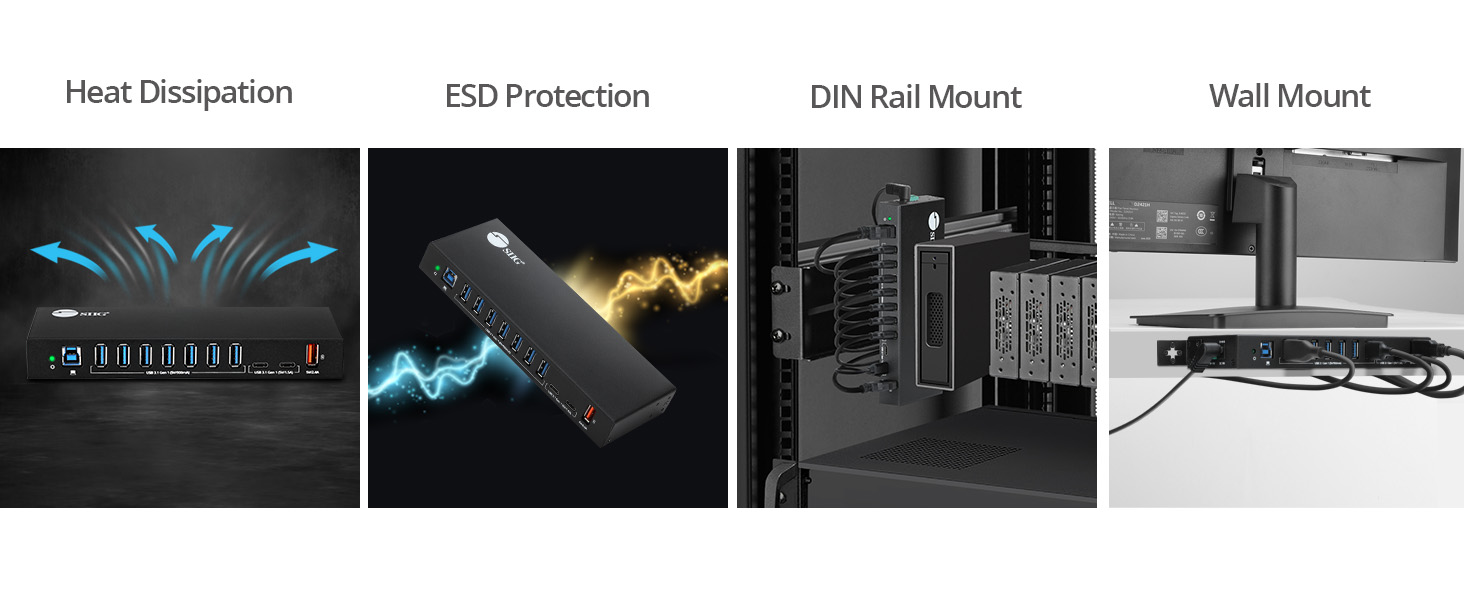

    Metal Hosing Design

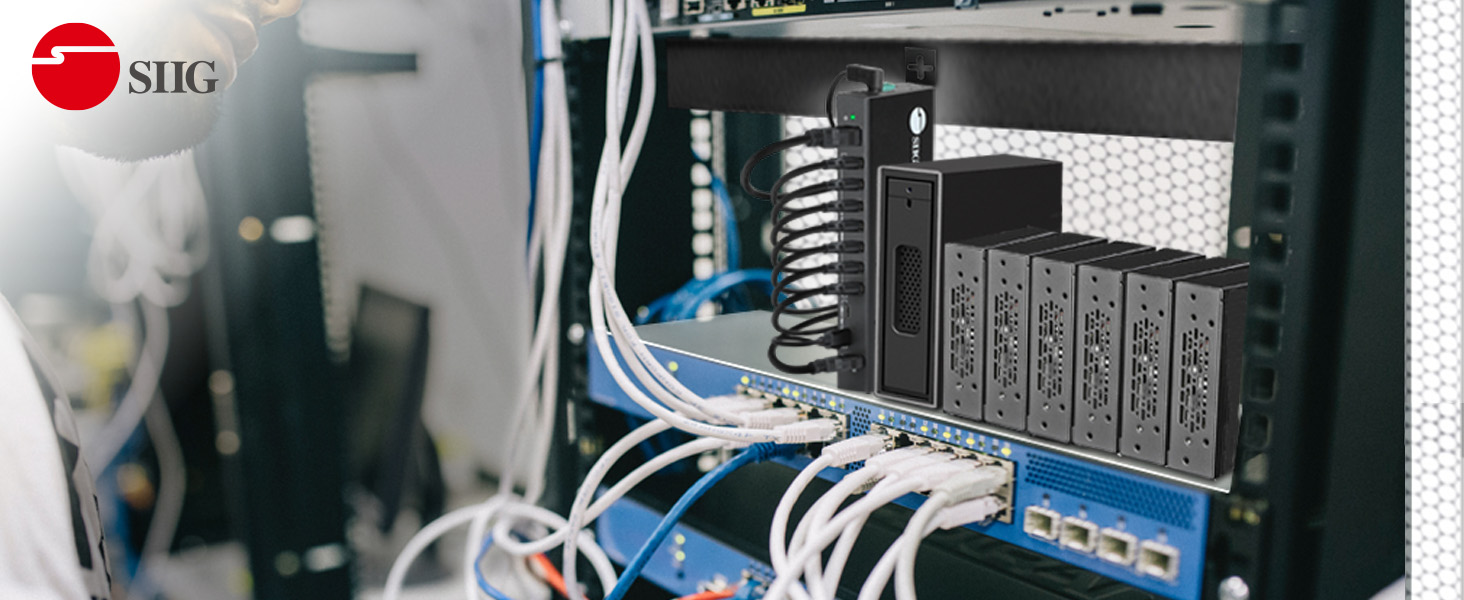

    Industrial grade rugged metal housing design to withstand harsh industrial environments and provides efficient heat dissipation for reliable performance and long life Built-in wall-mounted and DIN rail mount to secure the hub to rack, wall, or under a table


Applications

    • Office
    • Video surveillance
    • Control center
    • Factory
    • Workstation
    • Research center
    • Medical office
    • Warehouse
    • Home entertainment
    • Reception room
    • Data center
    • Industrial environment
    • Educational facilities
    • Conference room
    • Testing lab

    Need to Know Before Buying

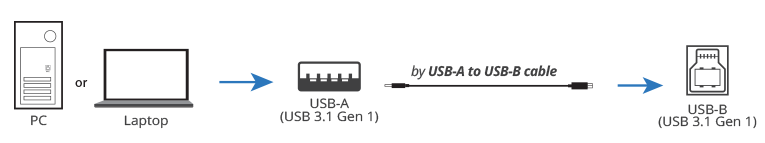

    1. Please confirm your computer with a USB 3.1 Gen 1 Type-A port. If you are not sure, please check on the manual of the computer

    Computer

    2. Check if your USB device is a USB 3.1 Gen 1 Type-A or Type-C port in order to get the performance of USB 3.1 Gen 1

    3. Use the charging port to charge laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 65W


    Specifications

    Hardware
    Chipset VIA VL813 Q7
    Software
    OS Compatibility Windows® 10, macOS® 10.6 or new
    USB Data Transfer
    USB 3.1 Gen 1 Type-C 2x USB-C, up to 5Gbps, 1500mA
    USB 3.1 Gen 1 Type-A 7x USB-A, up to 5Gbps, 900mA
    Fast Charging Port USB Type-A, up to 5V/2.4A
    Power
    Power Delivery 3.0 up to 87W
    Power Adapter Input: AC 100-240V / 50-60Hz, 2.0A (max.), Output: DC 19V/3.42A(max.)
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 7.24” (L) x 0.96” (H) x 2.64" (W)
    Weight 0.83 lbs
    Color Black
    Housing material Metal
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: China

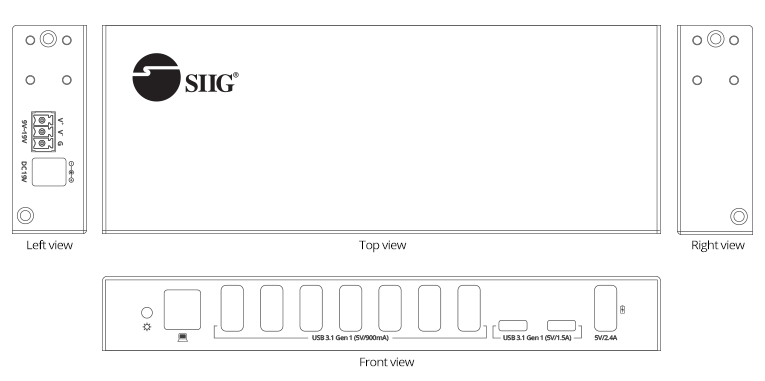

    Interface

    Interface

    Input:

    • 1x 9-pin, USB Type-B, Female (Host)
    • 1x 3-pin, Terminal Block for extra Power (DC 5V to DV19V)
    • 1x Power Jack, 19V/3.42A

    Output:

    • 2x 24-pin, USB 3.1 Gen 1 Type-C
    • 7x 9-pin, USB 3.1 Gen 1 Type-A
    • 1x 4-pin, USB Type-A, Charging only

    System Requirements

    • Desktop or Laptop with an available USB 3.1 Gen 1 Type-A port
    • Windows® 10 / 8.x / 7 / XP (32-/64-bit)
    • mac OS® 10.6 or new

    Package contents

    • 1x 10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging
    • 1x Switching power adapter (19V/3.42A) & AC power cord
    • 1x USB 3.1 Gen 1 Type-A to Type-B cable (2m)
    • 1x DIN-Rail and wall mount kit
    • 1x Terminal block (extra Power, DC 5V to DC 19V)
    • 1x User reference guide
