Dual Core 10-Port Industrial USB-C PD Charging Station - 700W, Up to 65W per port, Dual 350W power, UL certification

• Features
• Applications

---

Overview

Delivers 700W of reliable power with dual 350W Meanwell adapters for efficiency and durability. Each port supports up to 65W with PD 2.0/3.0, ideal for laptops, Chromebooks, tablets, and smartphones. Featuring intelligent cooling, built-in protections, and a rack-mountable metal design, it’s a dependable solution for IT labs, enterprises, and industrial environments.

---

Features

The SIIG Dual Core 10-Port Industrial USB-C PD Charging Station is engineered for medium-to-large device deployments. With dual-core power design and 700W output, it provides up to 65W per port—ideal for tablets, Chromebooks, and laptops that require more power than standard mobile devices









High-Capacity Charging

Supports 10 USB-C devices simultaneously, with each port delivering up to 65W

---

Dual Core Power Distribution

Features two independent 350W Meanwell adapters, splitting the load to extend durability and improve efficiency. This also helps maintain power stability even when multiple high-demand devices are connected

---

Flexible Power Delivery

PD 2.0 and 3.0 compliance provides optimal charging across a wide range of devices, supporting 5V to 20V power profiles

---

Automatic Cooling Management

Internal fans switch on only when temperatures rise, keeping the station cool without unnecessary noise

---

Comprehensive Safety Feature

Advanced protection against over-voltage, under-voltage, short circuits, over-current, and overheating ensures devices are protected

---

Rack-Mount Ready

Industrial-grade metal housing supports 19-inch rack mounting for organized integration into server rooms or charging hubs

---

Compatibility

Charges Apple iPhone 16/15, iPad Pro/Air, MacBook Air/Pro, Microsoft Surface Laptop, Chromebooks, Samsung Galaxy S24/S23/Note series, and Google Pixel devices

---

Compatibility

Works with Apple iPhone 16/15 series, iPad, MacBook 12”/Air/Pro, Samsung Galaxy Note/S series, and other USB-C powered devices

---

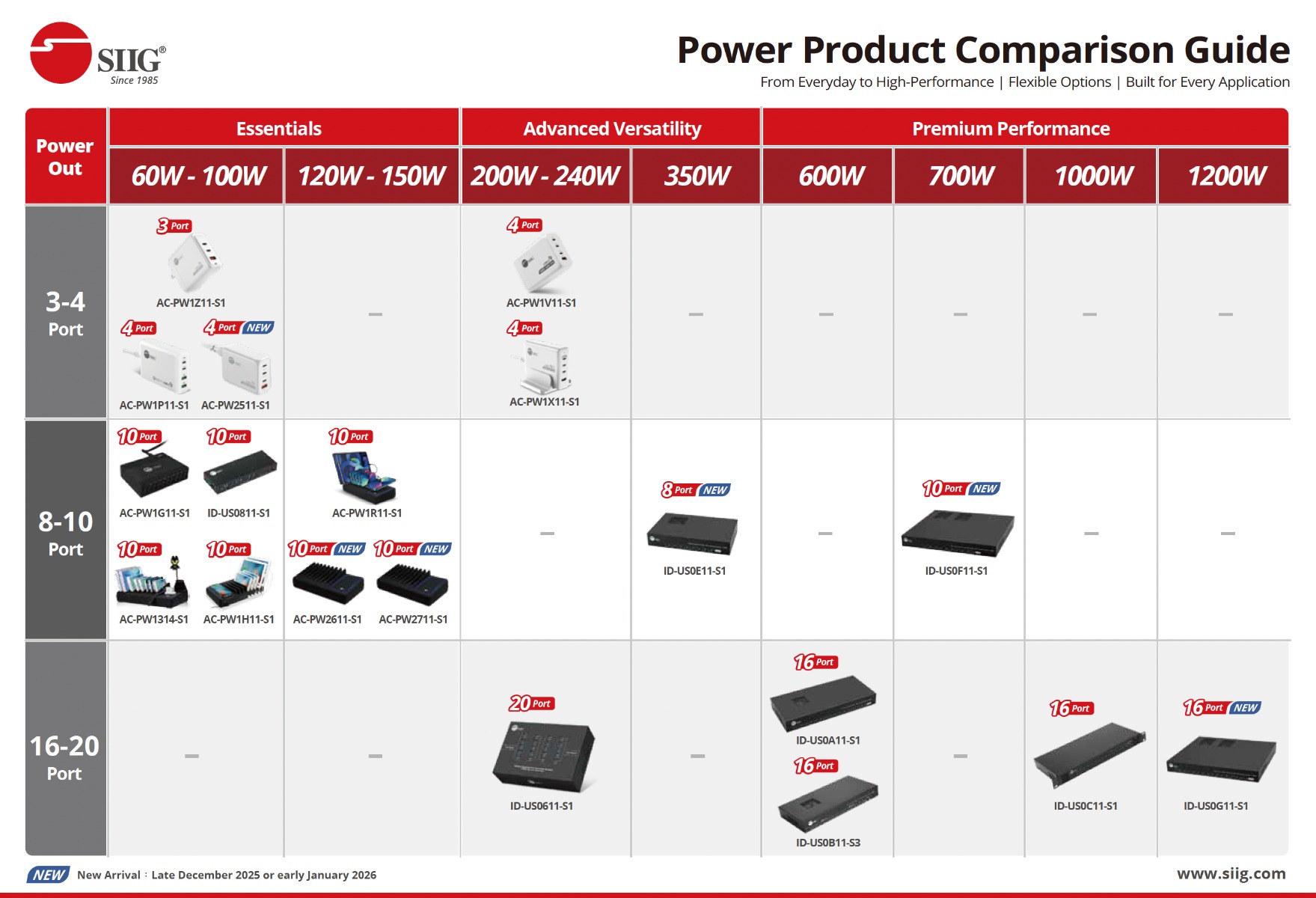

Comparison Table

SKU	ID-US0F11-S1	ID-US0G11-S1	ID-US0C11-S1	ID-US0B11-S3	ID-US0A11-S1	ID-US0E11-S1
Main Features	PD Charging Station	PD Charging Station	PD Charging Station	PD Charging Station+Hub	PD Charging Station	PD Charging Station
Total Power Supply (Max)	700W	1200W	1000W	600W	600W	350W
USB Power Output (Max)	10x 65W	12x 65W	10x 100W / 15x 65W / 16x 60W	2x 100W and 14x 30W	16x 35W	8x 45W
Power Input	115V, 50/60Hz	115V, 50/60Hz	100-240V, 50/60Hz	115V, 50/60Hz	115V, 50/60Hz	115V, 50/60Hz
Ports and Connections	10x USB-C	16x USB-C	16x USB-C	16x USB-C	16x USB-C	8x USB-C
Data Transfer (Max)	-	-	-	Up to 5Gbps	-	-
19” Rack Mountable	✓	✓	✓	✓	✓	✓
Protection	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating
Automatic Temperature Control	✓	✓	✓	✓	✓	✓
Metal Housing	✓	✓	✓	✓	✓	✓
Certifications/Standards	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	ETL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS




---

---

Applications

Well-suited for IT labs, training facilities, enterprise device charging stations, and industrial workshops where Chromebooks, laptops, and tablets are used daily

---

Specifications

• Input:
• AC Voltage: 115VAC
• Frequency: 50Hz/60Hz
• AC Current: 6.8A/115VAC, 3.4A/230VAC
• Internal Power Supply: 350W/24V
• Output:
• USB Port: 10x USB-C, Female
• PD Output Power: 65W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A)
• Efficiency: VIN=24V, VOUT=5V/3A, Conversion Efficiency: 92%
• USB-C Protocol:
• Supports 5V/ 9V/ 12V/ 15V/ 20V Voltage output
• Supports PD 2.0/ PD 3.0
• PPS support 3 to 21V, 20mV/step Voltage output
• Output Specification:
• Supports USB-C PD output
• Supports BC 1.2_DCP, Apple protocol
• Supports Qualcomm QC 3.0
• Supports Fast Charging protocol FCP and AFC (Max. 12V)
• LED Charging Mode
• High power current charging in progress: RED led color x 10
• Power on or low current charging: Green led color x 10
• Output overvoltage protection: Protection type: Hiccup mode, recovers automatically after fault condition is removed
• Environmental conditions:
• Operating Temperature: 14 to 131 degrees F
• Storage Temperature: -4 to 158 degrees F
• Relative Humidity: 20% to 90% RH (non-condensing)
• Working Altitude: Less than 2km
• Certifications/Standards: FCC, CE, RoHs, UL
• UL: E183223
• Warranty: 2 years limited
• Country of origin: China
• Product:
• Color: Black
• Housing Material: Metal case with mounting kits

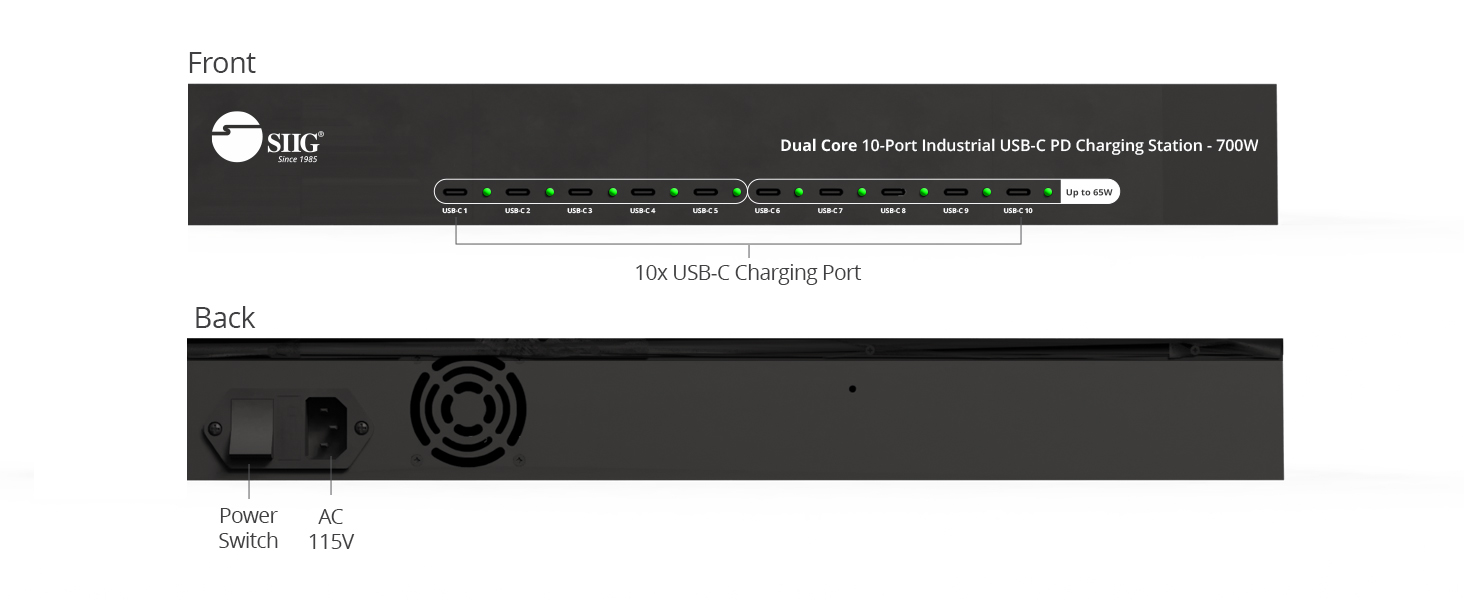

• Connectors:
• 1x AC Power Jack
• 1x Power Switch
• 10x USB-C, Female, PD up to 65W



	Length	Width	Height	Weight	Quantity
Product	17.32 in (44.00 cm)	2.17 in (5.51 cm)	11.81 in (30.00 cm)	7.71 lbs (3.50 kg)	1
