Dual Core 16-Port Industrial USB-C PD Charging Station - 1200W, Up to 100W per port, Dual 600W Power, UL certification

• Features
• Applications

---

Overview

Delivers 1200W total output, up to 100W per port, for laptops, tablets, and smartphones. Dual 600W Meanwell adapters ensure efficient power distribution and durability, while PD 2.0/3.0 support optimizes charging. With smart cooling, built-in protections, and a rugged rack-mountable design, it’s the ideal large-scale charging solution for universities, enterprises, and industrial environments

---

Features

The SIIG Dual Core 16-Port Industrial USB-C PD Charging Station is the ultimate solution for large-scale device charging. Delivering a massive 1200W total output with up to 100W per port, it can handle demanding laptops and high-performance devices while maintaining stable and efficient operation









Maximum Device Support

Powers up to 16 USB-C devices simultaneously, each with up to 100W output—sufficient for high-power laptops like MacBook Pro 16” or workstation-grade notebooks

---

Dual 600W Power Architecture

Two Meanwell UL-certified 600W adapters provide redundancy, distribute load evenly, and enhance operational lifespan

---

Smart PD Charging

Automatically adjusts charging voltage and current across 5V–20V to deliver safe, device-specific charging

---

Automatic Cooling & Energy Control

Temperature-controlled fans ensure efficient heat management. The on/off power switch with LED saves energy when idle

---

Comprehensive Safety Feature

Advanced protection against over-voltage, under-voltage, short circuits, over-current, and overheating ensures devices are protected

---

Rack-Mount Ready

Industrial-grade metal housing supports 19-inch rack mounting for organized integration into server rooms or charging hubs

---

Compatibility

Charges Apple iPhone 16/15, iPad Pro/Air, MacBook Air/Pro, Microsoft Surface Laptop, Chromebooks, Samsung Galaxy S24/S23/Note series, and Google Pixel devices

---

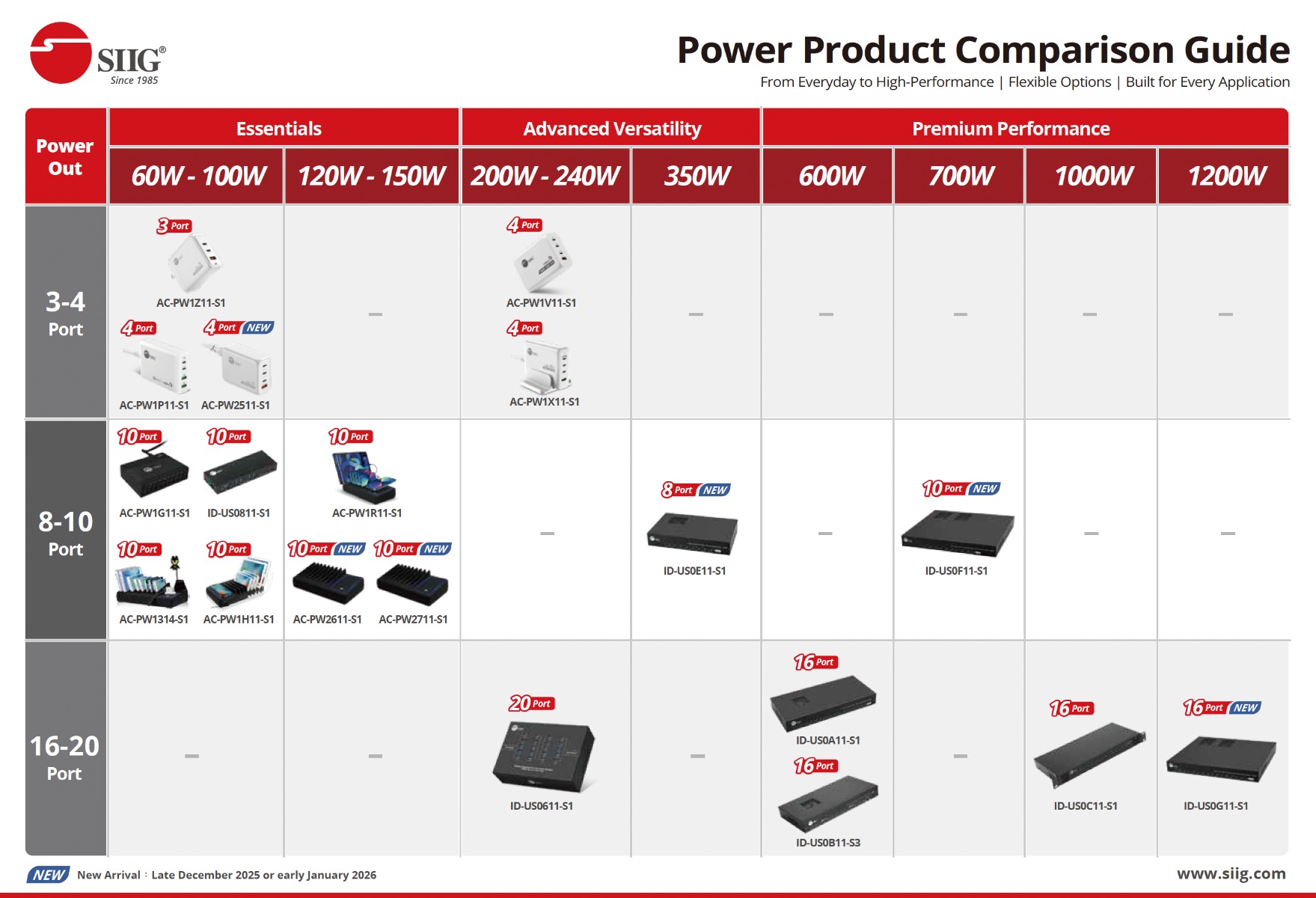

Comparison Table

SKU	ID-US0G11-S1	ID-US0C11-S1	ID-US0B11-S3	ID-US0A11-S1	ID-US0E11-S1	ID-US0F11-S1
Main Features	PD Charging Station	PD Charging Station	PD Charging Station+Hub	PD Charging Station	PD Charging Station	PD Charging Station
Total Power Supply (Max)	1200W	1000W	600W	600W	350W	700W
USB Power Output (Max)	12x 100W	10x 100W / 15x 65W / 16x 60W	2x 100W and 14x 30W	16x 35W	8x 45W	10x 65W
Power Input	115V, 50/60Hz	100-240V, 50/60Hz	115V, 50/60Hz	115V, 50/60Hz	115V, 50/60Hz	115V, 50/60Hz
Ports and Connections	16x USB-C	16x USB-C	16x USB-C	16x USB-C	8x USB-C	10x USB-C
Data Transfer (Max)	-	-	Up to 5Gbps	-	-	-
19” Rack Mountable	✓	✓	✓	✓	✓	✓
Protection	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating
Automatic Temperature Control	✓	✓	✓	✓	✓	✓
Metal Housing	✓	✓	✓	✓	✓	✓
Certifications/Standards	UL, FCC, CE, RoHS	ETL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS




---

---

Applications

Ideal for universities, corporate IT departments, device testing labs, and industrial setups where multiple laptops and mobile devices must stay charged and ready

---

Specifications

• Input:
• AC Voltage: 110VAC
• Frequency: 50Hz/60Hz
• AC Current: 12A/115VAC, 7.5A/230VAC
• Internal Power Supply: 600W/24V
• Output:
• USB Port: 16x USB-C, Female
• PD Output Power: 100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
• Efficiency: VIN=24V, VOUT=5V/3A, Conversion Efficiency: 92%
• USB-C Protocol:
• Supports 5V/ 9V/ 12V/ 15V/ 20V Voltage output
• Supports PD 2.0/ PD 3.0
• PPS support 3 to 11V, 20mV/step Voltage output
• Output Specification:
• Supports USB-C PD output
• Supports BC 1.2_DCP, Apple protocol
• Supports Qualcomm QC 3.0
• Supports Fast Charging protocol FCP and AFC (Max. 12V)
• LED Charging Mode
• High power current charging in progress: RED led color x 16
• Power on or low current charging: Green led color x 16
• Output overvoltage protection: Protection type: Hiccup mode, recovers automatically after fault condition is removed
• Environmental conditions:
• Operating Temperature: 14 to 131 degrees F
• Storage Temperature: -4 to 158 degrees F
• Relative Humidity: 20% to 90% RH (non-condensing)
• Working Altitude: Less than 2km
• Certifications/Standards: FCC, CE, RoHs, UL
• UL: E183223
• Warranty: 2 years limited
• Country of origin: China
• Product:
• Color: Black
• Housing Material: Metal case with mounting kits

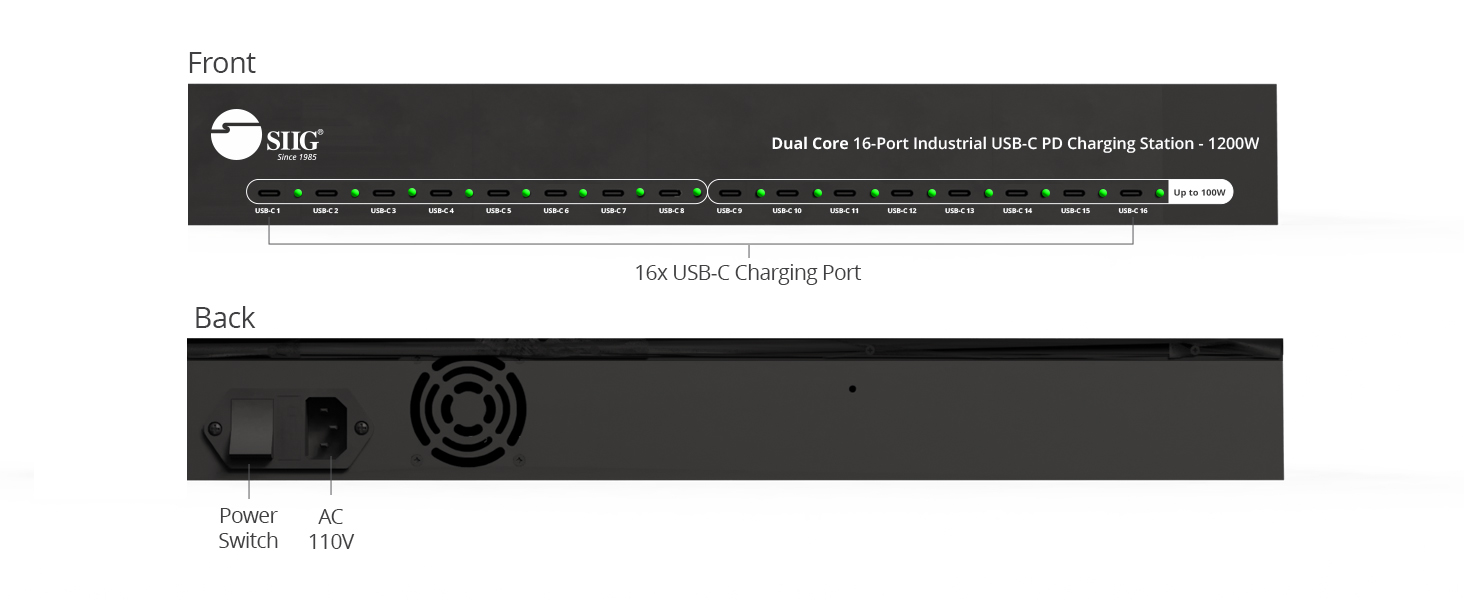

• Connectors:
• 1x AC Power Jack
• 1x Power Switch
• 16x USB-C, Female, PD up to 100W



	Length	Width	Height	Weight	Quantity
Product	17.32 in (43.99 cm)	2.17 in (5.51 cm)	12.20 in (30.99 cm)	8.82 lbs (4.00 kg)	1
