Mini-DP Video Dock with USB 3.0 LAN Hub - Black

  • Mini DP with USB-A Input
  • Single View
  • 1x DisplayPort 4K@30Hz
  • 1x HDMI 1080p
  • 2x USB-A 5Gbps
  • 1x Gigabit Ethernet
  • Display Rotation Mode
  • Mirror & Extended Modes
  • Primary Screen
  • USB Bus-Powered
  • Embedded 11.81" Cable
  • Windows/Mac/Surface Pro
In stock
Quantity in stock: 16
SKU
JU-H30412-S1
$79.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

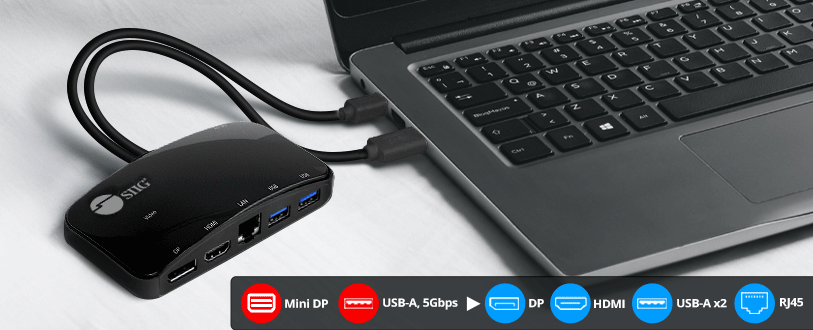

    External docking station adds DisplayPort/HDMI, USB 3.0 and Gigabit Ethernet connectivity to your Mini DisplayPort/USB 3.0 enabled computer, laptop or tablet

    overview


    Features

    siig juh30412s1 mini dp video dock lan hub 970x300 black

    SIIG Mini-DP Video Dock with USB 3.0 LAN Hub

    Multi Functions, Multi Display Modes, Outstanding Performance, and Ultra Compact Design

    siig juh30412s1 mdp video dock 300x300

    Overview

    JU-H30412-S1

    This docking station seamlessly converts your Mini DisplayPort or Thunderbolt 2 to HDMI or DP output, plus one Gigabit Ethernet to your mDP equipped MS Surface laptop, Ultrabook, and compatible Apple MacBook.

    Features

    • Allows you to utilize port-limited laptops by adding two USB 3.0 ports, one Gigabit Ethernet port, as well as one HDMI, one DisplayPort from the system's Mini DisplayPort Output
    • Versatile and Powerful workstation yet Easy to Carry
    • Supports USB 3.0 data transfer rates up to 5Gbps, Gigabit Ethernet up to 1,000 Mb/s, DisplayPort video output up to 4Kx2K@30Hz, and HDMI video output up to 1920x1080@60Hz
    • Compatible with devices with an available Mini DisplayPort and USB 3.0 port (Both are needed to be fully functional)

    Note: This dock can only use one video output at a time. It does not support dual monitor output

    siig juh30412s1 mdp video dock 970x600

    USB Connection is required to enable this adapter's USB 3.0 ports data transfer and Gigabit Ethernet port Multiple Display Modes are Supported

    4 display modes

    siig juh30412s1 mdp video dock ultra compact 300x300

    siig juh30412s1 mdp video dock attention 300x300

    siig juh30412s1 mdp video dock package contents 300x300

    Ultra Compact

    The portable and lightweight design makes this docking station the size of your palm yet multi functional and powerful.

    Read before You Buy

    • The USB connection is required to enable this adapter’s USB 3.0 ports and Gigabit Ethernet port.
    • The Mini DP connection only transfers video and can be used in a Thunderbolt 2 port on your MacBook; however, it does not have Thunderbolt 2 capability (which it can transfer video and data simultaneously)
    • Either HDMI or DisplayPort output can be used at a time. Does not support both outputs simultaneously.
    • This product is NOT compatible with MacBook 2015 line.
    • This product is bus powered and a power adapter is not required or included. The power jack is reserved for extra power needed, such as two SSD or HDD are connected.

    What's in the Box

    • Mini-DP Video Dock with USB 3.0 LAN Hub
    • Rubber Pad x4
    • User Reference Guide

    siig juh30412s1 mini displayport video hub hdmi dvi ethernet black usb 3.0siig juh30412s1 mini displayport video dock hdmi ethernet usb 3.0siig juh30f11s1 mini dp 4k docking 150x300siig lbcd0014s1 mini dp video dock 150x300siig cedp0j11s1 mini dp to dp mst hub 150x300
    JU-H30412-S1JU-H30212-S1JU-H30F11-S1LB-CD0014-S1CE-DP0J11-S1
    Connection Input Mini DisplayPort 1.1a Mini DisplayPort 1.1a Mini DisplayPort 1.2 Mini DisplayPort 1.2 Mini DisplayPort 1.2
    Ports 1 x HDMI, 1 x DisplayPort 1.1, 2 x USB 3.0, 1 x RJ45 (Ethernet) 1 x HDMI, 1 x DisplayPort 1.1, 2 x USB 3.0, 1 x RJ45 (Ethernet) 1 x HDMI 1.4, 1 x DisplayPort 1.2, 2 x USB 3.0, 1 x RJ45 (Ethernet) 1 x HDMI, 1 x VGA, 1 x DVI 1 x HDMI, 1 x VGA, 1 x DVI 2 x DisplayPort
    Supported Resolutions 1080p @60Hz, 1920x1200 @60Hz 1080p @60Hz, 1920x1200 @60Hz 4K @60Hz (DisplayPort), 4K @30Hz (HDMI) 4Kx2K @30Hz (HDMI), 1080p @60Hz & 1920x1200 @60Hz (DVI & VGA) 3840x2160 @30Hz, 1920x1200 @60Hz, 1920x1080 @60Hz
    Supported External Displays Single Single Single Single Dual
    Compatibility Windows 10 / 8.1 & 8 / 7 & Mac OS X v10.6 or later Windows 10 / 8.1 & 8 / 7 & Mac OS X v10.6 or later Windows 10 / 8.1 & 8 / 7 & Mac OS X v10.6 or later Windows 10 (32-/64-bit) / 8.1 & 8 (32-/64-bit) / 7 (32-/64-bit) & Mac OS X v10.6 or later Windows 10/8/7 & MacOS does NOT support MST technology and will only mirror each display

    Technical Specifications & System Requirements (JU-H30412-S1)

    Chipset GL3520D + PS8312 + RTL8153
    Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0
    Compliant with DisplayPort 1.1a for both 1.62 and 2.7 Gbps link rates
    Compliant to HDMI 1.3a specification up to 2.25Gbps
    Supports Gigabit Ethernet up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s
    Supports Gigabit Ethernet IEEE 802.3x full duplex operation
    Supported video cable length HDMI: Up to 16.4 FT (5 meters) max
    Supported video cable length DisplayPort: Up to 9.84 FT (3 meters ) max
    Resolution DisplayPort: Up to 4Kx2K@30Hz
    Resolution HDMI: Up to 1920x1080@60Hz
    Product Length 11.81" (including the embedded cable)
    Dimensions 4.74" (W) x 2.38" (H) x 0.98" (D)
    Weight 0.24 lbs
    Housing material ABS Plastic
    System Requirements Intel Core Duo 2.0 GHz CPU with an available Mini DisplayPort and USB 3.0 port
    System Requirements Windows 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)/ Mac OS X 10.13 to 10.6


Applications

    • Office
    • Workstation
    • Home office
    • Business travel
    • Media editing room
    • Web design studio
    • Photo shooting studio
    • Presentation room
    • Meeting room
    • Educational facilities
    • Medical office
    • Testing lab

    Need to Know Before Buying

    1. Please confirm your computer is Intel Core Duo 2.0 GHz CPU and with available Mini DisplayPort and USB-A 5Gbps or Thunderbolt 2 ports. If you are not sure, please check on the manual of the computer

    com

    2. The USB connection is required to enable USB-A and Gigabit Ethernet ports
    *Note: Need both USB and Mini DisplayPort to be able to use this product

    3. Check the extended display/monitor has a DisplayPort 1.1 or HDMI port. If you are not sure, please check with the manual of the monitor
    monitor
    *Note:
    - Only one video output can be used, either HDMI or DisplayPort. Does not support both outputs simultaneously
    - Does not work with DisplayPort 1.2 monitor

    4. This Docking Station is bus-powered, and a power adapter is not required or included

    5. Not compatible with MacBook 2015 line


    Specifications

    Hardware
    Chipset GL3520D + PS8312 + RTL8153
    Compliant with Universal Serial Bus 3.0 and 2.0 specification
    Software
    OS Compatibility Windows® 11, macOS® 10.13 or newer
    Video
    Input 1x Mini DP and 1x USB-A (5Gbps)
    Output 1x DisplayPort 1.1: up to 4K (3840x2160@30Hz) resolution
    1x HDMI: up to 1080p (1920x1080@60Hz) resolution
    * Only one video output can be used at any one time, either HDMI or DisplayPort. Does not support both outputs simultaneously
    USB
    USB-A x2
    Data transfer rate up to 5Gbps
    Display Modes
    Supports various supplication such as Mirror and Extended modes
    Allows viewing images in vertical or horizontal positions and when switching between primary and secondary screens
    Power
    Power USB bus-powered with DC 5V/1A power jack
    *This product is bus powered and a power adapter is not required or included
    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
    Compatible with IEEE 802.3, 802.3u
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: <85% RH (non-condensing)
    Product Info
    Dimensions 4.74” (L) x 2.38” (H) x 0.98" (W)
    Weight 0.24 lbs
    Color Black
    Housing material ABS
    Cable length (embedded) 11.81" (0.98ft)
    Unit Package
    Dimensions 7.68” (L) x 4.72” (H) x 3.15" (W)
    Weight 0.40 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Input:

    • 1x 20-pin, Mini DisplayPort, Male (Host)
    • 1x 9-pin, USB-A, 5Gbps, Male (Host)
    • 1x DC power jack, 5V/1A

    Output:

  • 1x 19-pin, HDMI, Female
  • 1x 20-pin, DisplayPort, Female
  • 2x 9-pin, USB-A, 5Gbps, Female
  • 1x 8-pin, RJ45, Gigabit Ethernet, Female

    System Requirements

    • Laptop, Ultrabook, or Surface Pro is Intel® CoreTM Duo 2.0 GHz CPU and with available Mini DisplayPort and USB-A ports (USB 3.0 recommended)
    • Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
    • mac OS X® 10.13 to 10.6

    Package contents

    • 1x Mini-DP Video Dock with USB 3.0 LAN Hub -Black
    • 4x Rubber Pad
    • 1x User reference guide
Channel Codes
  • Ingram Micro: 1V4447
  • Tech Data: 12028066
  • D&H: JUH30412S1
  • ASI: 182478
  • Synnex: 4426298

Manuals

04-1010a_front.pdf Download User Reference Guide
Front cover, Support and Warranty
04-1010a_back.pdf Download User Reference Guide
Specifications and Setup

Drivers


Hardware Version: 1

Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Download Driver
MAC OS X 10.6 to 10.15
Download Driver
Driver version: v1.0.21
