1x2 mDP 1.2 to DisplayPort MST Splitter

Overview

Features Applications Need to Know Before Buying Overview Allows you to connect 2 DisplayPort monitors to a single Mini DisplayPort 1.2 port with MST technology Features Boost your productivity by connecting two DisplayPort displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology - Mirror mode, Extended mode, and Panoramic Video Wall display mode What is Multi Stream Transport (MST)? Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display * Note: 1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays 2. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter 3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays) 4. Surface products only support up to 3 displays total, including the Surface screen 5. macOS operating system does not support MST function, only mirror the displays (SST) High Resolution Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays * Mini DisplayPort (mDP) resolution can display the same maximum resolution as the original size DisplayPort (DP) Monitor solutions: High Performance Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate Bandwidth Limitation Total Available Bandwidth 21.6Gbps for 3840x2160 @60Hz (100%) . 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%) Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100% Note: - When the resolution of Display A and Display B is set to 3840 x 2160 @60Hz, one of them will be disabled - If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays Connectivity Port* Comes with one 20-pin Mini DisplayPort 1.2 input port, two 20-pin DisplayPort video output ports, one Micro USB for power input port (at least 5V/300mA) Connection Maximum Compatibility Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround, or Intel Collage technology Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode Supports Plug-n-Play, hassle-free set up without complicated hardware or driver installation ESD Protection* An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device TAA Compliant Completely manufactured in a TAA designated country Aluminum Housing Design Premium aluminum housing provides efficient heat dissipation for reliable performance and long life Applications  Media editor  Small seminar  Workstation  Medical office  Conference room  Coffee store  Testing lab  Restaurant Need to Know Before Buying 1. Make sure your device has a Mini DisplayPort video output specification 1.2, and supports Multi Stream Transport (MST), if you are unsure, please check with the video card or system manufacture The graphics driver controller of your system will take care of the rest, such as setting up the monitor position, resolution, etc. * Note: - Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book are compatible with our Mini DisplayPort 2-Port MST hub - Surface products only support up to 3 displays total, including the Surface screen - The Microsoft Surface "Dock" is not compatible with Mini DisplayPort MST Hub and should not be used when the Surface Dock is connected. Our Mini DisplayPort MST Hub will work when directly connected to the Surface tablet/book 2. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available 3. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays 4. Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met 5. MST hub cannot increase the number of displays a video card supports. Regardless of the number of display connectors built into your video card, each video card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer. Note: AMD RX560/RX570/Radeon 7200 Series video cards only support up to 2 displays 6. macOS operating system does not support MST function, only mirror the displays (SST) 7. To connect HDMI, DVI or VGA monitor to our Mini DisplayPort MST hub, please use ACTIVE* converter

Specifications

Interface
System Requirements
Package Contents

Specifications

Hardware
Chipset	STDP4320
Software
OS Compatibility	Windows® 10 (macOS does not support MST function, only Mirror the displays)
Video
Resolution	one screen up to [email protected]; two screens up to [email protected]
Bandwidth	Total available bandwidth 21.6Gbps for 3840x2160 @60Hz (100%). 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%) * Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100%
Display Modes
3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode * Note: AMD Eyefinity, NVIDIA Surround, or Intel collage technology graphics adapter is required to support Panoramic Video Wall mode
Audio
7.1 channel surround sound, up to 192KHz sampling rate
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	3.5” (L) x 0.6” (H) x 2.4” (W)
DisplayPort cable (embedded)	12.6 inches
Weight	0.19 lbs
Color	Black
Housing material	Aluminum
Certifications/Standards
FCC, CE, RoHS, TAA compliant
Warranty: 3 years limited
Country of origin: Taiwan

Interface

Layout:

1x 20-pin, Mini DisplayPort 1.2, Male (Input)
2x 20-pin, DisplayPort, Female (Output)
1x 5-pin, Micro USB, Female, Power Input (at least 5V/300mA)

System Requirements

PC or Laptop with available Mini DisplayPort 1.2 port
Windows^®10 / 8.x / 7 (32-/64-bit)

* Note:

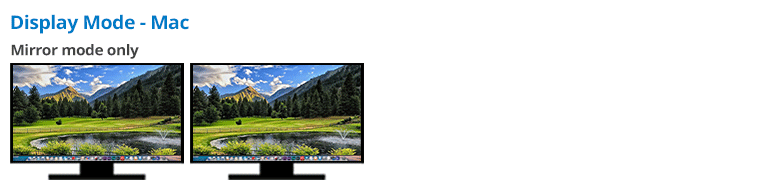

- macOS does not support MST function, only mirror the displays (SST)
- Supports Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book
