Single Port 1G SFP Ethernet Network PCIe Card - 1Gbps - TAA Compliant

• Features
• Applications

---

Overview

Adds a SFP Gigabit Ethernet port to any PC system through a PCI Express x1 interface, offering flexible fiber or copper networking options depending on the SFP module used. It is designed to deliver reliable, high-performance fiber connectivity to desktops, servers, and industrial systems, Perfect for data centers, virtualization environments, and industrial network setups, TAA Compliant

---

Features

High-Speed Fiber Connectivity

Instantly adds a Gigabit SFP Fiber Ethernet port through a PCI Express x1 slot - ideal for upgrading system networking performance



---

Wide Compatibility

Works seamlessly with most standard Gigabit SFP modules, supporting 10/100/1000BASE-T and 1000BASE-X/SGMII 1.25 Gbaud SerDes transceivers



---

Enhanced Virtualization Support

Built-in Broadcom BCM5720 chip, supports I/O virtualization (IOV), VMware® NetQueue and Microsoft® VMQ, and achieves high-efficiency multi-virtual machine performance

Optimized Network Performance

Hardware-assisted IEEE 1588 and 802.1AS time synchronization, plus IEEE 802.3x flow control for stable, precise data transmission

Energy Efficient & Reliable

Compliant with Energy Efficient Ethernet™ (EEE) and ACPI power management standards, featuring Power Management Offload (PM Offload) and Wake-on-LAN

Advanced Networking Functions

Supports VLAN tagging (IEEE 802.1Q), PCI Express CLKREQ signal, and jumbo frames up to 9.6K payload for enhanced throughput



---

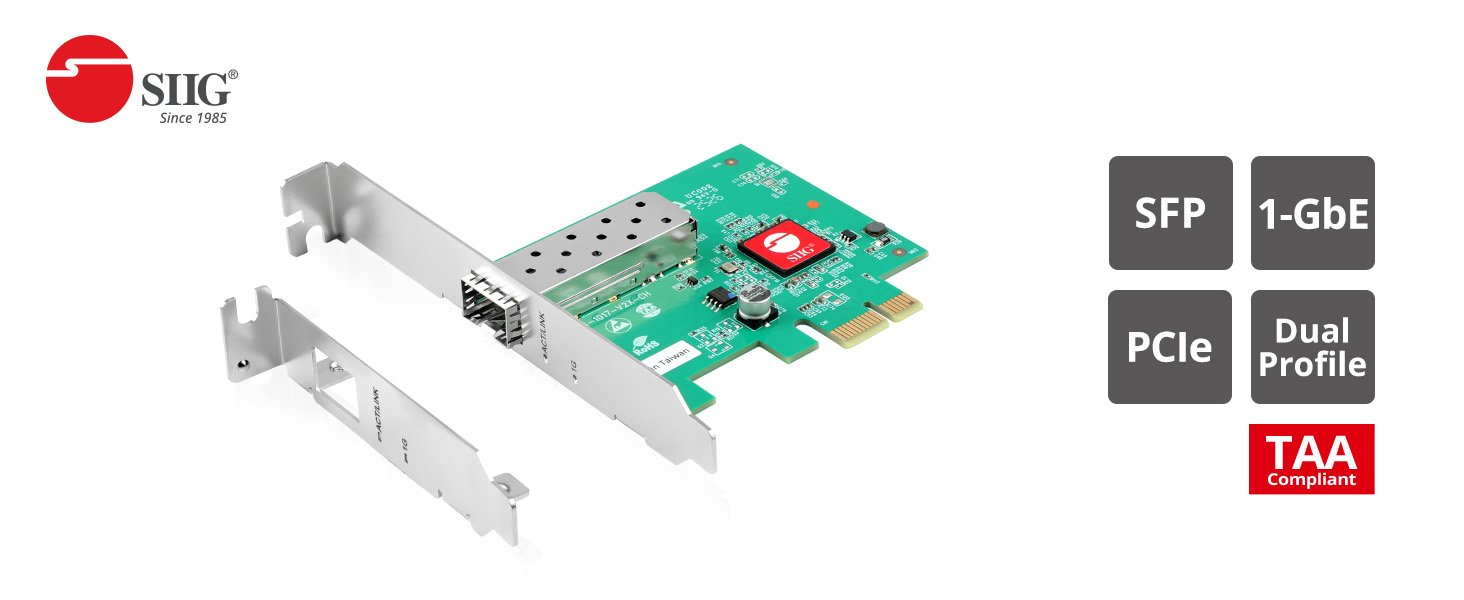

Flexible Installation

Includes both full-height and low-profile brackets, ensuring compatibility with standard desktop or compact server chassis



TAA Compliant

Our device complies with the Trade Agreements Act (TAA), meeting the highest standards of quality and compliance for government and commercial applications

---

Applications

• Enterprise and data center servers

• Industrial network systems

• High-performance workstations

• Network testing and monitoring setups

• System Requirements
• Package Contents

---

Specifications

• Chipset: Broadcom BCM5720
• Standards: Compatible with IEEE 802.3az-2010, IEEE 802.1q, IEEE 802.3ap, IEEE 1588 and IEEE 802.1AS, IEEE 802.3z, Clause 30
• Network Transfer Rate: 10/100/1000 Mbps
• PCIe standard: PCIe 2.0
• Connector(s):
• 1x PCI Express x1
• 1x SFP (Fiber optic), Female
• LED Indicators: Link (Green) / Activity (Blue)
• Form factor: Full profile & Low profile
• Environmental conditions:
• Operating temperature: 32 to 122 degrees F
• Storage temperature: 14 to 140 degrees F
• Relative humidity: 5% to 85% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• UPC Code: 662774046785
• Warranty: 2 year limited
• Country of origin: Taiwan

	Length	Height	Width	Weight	Quantity
Product	4.75 in (12.07 cm)	0.84 in (2.13 cm)	3.65 in (9.27 cm)	0.07 lbs (0.03 kg)	1
Unit Package	5.51 in (14.00 cm)	0.94 in (2.39 cm)	4.45 in (11.30 cm)	0.24 lbs (0.11 kg)	1
Master carton	15.94 in (40.49 cm)	11.22 in (28.50 cm)	11.69 in (29.69 cm)	15.52 lbs (7.04 kg)	60 pcs/ctn

---

System Requirements

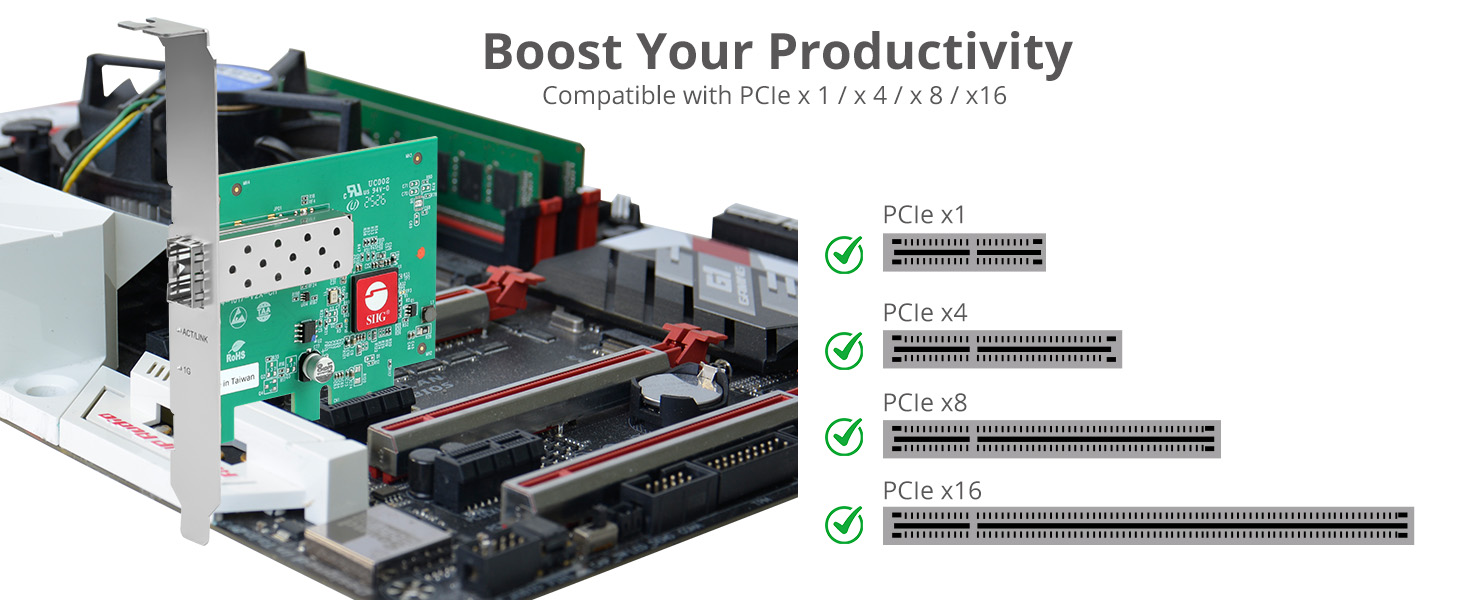

• PC with an available PCIe 2.0 slot (x1, x4, x8, x16)
• Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• Windows® Server 2019 / 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 / 2003 (32-/64/bit)

---

Package contents

• Single Port 1G SFP Ethernet Network PCIe Card
• Low profile bracket
• User Manual
