Dual Antenna Wireless HDMI Extender with IR-100M

  • HDMI
  • Wireless Extender
  • 330ft/100M
  • 5GHz
  • 1080p 60Hz
  • 10.2Gbps
  • IR Control
  • Stereo Audio
  • Windows & mac
In stock
Quantity in stock: 17
SKU
CE-H26X11-S1
$319.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    5GHz wireless technology reliably extends HDMI signals up to 330ft away with IR remote control, 1080p resolution, 5G channel auto-scan ensures the strongest interference free signal for crystal clear video quality

    Overview


    Features

    Allows wireless transmission and extension of HDMI audio and video signals to 330ft (100m) and send the Full HD resolution to the receiver to make your home entertainment or games reliable and stable. Add IR extension for remote control of your video source

    Features


    Wireless Long-Range Extension

    Automatically paired Wireless 5G technology reliably extends HDMI signal up to 330ft (100m) through line-of- sight to a remote HDMI display without complicated cable or wire installation

    Wireless

    *Note: The transmission distance will vary depending on building layout, electronic, interference, walls and partitions, other environmental conditions, and may be much less than the maximum

    Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage / POP for small business, office, and showroom


    Antenna

    Dual Antenna Design

    Comes with dual 5dBi detachable antenna with 2T2R data rate MIMO (Multiple-Input Multiple-Output) technology prevents signal interference and provides optimal reception quality and stability

    *Note: 2T2R stands for 2 Transmitters and 2 receivers, supports fast upload and download speed


    IR Extension Modules

    Built-in on way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 60KHz carrier frequency

    Allows you control devices up to 100 meters away through wall, door, celling, floor, etc., but the IR transmitting distance maybe affected by your home construction and your wireless equipment


    High Performance

    Performance

    Resolution

    Offers a true 10.2Gbps video bandwidth and supports stereo audio. Compatible with HDMI 1.3, HDCP 1.4, works with HDMI equipped devices, such as DVD, Blu-ray players, set-top boxes, AV receivers, cable/satellite boxes and computer system


    Full HD Resolution

    Supports vivid, high-definition video up to 1080p @60Hz Full HD resolution, low-bandwidth H.265 compression video and streaming flawless LPCM 2.0-ch (up to 48KHz) R/L stereo audio


    Multiple Connectivity Ports

    Comes with four 5dBi antennas, one HDMI video input port, one HDMI video output port, one 3.5mm IR jack output port, one 3.5mm IR jack input port, two Micro USB ports for firmware update, two push buttons for device paring, and two DC 5V/1A power jacks

    Ports


    Maximum Compatibility

    Supports Plug-n-play, no hardware or driver installation and Wi-Fi connection required


Applications

    • Conference room
    • Show room
    • Lecture hall
    • Church
    • Exhibition
    • Home entertainment
    • Shopping center
    • Restaurant
    • Educational facilities

    Need to Know Before Buying

    1. When many networks are located closely together that will affect the wireless network. If you have multiple wireless networks in your home, please set the distance to 2 meters to avoid signal interference

    2. Different building materials will block the wireless signal, the most weakened by having to go through thick walls, especially reinforced concrete

    3. When have walls or objects blocking the line of sight between transmitter and receiver, the signal will be significantly reduced

    4. Please confirm your computer with HDMI port

    Computer

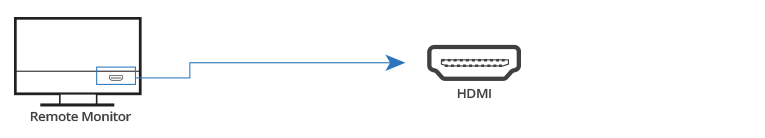

    5. Check the extended display/monitor with HDMI port, if you are not sure, please check with the manual of the monitor

    monitor

    6. Before using, please connect the powers adapter to provide enough power

    7. HDMI cable is required to connect to the HDMI device


    Specifications

    Wireless
    Bandwidth 5GHz
    Transport protocol H.265 compression
    Transmission distance 330ft (100M) line-of-sight
    Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
    5G channel filtering Automatically pairs into the least occupied channel when rebooting

    • Channel 36: Center frequency - 5.18GHz (+/-10MHz)
    • Channel 40: Center frequency - 5.20GHz (+/-10MHz)
    • Channel 44: Center frequency - 5.22GHz (+/-10MHz)
    • Channel 48: Center frequency - 5.24GHz (+/-10MHz)
    • Channel 149: Center frequency - 5.745GHz (+/-10MHz)
    • Channel 153: Center frequency - 5.765GHz (+/-10MHz)
    • Channel 157: Center frequency - 5.785GHz (+/-10MHz)
    • Channel 161: Center frequency - 5.805GHz (+/-10MHz)
    • Channel 165: Center frequency - 5.825GHz (+/-10MHz)
    IR Remote Control
    Frequency rate 60Hz
    Video
    HDMI HDCP 1.4
    Bandwidth 10.2Gbps
    Resolution 1920x1080 @60Hz, 1920x1200 @60Hz (1080p/1080i/720p/576p/576i/480p/480i)
    Color space RGB/ YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
    Color depth 8/10/12-bit
    HDMI cable distance up to 5M
    Audio
    R/L LPCM 2.0 channel 32KHz / 44.1KHz / 48KHz stereo audio
    Power
    Power adapter Input: AC 100-240V/50-60Hz, Output: DC 5V/1A
    UL Listed E305498/ Class: VI
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 6.57” (L) x 1.28” (H) x 3.27” (W)
    Weight: 0.34 lbs
    Color: Black
    Housing material: Plastic
    Receiver unit (RX) Dimensions: 6.57” (L) x 1.28” (H) x 3.27” (W)
    Weight: 0.34 lbs
    Color: Black
    Housing material: Plastic
    Unit package Dimensions: 10.12” (L) x 2.95” (H) x 6.22” (W)
    Weight: 1.33 lbs
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: China

    Interface

    Interface

    Transmitter unit (TX):

    • 1x 19-pin, HDMI, Female (input)
    • 1x 3.5mm infrared jack (IR output)
    • 1x 5-pin, Micro USB for firmware update
    • 1x Push button for device pairing
    • 2x Wi-Fi Antenna jack, MIMO 2x2, 5G bandwidth
    • 1x DC 5V/1A power adapter jack

    Receiver unit (RX):

  • 1x 19-pin, HDMI, Female (output)
  • 1x 3.5mm infrared jack (IR input)
  • 1x 5-pin, Micro USB for firmware update
  • 1x Push button for device pairing
  • 2x Wi-Fi Antenna jack, MIMO 2x2, 5G bandwidth
  • 1x DC 5V/1A power adapter jack


    Package contents

    • 1x Dual Antenna Wireless HDMI Extender with IR-100M
    • 1x IR blaster cable
    • 1x IR receiver cable
    • 2x DC power adapter (5V/1A)
    • User reference guide

Manuals

Frequently Asked Questions (Q&A)

Can one transmitter simultaneously connect with multiple receivers?

Hello, Unfortunately, this is a 1-to-1 wireless extender. The transmitter can only connect to it's paired receiver. The TX/RX pair will auto-scan to find the best 5G signal for clear image transmission.
