Full function Dual 4K60Hz Hybrid Video Docking Station & PD 100W with Gas Spring Monitor Desk Arm Mount - 17" to 32" - DisplayLink IC - DP/HDMI Video - USB-A/C 10Gbps - Windows & Mac M1/M2/M3 Pro/Max Compatible - Included 130W PSU

  • Dual 4K@60Hz Hybrid Video
  • PD 100W
  • 17" to 32"
  • Gas Spring Desk Mount
  • USB-C Input
  • DisplayLink IC
  • 2x DisplayPort/HDMI
  • SD & Micro SD (TF) 3.0
  • Gigabit Ethernet
  • 1x USB-C & A 10Gbps
  • 2x USB-A 5Gbps
  • 3.5mm Headset
  • Windows & Mac
In stock
Quantity in stock: 274
SKU
CE-MTDK01-S1
$329.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee

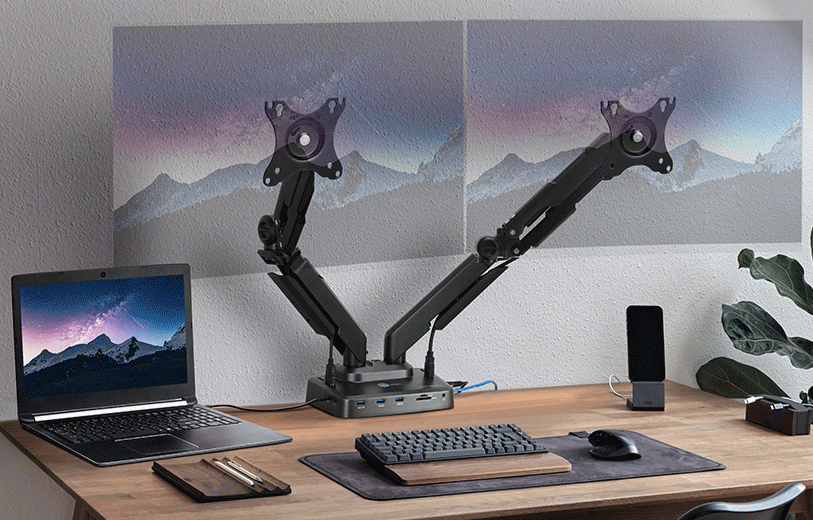

    Overview

    Unique Dual Monitor Desk Mount and Docking Station combo design, gives you dual-display visuals and multiple peripheral connections, adds Dual 4K@60Hz displays, one USB-C 10Gbps, one USB-A 10Gbps, two USB-A 5Gbps, SD/TF reader, one Gigabit Ethernet, one 3.5mm Headset Jack, and PD up to 100W to Windows/Mac computers, fits 17" to 32" monitor, weights up to 22 lbs (each), 75 x 75 and 100 x 100 mm. Compliant with Mac® system for M1, M2, M3 Pro, & Max

    overview

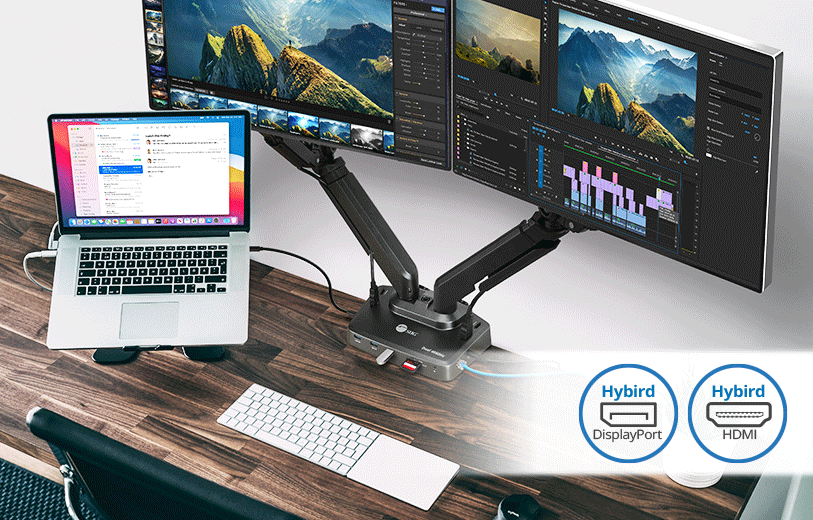

    Features

    Create a powerful workstation to increase your work efficiency by connecting 2 Hybrid displays (DisplayPort/HDMI) with DisplayLink IC, expands multiple connections, PD charging and durable gas springs to organize your desktop

    fea


    Durable Design

    Fully adjustable gas spring accommodates different weight loads to ensure hold flat or curved monitor weighing up to 22lbs (9.98kg) for each and fits 17”-32” flat and curved monitors

    dur

    Heavy-duty C-Clamp mount fits most desktops from 0.39” to 1.96” thickness and grommet in thickness 0.59” to 1.96” to save space and easy to top mount on any desk or table

    base


    Full Motion Monitor

    Features 180 pan angle, 180 arm swivel, monitor tilt angles of +/- 90, and +/- 90 swivel to create the best ergonomic viewing angles and position. Easy adjustable gas spring tension, turn the adjustment screw clockwise for lighter monitors or counter clockwise for heavier monitors using the provided Allen Key

    mon


    4K UHD Video Resolution

    Supports Hybrid dual DisplayPort, dual HDMI, or a mix. of both output ports, video resolution up to Ultra-HD 4K (3840x2160) @60Hz to deliver stunning and crystal-clear images/videos

    res

    * Note: The DisplayPort & HDMI video output ports on the same side cannot be connected simultaneously


    Display Modes

    Stream video with Mirror or Extended modes to the HDTV or monitors for the perfect visual displays

    mode

    m3


    High Performance

    This Dual Spring Monitor Arm Desk Mount with 4K Docking Station & PD is fully certified to meet DisplayLink certification
    DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity

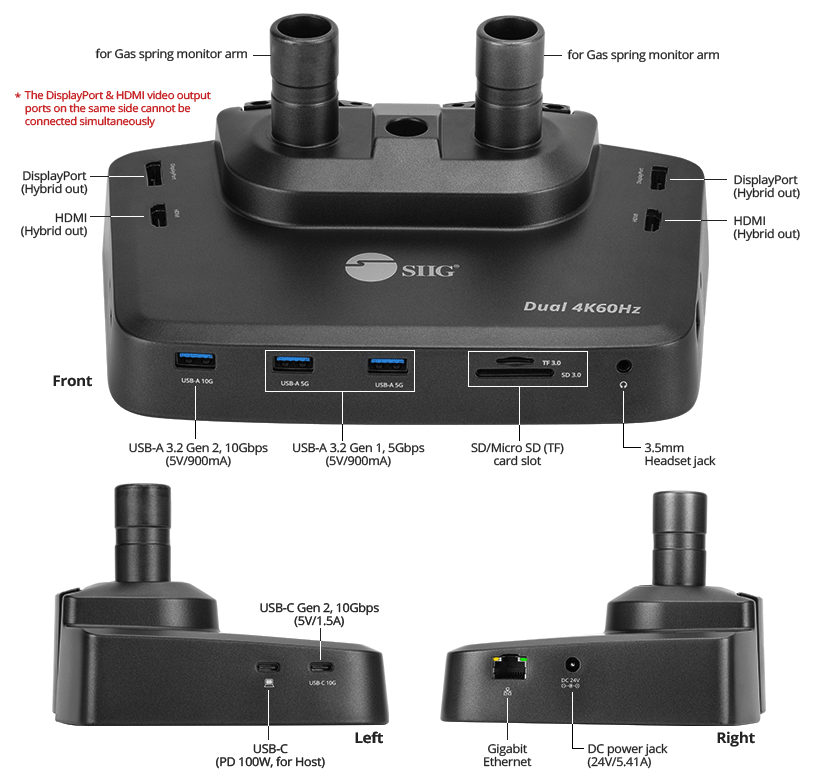

    Multiple Connectivity Port

    Comes with one USB-C port with PD 100W (Host), two Hybrid DisplayPort video ports, two Hybrid HDMI video ports, one USB-C 10Gbps port, one USB-A 10Gbps port, two USB-A 5Gbps ports, one Gigabit Ethernet network port, one SD memory card slot, one Micro SD (TF) memory card slot, one 3.5mm headset jack for stereo audio and microphone, and one DC power jack (24V/5.41A)

    ports

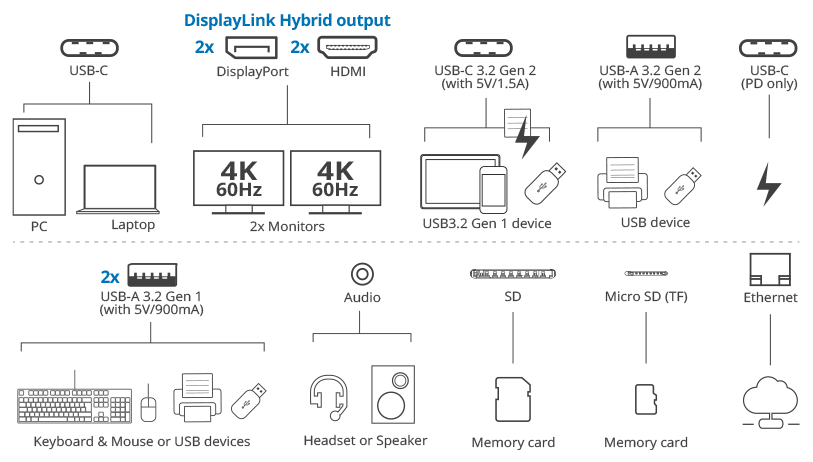

    Connection

    conn

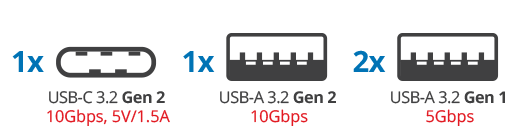

    USB-C/USB-A Data Transfer

    Delivers one USB-C port with 5V/1.5A charging, data transfer rate up to 10Gbps, one USB-A port, data transfer rate up to 10Gbps, and two USB-A ports data transfer rate up to 5Gbps, allows sharing of Keyboard & Mouse, and USB peripherals such as pen drives, printers, hard disks...


    1G Ethernet Data Transmission

    Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

    Enterprise Features:
    • Wake on Lan
    • PXE boot
    *Note: Mac address not supported

    3.5mm Audio/Mic Jack

    Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection


    pd card mount compatible

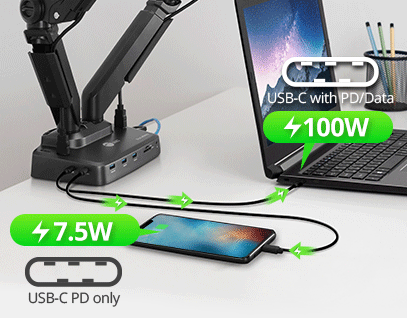

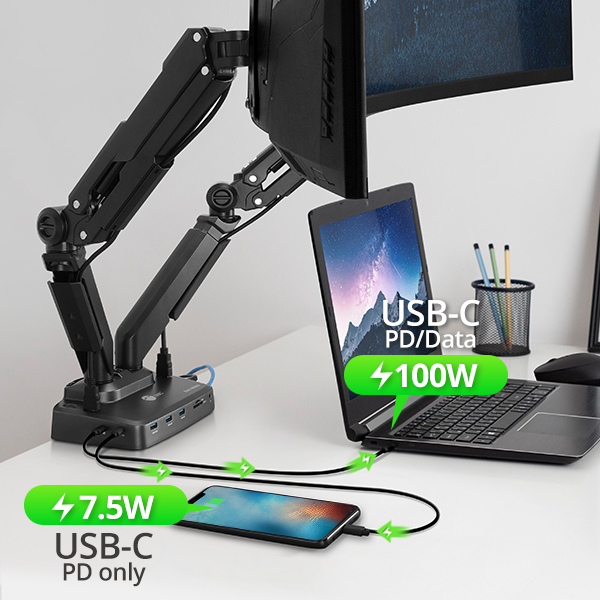

    100W Power Delivery

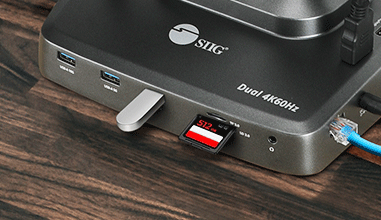

    Memory Card Slots

    Install from The Top

    Maximum Compatibility

    Supports Power Delivery 3.0 (PD 3.0) charging up to 100W to charge your laptop and comes with a high-quality USB-C to USB-C cable for connectivity. The included 130W power adapter ensures enough power for connected peripherals Compatible with SD 3.0 UHS-1 and Micro SD (TF) 3.0 UHS-1 memory card and data transfer rate up to 80MB. Both card reader slots can read/write simultaneously and support capacity up to 2TB The base of the mount ( with the integrated docking station) can be installed easily from the top so you do not need to crawl under the desk to fasten the clamp base Maximum Compatibility

    Compliant with Mac® system for M1, M2, M3 Pro, & Max
    Compatible with Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) /8 (32-/64-bit) / 7 (32-/64-bit) and Mac OS 12.x to 10.13


    Cable Management

    Keep cables neat, organized, and out of the way for a clean uncluttered desktop environment

    cable


    VESA Mounting Holes

    Compatible with VESA mounting patterns 75x75 and 100x100mm and supports VESA plate portrait or landscape monitor orientation


    Aluminum Housing Design

    The solid construction design and premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency



    Comparison Table

    CE-MTDK01-S1 CE-MT3K11-S1 CE-MT2E12-S1 CE-MT3211-S1 CE-MT3E11-S1 CE-MT2X11-S1
    SKU CE-MTDK01-S1 CE-MT3K11-S1 CE-MT2E12-S1 CE-MT3211-S1 CE-MT3E11-S1 CE-MT2X11-S1
    Max. Screen Size 32" 32" 32" 32" 30" 32"
    Max. Arm Capacity 22 lbs (each display) 19.8 lbs (each display) 19.8 lbs (each display) 33 lbs (each display) 17.6 lbs (each display) 19.8 lbs (each display)
    Max. Arm Lift 19" 18" 18" 23" 17.7" 32.6"
    Max. Arm Extend 21" 21.6" 23.8" 20.7" 15.5" 25.3"
    Spring Type Gas Spring Gas Spring Gas Spring Gas Spring - Gas Spring
    Mount Type C-clamp & grommet C-clamp & grommet C-clamp & grommet C-clamp & grommet C-clamp & grommet C-clamp & grommet
    Cable Management
    Features 11 in 1 USB C Docking station with 100W Power Delivery Built-in 179 modes of RGB lights gives you unique vibe to your gaming room Premium gas spring provides smooth user experience of adjustment Heavy-duty to hold large displays with integrated USB & audio ports Monitor Height Adjustbale from 9.6 to 17.7 inches Integrated USB & audio ports


Applications

    • Office• Classroom• Home office• Workstation• Media editing center• Web design studio
    • Photo shooting studio• Medical office• Testing lab• Surveillance control center

    Need to Know Before Buying

    1. Please check that your monitor are between 17” and 32” in size and each weigh less than 22 lbs

    size

    2. Please keep the arm in horizontal position during adjustment and use an Allen key to increase or decrease the spring tension as needed

    allen

    3. Please confirm that your computer has Thunderbolt 3 or Thunderbolt 4 or USB-C and ensures supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
    * Note: Not all USB-C ports support the full functionality of the USB-C standard

    computer

    4. Check the extended displays/monitors resolution that supports 4K @60Hz and have DisplayPort/HDMI port. If not sure, please check on manual of monitor
    * Note: The DisplayPort & HDMI video output ports on the same side cannot be connected simultaneously

    monitor

    5. Before charging your laptop, notebook, tablet, and smartphone, please use includes USB-C 3.2 Gen 1 to USB-C cable to keep high quality and stability or check your cable with power delivery 3.0, then it can handle up to 100W

    6. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
    For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop

    7. Compliant with Mac® system for M1, M2, M3 Pro, & Max


    Specifications

    Software
    OS Compatibility Windows® 11 or macOS® or new
    Video
    DisplayPort with DisplayLink IC x2, resolution: up to 4K (3840x2160) @60Hz
    HDMI with DisplayLink IC x2, resolution: up to 4K (3840x2160) @60Hz
    Display modes
    Mirror mode and Extended mode
    USB
    USB-C x1, 5V/1.5A charging, up to 10Gbps data transfer rate
    USB-A x1, 5V/900mA charging, up to 10Gbps data transfer rate
    USB-A x2, 5V/900mA charging, up to 5Gbps data transfer rate
    Fast charging port Yes
    Audio
    5.1 channel surround sound from DisplayPort/HDMI ports
    2 channel stereo audio from 3.5mm headset jack
    Memory Card Slot
    SD 3.0 x1, UHS-I, up to 80Mbps data transfer rate, capacity up to 2TB
    Micro SD (TF) 3.0 x1, UHS-I, up to 80Mbps data transfer rate, capacity up to 2TB
    Power
    Power Delivery 3.0 (PD 3.0) up to 100W via USB-C port (Host)
    Power Adapter Input: AC 100-240V / 50-60Hz, Output: DC 24V/5.42A
    UL Listed E355343/ Level: VI
    Ethernet
    Data transfer rate up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Enterprise features Wake on LAN and PXE boot. *Note: Mac address not supported
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 10% to 90% RH (non-condensing)
    Product Info
    Dimensions 39.37” (L) x 5.28” (H) x 20.87” (W)
    Weight 10.27 lbs
    Color Black
    Housing material Aluminum
    Unit Package
    Dimensions 18.11” (L) x 6.02” (H) x 17.52” (W)
    Weight 12.43 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH
    UPC Code: 662774-045184
    Warranty: 2 years limited
    Country of origin: China

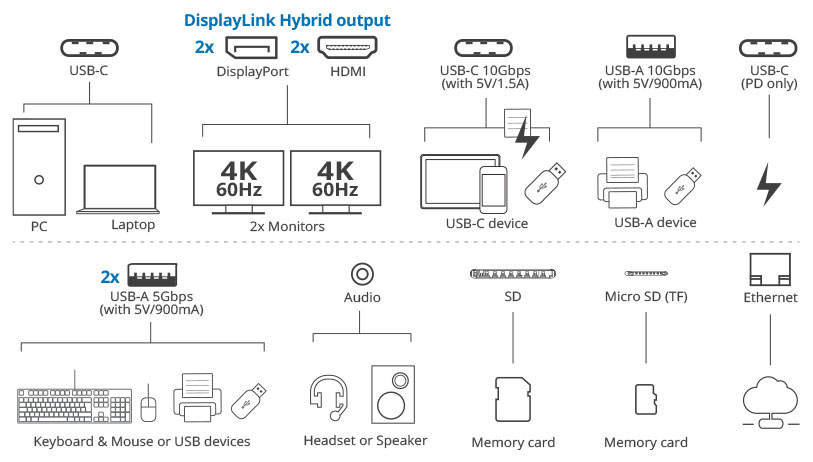

    Interface

    interface

    Input

    • 1x 24-pin, USB-C 3.2 Gen 2 with PD 100W, Female (Host)
    • 1x DC power jack, 24V/5.41A

    Output

    • 2x 19-pin, HDMI with DisplayLink IC, Female
    • 2x 20-pin, DisplayPort with DsiplayPort IC, Female
    • 1x 24-pin, USB-C 10Gbps, with 5V/1.5A, Female
    • 1x 9-pin, USB-A 10Gbps, Female
    • 1x 9-pin, USB-A 5Gbps, Female
    • 1x 24-pin, USB-C, PD only, Female
    • 1x 8-pin, Gigabit Ethernet, RJ45
    • 1x SD UHS-I memory card slot, 3.0
    • 1x Micro SD (TF) UHS-I memory card slot, 3.0
    • 1x 3.5mm headset jack, stereo audio & mic

    System Requirements

    • PC or laptop computer with an available USB-C port or Thunderbolt 3 or Thunderbolt 4 port
    • Compliant with Mac® system for M1, M2, M3 Pro, & Max
    • Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
    • macOS® 12.x to 10.13

    Package contents

    • 1x Dual Gas Spring Monitor Arm Desk Mount with 4K Docking Station & PD
    • 1x USB-C to C cable, 100m
    • 1x DC power adapter, 24V/5.42A
    • 1x Mounting kit
    • 1x User reference guide

Manuals

04-1389b.pdf Download manual

Drivers


Hardware Version: 1

macOS Mojave 10.14
Download Driver Version 5.2.6
Build: v5.2.6 (128)
macOS Catalina 10.15
Download DisplayLink Manager 1.5
For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
macOS Sonoma 14 / Ventura 13 / Monterey 12
Big Sur 11
Download DisplayLink Manager 1.9
Build: 0c503bb076 (148). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
Windows 8.1 /7
Download Driver Release 10.3 M0
Software Package Version: 10.3.6419.0 Driver version: 10.3.6400.0
Windows 11 / 10
Download Driver Release 11.2 M0
Software Package Version: 11.2.3337.0. DisplayLink Graphics Driver version: 11.2.3146.0
