Dual View Wireless Media Presentation Kit

  • Wireless/Wired LAN
  • PoE
  • HDMI
  • 4K
  • One Screen Dual View
  • Whiteboard Mode
  • Annotation Mode
  • Touchscreen
  • Remote Mouse Control
  • 2x 1080p HDMI Dongle
  • USB A/C Dongle
  • USB-C
  • USB 3.0
  • USB 2.0
  • 3.5mm Audio
  • RS-232 Phoenix Terminal
  • 3 Security Levels
Out of stock
SKU
CE-H26611-S1
$1,299.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Share up to 16 devices wirelessly with dual screen main display, 4K resolution, perfect for meeting and boardroom presentation

    Features

    Features

    Sharing dual view on one screen display and easily extend HDMI single with stereo audio by connecting HDMI touch and play dongle and wireless BYOD (Bring your own device) solution make your presentation more effective


    Wireless BYOD Transmission

    Allows to wirelessly share your presentation from a smartphone, tablet and laptop, and can extend HDMI signals up to 15m (49ft) to a remote HDMI display

    Wireless

    *Note:
    - Use HDMI touch & play dongle to connect to laptop; iOS system work with Airplay app.; Android system work with WMedia2 app.
    - The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and maybe much less than maximum

    distance


    Dual View On-Screen Display

    Dual view

    Showing two different displays on one screen at once and allows up to 16 laptops, tablets, and smartphones to be connected at the same time

    *Note:
    - Number of window simultaneous on screen: 2+14 (2 main windows+14 thumbnail windows)
    - Two display mode: Mirror or Extended
    - Additional Wireless Media Presentation Transmitter- HDMI dongle (part# CE-H26711-S1) sold separately


    Interactive Wireless Control

    Use a remote USB mouse or touch screen to write, edit, capture, and share documents on the whiteboard or annotation at any time

    control


    Multiple Connectivity Ports

    ports

    Adds one HDMI output port, 1x 3.5mm audio output, one USB 3.0 Type-A port, one USB-C port, one USB 2.0 Type-A port, one 100Mbps Fast Ethernet port, one 1000Mbps Gigabit Ethernet with PoE port, one RS-232 3-pin phoenix terminal, one power button, one LED indicator, and one DC power jack (12V/2A)

    dongles

    LED

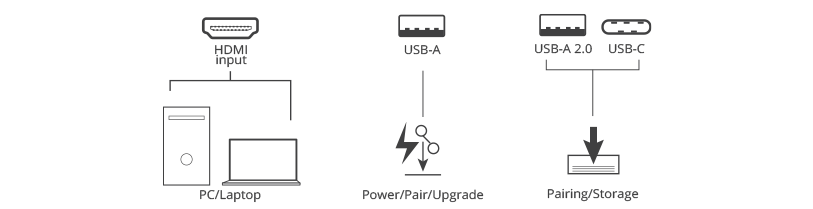

    HDMI Dongle- Transmitter

    [Adds one HDMI input port, one USB 2.0 Type-A (power only), one touchpad (wireless), and two LED ring indicator]

    Provides built-in independently wireless transmission protocol with the receiver, auto configuration/pairing for wireless media presentation, simply touch the HDMI dongle (transmission) to share presentation or video, and includes the LED indicator

    USB A/C Dongle

    [Adds one USB 3.0 Type-A and one USB-C]

    90-rotation design, comes with USB Type-A and USB Type-C connectors easy to plug-in and auto-configuration/pairing to quickly share your screen

    touchpad


    Two Segment Routing

    network

    Connects to a wired and a wireless network simultaneously and separately, including wireless Wi-Fi network and wires LAN network (10/100/1000Mbps Ethernet port with PoE (Power over Ethernet) technology and 10/100Mbps Ethernet port)


    security

    Three Security Levels

    Whether you use the smartphone, tablet, or laptop to share files, three security levels are provided to protect your data. Data encryption and control of the presentation system can be customized, and according to different security requirements can be met according to different security sensitive environments or security strategies


Applications

    • Presentation room
    • Boardroom
    • Classroom
    • Meeting room
    • Trade show
    • Hospital
    • Retail store
    • Lecture Hall

    Need to Know Before Buying

    1. Please confirm your laptop with USB-C, USB 3.0 Type-A, and HDMI ports

    computer

    2. Before using the smartphone or tablet, please download the app. (Airplay for iSO system, WMedia2 for Android system)

    3. Check the extended HDMI display/monitor resolution that supports 4K (Full-HD display only provides 1080p resolution)

    monitor

    4. Make sure that Dual View Wireless Media Presentation- base unit is connected to the internet and powered, the the "Homepage" will be displayed on the HDMI display/monitor

    internet

    5. If you want to separate audio to the speaker, please connect a 3.5mm audio jack. If connected, the LED will show the green color on the Dual View Wireless Media Presentation- base unit

    6. If you use an ethernet switch with PoE (Power over Ethernet), then you can connect "LAN Ethernet port 2" which is better than using an external power adapter


    Specifications

    Video
    HDMI 2.0 on base unit, HDCP 2.2/1.4
    Resolution: [email protected], [email protected], [email protected], [email protected]
    HDMI 1.3 on HDMI Dongle
    Resolution: [email protected], [email protected]
    Video playbackframe rate 20-60FPS
    Capacity Resolution Airplay for iOS system: 1080p < 60Hz
    WirelessMedia for Android system: 1080p < 60Hz
    Show-me button (HDMI Dongle): 1080p <30Hz
    Audio
    PCM 2.1 channel stereo digital audio from HDMI or 3.5mm stereo audio output port
    Data Transfer rate
    USB 2.0 up to 480Mbps
    USB 3.0 up to 5Gbps
    Power
    Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 12V/1.5A
    PoE (Power of Ethernet) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
    IEEE 802.3af
    Network
    Wireless Data Rate up to 1200Mbps
    Wireless Transmission Protocol Wi-Fi IEEE 802.11 a/g/n/ac
    Frequency Bandwidth 2.4GHz & 5GHz
    Wi-Fi Antenna MIMO 2x2
    Ethernet
    LAN Ethernet port 1 Data transfer rate: up to 100Mbps, backward compatible with 10Mbps
    LAN Ethernet port 2 Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps, with PoE
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)
    Product Info
    Bast Unit Dimensions: 6.50” (L) x 0.87” (H) x 3.54" (W)
    Weight: 0.80lbs
    Color: Silver
    Housing material: Metal
    HDMI Dongle- Transmitter Dimensions: 11.34” (L) x 0.47” (H) x 2.52" (W)
    Weight: 0.21lbs
    Color: Black
    Housing material: ABS
    USB A/C Dongle Dimensions: 2.76” (L) x 0.39” (H) x 0.67" (W)
    Weight: 0.18lbs
    Color: Silver
    Housing material: Zinc Alloy
    Certifications/Standards
    FCC, CE, RoHS
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    • 1x Back-lit LED
    • 1x 4-pin, USB 2.0 Type-A, Female
    • 1x 24-pin, USB-C, Female
    • 1x Power button
    • 1x 3.5mm audio jack, Female
    • 1x 9-pin, USB 3.0 Type-A, Female
    • 1x 19-pin, HDM 2.0, Female (output)
    • 1x 3-pin, RS-232 phoenix terminal block (for control)
    • 1x 8-pin, Fast Ethernet, 100Mbps
    • 1x 8-pin, Gigabit Ethernet with PoE, 1000Mbps
    • 1x DC power jack, 12V/1.5A
    • 2x Wi-Fi antenna jack, MIMO 2x2, 5G bandwidth

    dongles

    HDMI Dongle- Transmitter

    • 1x 19-pin, HDMI 2.0, male (input)
    • 1x 4-pin, USB 2.0 Type-A, male (power only)
    • 1x Wireless touchpad, LED indicator
    • 1x LED ring indicator

    USB A/C Dongle

    • 1x 9-pin, USB 3.0 Type-A, male
    • 1x 24-pin, USB-C, male

    System Requirements

    • Laptop with an available HDMI 2.0 port
    • Application software installed on a smartphone or tablet (Airplay for iOS system or WMedia2 for Android system)

    Package contents

    • 1x Dual View Wireless Media Presentation- Base unit
    • 2x Wireless Media Presentation Transmitter- HDMI Dongle
    • 1x USB A/C Dongle
    • 2x Wi-Fi Antenna
    • 1x 3-pin RS-232 terminal block
    • 1x DC Power adapter (12V/1.5A) with US, UK, EU and AU plugs
    • 1x User Reference Guide

Manuals

04-1272a.pdf Download manual
