Wireless Media Presentation Transmitter - HDMI Dongle

• Features
• Applications
• Need to Know Before Buying

---

Overview

Share up to 16 devices wirelessly connections simultaneous and easily switch/connect devices with touch button perfect for meeting and boardroom presentation, supports [email protected] resolution, Airplay, and WirelessMedia2

---

Features



Sharing dual view on one screen display with a remote mouse to control the source devices, and easily extend HDMI single with stereo audio by connecting HDMI touch and play dongle, and supports wireless BYOD (Bring your own device) solution make your presentation more effective



---

HDMI Touch & Play Dongle
Provides built-in independently wireless transmission protocol with the receiver, auto configuration/pairing for wireless media presentation, simply touch the HDMI dongle (transmission) to share presentation or video, and includes the LED indicator



LED indicators represent different situations- Green LED color is ready to mirror on the screen, red LED color is mirroring on the screen

---

Wireless BYOD Transmission
Allows to wirelessly share your presentation from a smartphone, tablet and laptop, and can extend HDMI signals up to 15m (49ft) to a remote HDMI display



*Note:
- Use HDMI touch & play dongle to connect to laptop; iOS system work with Airplay app.; Android system work with WMedia2 app.
- The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and maybe much less than maximum



---

Dual View On-Screen Display
Showing two different displays on one screen at once and allows up to 16 laptops, tablets, and smartphones to be connected simultaneously



*Note:
- Number of window simultaneous on screen: 2+14 (2 main windows+14 thumbnail windows)
- Two display mode: Mirror or Extended
- Additional Wireless Media Presentation Transmitter- HDMI dongle (part# CE-H26711-S1) sold separately

---

Multiple Connectivity Ports
Comes with one HDMI input port, one USB-A 2.0 (power/pair/upgrade), one touchpad/Wireless, and two LED ring indicator



Connection



---

Three Security Levels
Whether you use the smartphone, tablet, or laptop to share files, three security levels are provided to protect your data. Data encryption and control of the presentation system can be customized, and according to different security requirements can be met according to different security sensitive environments or security strategies

---

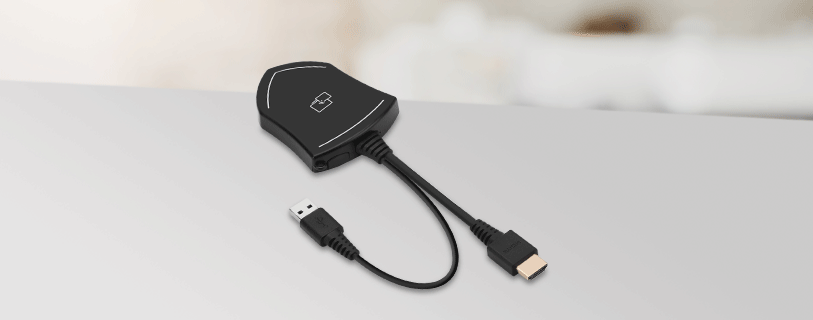

Metal Housing Design
Sleek metal housing with heat dissipation design for reliable performance and great wireless connectivity

---

Applications

• Presentation room
• Boardroom
• Classroom
• Meeting room
• Trade show
• Hospital
• Retail store
• Lecture hall
• Church
• Home entertainment
• Educational facilities

---

Need to Know Before Buying

1. Please confirm your laptop with USB-C 3.2 Gen 1 (or USB-A 3.2 Gen 1) and HDMI port



2. After charging the SSID/Wi-FI channel, all the transmitters must be paired again

• Interface
• System Requirements
• Package Contents

---

Specifications

Video
HDMI	x1, Resolution: [email protected], [email protected]
Video playbackframe rate	20-60FPS
Capacity Resolution	Airplay for iOS system: 1080p < 60Hz WirelessMedia for Android system: 1080p < 60Hz Show-me button (HDMI Dongle): 1080p <30Hz
USB
Supply power connector or plug into the base unit for pairing or upgrade the dongle
Touch Button
With the sensor to start displaying or switching the content of the PC/laptop screen on the main screen
LED Ring Indicator
Indicates the status of the button. Green LED color is ready to mirror on the screen; blinking green is initializing/software upgrading/waiting to star/pairing; red LED color is mirroring on the screen; LED off is no signal
Network
Wireless data rate	Up to 1,200Mbps
Wireless transmission protocol	Wi-Fi IEEE 802.11 a/g/n/ac
Frequency bandwidth	2.4GHz & 5GHz
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity:	20% to 90% RH (non-condensing)
Product Info
Dimensions	11.34” (L) x 0.47” (H) x 2.52" (W)
Weight	0.21lbs
Color	Black
Housing material	Metal
Unit Package
Dimensions	8.94” (L) x 1.14” (H) x 3.72" (W)
Weight	0.50lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: China

---

Interface



• 1x 19-pin, HDMI, male, input
• 1x 4-pin, USB-A 2.0, for power/pair/upgrade, male
• 1x Wireless touchpad, LED indicator
• 1x LED ring indicator

---

System Requirements

• Laptop with available HDMI and USB-A 3.2 Gen 1 ports
• Application software installed on a smartphone or tablet (Airplay for iOS system or WMedia2 for Android system)

---

Package contents

• 1x Wireless Media Presentation Transmitter- HDMI Dongle
