Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver

• Receives HDMI signals with stereo audio from a remote HDMI source device over UTP CAT5e/6 cabling up to 100 meter. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter, part# CE-H26411-S1, sold separately

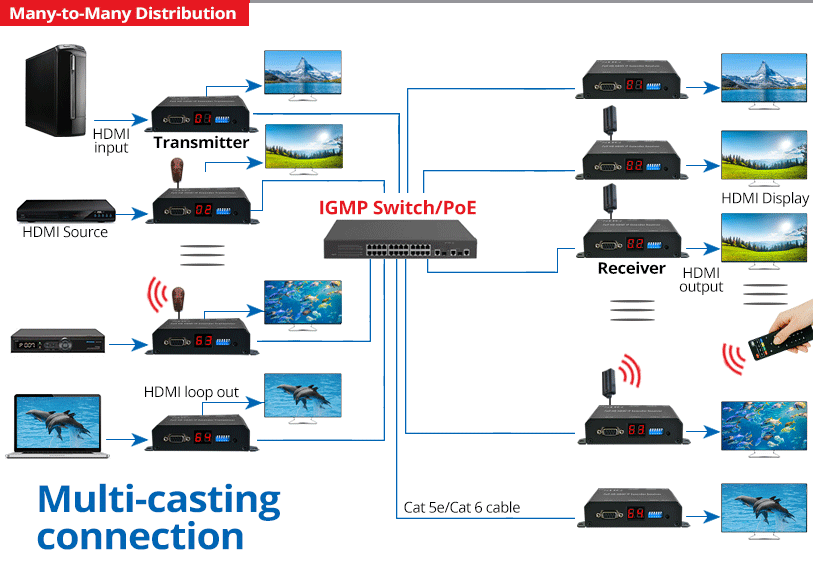

• Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional transmitter units (part# CE-H26411-S1) and receiver units (part# CE-H26511-S1) sold separately
  Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
• Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
• Full HD 1080p video resolution delivers stunning and clear images
• IR pass back function allows you to control the source device from remote RX location
• Computer control software allows you to select and switch between source devices (Matrix only)
• Video protocol with H.264 compression over IP
• Features MP3 audio compression and stereo 192Kbps encoder/ decoder

• Compliant with HDMI 1.3
• Video resolution: 1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50, 480i 60/50, 480p 60/50
• Video compression:
  • H.264 compression video format Full HD encoder/ decoder
  • MP3 compression audio format stereo 192Kbps encoder/ decoder
  • Media stream up to 18Mbps
• HDMI Audio: Stereo 192Kbps
• IP PROTOCOL: TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
• LAN port: RJ-45 connector for 10/100 BASE-T CAT extension
• Serial port: DB-9 RS-232 female connector
• Power input: RJ-45 Power over Ethernet 36V to 57V, 7W in

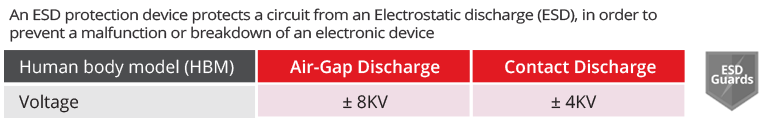

• ESD protection: Air gap discharge +-8KV, contact discharged +- 4KV
• Product:
  • Dimensions: 5.12" (W) x 3.23" (H) x 1.19" (D)
  • Weight: 0.64 lbs
  • Housing material: Metal Housing
  • Housing color: Black
  • Connectors:
    • 1x 19-pin HDMI output
    • 1x 8-Pin RJ-45 Input
    • 1x 3.5mm phone jack for IR receiver cable
    • 1x 9-Pin RS-232 Serial
    • 1x 6-pin DIP Switch for channel
    • Power jack: 5V/2A input, 5.5mm (OD) x 2.1mm (ID) x 10mm (D) (required with non-PoE Gigabit Switches or 1-to-1 (TX/RX) direct connection), power adapter purchase separately
• Environmental conditions:
  • Operating temperature: 32 to 122 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

Requirements

• Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter, part number CE-H26411-S1, sold separately
• IGMP PoE Gigabit Switch recommended for best performance and reliability
• Cat5e/6 cables using T568B wiring standard (Cat6 recommended)
• Power adapter, required with non-PoE Switches or direct TX-to-RX connection, purchase separately: Power plug dimensions: 5.5mm (OD) x 2.1mm (ID) x 10mm (L), Output: DC 5V/2A

Package Contents

• Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver
• IR receiver cable (1pc)
• Quick Start Guide
