Full HD HDMI Over IP Extender,Many to Many, PoE, Serial and IR control, 100m - Encoder (TX) for CE-H26511-S1, TAA Compliant

  • HDMI over Ethernet
  • IP Extender
  • 330ft/100m
  • 1080p@60Hz
  • Cat5e/6
  • PoE
  • One to Many
  • Many to Many
  • IR Extension
  • H.264 Compression
  • RS-232
  • DIP Switch
  • ESD Protection
In stock
Quantity in stock: 26

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches. TAA compliant



    Extends HDMI audio and video signals to a remote display over UTP Cat5e/6 cabling up to 330ft (100m), and sends the Full HD resolution to the receiver for reliable, stable transmission and cost savings. Allows multiple receivers to be used simultaneously in multiple configurations


    Long Distance

    This Full HD HDMI over IP Extender designed for reliably extends HDMI signal up to 330ft (100m) through Ethernet network to a remote HDMI display


    Highly Scalable

    Works as a scalable TX/RX matrix over the dedicated IP network, and allows up to 256 total units, limited to 64 transmitters (TX). Requires additional encoder (TX) unit (part#- CE-H26411-S1) and decoder (RX) unit (part#- CE-H26511-S1) sold separately
    *Note: IGMP Gigabit Switch is recommended for best performance and reliability




    IR / RS-232 Extension

    IR Pass Back function and RS-232 signal transmission to control the source device signal from a remote RX location allows you to select and switch between source devices (Matrix mode only)



    Full HD Resolution

    Supports high-definition video resolution up to 1080p (1920x1080) @60Hz for stunning and clear image and HDMI loop-out on the TX to connect to a local display for monitoring

    H.264 Compression

    HDMI signal is encoded into H.264 to be sent through the network router or switch then decoded before arriving at the specified display. Ensures enough bandwidth is available to pass multiple HDMI signals over one network

    High Performance

    Offers a true 10.2Gbps video bandwidth and supports stereo audio


    Flexible Control

    Easily control or setup remote displays via front panel LED digital channels, software, and web GUI control. DIP switch in matrix mode provides the quick setting of transmitter and receiver matching channels that is your best choice


    Multiple Connectivity Ports

    Comes with one HDM video input port, one HDMI video loop-out port, one RJ45 network port, one 3.5mm phone jack for IR remote control, one RS-232 port for signal transmission, one DIP switch, and one DC power jack (5V/2A, option)




    Fast Ethernet Data Transmission

    Reliable wired network connectivity through embedded 10/100BASE-T Ethernet port
    *Note: Gigabit switch is recommended for PoE

    PoE Technology

    Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, compatible RJ45 power input provides 36V-57V / 7W power via a PoE switch (purchase separately), making it easy to construct and improve system robustness. No additional power adapter required

    Maximum Compatibility

    Supports Plug-n-play. The reset button allows re detection of all the displays if any of the displays are not detected

    TAA Compliant

    Completely manufactured in a TAA designated country

    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

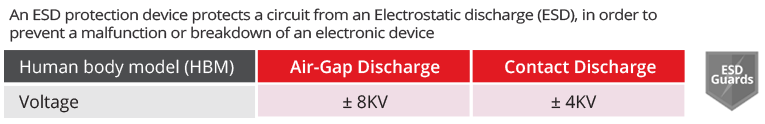

    ESD Protection

    An ESD protection device protects a circuit from an electrostatic Discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device



    • Classroom• Conference room• Control room• Broadcasting• Gaming
    • Exhibitions• Shopping center• Hospitality• Sport bar• Restaurant
    • Retail• Trade show• Church• Airport

    Need to Know Before Buying

    1. Please confirm your computer or devices with HDMI port


    2. Check the extended and local displays/monitors with HDMI port and support 1080p @60Hz resolution


    3. Please choose the PoE switch or IGMP Ethernet Switch with PoE function for reliability and best performance

    4. Please ensure using UTP Cat5e or Cat6 cable for the best video quality and accurate transmission distance


    HDMI 1x input, 1x loop-out
    Resolution 1080p/1080i/720p/480i/480p @60Hz
    Compression H.264 compression video format Full HD encoder/ decoder
    MP3 compression audio format stereo 192Kbps encoder/ decoder
    Media stream up to 18Mbps
    Internet protocol
    TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
    Stereo audio from HDMI, support 192Kbps bit rate
    Fast ethernet
    Data transfer rate: up to 100Mbps, backward compatible with 10Mbps
    Power adapter DC 5V/2A, 5.5mm (OD)x 2.1mm (ID) x 10mm (D) (optional, without PoE switch)
    RJ45 with PoE (Power over Ethernet) 36V to 57V, 7W input
    DIP switch
    6-bit switch for 64 stream channel selection
    Full Duplex RS-232 pass-through up to 115,200bps through connector for RS-232 cable bi-directional remote extension
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 5.12” (L) x 3.24” (H) x 1.19" (W)
    Weight 0.64 lbs
    Color black
    Housing material metal
    Unit package
    Dimensions 6.54” (L) x 5.35” (H) x 2.17" (W)
    Weight 0.94 lbs
    FCC, CE, RoHS, REACH, TAA compliant
    UPC code: 662774043685
    Warranty: 2 years limited
    Country of origin: Taiwan



    Encoder (TX) Input:

    • 1x 19-pin, HDMI, Female
    • 1x 9-pin, RS-232 serial, pass-through
    • 1x 6-pin, DIP switch, for channel matching
    • 1x DC power jack, 5V/2A
    • 1x Reset button


    • 1x 19-pin, HDMI, loop-out, Female
    • 1x 8-pin, RJ45, Ethernet
    • 1x 3.5mm Infrared jack, IR receiver

    Package contents

    • 1x Full HD HDMI Extender over IP with PoE, RS-232 & IR - Encoder (TX)
    • 1x IR emitter cable
    • 1x User Reference Guide


04-1284b.pdf Download Manual


Hardware Version: 1

Windows 10 / 8 / 7
Download IP Control Software

Frequently Asked Questions (Q&A)

Q: Why the Over IP extender video can not cross the Router?

The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through
