HDMI over IP Extender, IR Control, 4K30Hz, 120m - Receiver for CE-H25D11-S1

• Features
• Applications
• Need to Know Before Buying

---

Overview

Replacement: CE-H25E11-S2




Additional receiver unit for CE-H25D11-S1 kit, adds an additional display to a single transmitter within your network

---

Features

Transmits HDMI audio and video signals to a remote display/monitor over UTP Cat6/7 cable up to 394ft (120m) and sends the 4K HD resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations



---

What is HDbitT?
HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal



---

Extend Distance

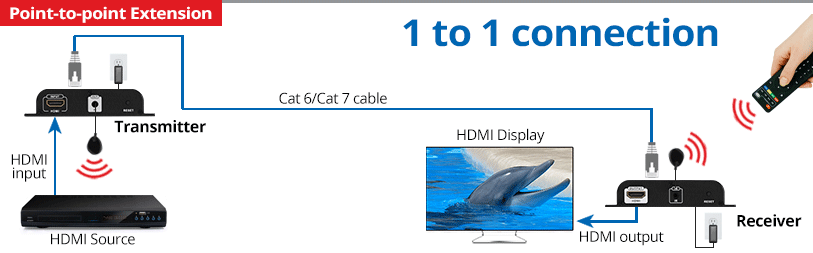

This HDMI 4K30Hz HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display



---

Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 256 total units, the additional receiver unit (part#- CE-H25E11-S1) is sold separately

*Note: IGMP Gigabit Switch is recommended for best performance and reliability







VLAN setup supported
create a separate VLAN for each TX and its corresponding RX’s

---

4K HD Resolution
Supports high-definition video resolution up to 4K (3840x2160) @30Hz, HDCP 1.4 to deliver a crystal-clear picture quality

---

IR Extension
IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display

---

High Performance
Offers a true 10.2Gbps video bandwidth and supports stereo audio



---

Multiple Connectivity Ports
Comes with one HDMI output port, one RJ45 network port, one 3.5mm IR receiver port, one reset button, one DC power jack (5V/2A)



Connection



---

Maximum Compatibility
Supports Plug-n-play. No driver installation required The reset button allows displays to be re-detected if no displays are detected

---

Metal Housing Design
Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

---

Applications

• Digital signage
• Broadcasting
• Video conference room
• Show room
• Classroom
• Dental office
• Hospitality
• Supermarket
• Shopping center
• sport bar
• Restaurant
• Retail
• Trade show
• Church
• Airport
• Control center
• Security center
• Surveillance control center

---

Need to Know Before Buying

1. Please confirm your computer or device with HDMI port



2. Check the extended display/monitor with HDMI port and supports 1080p@60Hz resolution



3. Please ensure using UTP Cat6 or Cat7 cable for the best video quality and accurate transmission distance

4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

• Interface
• Package Contents

---

Specifications

Video
HDMI	1x output
Resolution	4K @30Hz, 1080p/1080i/720p/480i/480p @60Hz
Transport protocol
HDbitT protocol	Audio/video digital connection transmission protocol
Audio
Stereo audio from HDMI, support 192Kbps bit rate
IR pass-through
Allows remote control of the HDMI source device and playback function at the remote display Full frequency: 20KHz to 60KHz
Power
Power adapter	Input: 100-240V/50-60Hz, Output: DC 5V/2A
UL listed	E335801/Level: VI
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity	0% to 90% RH (non-condensing)
Product Info
Receiver unit (RX)	Dimensions: 4.45” (L) x 0.94” (H) x 3.70" (W) Weight: 0.37lbs Color: black Housing material: metal (Housing with wall mount design)
Unit package
Dimensions	5.91” (L) x 3.03” (H) x 4.61" (W)
Weight	0.88 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: China

---

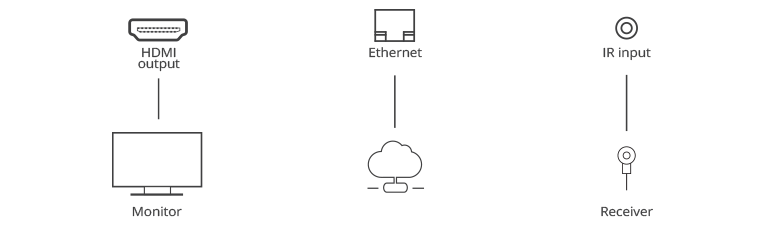

Interface



Receiver unit (RX):

• 1x 19-pin, HDMI, Female (output)
• 1x 3.5mm infrared jack, IR receiver (input)
• 1x 8-pin, RJ45 (input)
• 1x Reset button
• 1x DC power jack, 5V/2A

---

Package contents

• 1x HDMI 4K30Hz HDbitT Over IP Extender - 120m
• 1x 3.5mm IR receiver extension cable
• 1x DC power adapter (5V/2A)
• 1x User Reference Guide
