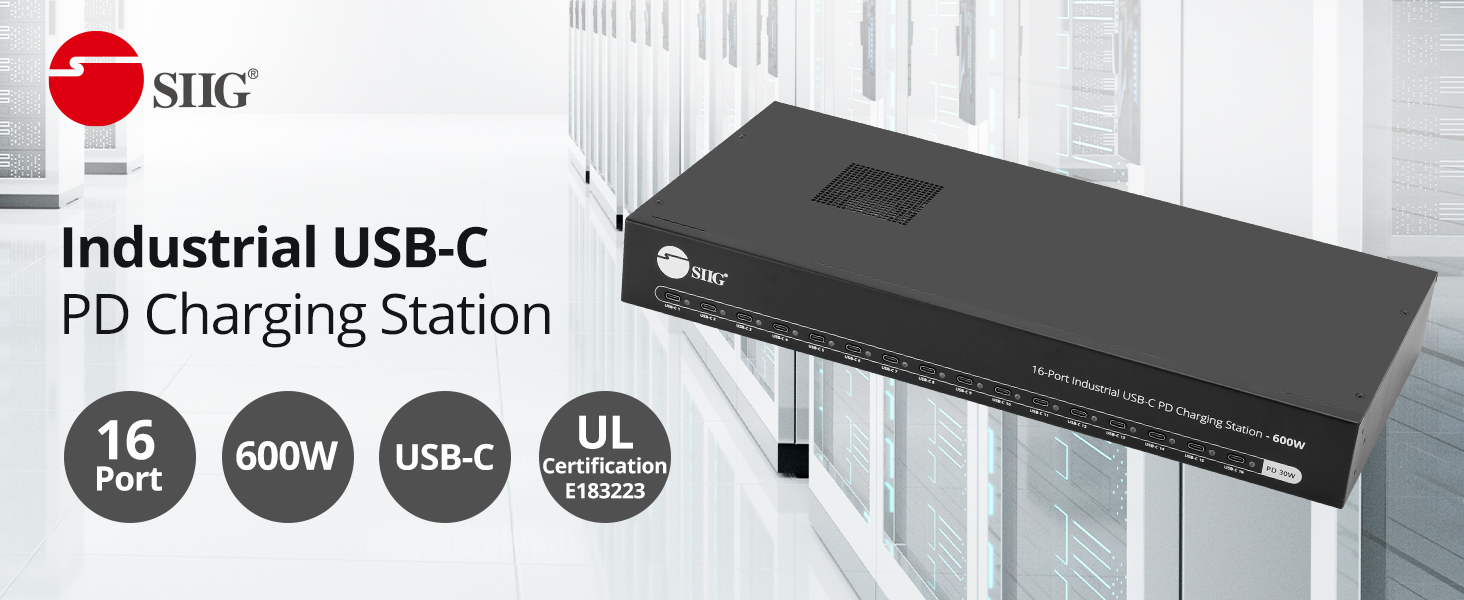

16-Port Industrial USB-C PD Charging Station - 600W - 30W per port - UL Certification

• Features
• Applications

---

Overview

Industrial grade power charging station adds 16 USB-C charging ports, 30W per port, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, Metal Housing, UL Certification

*Note: Ensure your device charging spec is supported PD protocol specification. If device does not support PD protocol and cable is USB-C to A cable, it need to be use a USB-A to C adapter to comply with the 5V charging specification for this charging station.

---

Features

Unrivaled Charging Capability

• 600W total power output ensures sufficient power for all connected devices
• 16 USB-C charging ports, per ports offer up to 30W for charging smartphones, wearables, and other devices
• Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices
• Multiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging options
• Built-in Meanwell brand power IC with UL certification

*Note: Ensure your device charging spec is supported PD protocol specification. If device does not support PD protocol and cable is USB-C to A cable, it need to be use a USB-A to C adapter to comply with the 5V charging specification for this charging station.



---

Complete Protection

• Over Current Protection: Guard against excessive current and potential damage
• Over Voltage Protection: Ensure safe voltage levels for all connected devices
• Over Heating Protection: Smart temperature control to prevent overheating
• Short Circuit Protection: Instant response to protect your devices from electrical mishaps
• Ensures charging station and the connected devices safe



---

2U Standard 19-inch Rack Mounted

Heat dissipation and durable metal shell rack, can be mounted into a standard 2U of EIA-standard 19-inch rack(Not included) using ear-mounts (included)



---

Simple and Concise Use



---

Provide 16 Ports to Connect with Your Devices

Output specification :

• Support USB-C PD output /BC 1.2_DCP, Apple, Samsung protocol/Qualcomm QC2.0 &QC3.0/MTK PE+1.1 and MTK PE+2.0/Fast Charging protocol FCP and AFC (Max 12V)
• Conversion Efficiency is 92%



---



Wide Compatibility

It is compatible with Apple iPhone 15/14/13/12/11/X, iPhone 8, iPhone 8 Plus, Samsung Galaxy Note 8, S8, S8 plus, and more, Tablets/Laptop for Apple iPad Pro/Mini, MacBook 12-inch, MacBook Air/Pro and more USB-C devices



---

Q&A

	Can I use a USB-C to USB-C cable for non-PD devices?
	No, it's not recommended. Non-PD devices do not support Power Delivery communication, so direct USB-C to USB-C charging may not work properly.




	What if I only have a USB-C to USB-A cable?
	You can still charge, but you'll need to use a USB-A to USB-C adapter to comply with the 5V charging standard of this station.




	Which devices are supported?
	Devices that support the USB-C PD (Power Delivery) protocol, such as laptops, tablets, and smartphones from major brands, are fully compatible.




	How can I confirm if my device supports PD?
	Check your device’s technical specifications or charger label for terms like “PD”, “Power Delivery”, or voltage outputs above 5V (e.g., 9V, 15V, or 20V).

---

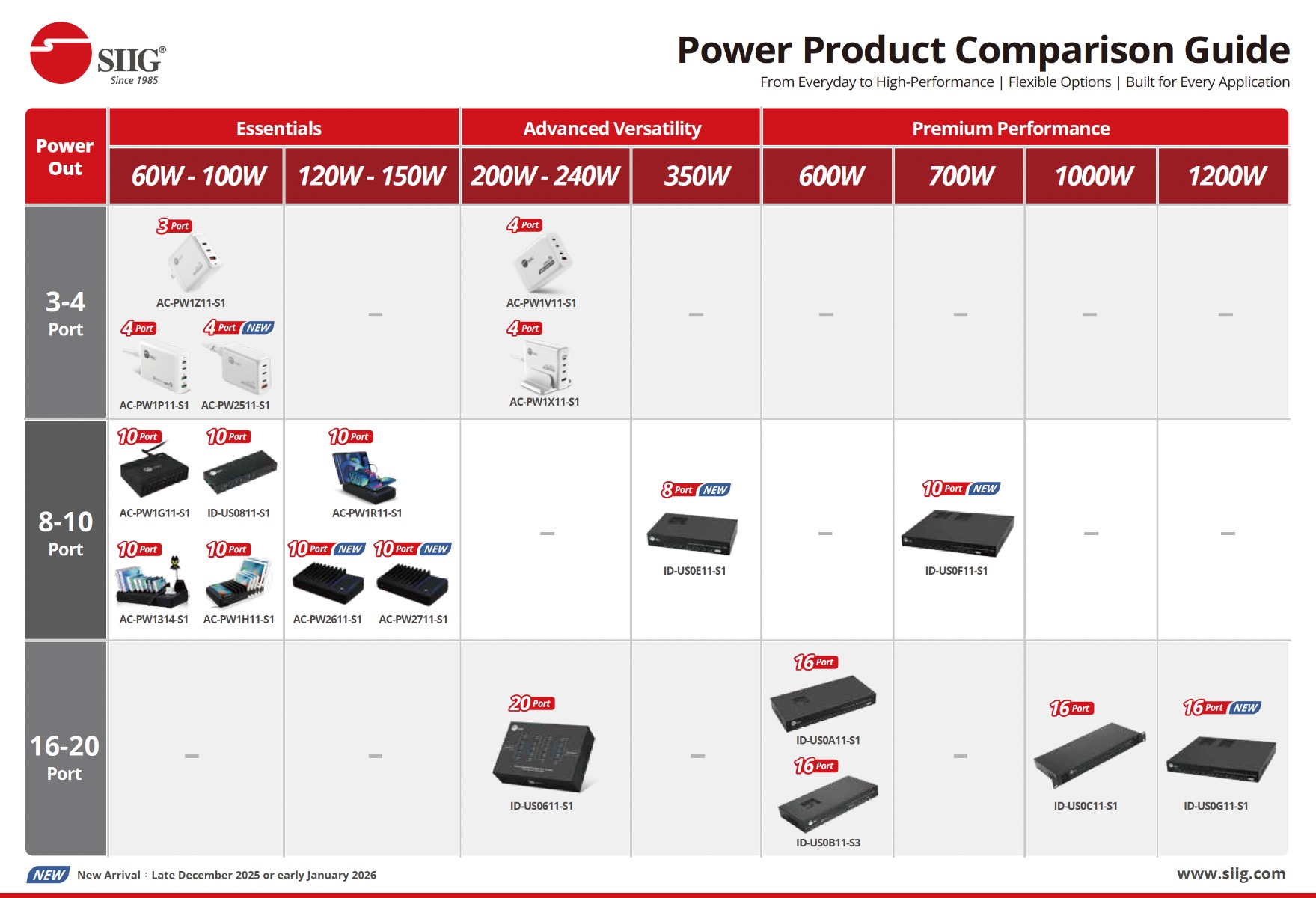

Comparison Table

SKU	ID-US0A11-S1	ID-US0B11-S3	ID-US0611-S1	ID-US0C11-S1
Main Features	PD Charging Station	PD Charging Station + Hub	Charging Station + Hub	PD Charging Station
Total Power Supply (Max)	600W	600W	200W	1000W
Single USB Power Output (Max)	Up to 30W (5V/3A, 9V/3A, 12V/2.5A)	2x 100W and 14x 30W (5V/3A, 9V/3A, 12V/2.5A)	Up to 5V/2.1A	10x 100W / 15x 65W / 16x 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
Power Input	115V, 50/60Hz	115V, 50/60Hz	100-120V, 50/60Hz	100~240V, 50/60Hz
Ports and Connections	16x USB-C	16x USB-C	2x USB-B / 20x USB-A	16x USB-C
Data Transfer (Max)	✗	Up to 5Gbps	Up to 5Gbps	✗
19” Rack Mountable	✓	✓	✗	✓
Protection	Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	ESD/Short Circuit/Over Voltage/Over Current/ Over Heating	Short Circuit/Over Voltage/Over Current/ Over Heating
Automatic Temperature Control	✓	✓	✗	✓
Metal Housing	✓	✓	✓	✓
Certifications/Standards	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	UL, FCC, CE, RoHS	ETL, FCC, CE, RoHS




---

---

Applications

• School	• Educational Institution	• Restaurant	• Shopping Center	• Airport	• High Speed ​​Rail Station
• Data Center	• Industrial Environment	• Testing lab	• Manufacturing	• Healthcare	• Logistics
• Retail

• Package Contents

---

Specifications

• Chipset: IP6520T
• Internal Power Supply: 600W–24V Meanwell switching power supply
• Formfactor size: Support standard 2U of EIA-standard 19-inch rack using ear-mounts (included)
• Input:
• Input Voltage: 115VAC
• Frequency: 50Hz / 60Hz
• Input Current: 12A/115VAC
• Output:
• USB Port: 16 x USB-C, Female
• PD output power: 30W (5V/3A, 9V/3A, 12V/2.5A)
• Efficiency: VIN=24V, VOUT=5V/3A, Conversion Efficiency is 92%
• USB-C Protocol:
• Support 5V / 9V / 12V Voltage output
• Support PD 2.0 / PD 3.0
• PPS support 3 to 11V, 20mV/step Voltage output
• Output specification:
• Support USB-C PD output
• Support BC 1.2_DCP, Apple, Samsung protocol
• Support Qualcomm QC2.0 / QC3.0
• Support MTK PE+1.1 and MTK PE+2.0
• Support Fast Charging protocol FCP and AFC (Max 12V)
• LED indicators:
• High current charging: RED color
• Power On, Low Current Charging or Fully charged: GREEN color

*Note: The light turns green when the current is below 150mA, and turns red when the current is above 160mA

• Output overcurrent protection:
• Output >3.5 to 3.9A, USB port current output automatic disconnect
• Output terminal voltage>16V or more due to an accidental cause, the TVS discharge on the terminal circuit causes the input circuit fuse to open, cutting off power to the circuit and thus protecting the equipment at this port
• Environmental conditions:
• Operating temperature: 14 to 131 degrees F
• Storage temperature: -4 to 158 degrees F
• Relative humidity: 20% to 90% RH (non-condensing)
• Working Altitude: Less than 2km
• Certifications/Standards: FCC, CE, RoHS, UL
• UL: E183223
• UPC code: 662774045856
• Warranty: 2 year limited
• Country of origin: Engineered in USA , Manufactured in China
• Product:
• Color: Black
• Housing: Metal housing with standard 19 inch rack mounting
• Connectors:
• 1x AC Power Jack
• 1x Power Switch
• 16x USB Type-C, Female, USB device connection



	Length	Height	Width	Weight	Quantity
Product	17.32 in (43.99 cm)	2.20 in (5.59 cm)	9.06 in (23.01 cm)	6.26 lbs (2.84 kg)	1
Unit Package	22.24 in (56.49 cm)	2.95 in (7.49 cm)	10.55 in (26.80 cm)	7.43 lbs (3.37 kg)	1
Master carton	22.83 in (57.99 cm)	11.50 in (29.21 cm)	15.55 in (39.50 cm)	39.25 lbs (17.80 kg)	5 pcs/ctn

---

Package contents

• 16-Port Industrial USB-C PD Charging Station - 600W
• Power cord
• Mounting Bracket (2)
• User Manual
