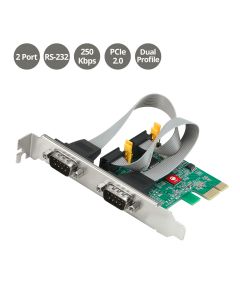

DP Cyber 2S PCIe Card

Add two 16650 RS232 ports to your PCI Express system

Out of stock

SKU

JJ-E20711-S1

$59.99

Join our free Membership Program and save 5% off every order

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee

WARNING: This product can expose you to chemicals including Di-isodecyl phthalate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Overview

Features

Features

SIIG Dual Serial PCIe Card Adapter 16650 UART (JJ-E20711-S1)

Need to Upgrade Your System? PCIe serial card is the most convenient and low budget solution.

Features

The SIIG's PCIe serial card JJ-E20711-S1 can be installed into an available PCI Express slot on the computer's motherboard, to provide two 9-pin RS-232 serial ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS-232 or parallel ports.

The 16C650 UART serial port with data transfer rate up to 250Kbps.
It works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers.

Benefits

The PCIe serial card can decrease the loading on CPU activity which helps ensure optimal system performance and keep errors from happening.
The card is with dual-profile design which fits full height and low-profile system chassis with the included spare low-profile brackets.
It is a great solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, vinyl cutter, printers, scanners, and etc.


Hassle Free Installation This serial card is easy to install and configure, plus support for a wide range of Windows OS. It comes with a standard-profile bracket installed, and also an optional low-profile bracket included in the package.	Solution to Connect When you need to attach an older device to a modern Windows PC, this serial PCIe card is the solution to your problem. It is a lower budget saving alternative compared to buying a new one. Applications are wide, such as CNC machinery, process control equipment, bar code scanners, credit/debit card readers, receipt printers, cash registers, legacy printers, UPS control, video lottery terminals, slot machines, hotel front desk and etc.	What is in the Box? DP Cyber 2S PCIe card Low profile bracket (2pcs) Y-Split power cable Voltage jumper (4pcs) Software CD (Latest driver can be found on SIIG website) User manual

Technical Specifications (JJ-E20711-S1)

Chipset	ASIX AX99100
Compliant with	PCI Express Base Specification 2.0
Bus type	One Lanes (x1) PCI Express
Data transfer rate	Serial port up to 250Kbps
Supports	Hardware, Software Flow Control
Supports	5, 6, 7, 8 and 9-bit Serial format
Supports	On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port

Serial power output	0V / 5V / 12V by Jumper
Power consumption	3W
Form Factor	Dual-profile bracket (full & low profile)
System Requirement	PCI Express-enabled system with an available PCI Express slot 1x
System Requirement	Windows 7 / 8.1 / 8 / 10
System Requirement	Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

Specifications

System Requirements Package Contents Specifications Chipset: ASIX AX99100 Compliant with PCI Express Base Specification 2.0 Bus type: One lane (x1) PCI Express Data transfer rate: Up to 250Kbps Flow control: Hardware and software Serial format: 5, 6, 7, 8 and 9-bit On chip 256-byte transmit and receive FIFO buffers for each serial port Serial power output: 0V / 5V / 12V configured by jumpers Power consumption: 3W PCB form factor: Full and low profile (full height and low profile brackets included) Product: Dimensions (with full height bracket): 4.72" (L) x 0.71" (H) x 2.87" (W) Weight: 0.12 lbs Color: Green Connectors: 2x, 9-pin RS-232 Serial, Male 1x, 4-pin, Molex mini, Power connector Unit Package: Dimensions: 7.28" (W) x 5.31" (H) x 1.18" (D) Weight: 0.36 lbs Environmental conditions: Operating temperature: 32 to 140 degrees F Storage temperature: 14 to 158 degrees F Relative humidity: 5 to 90% RH (non-condensing) Certifications/Standards: FCC, CE, RoHS Warranty: 2 years limited Country of origin: China Note: Replaces JJ-E10D11-S3, JJ-E02111-S1, and JJ-E20011-S3 System Requirements PCI Express-enabled system with an available PCI Express slot Windows^®11 (64-bit) /10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 Package contents DP Cyber 2S PCIe card Low profile bracket (2pcs) Y-Split power cable Voltage jumper (4pcs) Software CD User manual

Downloads

Q&A

No Questions

Please note that you must be logged in to submit questions.

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Windows 10 32-bit	Download driver v1.20.2.0
Windows 10 64-bit	Download driver V1.20.3.0
Windows 11 64-bit	Download driver V1.22.6.0
Windows 8.x / 7; Windows Server 2016 / 2012 R2 / 2012 / 2008 R2	Download driver
