HDMI 4K60Hz 18Gbps over IP Matrix Kit - One-to-One / N to M Multi-casting - For Video Wall, KVM, Stereo, PoE, IR and RS-232 control, ESD Protection, TAA Compliant

  • HDMI&USB over Ethernet
  • IP Extender
  • 394ft/120m
  • 4K60Hz
  • HDR
  • HDCP 2.2
  • 18Gbps
  • Cat6/7
  • Gigabit Ethernet
  • PoE
  • One to Many
  • Multicast Networking
  • DIP Switch
  • RS-232 Control
  • Bi-directional IR
  • Video Wall
  • KVM
  • USB-A
  • S/PDIF
  • Audio/Mic
  • ESD
  • TAA Compliant
In stock
Quantity in stock: 69
SKU
CE-H28A11-S1
$1,099.00

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    HDMI over IP Matrix Kit, extends 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA compliant, Encoder (TX) (CE-H27F11-S1), Decoder (RX) (CE-H27G11-S1)

    overview


    AV over IP Solution for Hotel Lobby
    hotel

    This SIIG AV over IP solution for a hotel lobby enables advertising and promotion through the TV wall and supports high-speed Internet applications, empowering hotel customers to easily get useful information, conveniently inquire through intuitive interaction with touch screens about attractions, shopping, restaurants etc.

    • Extends video/audio transmission distance up to 120m over Cat6 network cable
    • Supports HDMI 4K60Hz bandwidth with PoE, IR and RS-232 pass-through path
    • Multiple 5x5 Video wall function via broadcasting management software
    • Supports USB KVM, Webcam and multi-casting broadcasting architecture

    Application

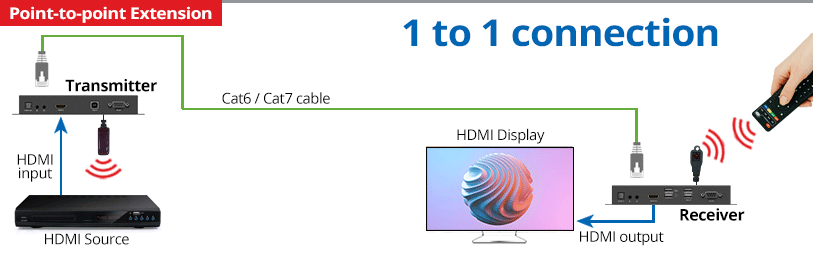

    1 TX to 1 RX
    1to1

    - Simple solution that connects the PC to a large screen 4K@60Hz display, hotel customer can browse internet via hotel system, and conveniently inquire about attractions, traffic, shopping center, restaurants, and other information

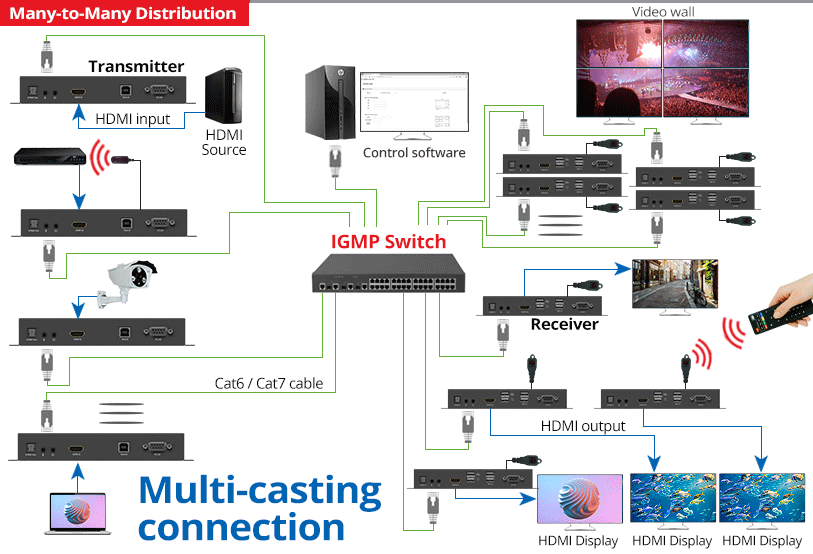

    Multiple TXs to Multiple RXs with setting for the video wall
    mtom

    - The TV wall can display the hotel's key property information, amenities, facilities and event information, customers can easily get useful information when passing by the hotel lobby

    - The Check in machine connected back to the Hotel system though the AV over IP system can allow hotel customers to easily perform self check in or other interactions with touch screens

    - The 4K 60Hz large screens of both sides in the hotel lobby can be used to display special advertising information from the hotel or hotel partner businesses

    - This AV over IP for Hotel Lobby solution utilizes the current most readily-available exiting network architecture and cabling in the hotel, and enables typical AV over IP applications in a hotel lobby. More TXs or RXs can be added on demand in almost any locations to support new AV applications in very little time

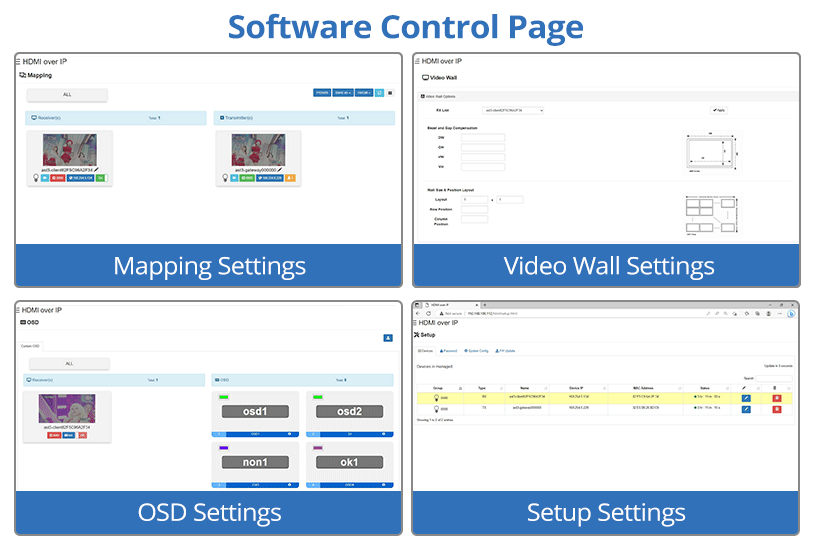

    - Allows Video wall, OSD, and Mapping to multiple display on multiple source devices via control software (please go to SIIG download page and follow the instructions)

    control


    Features

    Flexible matrix function to extend HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

    fea


    Highly Scalable

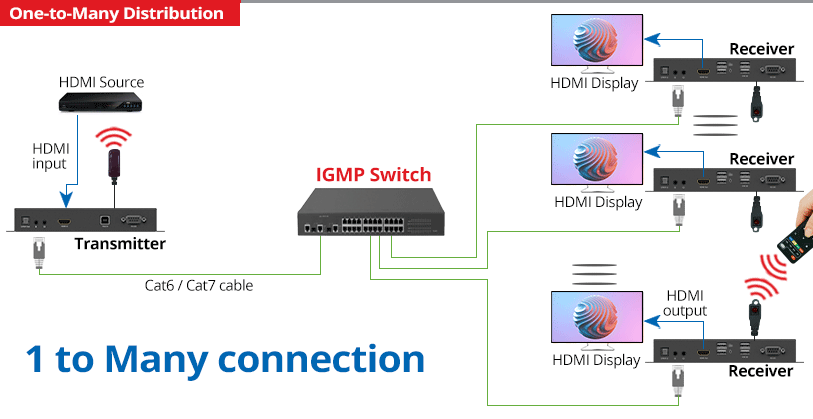

    Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional encoder (TX) unit (CE-H27F11-S1) and decoder (RX) unit (part#- CE-H27G11-S1) are sold separately
    *Note: IGMP Gigabit Switch is recommended for best performance and reliability

    one

    many

    multi


    PoE Technology
    Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required

    poe


    Long Distance

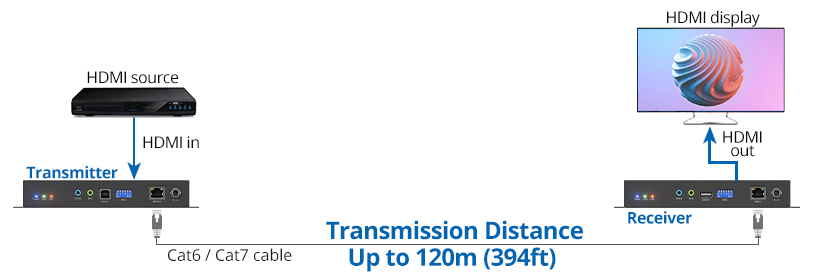

    This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch

    dis


    res4K UHD Resolution
    Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only


    IR Extension/RS-232 Control
    Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices


    High Performance
    Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

    ban


    Extract Audio
    Audio extraction via 3.5mm stereo audio or HDMI output ports. Digital S/PDIF audio feature is use for software control audio (TR) or (RR) function, S/PDIF format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1

    ext


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one HDMI output port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, two Gigabit Ethernet network ports, two 3.5mm IR emitter ports, two 3.5mm IR receiver ports, three USB-A 2.0 ports to connect USB peripherals, two USB-A 1.1 ports for keyboard & mouse, two 3.5mm microphone jacks, two 3.5mm audio jacks, one S/PDIF input port, one S/PDIF output port, two DIP switches for video channel selection, two RS-232 ports for control, two DC power jacks (5V/2A)

    ports

    Connection

    conn


    usbUSB-A Data Transfer
    Delivers three USB-A 2.0 ports with data transfer rate up to 480Mbps, one for WebCam only, others for Flash drive, Printer, Enclosure, and other USB peripheral devices, and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent keyboard and mouse


    Maximum Compatibility
    Supports Plug-n-play and no driver installation required


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment


    TAA Compliant
    Completely manufactured in a TAA designated country


    Metal Housing Design
    Protects the inside PCB and enhance the heat dissipation for better performance. Wall mounted design is simple and sturdy installation


Applications

    • Airport
    • Exhibition
    • Lecture hall
    • Control center
    • Network operation center
    • Security center
    • Retail store
    • Restaurant
    • Digital signage
    • Shopping center
    • Surveillance control center

    Need to Know Before Buying

    1.Please confirm your computer or device with HDMI port

    computer

    2. Check the extended display/monitor with HDMI port and supports 4K@60Hz resolution

    monitor

    3. Please ensure using UTP Cat6/7 cable for the best video quality and accurate transmission distance

    4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

    5. The encoder (TX) (CE-H27F11-S1) and decoder (RX) (CE-H27G11-S1) is only for Kit (CE-H28A11-S1)

    6. You also have second choice to use HDMI smart controller box to control video features, such as video wall, KVM, ARC and audio embedded. The option controller box is part# CE-H25411-S2


    Specifications

    Video
    HDMI 1x input, 1x output
    Resolution 4K (4096x2160)/4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz, HDCP 2.2, 4:4:4, HDR 10
    End-to-End video latency 1 frame latency under most of cases
    2160p up to 60fps ==> 16ms
    2160p up to 30fps ==> 33ms
    1080p up to 60fps ==> 16ms
    1080i up to 30fps ==> 33ms
    720p up to 60fps ==> 16ms
    Image rotation 90°, 180°, and 270° clockwise in video wall mode
    VideoWall arrangement 1x1, 1x2, 1x3, 1x4, 1x5, 2x1, 3x1, 4x1, 5x1, 2x2, 2x3, 2x4, 2x5, 3x3, 3x4, 3x5, 4x4, 4x5, 5x5
    Bandwidth Up to 18Gbps
    Transport Protocol
    TCP/IP protocol Audio/video digital connection transmission protocol
    Network bandwidth 850Mbps (max.) at 4K@60Hz resolution
    Audio
    7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
    5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0
    IR Pass-through
    Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display
    Full frequency: 20KHz to 60KHz
    Power
    Power adapter AC 100-240V/50-60Hz, Output: DC 5V/2A, UL listed: E135856/Level: VI
    PoE (Power over Ethernet) 48V
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Encoder unit (TX) Dimensions: 6.81” (L) x 1.09” (H) x 5.19" (W)
    Weight: 1.41 lbs
    Color: Black
    Housing material: Metal (Housing with wall mount design)
    Decoder unit (RX) Dimensions: 6.81” (L) x 1.09” (H) x 5.19" (W)
    Weight: 1.44 lbs
    Color: Black
    Housing material: Metal (Housing with wall mount design)
    Unit package Dimensions: 14.61” (L) x 3.03” (H) x 6.81" (W)
    Weight: 3.94 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH, TAA compliant
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    interface

    Encoder unit (TX):

    • 1x 19-pin, HDMI, Female (input)
    • 1x 4-pin, USB 2.0 Type-B, for WebCam (for Host)
    • 1x 4-pin, USB 2.0 Type-B, for KM or USB devices (for Host)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 8-pin, Gigabit Ethernet, RJ45 (output)
    • 1x 6-pin, DIP switch for video channel selection
    • 1x S/PDIF (Toslink) digital audio (output)
    • 1x 3.5mm phone jack for microphone (input)
    • 1x 3.5mm phone jack for audio (output)
    • 1x 9-pin, RS-232, serial port for control (input)
    • 1x DC power jack, 5V/2A

    Decoder unit (RX):

    • 1x 19-pin, HDMI, Female (output)
    • 1x 4-pin, USB 2.0 Type-A, for webcam connection only
    • 2x 4-pin, USB 2.0 Type-A, for USB devices
    • 2x 4-pin, USB 1.1 Type-A, for Keyboard & mouse
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 8-pin, Gigabit Ethernet, RJ45 (input)
    • 1x 6-pin, DIP switch for video channel selection
    • 1x S/PDIF (Toslink) digital audio (input)
    • 1x 3.5mm phone jack for microphone (input)
    • 1x 3.5mm phone jack for audio (output)
    • 1x 9-pin, RS-232, serial port for control (input)
    • 1x DC power jack, 5V/2A

    Package contents

    • 1x 4K 60Hz HDMI over IP Matrix Kit
    • 1x 3.5mm IR emitter extension cable
    • 1x 3.5mm IR receiver extension cable
    • 2x DC power adapter, 5V/2A
    • 1x Mounting kit
    • 1x User reference guide

Manuals

04-1391b.pdf Download manual
control_software_instruction.pdf Download manual

Drivers


Hardware Version: 1

Windows 10 (64-bit) / 11
Download
Control software V2.6

Frequently Asked Questions (Q&A)

Q: How much ethernet network bandwidth is expected running 4K60Hz?

Network Bandwidth when running 4K@60Hz: 850Mbps max.

Q: What is the video latency from source to screen running 4K60Hz?

End-to-End Video Latency: 1 frame latency under most of cases 2160p up to 60fps ==> 16ms 2160p up to 30fps ==> 33ms 1080p up to 60fps ==> 16ms 1080i up to 30fps ==> 33ms 720p up to 60fps ==> 16ms

Q: Why I saw the "HDCP Failed" on the screen?

This is because the HDCP versions on your video source and display don't match. If your video source is using HDCP 2.2 and your display only supports HDCP 1.x, then you will see the "HDCP Failed" message on your screen.   To fix this, you need...

Q: What kind of control does the Full Duplex RS-232 provide?

The Full Duplex RS-232 control allows for Bi-directional communication at speeds up to 115,200 bps through a connector, facilitating efficient device control and monitoring

Q: How do I ensure optimal performance of the HDMI over IP Matrix Kit in my network?

Ensure that your network infrastructure, including switches and routers, support Gigabit Ethernet, IGMP, and jumbo frames. Additionally, adherence to recommended installation and configuration procedures as outlined in the manual will help achieve optimal...

Q: Does the HDMI OVER IP MATRIX KIT support bezel compensation for video wall configurations?

No, the HDMI OVER IP MATRIX KIT does not support bezel compensation. This feature is typically used to correct for the physical space between displays in a video wall, but it will not be available in this model

Q: Can I use the HDMI OVER IP MATRIX KIT with my existing data Switch used for daily work operations?

No, the HDMI OVER IP MATRIX KIT cannot be used on the same data Switch utilized for daily work operations We will recommend It requires an independent 1G Switch to function correctly, avoid to interference your daily work operations

Q: Why is Jumbo Packet size necessary for the HDMI OVER IP MATRIX KIT system?

Jumbo Packet size allows for the transmission of larger packets of data, which is essential for handling the high-resolution video/audio data efficiently. This feature reduces the overhead of data transmission, thereby enabling better performance and...

Q: How can I ensure my Switch supports Jumbo Packet size and IGMP?

To ensure compatibility, it's advisable to refer to your Switch's technical specifications or contact the manufacturer. Additionally, you might need to configure your Switch to enable Jumbo Packet size and IGMP features, following the router's user manual...

Q: Is there any difference in quality between the original video and the video transmitted by the HDMI OVER IP MATRIX KIT?

The HDMI OVER IP MATRIX KIT utilizes compression technology to enable the efficient transmission of high-definition video over the network. While this technology allows for the extension of UHD video over long distances with lower bandwidth requirements...

Q: Is the slight distortion a common characteristic in similar video broadcasting systems?

Yes, slight distortion due to compression is a common characteristic in many video broadcasting systems, especially those designed to transmit high-definition video over IP networks. The HDMI OVER IP MATRIX KIT, with its advanced compression algorithms...

Q: Can the HDMI OVER IP MATRIX KIT be powered by an external power supply unit (PSU) if PoE is not available?

Yes, the HDMI OVER IP MATRIX KIT can also be powered using an external power supply unit (PSU) if PoE is not available or preferred. This flexibility ensures that the device can be powered in different setups according to the availability of PoE

Q: Why the Over IP extender video can not cross the Router?

The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through

Please note that you must be logged in to submit questions.
