4K120Hz HDMI Extender with IR - up to 132ft(40M)

Features
Applications
Need to Know Before Buying

Overview

overview

Features

Easily extends HDMI signals to 132ft (40m) over Cat6/7 cabling and IR Bi-directional remote-control HDMI device. Supports Ultra HD 4K@120Hz resolution for a smooth and immersive viewing experience

feature

4K 120Hz Resolution
Supports Ultra HD video resolution up to 4K (3840x2160) @120Hz, HDR10, HDCP 2.3, YUV 4:4:4, 36-bit color depth for crystal-clear image quality

resolution

DSC Function
Display Stream Compression (DSC) is enabling increased display resolutions and frame rates over existing physical interfaces and make devices smaller and lighter. Compliant with DSC 1.2a

EDID Slide Switch
Provides STD and TV modes for optimal image quality and excellent compatibility with a wide range of devices

edid_2

STD Mode	TV Mode
Video: up to 1080p@120Hz / 4K@120Hz Audio: 2-ch	Video: learning TV/Monitor EDID information Audio: up to LPCM 7.1-ch, DTS, DTS HD Master, Dolby Digital, Dolby TrueHD

Extend Distance
This 4K 120Hz HDMI extender with IR supports reliability transmission of HDMI signals up to 132ft (40m) over RJ45 network to a remote HDMI display
(Recommend the Cat6 cable 23 awg < 20m & 26 awg > 20m)

distance

IR Extension
With built in Bi-directional IR extension over Cat6/7 cable allows you to control the HDMI source device at a remote location. (IR blaster/receiver cables are included.)

Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, two 3.5mm IR emitter ports, two 3.5mm IR receiver ports, two reset buttons, one EDID slide switch to select standard mode or TV mode, and two DC power jacks (12V/1A)

ports

Connection

connection

Maximum Compatibility
- Plug-n-Play operation with no software or driver installation required
- Integrated mounting bracket for easy placement
- Reset button for re-detection of all displays if any displays are not detected or have a splash screen, flicker, noise, or color distortion

Metal Housing Design
Durable metal housing protects internal PCBA from damage, enhances heat dissipation, and minimized EMI/RFI noise interference for optimal performance

Applications

SIIG’s 4K 120Hz HDMI Extender with IR Kit offers a higher resolution and refresh rate, creating an immersive gaming experience that makes you feel like you are in the game. With a more realistic and responsive image, you can:

Enjoy smoother gameplay: The image on your screen is updated more frequently, resulting in smoother gameplay, especially in fast-paced games like shooters and racing games
Reduced input lag: A higher refresh rate can help reduce input lag, giving you a competitive advantage in multiplayer game
Improved image quality: 4K resolution results in sharper and more detailed images, making games look more immersive and realistic

Need to Know Before Buying

computer

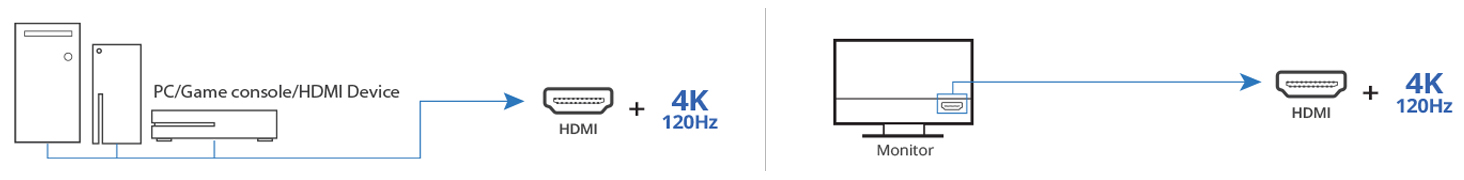

1. Please confirm your computer or device has an HDMI port and supports 4K@120Hz resolution. If you are not sure, please check the computer or device’s manual

2. Make sure your extended display/monitor has an HDMI port and supports 4K@120Hz resolution

3. Please use a UTP Cat6/7 cable for the best video quality and accurate transmission distance

4. Check the HDMI cable is no longer than 16ft (5m)

5. If you monitor is not displaying or has a noisy signal, please press the reset button to relearn the EDID

Comparison Table


SKU	CE-H27L11-S1	CE-H27K11-S1	CE-H27D11-S1	CE-H26L11-S1	CE-H26M11-S1
HDMI In x Out	1x1	1x1	1x1	1x1	1x10
Transmission Range	132ft (40m)	164ft (50M)	230ft (70m)	230ft (70m)	230ft (70m)
Max. Resolution/HDR	4K@120Hz/HDR	4K@60Hz/HDR	4K@60Hz/HDR	4K@60Hz/HDR	4K@60Hz/HDR
HDCP	2.3	2.2	2.2	2.2	2.2
HDMI Loop out	✗	✓	✓	✓	✓
Network Cable	Cat6/7	Cat6/7	Cat6/7	Cat6/7	Cat6/7
IR Transmission	Bi-directional	One-way	One-way	Bi-directional	Bi-directional
EDID Management	EDID slide switch	EDID pass-through	EDID pass-through	EDID pass-through	EDID pass-through
3.5mm Stereo Audio	✗	✗	✓	✗	✗
S/PDIF or Toslink	✗	✗	✗	✓	✓
Reset Button	✓	✓	✓	✓	✓
Additional Features	DSC 1.2a	✗	Auto downscaling Audio extraction	Auto downscaling ARC, Audio Slide Switch	Auto downscaling ARC, Audio Slide Switch

Specifications

Interface
Package Contents

Specifications

Video
HDMI	1x input, 1x output
Resolution	4096 x 2160@60Hz / 50Hz / 30Hz / 25Hz / 24Hz 3840 x 2160@120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz 1920 x 1080@120Hz / 60Hz / 50Hz / 30Hz / 25Hz / 24Hz 1280 x 720p@60Hz / 50Hz 1024 x 576p@50Hz 640 x 480p@60Hz
HDCP	2.3/2.2/1.4
Color depp	36-bit (12-bit per channel)
Transfer rate	up to 32Gbps (8Gbps per data channel)
Transmission distance	up to 132ft (40m) via Cat6/7 cable (Recommend: 23 awg < 20m / 26 awg > 20m)
TMDS character rate	up to 800MHz
Audio
HDMI	Dolby 5.1/7.1 and Atmos (need to switch to TV EDID mode), DTS 5.1/7.1, and PCM 2/5.1/7.1
IR
Built Bi-directional IR remote control, allows you to control the HDMI source device at the remote
Full frequency	20KHz to 60KHz
EDID Switch
Select STD mode or pass through to TV EDID mode
Power
Power Adapter	Input: AC 100-240V/50-60Hz, Output: DC 12V/1A
UL listed	E470034/Level: VI
Product Info
Transmitter unit (TX)	Dimensions: 3.27” (L) x 3.23” (H) x 0.57" (W) Weight: 0.27lbs Color: Black Housing material: Metal
Receiver unit (RX)	Dimensions: 3.27” (L) x 3.23” (H) x 0.57" (W) Weight: 0.27lbs Color: Black Housing material: Metal
Unit Package
Dimensions	8.74” (L) x1.97” (H) x 5.67" (W)
Weight	1.25lbs
Environmental conditions
Operating temperature	32 to 122 degrees F
Storage temperature	14 to 140 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: China
