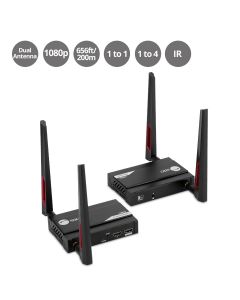

1 to 4 Full HD Wireless HDMI Extender with Loopout & IR Kit

  • Dual Antenna
  • 5GHz Wireless
  • HDMI Extender
  • 656ft/200m
  • 10.2Gbps
  • 1080p@60Hz
  • HDMI Loop-out
  • One to One
  • One to Four
  • IR Extension
  • Reset Button
Out of stock
SKU
CE-H27611-S1
$239.00

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    5GHz wireless technology reliably extends/splitters HDMI signals up to 656ft away with IR remote control, one to one & one to four Connection, 1080p resolution, 5G channel auto-scan ensures the strongest interference free signal for crystal clear video quality

    overview


    Features

    Allows wireless transmit and extend/split of HDMI audio and video signals and send the Full HD resolution to the receiver to make your home entertainment or games reliable and stable. Add IR extension for remote control of your video source

    fea


    Wireless Long-Range Extension
    Automatically paired Wireless 5G technology reliably extends HDMI signal up to 656ft (200m) through line-of- sight to a remote HDMI display without complicated cable or wire installation

    dis
    *Note: The transmission distance will vary depending on building layout, electronic, interference, walls and partitions, other environmental conditions, and may be much less than the maximum


    antDual Antenna Design
    Comes with dual 5dBi detachable antenna with 2T2R data rate MIMO (Multiple-Input Multiple-Output) technology prevents signal interference and provides optimal reception quality and stability

    *Note: 2T2R antenna stands for 2 Transmitters and 2 receivers, supports fast upload and download speed

    Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage / POP for small business, office, and showroom


    Flexible Scalable
    Extends/splits HDMI signals up to four displays and local display simultaneously. The additional receiver unit (par# CE-H27711-S1) sold separately

    sca


    resFull HD Resolution
    Supports vivid, high-definition video up to 1080p @60Hz Full HD resolution, low-bandwidth H.264 compression video and streaming flawless LPCM 2.0-ch (up to 48KHz) R/L stereo audio


    High Performance
    Offers a true 10.2Gbps video bandwidth and supports stereo audio. Compatible with HDCP 1.3, works with HDMI equipped devices, such as DVD, Blu-ray players, set-top boxes, AV receivers, cable/satellite boxes and computer system

    ban


    IR Extension
    Built-in one way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency, allows you control devices between 30 to 150 meters away through wall, door, celling, floor, etc., but the IR transmitting distance maybe affected by your home construction and your wireless equipment

    ir


    Multiple Connectivity Ports

    Transmitter unit (TX):
    Comes with two 5dBi detachable antennas, one HDMI video input port, one HDMI video loop-out port, one 3.5mm IR output port, one reset button, and one DC 12V/1A power jack

    Receiver unit (RX):
    Comes with two 5dBi detachable antennas, one HDMI video output, one 3.5mm IR input port, one reset button, and one DC 12V/1A power jack

    ports


    h264H.264 Compression
    HDMI signal is encoded into H.264 to be sent through the network router or switch then decoded before arriving at the specified display. Ensures enough bandwidth is available to pass multiple HDMI signals over one network


    Maximum Compatibility
    Supports Plug-n-play, no hardware or driver installation and Wi-Fi connection required


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life


Applications

    • Digital signage
    • Show room
    • Media center
    • Educational facilities
    • Broadcast room
    • AV conference room
    • Control center
    • Security center
    • Lecture hall
    • Concert
    • Church
    • Exhibition
    • Shopping center
    • Restaurant
    • Supermarket
    • Home entertainment

    Need to Know Before Buying

    1. When many networks are located closely together that will affect the wireless network. If you have multiple wireless networks in your home, please set the distance to 2 meters to avoid signal interference

    2. Different building materials will block the wireless signal, the most weakened by having to go through thick walls, especially reinforced concrete

    3. When have walls or objects blocking the line of sight between Transmitter and receiver, the signal will be significantly reduced

    4. Please confirm your computer with a HDMI port

    computer

    5. Check the extended display(s)/monitor(s) with HDMI port, if you are not sure, please check with the manual of the monitor

    monitor

    6. Before using, please connect the power adapters to provide enough power

    7. HDMI cable is required to connect to the HDMI device


    Specifications

    Wireless
    Bandwidth 5GHz
    Transport protocol H.264 compression
    Transmission distance 1 to 1: 656ft (200m) line-of-sight
    1 to 2: 394ft (120m) line-of-sight
    1 to 3: 197ft (60m) line-of sight
    1 to 4: 98ft (30m) line-of-sight
    *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
    IR Remote Control
    Frequency 20-60Hz
    Video
    HDMI 1x input, 1x output, 1x loop-out
    Bandwidth 10.2Gbps
    Resolution 1920x1200 @60Hz, 1080p/1080i/720p/576p/576i/480p/480i @60Hz
    Color space RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
    Color depth 8 / 10 / 12-bit
    HDMI cable distance up to 5m
    Audio
    R/L LPCM 2.0 channel 32KHz/ 44.1KHz/ 48KHz stereo audio
    Power
    Power adapter Input: 100-240V/50-60Hz, Output: DC 12V/1A (TX & RX)
    UL listed E336751/Level: VI
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 23 to 158 degrees F
    Relative humidity 5% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 4.92” (W) x 1.10” (H) x 4.02" (D)
    Weight: 0.33lbs
    Color: black
    Housing material: Metal
    Receiver unit (RX) Dimensions: 4.92” (W) x 1.10” (H) x 4.02" (D)
    Weight: 0.33lbs
    Color: black
    Housing material: Metal
    Unit package
    Dimensions 10.12” (W) x 3.66” (H) x6.02" (D)
    Weight 1.63 lbs
    Certifications/Standards
    FCC, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    Interface

    Transmitter unit (TX):

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, loop-out, Female
    • 1x 3.5mm, Infrared jack (IR output)
    • 2x Wi-Fi antenna jacks, 5G bandwidth
    • 1x reset button
    • 1x DC 12V/1A power jack

    Receiver unit (RX):

    • 1x 19-pin, HDMI, Female (output)
    • 1x 3.5mm, Infrared jack (IR input)
    • 2x Wi-Fi antenna jacks, 5G bandwidth
    • 1x reset button
    • 1x DC 12V/1A power jack


    Package contents

    • 1x Full HD Wireless HDMI Extender with Loopout & IR Kit
    • 1x IR emitter extension cable
    • 1x IR receiver extension cable
    • 2x DC power adapter, 12V/1A
    • 1x User Reference Guide

Manuals

04-1368b.pdf Download manual
