2x1 USB HDMI KVM Switch

Overview

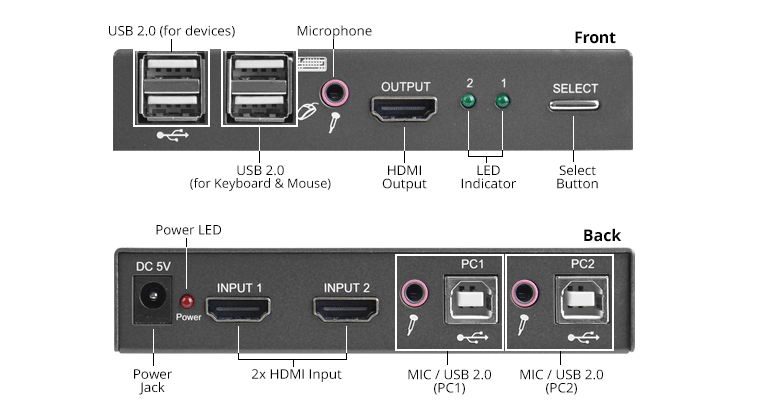

Features Applications Need to Know Before Buying Overview Share a UHD TV or display, USB keyboard & mouse, and microphone between 2 USB/HDMI computers and devices. Replaced by CE-KV0E11-S1 Note: 1 of the 2 connected devices has to be a computer with a USB connection to enable the switching mechanism Features Create a single display workstation with one set of keyboard and mouse to control two 4K HDMI computers or devices with USB 2.0 and microphone to make your work more efficient Effortlessly Switch* Easily switching between computer/device via the front panel select button or USB keyboard hotkeys make this 2x1 USB HDMI KVM Switch – 4Kx2K user-friendly to operate 4K Resolution Supports high definition 4K@30Hz video resolution to deliver stunning and clear images/videos High Performance Offers a true 10.2Gbps video bandwidth and supports 5.1ch surround sound or stereo audio. PCM, Dolby TrueHD, DTS-HD Master audio also supported Multiple Connectivity Port Comes with two USB 2.0 Type-B for computers/devices, two HDMI video input ports, one HDMI video output port, four USB 2.0 Type-A ports for connecting Keyboard/ Mouse and USB peripheral such as flash drives, printer…, three 3.5mm phone jack to connect microphone, one select button and LED indicators Connection USB Data Transfer Delivers four USB 2.0 Type-A 480Mbps data transfer rate, allows sharing of Keyboard & mouse and USB peripherals such as pen drives or printers. Compliant with USB 1.1 specifications Metal Housing Design Protects the inside PCBA, also effectively reduces electromagnetic interference while offering rapid heat dissipation for stable operation and long life Applications Educational facilities Control center Home workstation Test lab Media editor Hospital Audio/Video presentation room Need to Know Before Buying 1. Please conﬁrm that your 2 computers have HDMI ports, USB 2.0 ports, and Microphone ports 2. Check the extended display/monitor resolution that supports 4K @30Hz and has HDMI port (check on manual of monitor) 3. Replace by part# CE-KV0E11-S1

Specifications

Interface
System Requirements
Package Contents

Specifications

Hardware
Chipset	Sil9687
Software
OS Compatibility	Windows®, mac OS®
Video
HDMI	HDCP 1.4, 3D
Bandwidth	Up to 10.2Gbps
Resolution	4Kx2K@30Hz with 36-bit Deep Color and PC's WUXGA 1920 x 1200
USB Data Transfer Rate
USB 2.0	4x Type-A, up to 480Mbps, Compliant with USB 1.1 specifications
Audio
5.1 channel surround sound from HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jack
Supports Dolby True HD and DTS HD Master Audio formats
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 5V/2A
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 158 degrees F
Relative humidity:	10% to 90% RH (non-condensing)
Product Info
Dimensions	4.75” (L) x 2.85” (H) x 0.95” (W)
Weight	0.62 lbs
Color	Dark Gray
Housing material	Metal
Unit Package
Dimensions	11.02” (L) x 7.09” (H) x 2.48” (W)
Weight	2.05 lbs
Certifications/Standards
FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
