4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports

  • DVI-D
  • 6G
  • 4x1
  • Dual Link
  • KVM
  • USB 3.0
  • USB Keyboard & Mouse
  • 3.5mm phone & Mic jacks
  • Switch Button
  • Hotkeys
  • Auto EDID
In stock
Quantity in stock: 63

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    Allows you to control four computers using one keyboard and mouse, DVI-D Dual Link, USB 3.0 ports, microphone input, and stereo audio output. TAA compliant



    Easily console 4 computers with DVI-D Dual-Link video system and USB 3.0 audio devices via one set of keyboard & mouse function


    Effortlessly Switch

    Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DVI-D Dual-Link Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate


    High Performance

    DVI (Digital Visual Interface) is a video display interface developed by the Digital Display Working Group (DDWG) and designed to transmit uncompressed digital video

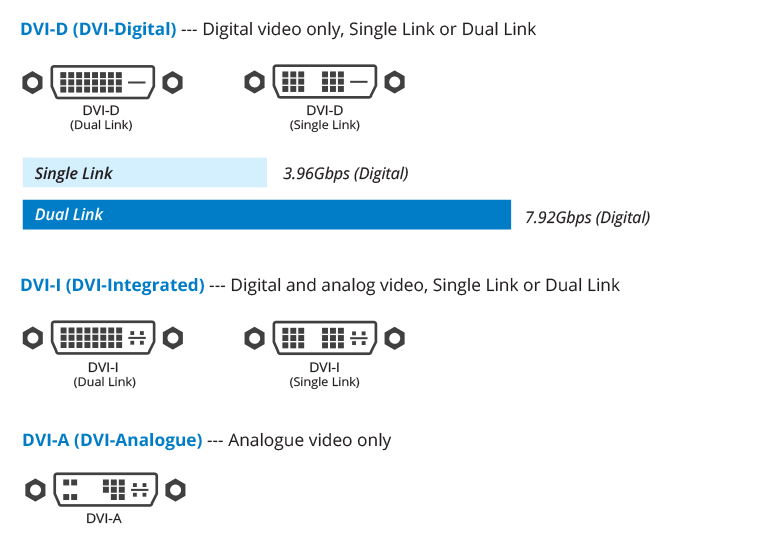

    There are three different types of DVI inputs:


    This 2-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 Multi-media offers a 6Gbps per lane video bandwidth and supports PCM 2.0ch stereo audio

    DVI-I & DVI-D


    High Resolution

    Delivers picture quality with resolution up to 3840x2160 @30Hz or 2560x1600 @60Hz

    Single Link DVI (SL-DVI)

    The DVI specification allows a maximum pixel of 165MHz and the highest 1920x1200 @60Hz resolution

    Dual Link DVI (DL-DVI)

    Supports both single link and dual link data rates. Allows a maximum pixel up to 330Hz and the highest 2560x1600 @60Hz resolution

    * Note:
    1. Dual Link physical connectors for all digital DVI cable
    2. Single Link DVI cables can be plugged into Dual Link DVI connectors, but will pass Single Link date rates
    3. Dual Link DVI cables require Dual Link DVI connectors and can not be plugged into single Link DVI connectors

    Multiple Connectivity Port

    Comes with two DVI-D Dual-Link video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, six 3.5mm audio jack ports to connect stereo speakers / earphone or microphone, one Micro USB port for Firmware update, and one DIP Switch (control FW)





    Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps

    Maximum Compatibility

    Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play, and no driver installation required

    TAA compliant

    Completely manufactured in a TAA designated country

    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

    ESD protection

    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device.



    •  Educational facilities
    •  Control center
    •  Hospital
    •  Workstation
    •  Retail stores
    •  Reception desk
    •  Media editing
    •  Retail stores
    •  Audio/Video presentation room

    Need to Know Before Buying

    1. Please confirm your 2 computers with DVI-D Dual-Link port, USB 3.0 Type-B port, audio port and Mic port


    2. Requires DVI-D Dual-Link connection for the display/monitor resolution that supports 4K@30Hz or 2K@60Hz

    3. Four USB 3.0 cables are required to connect to the USB peripheral devices. * Not support Dynamic Device Mapping (DDM) fast switching


    Chipset AX68004
    OS Compatibility Windows®, mac OS®

    Dual-Link: 4Kx2K@30Hz or 2K@60Hz
    Single-Link: 1920x1200@60Hz

    Bandwidth Up to 6Gbps
    USB 3.0 4x Type-A, Gen 1 up to 5Gbps
    USB 1.1 2x Type-A, up to 12Mbps
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 12V/2A
    UL Listed E163743 /Level: VI
    PCM 2.0 channel stereo digital audio
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)
    Product Info
    Dimensions 11.10” (L) x 2.36” (H) x 4.42" (W)
    Weight 2.49 lbs
    Color Black
    Housing material Metal
    Unit Package:    Dimensions: 13.03" (W) x 8.03" (H) x 6.37" (D)
    Weight: 7.13 lbs
    FCC, CE, RoHS, TAA compliant, Cable UL Listed: E505789
    Warranty: 3 years limited
    Country of origin: Taiwan

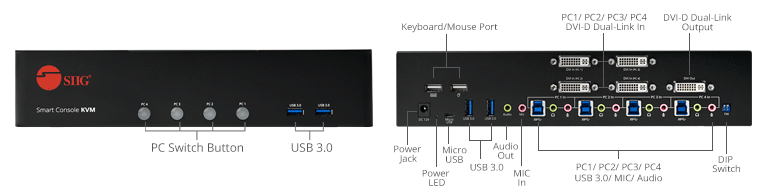

    • 4x 29-pin DVI-D Dual-Link, Female (PC input)
    • 4x 9-pin USB 3.0 Type-B, Female
    • 8x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
    • 1x 29-pin DVI-D Dual-Link, Female, Output
    • 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
    • 4x 9-pin USB 3.0 Type-A, Female
    • 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
    • 1x 5-pin Micro USB, FW update, Female
    • 1x 2-pin DIP switch (control FW)
    • 1x DC power jack (5.5x2.5x10mm)

    System Requirements

    • PC or Laptop with available DVI-D Dual Link port, USB Type-B port (USB 3.0 recommended), audio and Mic ports
    • Compliant with Windows or Mac system

    Package contents

    • 1x 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 Multi-Media
    • 4x DVI-D Dual-Link cable (1.8m)
    • 4x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
    • 1x Power Adapter (12V/2A)
    • 1x User Reference Guide


Frequently Asked Questions (Q&A)

Q: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?

Applies to the Following Products: - 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1) - 2-Port DVI Dual...
