2-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports

• Features
• Applications
• Need to Know Before Buying

---

Overview

Allows you to control two computers using one keyboard and mouse, 4K resolution HDMI video signals, USB 3.0 ports, microphone input, and stereo audio output. TAA compliant

---

Features

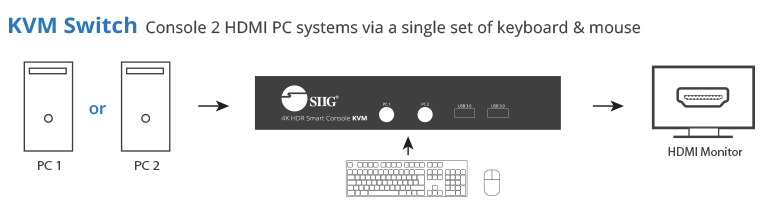

The Best KVM Solution for Working at Home - create reate a high-performance workstation via one set of keyboard and mouse to control 2 HDMI computers with USB 3.0 and audio devices





Effortlessly Switch

Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this HDMI 4K HDR Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate



---



High Resolution

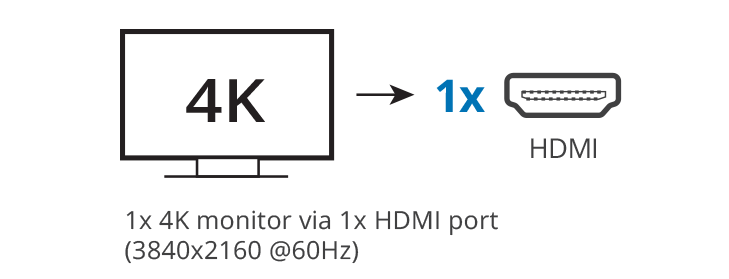

Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, HDR 3840x2160 @60Hz YUV 4:2:0 10bit, 3D, Deep color
Note: 3440x1440 resolution is not supported

HDR (High Dynamic Range)



4K and HD refer to a specific screen resolution, but HDR refers to the contrast or color range between the lightest and darkest tones in an image. HDR delivers a higher contrast than Standard Dynamic Range (SDR) and is more visually impactful than 4K



---

High Performance

Offers a true 18Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported



---

Multiple Connectivity Port

Comes with two HDMI video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, six 3.5mm audio jack ports to connect stereo speaker/earphone or microphone, one Micro USB port for Firmware update, and one DIP Switch



Connection



---

High-Speed Data Transfer

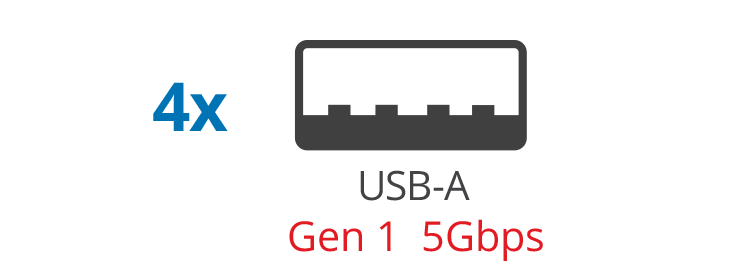

Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps

---

Maximum Compatibility

Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required

---

TAA Compliant

Completely manufactured in a TAA designated country

---

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

---

ESD Protection

An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

---

Applications

• Gaming
• Hospital
• Reception desk
• Workstation
• Control center
• Retail stores
• Media editor
• Educational facilities
• Audio/Video presentation room

---

Need to Know Before Buying

1.Please confirm your 2 computers with HDMI port, USB 3.0 Type-B port, audio port, and Mic port



2. Check the extended HDMI display/monitor resolution that supports 4K @60Hz, HDR compatible, and two HDMI ports (check on manual of monitor)



3. Four USB 3.0 cables are required to connect to the USB peripheral devices
* Not support Dynamic Device Mapping (DDM) fast switching

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	TI SN75DP130
Software
OS Compatibility	Windows®, macOS®
Video
HDMI	4Kx2K @60Hz, HDCP 2.2, 3D, Deep color
Bandwidth	Single-link 594MHz, Up to 18Gbps
Resolution	Up to 3840x2160@60Hz YUV 4:4:4 8-bit HDR 3840x2160@60Hz YUV 4:2:0 10-bit Note: 3440x1440 not supported
USB 3.0	4x Type-A, Gen 1 up to 5Gbps
USB 1.1	2x Type-A, up to 12Mbps
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 12V/2A
UL Listed	E163743 /Level: VI
Audio
7.1 channel surround sound
PCM 2.0 channel stereo digital audio
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity:	<85% RH (non-condensing)
Product Info
Dimensions	7.95” (L) x 1.46” (H) x 4.42” (W)
Weight	1.53 lbs
Color	Black
Housing material	Metal
Unit Package:	Dimensions: 13.03" (W) x 8.03" (H) x 6.37" (D) Weight: 4.11 lbs
Certifications/Standards
FCC, CE, RoHS, TAA compliant, Cable UL Listed: E301195
Warranty: 3 years limited
Country of origin: Taiwan

---

Interface



Layout:

• 2x 19-pin HDMI, Female (PC input)
• 2x 9-pin USB 3.0 Type-B, Female
• 4x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
• 1x 19-pin HDMI, Female, Output
• 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
• 4x 9-pin USB 3.0 Type-A, Female
• 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
• 1x 5-pin Micro USB, FW update, Female
• 1x DC power Jack (5.5x2.5x10mm)

---

System Requirements

• PC or Laptop with available HDMI, USB Type-A port (USB 3.0 recommended), audio and Mic ports
• Compliant with Windows or Mac system

---

Package contents

• 1x 2-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 Multi-Media
• 2x HDMI cable (1.8m)
• 2x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
• 1x Power Adapter (12V/2A)
• 1x User Reference Guide
