Features
Dual 4K HDMI displays with MST technology, multiple connections, and 60W PD by a single USB-C with DP 1.4 Alt mode input to increase your work efficiency
4K Video Resolution
Supports Ultra HD video resolution up to Dual 4K (3840x2160) @60Hz with DP 1.4 DSC or Dual 4K (3840x2160) @30Hz without DP 1.4 through two HDMI video output ports and 5.1-ch. surround sound
*Note: Requires 2 video sources or monitors including DSC (Display Stream Compression)
Monitor Solution
3 Display Modes
Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays
* Note: macOS only supports Mirror mode

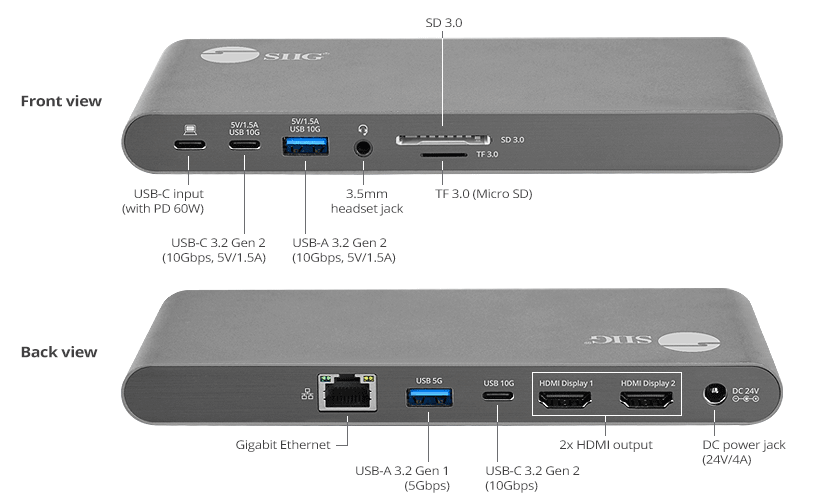

Multiple Connectivity Ports
Adds one USB-C port with DP 1.4 Alt mode and PD 60W (Host), two HDMI video output ports with MST technology, two USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging ports, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-A 3.2 Gen 1 5Gpbs, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, and one DC 24V/4A power jack

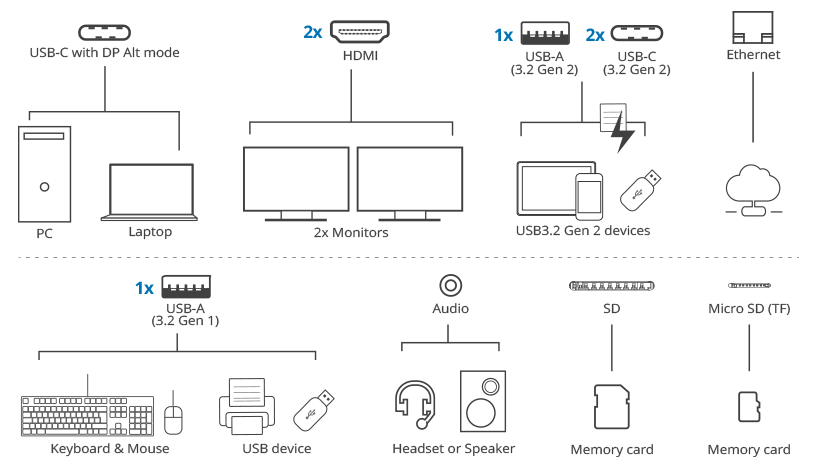

Connection

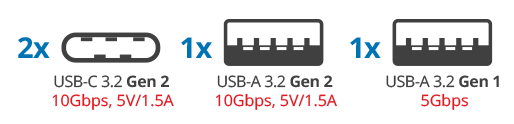

USB-C /USB-A 3.2 Data Transfer
Provides two USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, and one USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices
60W Power Delivery
Includes a high quality USB-C 3.2 Gen 1 to USB-C cable for connecting laptop/notebook, supports up to 60W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 96W power adapter ensures enough power for laptop charging and USB peripherals
3.5mm Headset Jack
Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection

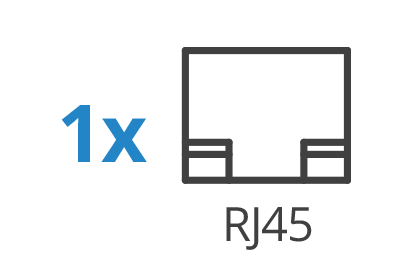

1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
Memory Card Slots
Compatible with SD 3.0 UHS-1 and Micro SD (TF) 3.0 UHS-1 memory card and data transfer rate up to 104MB
Aluminum Housing Design
Ingenious detachable design allows vertical or horizontal configuration and premium aluminum housing provides efficient heat dissipation design for reliable performance and increase efficiency
Maximum Compatibility
- Compliant with mac® M1 and M2 systems and Mirror mode only
- Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.15 to 10.13
* Note:
- macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- macOS® system for DP or HDMI video output
Need to Know Before Buying
1. Please confirm your computer is Thunderbolt 3 or USB-C that supports DP 1.4 Alt mode and ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
* Note: Not all USB-C ports support the full functionality of the USB-C standard
2. Check the extended displays/monitors resolution that support [email protected] and have a HDMI port. If you are not sure, please check with the manual of the monitor
* Note: If your extended display/monitors display [email protected] or 1080p, that means they don’t have DP 1.4 DSC
3. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver
4. Before charging your laptop, notebook, tablet, and smartphone, please check your cable with power delivery 3.0, then it can handle up to 60W and will go to 96W using a full-featured USB Type-C
