Universal Hybrid Dual 4K Video Docking Station- Windows & Mac M1/M2/M3 Pro/Max Compatible

• Features
• Applications
• Need to Know Before Buying

---

Overview

Advanced hybrid docking station adds two 4K displays, 6 USB-A 5Gbps ports, a Gigabit Ethernet, and stereo audio/microphone connectivity to Windows and Mac computers. Compliant with Mac^® system for M1, M2, M3 Pro, & Max

---

Features

Dual displays with DisplayLink USB graphics technology and multiple connections by a single USB-B input (included USB-A to USB-B and USB-C to USB-B cables to match your computer) to create a perfect workstation and increase your productivity





*Note:
This Universal Hybrid Dual 4K Video Docking Station is recommended with web and productivity software, not for gaming, and cannot be mixed with non-DisplayLink USB adapters

---



---

5K/4K Video Resolution

Allows you to connect either a single 5K (5120x2880) @60Hz display through two DisplayPort ports or two 4K (3840x2160) @60Hz Ultra HD displays through two DisplayPort ports or two HDMI ports or a DisplayPort + a HDMI ports to display the cry stal-clear video quality

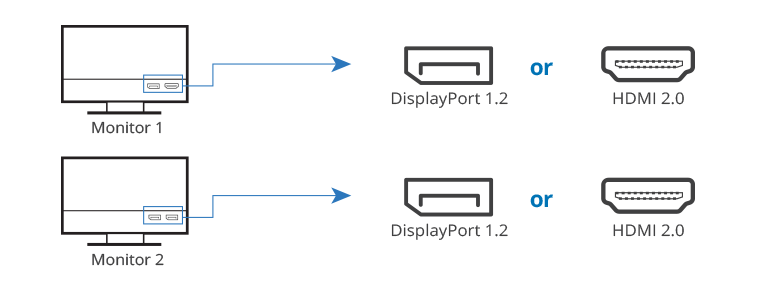

Monitor Solutions:


---

Three Display Modes

Provides Mirror, Extended, and Primary video modes, streaming video to HDTV monitors and projectors for the perfect visual display



---

High Performamce

Expand multiple connectivity ports to your USB-A/USB-C computer to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification

DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.



---

Multiple Connectivity Ports

Adds one USB Type-B port (includes USB-A to USB-B cable and USB-C to USB-B cable for easy conversion), two HDMI video outport ports, two DisplayPort video output ports, six USB-A 5Gbps ports, one Gigabit Ethernet, and one 3.5mm audio jack to connect headphone / Stereo speaker or microphone input

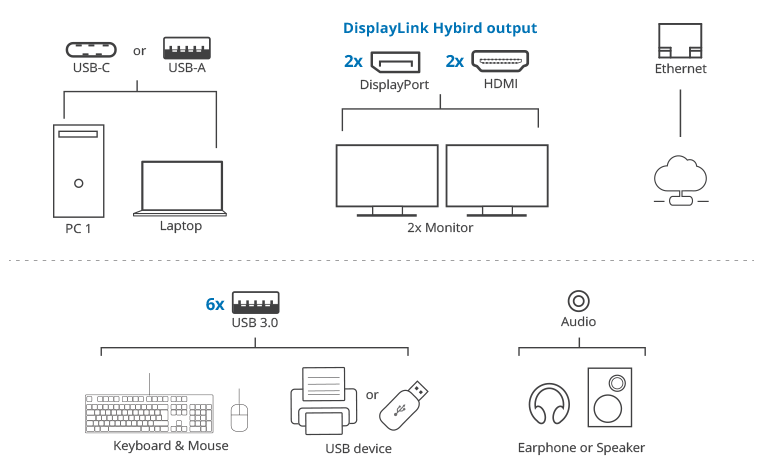

Connection



---



SuperSpeed USB Data Transfer

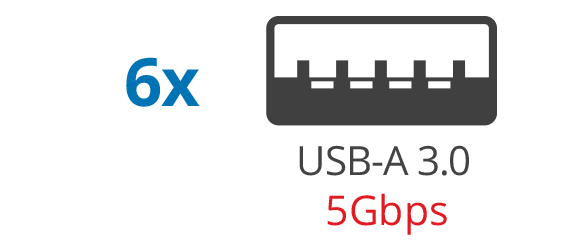

Delivers six USB Type-A ports and supports data transfer rate up to 5Gbps

---

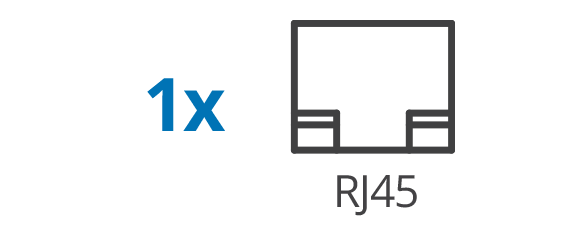

1G Ethernet Data Transmission

Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

---

Maximum Compatibility
- Compatible with Windows 11 / 10 / 8.1 / 8 / 7 and mac OS 11 / 10.15 to 10.10

*Note:
1. not compatible with 10.13.4 to 10.13.6 and recommended to upgrade to 10.14 or later or stay with 10.13.3 or earlier
2. Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver (macOS 10.15.6 or later) on SIIG’s website
3. Does not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc.)

---

ABS Housing Design

Vertical design and smooth ABS housing with heat dissipation design for reliable performance, increase efficiency, and save space

---

Applications

• Media editing
• Workstation
• Web design studio
• Home
• Educational facilities
• Financial
• Office
• Reception room
• Medical office

---

Need to Know Before Buying

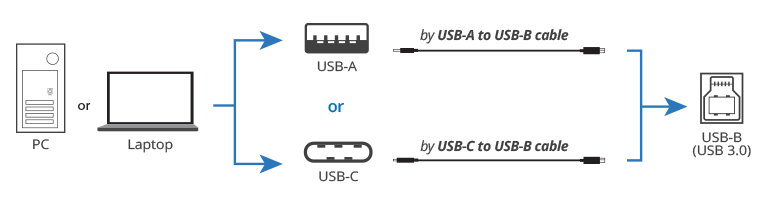

1. Please make sure your computer has a USB-C or USB-A connector and use the included USB-A to USB-B cable or USB-C to USB-B cable to connecting this Universal Hybrid Dual 4K Video Docking Station



2. Check the extended displays/monitors resolution that support 4K@60Hz and have HDMI 2.0 port or DisplayPort port 1.2 on each display. If you are not sure, please check with the manual of the monitor



3. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop

4. Before connecting the USB-A 5Gbps port, make sure your peripheral device has a USB-A 5Gbps port

5. Compliant with Mac^® system for M1, M2, M3 Pro, & Max

• Interface
• System Requirements
• Package Contents

---

Specifications

Specifications

Hardware
Chipset	DisplayLink DL-6950-N
Software
OS Compatibility	Windows® 11, mac OS® 12 or newer
Video
DisplayPort 1.2	x2, up to 5K / 4K @60Hz, cable up to 3M
HDMI2.0	x2, up to 4K @60Hz, cable up to 5M
Resolution	5K / 4K /1080p / 1080i / 720p / 480p Single video: up to 5K @60Hz (Dual DP) Dual video: up to 4K @60Hz (Dual DP, Dual HDMI or DP and HDMI)
USB-A	6x USB-A, data transfer rate up to 5Gbps and compatible with USB 2.0 specification
Audio
5.1 channel surround sound from HDMI output
2 channel stereo audio from 3.5mm audio jack
Display Mode
Mirror, Extended, Primary video modes
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 20V/2A
UL Listed	E221556 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Enterprise features	Wake on LAN and PXE boot *Note: Mac address pass-through not supported
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	10% to 90% RH (non-condensing)
Product Info
Dimensions	5.31” (L) x 7.36” (H) x 2.87" (W)
Weight	0.77 lbs
Color	Black
Housing material	ABS
Unit package	Dimensions: 8.07" (W) x 5.51" (H) x 4.33" (D) Weight: 1.75 lbs
Certifications/Standards
FCC, CE, RoHS
UPC Code: 662774-044057
Warranty: 2 years limited
Country of origin: Thailand

---

Interface



Input:

• 1x 9-pin, USB Type-B , Female (PC Input)
• 1x DC power Jack

Output:

• 2x 19-pin, HDMI 2.0, Female
• 2x 20-pin, DisplayPort 1.2, Female
• 6x 9-pin, USB-A, 5Gbps, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 1x 3.5mm Audio Jack (Headset/Mic)

---

System Requirements

• PC or Laptop with an available USB-A or USB-C port
• Compliant with Mac^® system for M1, M2, M3 Pro, & Max
• Windows^® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS^® 12 to 10.10 (not compatible with 10.13.4 to 10.13.6)

---

Package contents

• 1x Universal Hybrid Dual 4K Video Docking Station
• 1x USB A to B cable
• 1x USB C to B cable
• 1x Driver CD
• 1x Power Adapter (20V/2A)
• 1x User Reference Guide
