USB 3.0 4K Dual Video Docking Station - USB-C, Dual [email protected] - Single [email protected]

• Features
• Applications
• Need to Know Before Buying

---

Overview

Advanced external docking station adds dual DisplayPort/HDMI, USB 3.0, Gigabit Ethernet, and Stereo audio/Microphone connectivity to your USB-C or USB 3.0 enabled computer or laptop. Compliant with mac^® system for M1 and M2

---

Features

Transforms a single USB-C or USB-A port with DisplayLink IC for your computer/laptop into multiple connections, with one 5K display or dual 4K displays, connect audio devices to create a great workstation and increase your productivity



---

4K/5K UHD Resolution
Supports Ultra HD video resolution up to a Single 5K (5120x2880) @60Hz display through two DisplayPort ports, and Dual 4K (3840x2160) @60Hz through two HDMI ports or two DisplayPort ports or a mixed and 5.1-ch. surround sound





Monitor Solution



---

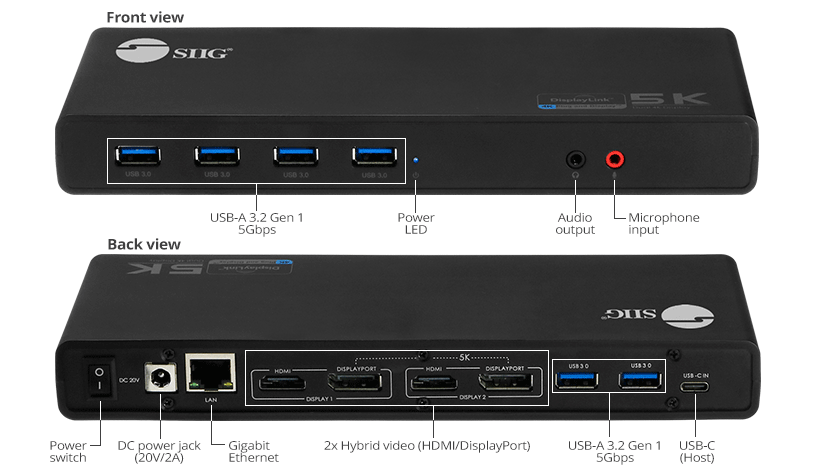

Multiple Connectivity Ports
Adds one USB-C input port (Host), two Hybrid video output ports (HDMI & DisplayPort,), six USB-A 3.2 Gen 1 (5Gpbs), one Gigabit Ethernet, one 3.5mm phone jack for connecting earphone or speaker, one 3.5mm phone jack for connecting microphone, one power switch button, and one DC 20V/2A power jack

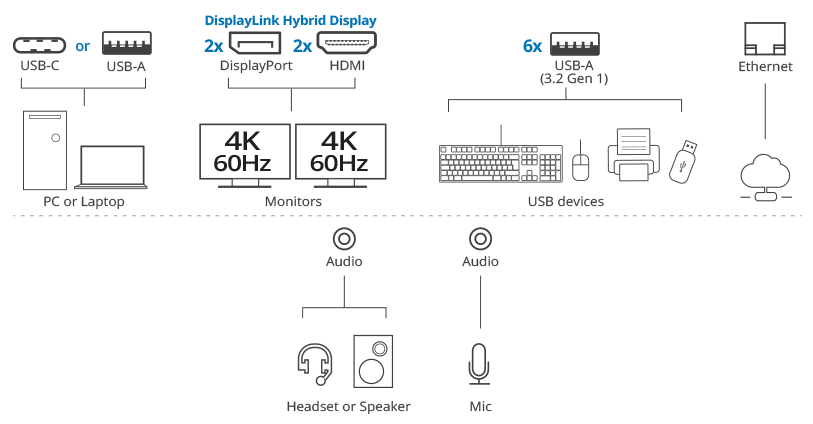

Connection



---

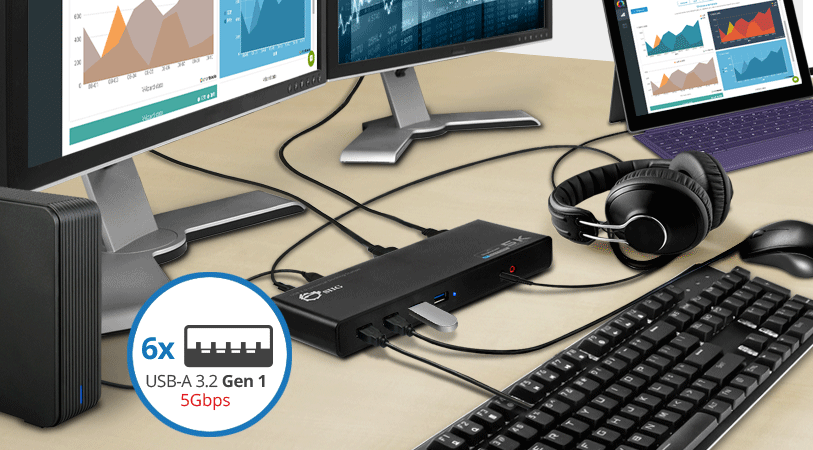

USB-A 3.2 Data Transfer
Provides six USB-A 3.2 Gen 1 ports with 5Gbps data transfer rate to enhance the performance and transfer capability of USB devices



---

1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port

Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

---

Audio/Mic
Supports one 3.5mm phone jack for 2 channel stereo audio and one 3.5mm phone jack for microphone connection

---

ABS Housing Design
Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button provides easy recognition of power status

---

Maximum Compatibility
Compatible with Windows 11^® (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) and macOS 12 / 11 / 10.15 to 10.13
* Note:
- macOS^® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- macOS^® only supports Mirror mode

---

Applications

• Office
• Workstation
• Home office
• Media editing center
• Web design studio
• Photo shooting studio
• Presentation room
• Meeting room
• Educational facilities
• Medical office
• Testing lab
• Financial service office

---

Need to Know Before Buying

1. Please confirm your computer is USB-C or Thunderbolt 3 or Thunderbolt 4. If you are not sure, please check the manual of the computer



2. Check the extended displays/monitors resolution that support [email protected] and have HDMI or DisplayPort port. If you are not sure, please check with the manual of the monitor



3. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop

4. Compliant with mac® system for M1 and M2

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	DL6950
Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
Software
OS Compatibility	Windows® 11 and macOS® 12 or new *Note: macOS® 10.13.4 to 10.13.6 is not supported
Video
HDMI	x2
DisplayPort	x2
Resolution	5K / 4K / 1080p / 1080i / 720p / [email protected] 60Hz
* Note: Connect both DisplayLink controlled DisplayPort output ports to a single 5K display/monitor
USB
USB 3.2 Gen 1	6x Type-A, up to 5Gbps data transfer rate, 5V/900mA
Audio
5.1 channel surround sound from HDMI/DisplayPort output ports
2 channel stereo audio from 3.5mm audio jack
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 20V/2A
UL Listed	E355343/Level: VI
Ethernet
Data transfer rate	up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Enterprise features	Wake on LAN and PXE boot *Note: Mac address pass-through not supported
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	8.78” (L) x 1.02” (H) x 3.15” (W)
Weight	0.75 lbs
Color	Black
Housing material	ABS
Unit Package
Dimensions	12.56” (L) x 2.44” (H) x 6.02” (W)
Weight	1.98 lbs
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
Warranty: 2 years limited
Country of origin: China

---

Interface



Input

• 1x 24-pin, USB-C with DP Alt mode, Female (Host)
• 1x 3.5mm phone jack, for microphone
• 1x DC power jack (DC 20V/2A)
• 1x Power switch button, On/Off

Output

• 2x 20-pin, DisplayPort with DisplayLink, Female
• 2x 19-pin, HDMI with DisplayLink, Female
• 6x 9-pin, USB-A 3.2 Gen 1, 5Gbps, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 1x 3.5mm phone Jack, for stereo audio

---

System Requirements

• Desktop or Laptop with an available USB-C or Thunderbolt 3 or Thunderbolt 4 port
• Compliant with mac® system for M1 and M2
• Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS® 12 / 11 / 10.15 to 10.13
  *Note: macOS^® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to 10.14 or later or stay with 10.13.3 and earlier

---

Package contents

• 1x USB 3.0 4K Dual Video Docking Station – USB-C
• 1x USB-C to USB-C cable, 3.3ft (1m)
• 1x USB-A to USB-C cable, 3.3ft (1m)
• 1x Driver CD
• 1x Power Adapter (20V/2A)
• 1x User Reference Guide
