USB-C Laptop Adjustable Stand with Dual MST Video Docking Station 4K - 4K30Hz+1080p - PD85W- Fits 10" to 17" laptops - Weights up to 13.23 lbs

• Features
• Applications
• Need to Know Before Buying

---

Overview

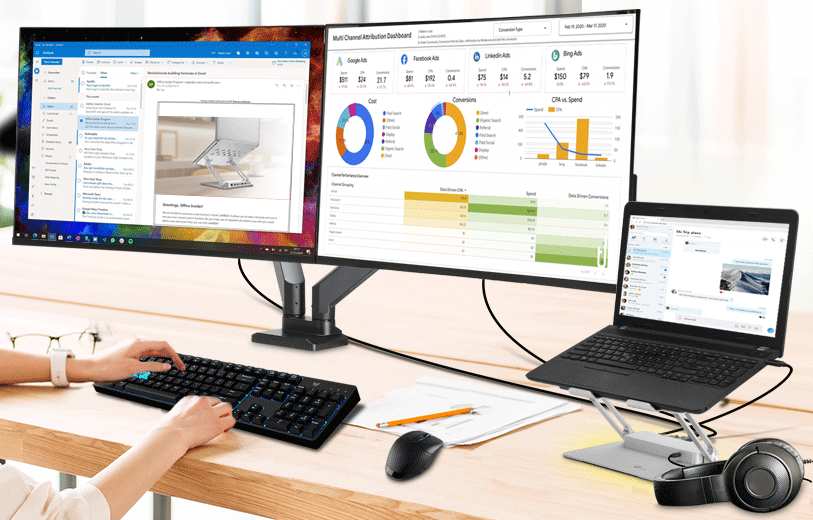

USB-C Laptop Stand with Dual MST Video Docking Station 4K , adds one 4K@30Hz + one 1080p displays, one USB-A and USB-C 5Gbps with 5V/1.5A, one USB-A 5Gbps, one Gigabit Ethernet, one 3.5mm Headset Jack, and USB Power Delivery charging up to 85W to Windows/Mac computers, fits 10" to 17" laptops, weights up to 13.23 lbs (6 kg)

---

Features

Create dual displays with MST technology and the perfect ergonomic viewing position with the USB-C DP 1.4 Alt mode laptop stand, detachable docking station, and PD 85W



---

Video Resolution

Supports one 4K (3840x2160) @30Hz + one 1080p @60Hz video resolution displays or one single 4K (3840x2160) @60Hz display to deliver stunning crystal-clear images/videos and 5.1-ch. surround sound



---

3 Display Modes

Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode for perfect visual displays
*Note: macOS^® only supports Mirror mode

---

Multiple Connectivity Port

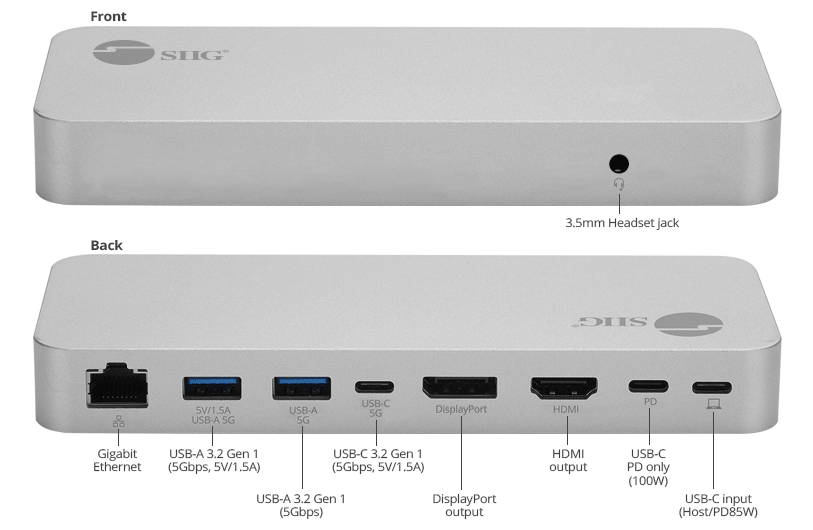

Comes with one USB-C with DP Alt mode and PD input ports (Host), one HDMI video output port, one DisplayPort video output port, one USB-A 5Gbps ports, one USB-A 5Gbps with 5V/1.5A charging port, one USB-C 5Gbps with 5V/1.5A charging port, one Gigabit Ethernet network port, one 3.5mm headset jack to connect Microphone and Stereo audio, and one USB-C PD charging port

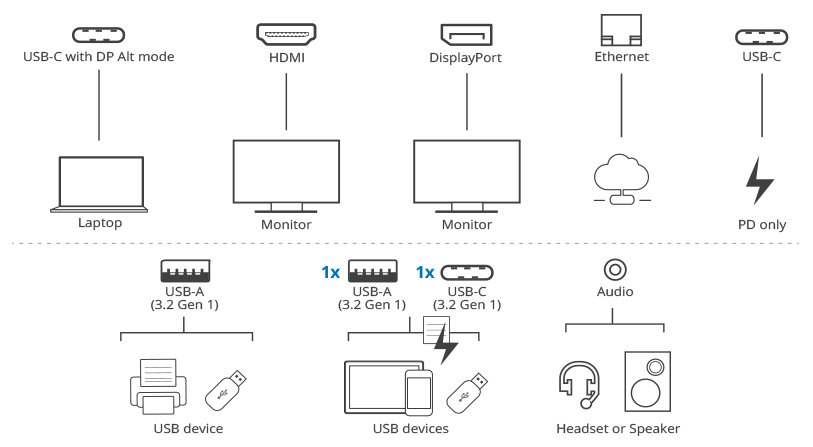

Connection



---

USB-C laptop stand with detachable Docking Station design

Allows you to use the docking station separated from or jointly with the laptop stand. The crafted slight track on the base keeps the docking station stayed firmly even when you move the stand



---

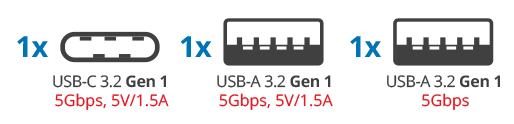

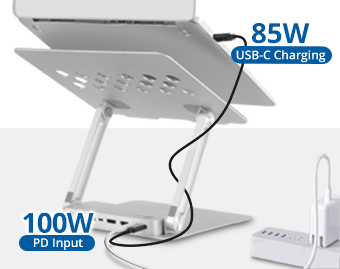

100W Power Delivery USB-C PD pass-through up to 100W input provides enough power for connected USB peripherals and charges your laptop up to 85W USB-C/USB-A Data Transfer Delivers one USB-A 5Gbps with 5V/1.5A charging port, one USB-C 5Gbps with 5V/1.5A charging port, and one USB-A 5Gbps port to enhance the performance and transfer capability of USB devices 1G Ethernet Data Transmission Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port 3.5mm Audio/Mic Jack Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection

---

Ergonomic Viewing Position

Positions your laptop from 1.4” to 11.8” above the desk and panel angle from 0 to 70 degrees to the best ergonomic positioning, reducing eyes strain and fatigue. Can be also folded down for easy storage



---

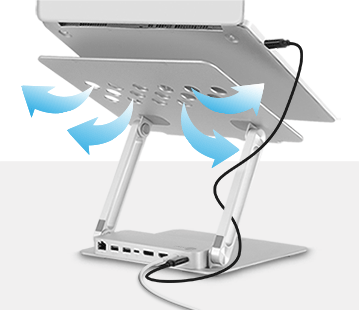

Cooling Design Aluminum panel with ventilation holes improve heat dissipation to keep your laptop cooler and running efficiently. Rubber pads and two front tabs promote stability Fits Laptop Size This laptop adjustable stand fits 10”-17” laptops such as MacBook Pro/Air and Windows. Aluminum precision finishing provides superior quality and solid stability to load up to 13.23 lbs (6kg) weight on top Maximum Compatibility Compliant with mac® M1 and M2 systems for single extend video output Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) and MacOS®. Supports Plug-n-play and no driver installation required *macOS® system for DP or HDMI video output

---

Adjust the Height and Angles which Suit You Better

1. When you open the box the first time, the laptop stand is fully folded in the package, hold and press down gently to the base of the laptop stand with one hand, and lift the platform up to raise the height ( image 1 and 2)
2. Keep pressing gently the base of the stand, and hold the other side of the platform to lift the brackets to the height which suit your eye angle and sitting posture. (image 3 and 4)



---




Comparison Table

SKU	CE-MTDK11-S1	JU-DK0N11-S1	JU-DK0R11-S1	JU-DK0D11-S1	JU-DK0E11-S1	JU-DK0F11-S1
Number of Displays	2	2	2	3	3	2
Input	USB-C (with DP Alt mode/ Thunderbolt 3)	USB-C (with DP Alt mode/ Thunderbolt 3)	USB-C (with DP Alt mode/ Thunderbolt 3)	USB-C (with DP Alt mode/ Thunderbolt 3)	USB-C (with DP Alt mode/ Thunderbolt 3)	USB-C (with DP Alt mode/ Thunderbolt 3)
Output	1x HDMI/ 1x DisplayPort	2x HDMI	2x HDMI/ 1x DisplayPort	1x HDMI / 1x DisplayPort / VGA	1x HDMI / 1x DisplayPort / VGA	1 HDMI / 1x DisplayPort
Resolutions	Dual 4K 30Hz+1080p 60Hz/ Single 4K 60Hz	Dual 4K 60Hz (DP 1.4 DSC)/ Single 4K 60Hz	Triple 1080p 60Hz/ Dual 4K 30Hz+1080p 60Hz/ Single 4K 60Hz	Triple 720p 60Hz, Dual 1080p 60Hz, Single 4K 30Hz (VGA: 1080p 60Hz)	Triple 720p 60Hz, Dual 1080p 60Hz, Single 4K 30Hz (VGA: 1080p 60Hz)	Dual 1080p 60Hz, Single 4K 30Hz
USB-A	1x USB 10G/ 1x USB 5G	2x USB 10G (5V/1.5A) / 1x USB 5G	3x USB 5G/ 1x USB 5G (5V/1.5A)	2x USB 5G	2x USB 5G, 1x USB 480mb	2x USB 5G
USB-C	1x USB-C 10G	1x USB-C 10G(5V/1.5A)/ 1x USB-C 10G Data	1x PD 3.0 Charging	1x data transmission, 1x PD 3.0 charging	1x PD 3.0 charging	1x PD 3.0 charging/data transmission
PD 3.0 Charging	85W	60W	60W	100W	100W	100W
Gigabit Ethernet	✓	✓	✓	✗	✓	✓
Additional Features	Laptop Stand/ 3.5mm Audio	SD & Micro SD Memory Card Slots/ 3.5mm Audio	SD & Micro SD Memory Card Slots/ 3.5mm Audio	Portable/ Removable Cable	3.5mm stereo audio jack, SD slot, Micro SD slot, Laptop stand & Smart phone holder	-
Compatibility	Windows 11/ 10, ChromeOS	Windows 11/ 10, ChromeOS	Windows 11/ 10, ChromeOS	Windows 11/ 10, ChromeOS	Windows 11/ 10, ChromeOS	Windows 11/ 10, ChromeOS

---

Applications

• Office	• Home office	• Workstation	• Medical office	• Media editing	• Photo shooting studio
• Meeting room	• Receiption room	• Testing lab	• Library	• Classroom

---

Need to Know Before Buying

1. Please make sure your computer side is 10" -17" and has a Thunderbolt 3/4 or USB-C port with DP 1.4 Alt mode



2. Ensure the USB-C input port supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
*Note: Not all USB-C ports support the full functionality of the USB-C standard

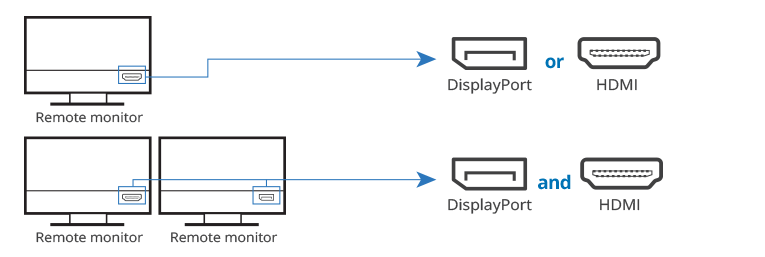

3. Check the extended displays/monitors has DisplayPort or HDMI port and support 4K@60Hz video resolution for single monitor or one 4K@30Hz  + one 1080p@60Hz video resolution for dual monitors. If not sure, please check on manual of monitor



4. Before charging your laptop, notebook, tablet, or smartphone, please check your cable with power delivery 3.0, then it can handle up to 85W PD charging and up to 100W input using a full-featured USB-C

5. macOS only supports one extended monitor and up to 4K@60Hz video resolution. If extends two monitors, then the second monitor will be the same content as the first monitor

---

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	RTD2142+VL817+VL03B+RTL8153 Compliant with Universal Serial Bus 3.2, 3.0 and 2.0 specifications
Software
OS Compatibility	Windows® 11 / 10 and macOS® * macOS® 10.13.4 to 10.13.6 is not supported * Compliant with mac® M1 and M2 systems for single extend video output
Video
DisplayPort	x1, with MST technology, 4K@60Hz, cable up to 3M
HDMI	x1, with MST technology, 4K@60Hz, cable up to 5M
Resolution	Single monitor: 4K@60Hz; Dual monitors: one 4K@30Hz + one 1080p@60Hz
* macOS® system for DP or HDMI video output
Display Mode
Mirror, Extended, Primary video modes (* MacOS ® only supports Mirror mode)
USB
USB-C	x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A	x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A	x1, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port	Yes
Audio
7.1 channel surround sound from DisplayPort/HDMI output
2 channel stereo audio & microphone from 3.5mm headset jack
Power Adapter
Power Delivery 3.0	Up to 85W via USB-C port (Host)
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity:	20% to 90% RH (non-condensing)
Product Info
Laptop Stand	Dimensions: 10.83” (L) x 6.18” (H) x 8.54" (W) Weight: 13.23 lbs (6kg) Color: silver Housing material: Aluminum
Docking Station	Dimensions: 6.48” (L) x 0.78” (H) x 2.56" (W) Weight: 2.51lbs Color: silver Housing material: Aluminum
Unit package	Dimensions: 12.99" (L) x 2.26" (H) x 10.63" (W) Weight: 3.00 lbs
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
UPC Code: 662774-045375
Warranty: 2 years limited
Country of origin: China

---

Interface



Input:

• 1x 24-pin, USB-C 5Gbps, Female (Host)
• 1x 24-pin, USB-C 5Gbps with 5V/1.5A, Female
• 1x 9-pin, USB-A 5Gbps with 5V/1.5A, Female
• 1x 9-pin, USB-A 5Gbps, Female
• 1x 24-pin, USB-C charging, PD only (100W)

Output:

• 1x 19-pin, HDMI with MST, Female
• 1x 20-pin, DisplayPort with MST, Female
• 1x 8-pin, Gigabit Ethernet, RJ45
• 1x 3.5mm headset jack, stereo audio & mic

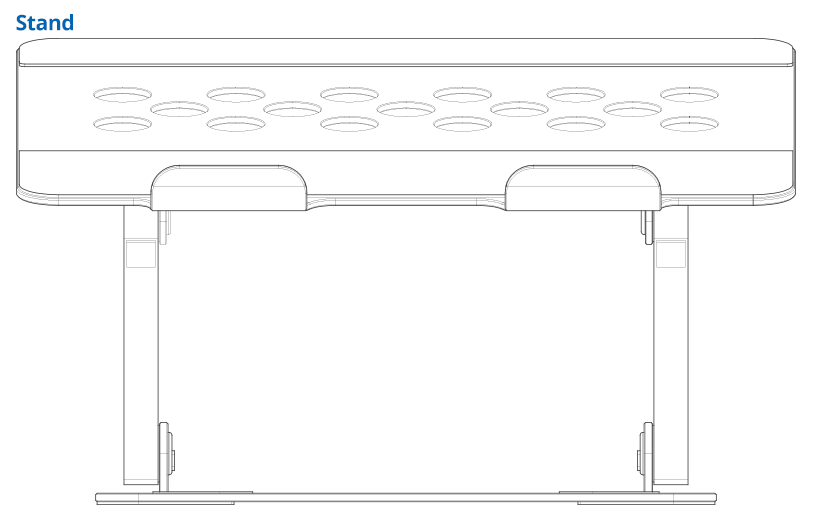

• 1x Laptop adjustable stand

---

System Requirements

• PC or laptop computer with available USB 3.2 Gen 1 Type-C with DP 1.4 Alt mode or Thunderbolt 3/4 port
• Compliant with mac^® M1 and M2 systems for single extend video output
• Windows^® 11 / 10
• macOS^® will recognize MST function as a single display (Mirror mode)

---

Package contents

• 1x USB-C Laptop Adjustable Stand with Dual 4K MST Video Docking Station
• 1x USB 3.2 Gen 1 Type-C to Type-C cable
• 4x Rubber pad
• 1x User Reference Guide
