2-Port HDMI Dual-Head Console KVM Switch with USB 2.0

  • HDMI In
  • HDCP 2.2
  • DP 1.2 In
  • HDMI Dual View
  • 18G
  • 4K60Hz
  • 4x USB 2.0
  • USB Keyboards & Mouse
  • 3.5mm Audio & Mic
  • Switch Button
  • Hotkey
  • Auto Screen
  • Auto EDID
  • Reset Button
  • LED Indicators
  • Windows & mac
In stock
Quantity in stock: 45
SKU
CE-KV0911-S1
$299.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Control 4K dual view HDMI display computer via HDMI and DisplayPort video input ports with one keyboard, mouse, with microphone input and stereo audio output and dual HDMI outputs for extended, mirror, primary dual display capabilities. TAA compliant


    Features

    Create dual displays workstation with one set of keyboard and mouse to control one 4K HDMI and DisplayPort computer or device with USB 2.0 and microphone to make your work more efficient

    Overview

    KVM


    Dual-Head Design

    Allows you to connect two HDMI video output ports on the same source/computer

    Mode


    4K High Resolution

    Supports two true Ultra-HD 4K (3840x2160) @60Hz HDMI video resolution to deliver stunning and crystal-clear images/videos

    Resolution


    Effortless Switch

    Easily switching between computer/device via the front panel select button, or USB keyboard hotkeys make this 2-Port HDMI 2.0 Dual-Head Console KVM Switch with USB 2.0 user-friendly to operate

    Switch

    *Note: Hotkey controls are only available on Windows system


    High Performance

    Offers a true 18Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported

    Performance

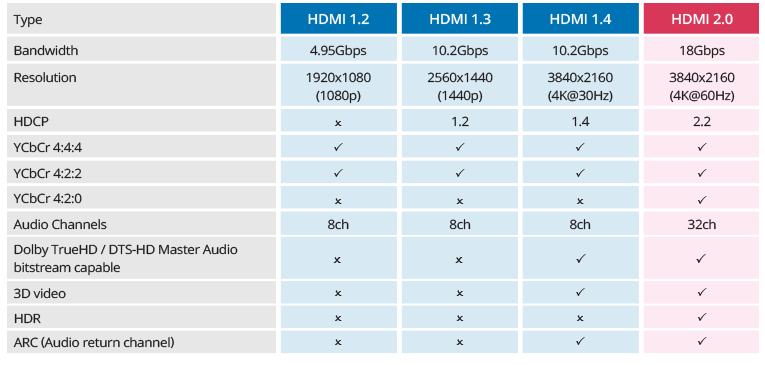

    HDMI list


    Multiple Connectivity Port

    ports

    Comes with two USB 2.0 Type-B input ports (Host), two HDMI video input ports, two DisplayPort 1.2 video input ports, two HDMI video output ports, two USB 2.0 HID Devices for connecting Keyboard and Mouse, two USB 2.0 ports for connecting USB peripheral, such as flash drives, printer, hard disk…, four 3.5mm phone/audio jack to connect Microphone and Stereo audio, one switch button, and Reset button


    Connection

    Connection


    USB

    High-Speed Data Transfer

    Delivers four USB 2.0 Type-A 480Mbps data transfer rate, allows sharing of Keyboard & Mouse, and USB peripherals such as pen drives, printers, hard disks... Compliant with USB 1.1 specifications


    Maximum Compatibility

    Supports Plug-n-Play and no driver installation required. Auto EDID (bypass) design maximizes form OS to display


    TAA Compliant

    Completely manufactured in a TAA designated country


Applications

    • Video editing• Data center• Medical office• Educational facilities• Control room• Testing lab
    • Workstation• Web design studio• Office• Photo shooting studio• Audio/Video presentation room

    Need to Know Before Buying

    1. Please confirm that your 2 computers have HDMI, DisplayPort 1.2 port, USB 2.0 Type-A ports (or USB 2.0 Type-B), Audio and Microphone ports; or 2 devices with HDMI ports

    computer

    2. Check the extended two displays/monitors resolution that support 4K @60Hz and have HDMI port. If not sure, please check on manual of monitor

    monitor

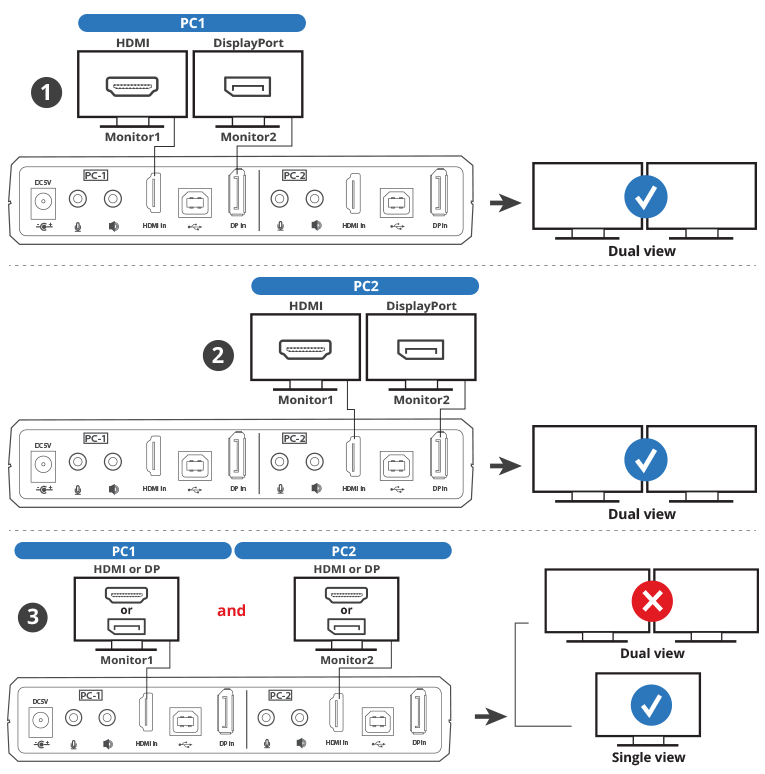

    3. Please note that one PC needs to be connected to DisplayPort and HDMI input ports at the same time. If one PC is only connected to an HDMI input port, then there is one HDMI display

    two

    4. Two HDMI cables or DisplayPort cables are required to connect to the HDMI computer or devices


    Specifications

    Software
    OS Compatibility Windows® or mac OS®
    Video
    HDMI (In/Out) HDCP 2.2, 3D, Deep color
    Resolution: up to 3840x2160@60Hz YUV 4:4:4 8-bit
    HDR 3840x2160@60Hz YUV 4:2:0 10-bit
    DisplayPort 1.2 (In) Resolution: up to 3840x2160@60Hz YUV 4:4:4 8-bit
    Bandwidth HDMI: Single-link 594MHz, Up to 18Gbps
    USB 2.0 4x Type-A, up to 480Mbps
    Audio
    7.1 channel surround sound from HDMI port
    PCM 2.1 channel stereo digital audio for 3.5mm audio jack
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 5V/2A
    UL Listed E168210 /Level: VI
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 0% to 80% RH (non-condensing)
    Product Info
    Dimensions 6.57” (L) x 1.28” (H) x 3.27” (W)
    Weight 0.51 lbs
    Color Black
    Housing material Plastic
    Unit Package
    Dimensions 12.60” (L) x 2.48” (H) x 8.66” (W)
    Weight 2.55 lbs
    Certifications/Standards
    FCC, CE, RoHS, TAA compliant
    Warranty: 2 years limited
    Country of origin: Taiwan

    Interface

    Interface

    Input:

    • 2x 4-pin, USB 2.0 Type-B, Female (Host)
    • 2x 19-pin, HDMI, Female
    • 2x 20-Pin, DisplayPort 1.2, Female
    • 2x 4-pin, USB 2.0 Type-A, Female (for Keyboard & Mouse)
    • 2x 4-pin, USB 2.0 Type-A, Female (for USB devices)
    • 2x 3.5mm Stereo audio jack, Female
    • 1x 3.5mm Microphone jack, Female
    • 1x Switch button
    • 1x Reset button
    • 1x DC power jack, 5V/2A

    Output:

  • 2x 19-pin, HDMI, Female

  • 1x 3.5mm Stereo audio jack, Female

  • 2x 3.5mm Microphone jack, Female

    System Requirements

    • Desktop or Laptop with an available HDMI, DisplayPort 1.2, USB 2.0 Type-A, audio and microphone ports
    • Compliant with Windows or Mac system

    Package contents

    • 1x 2-Port HDMI Dual-Head Console KVM Switch with USB 2.0
    • 1x DC 5V/2A Power Adapter
    • 2x HDMI 2.0 cable (1.2m)
    • 2x DisplayPort cable (1.2m)
    • 2x USB 2.0 Type-A to Type-B cable
    • 2x Audio and Microphone cable
    • 1x User Reference Guide

Manuals

04-1321a.pdf Download manual

Frequently Asked Questions (Q&A)

Q: Does this KVM support special multimedia keys on a keyboard like buttons for play/pause, volume control, mute etc.?

Yes, it supports the special multimedia keys on a keyboard, such as play/pause, volume control, mute etc.

Q: Can I use it to share a HD Webcam between computers?

Yes, it can share a USB Webcam, but the video will disconnect when switching. It can only be connected to one PC at once

Q: Both PC's are connected via HDMI to the KVM's input. Both monitors, are connected to the KVM's HDMI output using HDMI to HDMI cables. Why only one HDMI output works?

Because one PC needs to be connected to DisplayPort and HDMI input ports (two pairs of inputs) at the same time. If one PC is connected to an HDMI input port, then there is only one HDMI display

Q: Can I use the KVM to display both two connected PC on HDMI output-1 & HDMI output-2?

No, this KVM can only output two screens of one PC at once. It cannot display the screen of two PCs at once
