2x1 Dual View USB HDMI KVM Switch - 4K, Dual Display or Extended Display

Overview

Features Applications Need to Know Before Buying Overview Control two 4K HDMI computers with one keyboard, mouse, with microphones input and dual display output for extended or dual display function Features Create a dual display workstation with one set of keyboard and mouse to control two 4K HDMI computers or devices with USB 2.0 and microphone to make your work more efficient Effortlessly Switch Easily switching between computer/device via the front panel select button, IR remote control, or USB keyboard hotkeys make this 2x2 Dual View USB HDMI KVM Switch user-friendly to operate High Resolution Supports high definition [email protected] video resolution to deliver stunning and crystal clear images/videos High Performance Offers a true 10.2Gbps video bandwidth and supports 5.1ch surround sound or stereo audio. PCM, Dolby TrueHD, DTS-HD Master audio also supported Multiple Connectivity Port Comes with four HDMI video input ports, two HDMI output port, two USB 2.0 Type-B ports for computers/devices, three USB 2.0 Type-A ports for connecting keyboard/mouse and USB peripheral such as flash drives or printers…, and three 3.5mm phone jack to connect microphone Connection SuperSpeed Data Transfer Delivers three USB 2.0 Type-A 480Mbps data transfer rate, allows sharing of USB peripherals such as pen drives or printers. Compliant with USB 1.1 specifications High-Quality Circuit Design With external power adapter provides smooth and reliable performance Easy Installation Supports Plug-n-play and no driver installation required Metal Housing Design Protects the inside PCBA, also effectively reduces electromagnetic interference while offering rapid heat dissipation for stable operation and long service life Applications Educational facilities Retail stores Media editing Workstation Control center Reception desk Hospital Audio/Video presentation room Need to Know Before Buying 1. Please conﬁrm that your 2 computers have HDMI port, USB 2.0 Type-A port, and Microphone port or 2 devices have HDMI port 2. Check the extended display/monitor resolution that supports 4K @30Hz and has HDMI port (check on manual of monitor) 3. Three USB 2.0 cables are required to connect to the USB peripheral devices * Not support Dynamic Device Mapping (DDM) fast switching

Specifications

Interface
System Requirements
Package Contents

Specifications

Hardware
Chipset	Sil9687, GL850G
Software
OS Compatibility	Windows®, mac OS®
Video

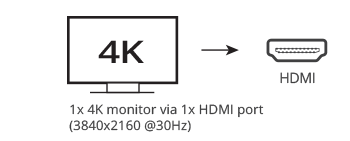

HDMI	3840x2160 @30Hz, HDCP 1.4, 3D
Bandwidth	up to 10.2Gbps
HDMI frequency	up to 300MHz (up to 3Gbps)
Video cable length	HDMI: 4K: up to 2 meters; 1080p: up to 5 meters
USB 2.0	3x Type-A, up to 480Mbps, Compliant with USB 1.1 specifications
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 5V/3A
UL Listed	E480963/Level: VI
Audio
5.1 channel surround sound
PCM 2.1 channel stereo digital audio
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	6.69” (L) x 1.77” (H) x 2.99” (W)
Weight	1.9 lbs
Color	Black
Housing material	Metal
Unit Package:	Dimensions: 11.02" (W) x 2.55" (H) x 7.08" (D) Weight: 2.27 lbs
Unit Package:	IR remote control
Working	distance: up to 5 meters
Battery	CR2025
Certifications/Standards
FCC, CE, RoHS, Cable UL Listed: E465682
Warranty: 2 years limited
Country of origin: China
